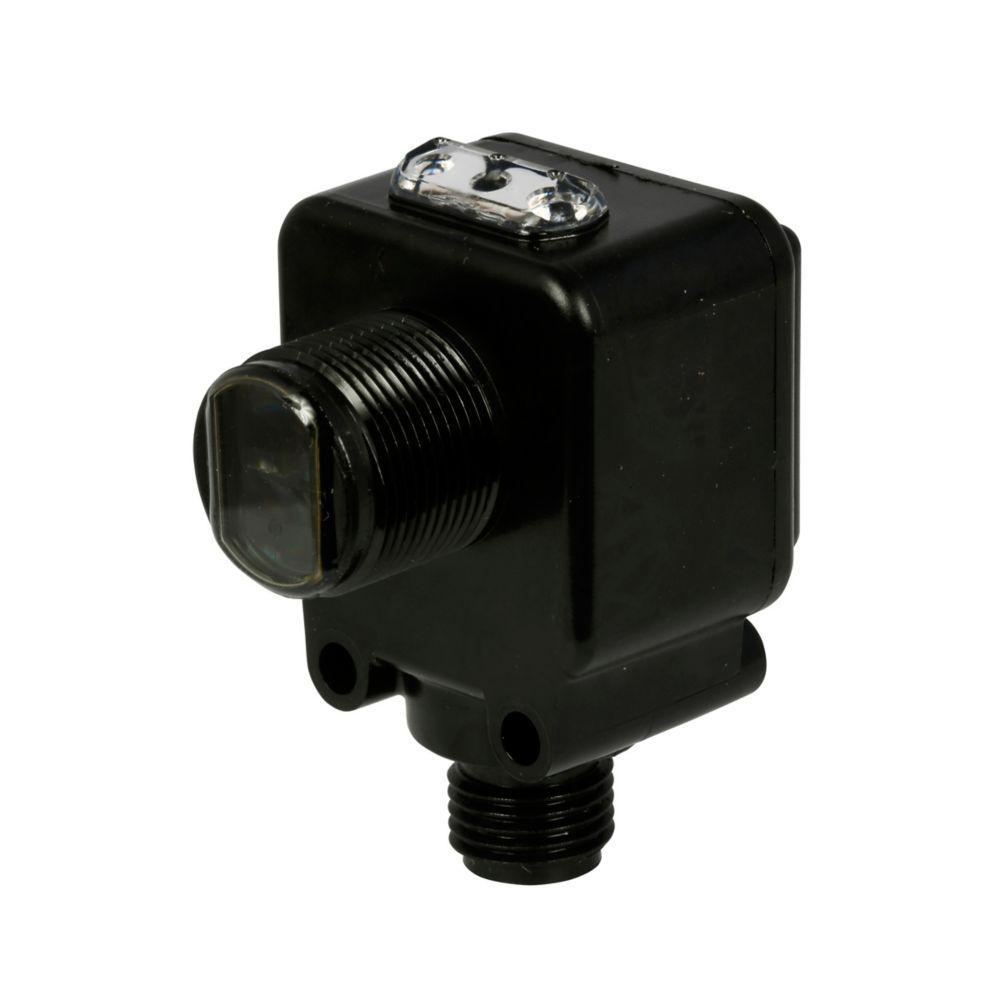

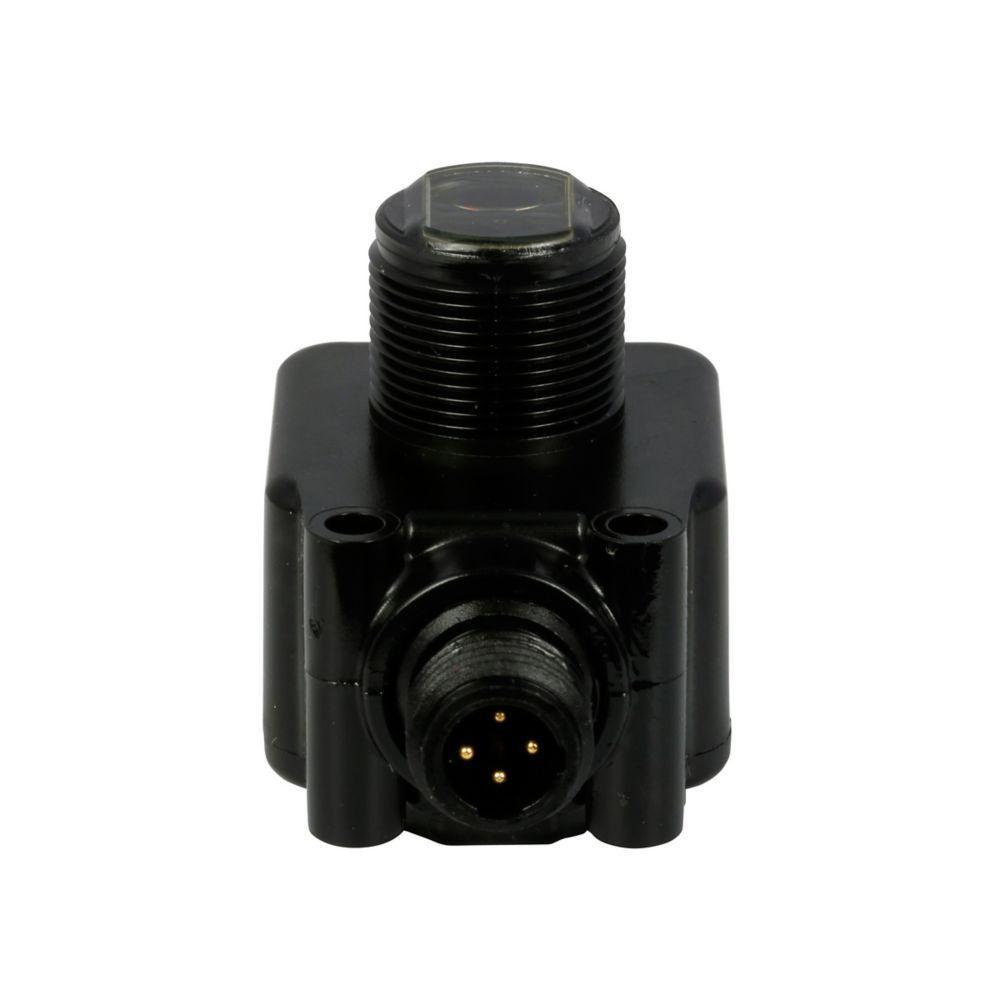

E65-SMPR3-GLD CH SENSOR, POL. RETRO, 3 M, AC/DC 3 W, CONN., LIGHT OPERATE

Mouse over image to zoom, click to enlarge

  • E65-SMPR3-GLD CH SENSOR, POL. RETRO, 3 M, AC/DC 3 W, CONN., LIGHT OPERATE
  • E65-SMPR3-GLD CH SENSOR, POL. RETRO, 3 M, AC/DC 3 W, CONN., LIGHT OPERATE
  • E65-SMPR3-GLD CH SENSOR, POL. RETRO, 3 M, AC/DC 3 W, CONN., LIGHT OPERATE
  • E65-SMPR3-GLD CH SENSOR, POL. RETRO, 3 M, AC/DC 3 W, CONN., LIGHT OPERATE

Description: EATON TargetLock™ Photoelectric Sensor, Forward Viewing Small Size, Series: SM Series, Rectangle Shape, Polarized Retroreflective Sensing Method, 10 ft Sensing, Red Laser Sensing Beam, 1 ms Response, 10 Output, 18 to 264 VAC, 18 to 50 VDC, 200 mA, 50/60 Hz Frequency, Dual Key Micro/M12 Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.17 in L x 1.63 in W x 1.29 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K Enclosure, -13 to 131 deg F Operating, Surface Mounting

Manufacturer PN: E65-SMPR3-GLD

UPC:  78211475358

Kendall Electric Inc PN: 2475710

Invoice Description:

E65-SMPR3-GLD CH SENSOR, POL. RETRO, 3 M, AC/DC 3 W, CONN., LIGHT OPERATE


SPEC SHEET

▸ See All in Reflex-Reflective, Block Style


How Can We Make This Page Better?

EATON TargetLock™ E65-SMPR3-GLD Forward Viewing Small Size Photoelectric Sensor, Rectangle Shape, 10 ft, Red Laser Sensing Beam, 1 ms Response, AC L1 Switch/DC NPN Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The SM series provides high performance and ease of use in an economical, compact package. A sensor can have the greatest performance in the world, but if it is slightly misaligned or the target is positioned at the wrong range, you will have reliability problems sooner or later. TargetLock not only simplifies sensor setup but visually confirms your sensor is positioned to operate with the highest possible reliability. In addition, TargetLock provides diagnostic information during use to inform you of impending problems before they result in equipment downtime.
EATON TargetLock™ Photoelectric Sensor, Forward Viewing Small Size, Series: SM Series, Rectangle Shape, Polarized Retroreflective Sensing Method, 10 ft Sensing, Red Laser Sensing Beam, 1 ms Response, 10 Output, 18 to 264 VAC, 18 to 50 VDC, 200 mA, 50/60 Hz Frequency, Dual Key Micro/M12 Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.17 in L x 1.63 in W x 1.29 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K Enclosure, -13 to 131 deg F Operating, Surface Mounting

Specifications

 Amperage Rating 200 mA
 Application Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs - Other Applications
 Brand Name EATON
 Connection Type Dual Key Micro/M12
 Enclosure NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K
 Frequency Rating 50/60 Hz
 Manufacturer Part Number E65-SMPR3-GLD
 Mounting Type Surface
 Operating Temperature -13 to 131 deg F
 Output Type AC L1 Switch/DC NPN Open Collector
 PART NUMBER KEYWORDS E65-SMPR3-GLD ; E65SMPR3GLD ; 7407895 ; 782114753583 ; 78211475358 ; 00782114753583
 Response Time 1 ms
 Sensing Beam Red Laser
 Sensing Method Polarized Retroreflective
 Sensing Range 10 ft
 Series SM Series
 Shape Rectangle
 Size 2.17 in L x 1.63 in W x 1.29 in H
 Standards/Approvals UL Listed,cUL Listed,CE Marked
 Type Forward Viewing Small Size
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 18 to 264 V AC/18 to 50 V DC

Features

▪ Light dark operating mode
▪ Auto-reset short circuit protection
▪ Highly visible LED indicators for power, output and alignment (TargetLock™)
▪ TargetLock™ simplifies setup and ensures that the sensor operates at the highest level of reliability possible
▪ Compact size to fit in tight spaces
▪ Visible beam on all models lets you see exactly where the sensor is pointing
▪ Multiple mounting options including industry standard 18 mm threads
▪ Reverse polarity, overload and short-circuit protection on all models
▪ Cycoloy® body, PVC cable and polycarbonate lens
▪ Green power red output and orange TargetLock™ indicator LED's
▪ 10000 ft-candles sunlight immunity
