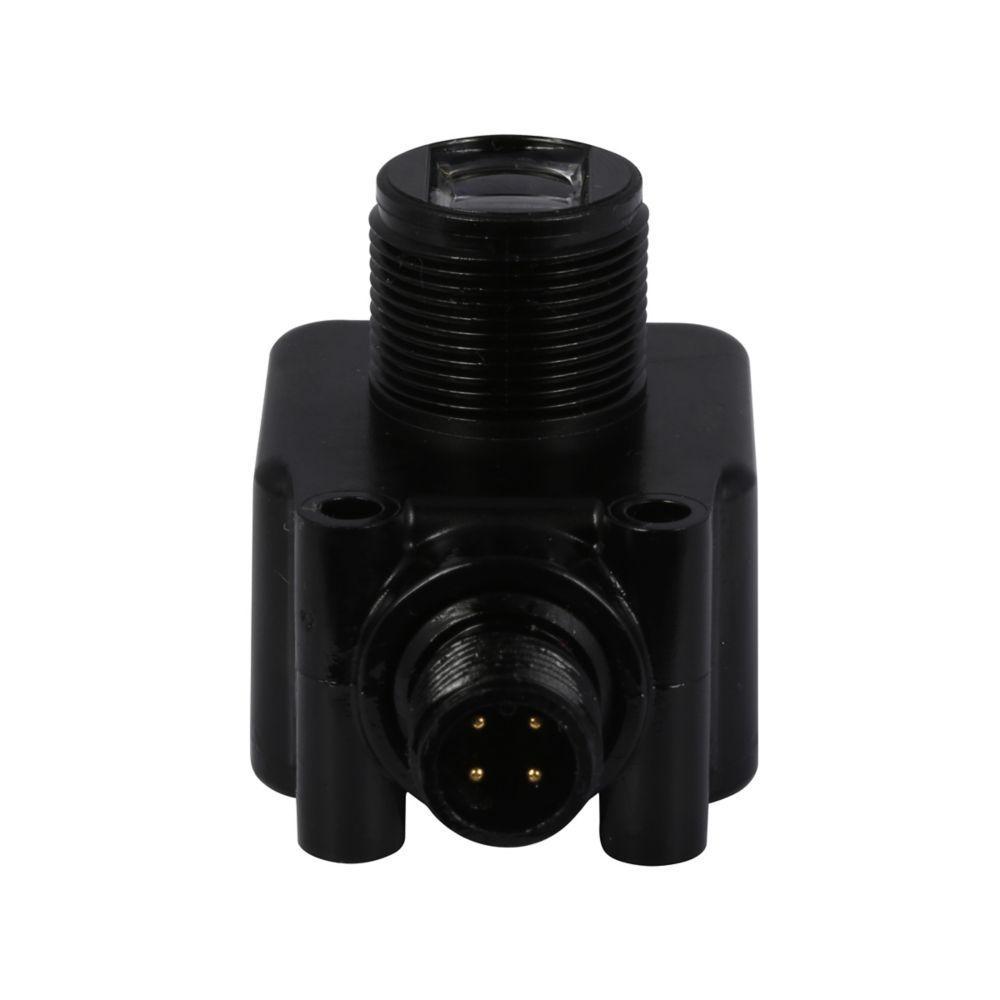

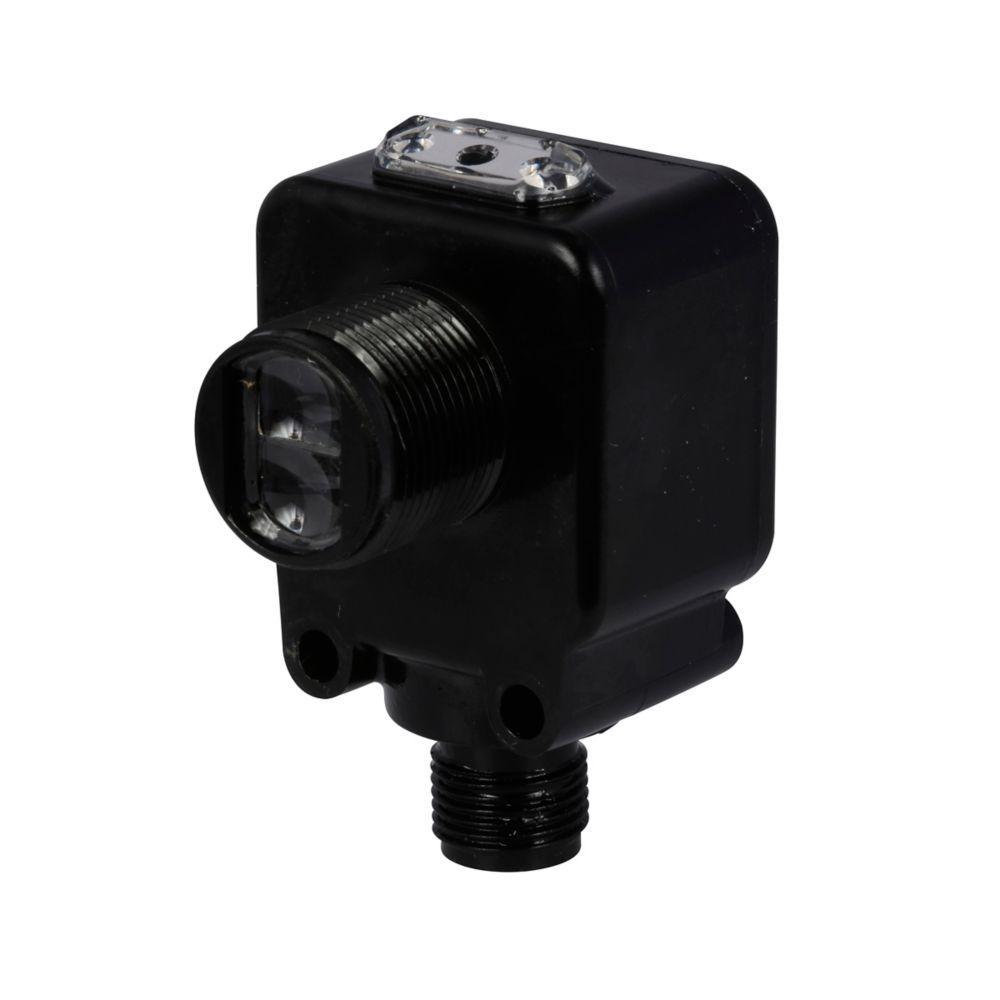

E65-SMPP100-HLD CH SENSOR, PERFECT PROX, 100MM, DC, CONN., LIGHT OPERATE

Mouse over image to zoom, click to enlarge

  • E65-SMPP100-HLD CH SENSOR, PERFECT PROX, 100MM, DC, CONN., LIGHT OPERATE
  • E65-SMPP100-HLD CH SENSOR, PERFECT PROX, 100MM, DC, CONN., LIGHT OPERATE
  • E65-SMPP100-HLD CH SENSOR, PERFECT PROX, 100MM, DC, CONN., LIGHT OPERATE

Description: EATON Perfect Prox® Miniature Photoelectric Sensor, Series: SM-Series, Rectangle Shape, Background Suppression Sensing Method, 4 in Sensing, Visible Red Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output, 10 to 30 VDC, 100 mA, 6.6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.17 in L x 1.29 in W x 1.47 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: -13 to 158 deg F Storage Temperature

Manufacturer PN: E65-SMPP100-HLD

UPC:  78211478648

Kendall Electric Inc PN: 2261622

Invoice Description:

E65-SMPP100-HLD CH SENSOR, PERFECT PROX, 100MM, DC, CONN., LIGHT OPERATE


SPEC SHEET

▸ See All in Photoelectric Specialty Sensors


How Can We Make This Page Better?

EATON Perfect Prox® E65-SMPP100-HLD Miniature Photoelectric Sensor, Rectangle Shape, 4 in, Visible Red Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The SM series provides high performance and ease of use in an economical, compact package. A sensor can have the greatest performance in the world, but if it is slightly misaligned or the target is positioned at the wrong range, you will have reliability problems sooner or later. TargetLock not only simplifies sensor setup but visually confirms your sensor is positioned to operate with the highest possible reliability. In addition, TargetLock provides diagnostic information during use to inform you of impending problems before they result in equipment downtime.
EATON Perfect Prox® Miniature Photoelectric Sensor, Series: SM-Series, Rectangle Shape, Background Suppression Sensing Method, 4 in Sensing, Visible Red Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output, 10 to 30 VDC, 100 mA, 6.6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.17 in L x 1.29 in W x 1.47 in H Size, NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: -13 to 158 deg F Storage Temperature

Specifications

 Amperage Rating 100 mA
 Application Packaging Machines, Conveyors and Other Material Handling Equipment, Food Processing Equipment, Assembly Machines, Pharmaceutical Machines, Electrical Assemblies, Panels and EOEMs - Other Applications
 Brand Name EATON
 Connection Type 6.6 ft Cable
 Enclosure NEMA 1/3/4/4X/6/6P/12/13/IP68/IP69K
 Environmental Conditions -13 to 158 deg F Storage Temperature
 Manufacturer Part Number E65-SMPP100-HLD
 Operating Temperature -13 to 131 deg F
 Output Type NPN/PNP Open Collector
 Response Time 1 ms
 Sensing Beam Visible Red
 Sensing Method Background Suppression
 Sensing Range 4 in
 Series SM-Series
 Shape Rectangle
 Size 2.17 in L x 1.29 in W x 1.47 in H
 Standards/Approvals CE Marking|cUL Listed|UL Listed
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 10 to 30 VDC

Features

▪ Highly visible LED indicators for power, output and alignment (TargetLock™)
▪ TargetLock™ simplifies setup and ensures that the sensor operates at the highest level of reliability possible
▪ AC/DC models operate on either 18 to 264 VAC or 18 to 50 VDC
▪ Visible beam on all models lets you see exactly where the sensor is pointing
▪ Compact size to fit in tight spaces
▪ Multiple mounting options including industry standard 18 mm threads
▪ Reverse polarity, overload and short-circuit protection on all models
▪ Full family includes thru beam, polarized reflex, diffuse reflective and perfect prox background rejection
