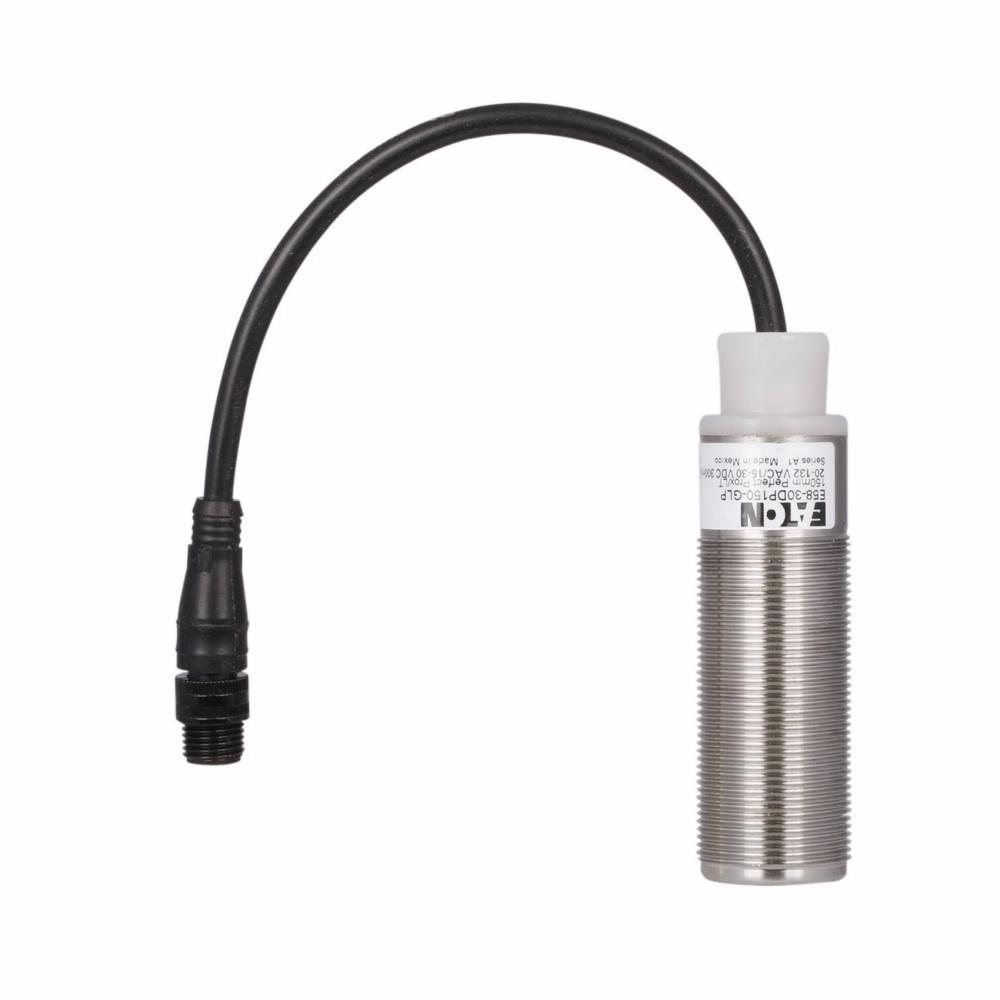

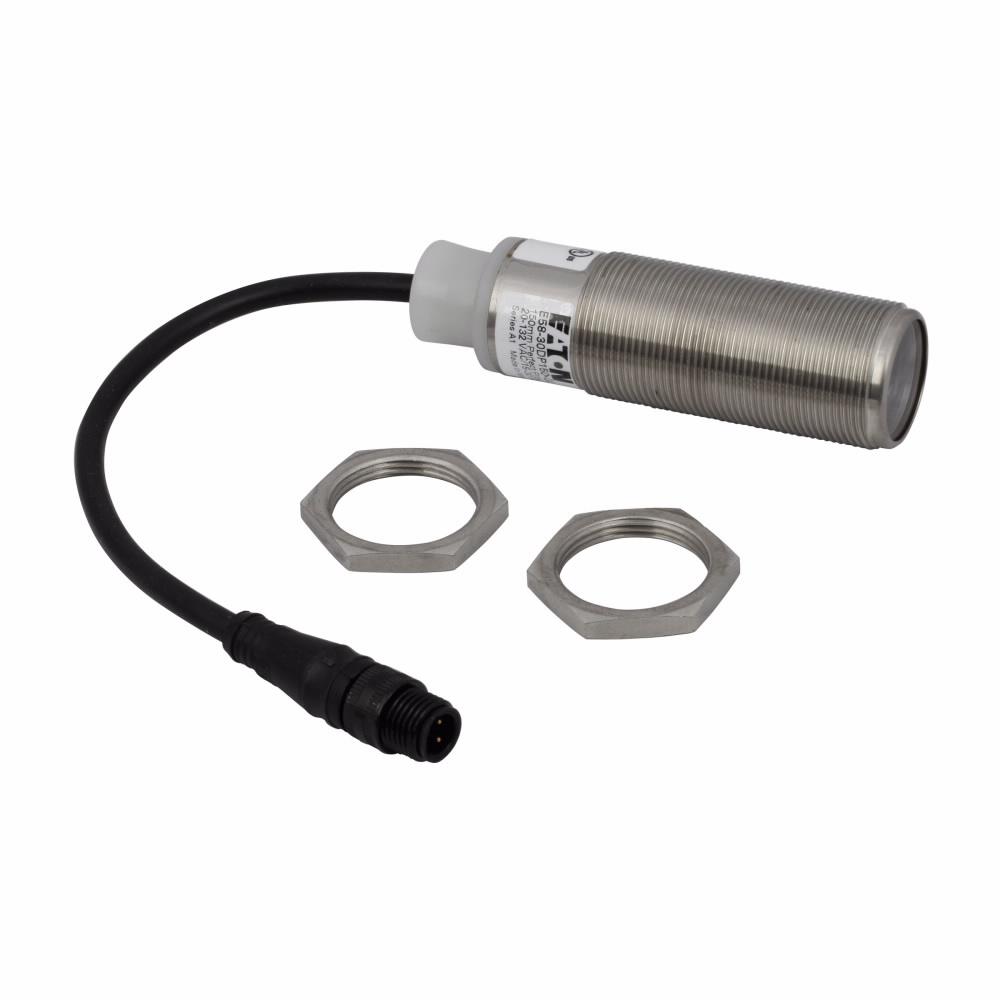

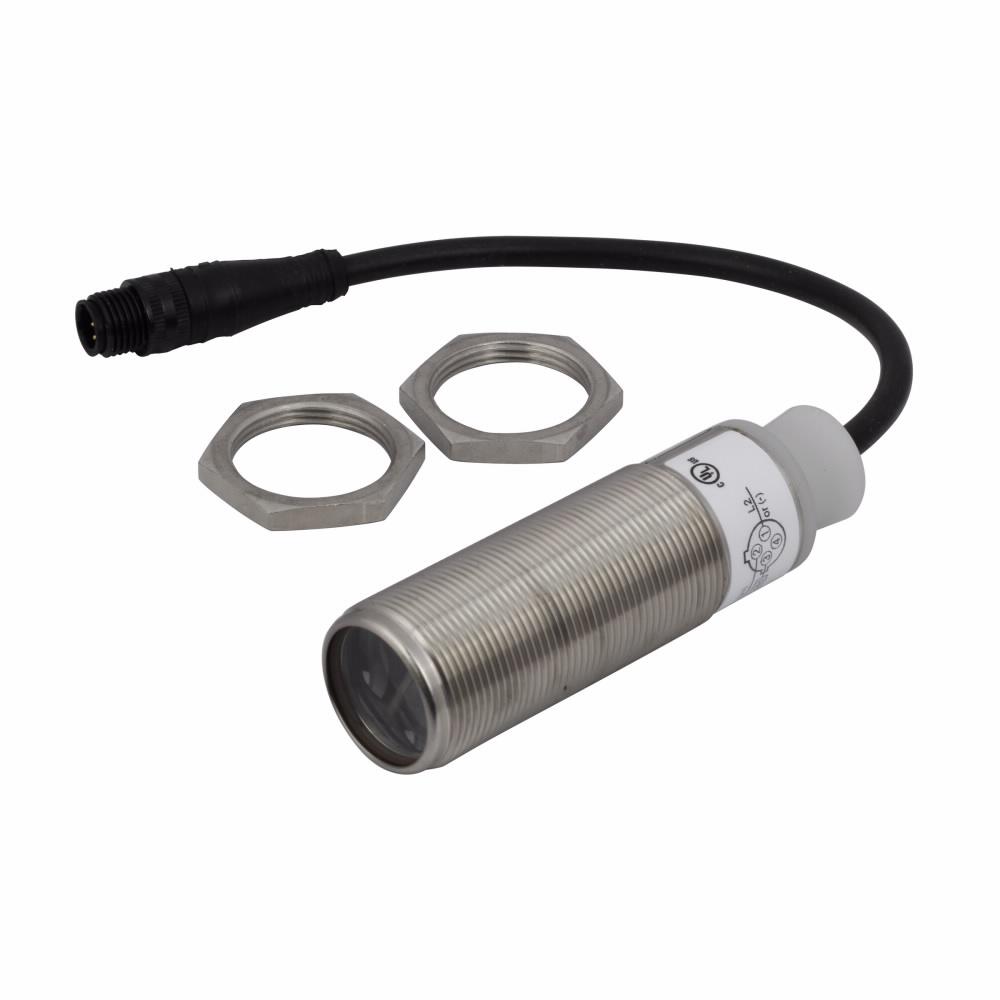

E58-30DP150-GLP CH HARSH DUTY 6""PERF PROX, LIGHT OPERATE, CABLE, THREADED BODY

Mouse over image to zoom, click to enlarge

  • E58-30DP150-GLP CH HARSH DUTY 6""PERF PROX, LIGHT OPERATE, CABLE, THREADED BODY
  • E58-30DP150-GLP CH HARSH DUTY 6""PERF PROX, LIGHT OPERATE, CABLE, THREADED BODY
  • E58-30DP150-GLP CH HARSH DUTY 6""PERF PROX, LIGHT OPERATE, CABLE, THREADED BODY
  • E58-30DP150-GLP CH HARSH DUTY 6""PERF PROX, LIGHT OPERATE, CABLE, THREADED BODY

Description: EATON Photoelectric Sensor, 3-Wire, Series: E58 Harsh Duty, Tubular, Background Suppression Sensing Method, 6 in Sensing Range, 10 ms Response, AC L1 Switch/DC NPN Open Collector Output, 20 to 132/15 to 30 V AC/DC, 300 mA, 3 W, 50/60 Hz, 4-Pin Dual Key Micro Pigtail, 30 g Over 20 Hz to 2 kHz, 30 mm Dia, IP69K/NEMA 1/2/3/3R/3S/4/4X/6/6P/12/13, -40 to 131 deg F Operating, Environmental Conditions: -40 to 131 deg F Storage

Manufacturer PN: E58-30DP150-GLP

UPC:  78211400851

Kendall Electric Inc PN: 2443999

Invoice Description:

E58-30DP150-GLP CH HARSH DUTY 6""PERF PROX, LIGHT OPERATE, CABLE, THREADED BODY


SPEC SHEET

How Can We Make This Page Better?

EATON E58-30DP150-GLP Harsh Duty 3-Wire Photoelectric Sensor, Tubular Shape, 6 in, 10 ms Response, AC L1 Switch/DC NPN Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E58 harsh-duty series sensors are among the most rugged and best-sealed photoelectric sensors. Stainless steel, PVDF and tempered glass components are mechanically assembled using Vitron seals to ensure resistance to chemicals and moisture intrusion. These sensors withstand heavy shock and vibration while providing unparalleled optical performance.
EATON Photoelectric Sensor, 3-Wire, Series: E58 Harsh Duty, Tubular, Background Suppression Sensing Method, 6 in Sensing Range, 10 ms Response, AC L1 Switch/DC NPN Open Collector Output, 20 to 132/15 to 30 V AC/DC, 300 mA, 3 W, 50/60 Hz, 4-Pin Dual Key Micro Pigtail, 30 g Over 20 Hz to 2 kHz, 30 mm Dia, IP69K/NEMA 1/2/3/3R/3S/4/4X/6/6P/12/13, -40 to 131 deg F Operating, Environmental Conditions: -40 to 131 deg F Storage

Specifications

 Amperage Rating 300 mA
 Application For automotive applications where exposure to lubricants, cutting fluids, coolants and glycols is common
 Brand Name EATON
 Connection Type 4-Pin Dual Key Micro Pigtail
 Enclosure IP69K/NEMA 1/2/3/3R/3S/4/4X/6/6P/12/13
 Environmental Conditions -40 to 131 deg F Storage
 Frequency Rating 50/60 Hz
 Manufacturer Part Number E58-30DP150-GLP
 Operating Temperature -40 to 131 deg F
 Output Type AC L1 Switch/DC NPN Open Collector
 PART NUMBER KEYWORDS E58-30DP150-GLP ; E5830DP150GLP ; 7381320 ; 782114008515 ; 78211400851 ; 00782114008515
 Response Time 10 ms
 Sensing Method Background Suppression
 Sensing Range 6 in
 Series E58 Harsh Duty
 Shape Tubular
 Size 30 mm Dia
 Standards/Approvals UL Listed,CE Marked
 Type 3-Wire
 Vibration 30 g Over 20 Hz to 2 kHz
 Voltage Rating 20 to 132/15 to 30 V AC/DC
 Wattage 3 W

Features

▪ A smooth body version is a great choice for food processing applications to withstand high pressure chemical washdowns, sanitizers, surfactants and cleansing agents
▪ Highly refined optics provide long sensing ranges through high levels of contamination
▪ Perfect Prox® technology allows for excellent background rejection and high excess gain
▪ Visible sensing beams enable easy setup
▪ The industry's only background rejection sensors with a 2-wire circuit design
