Leviton

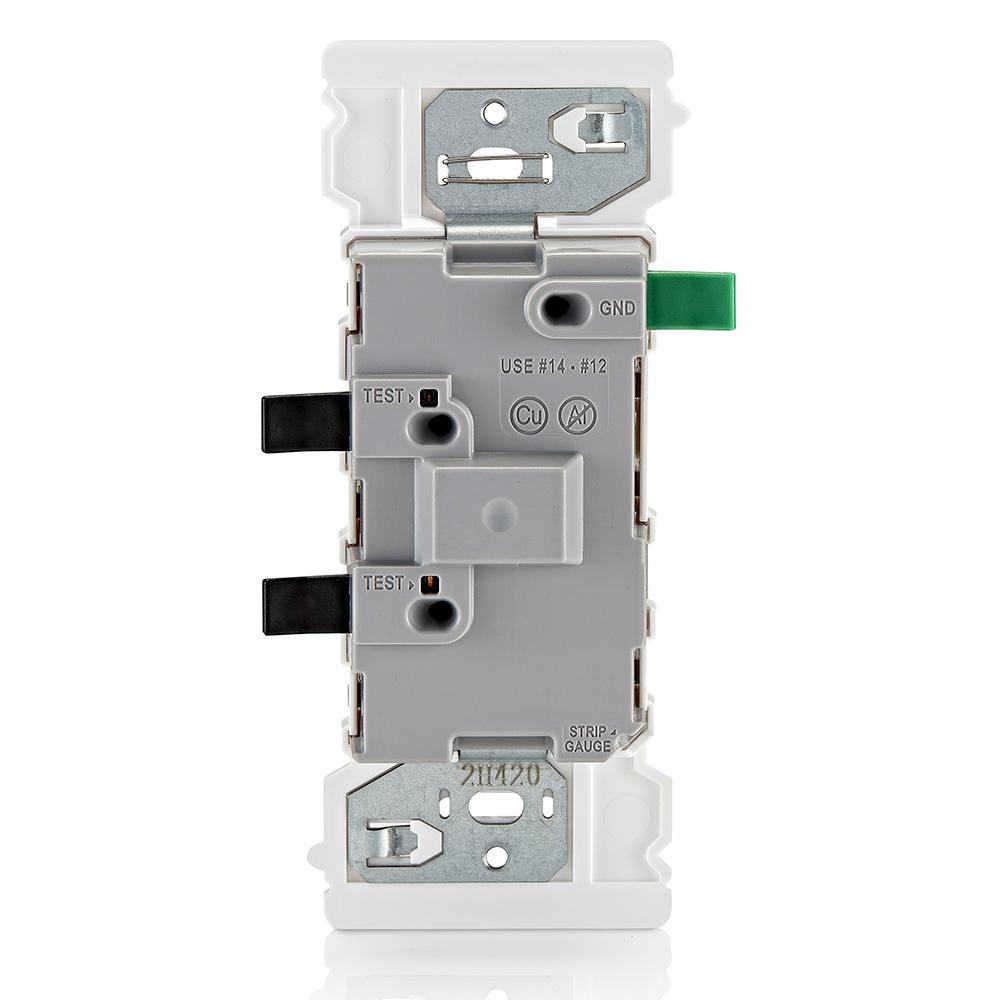

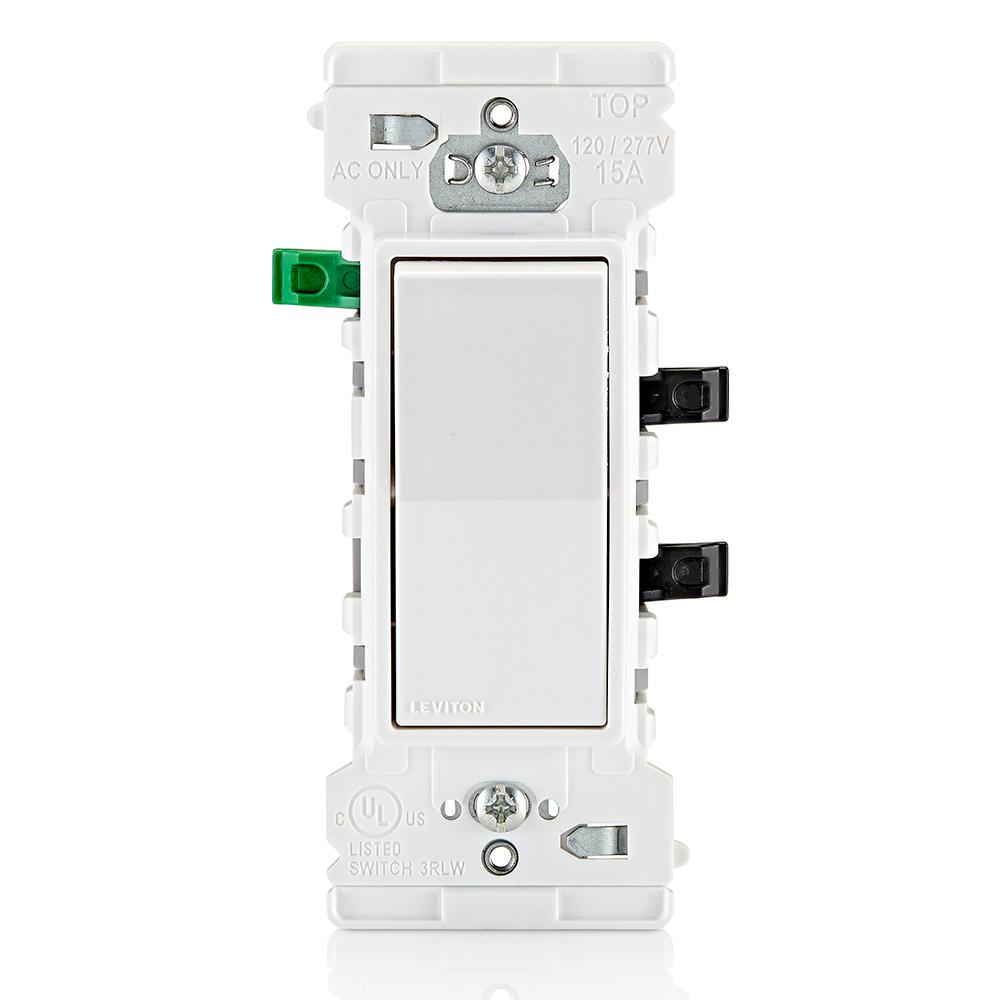

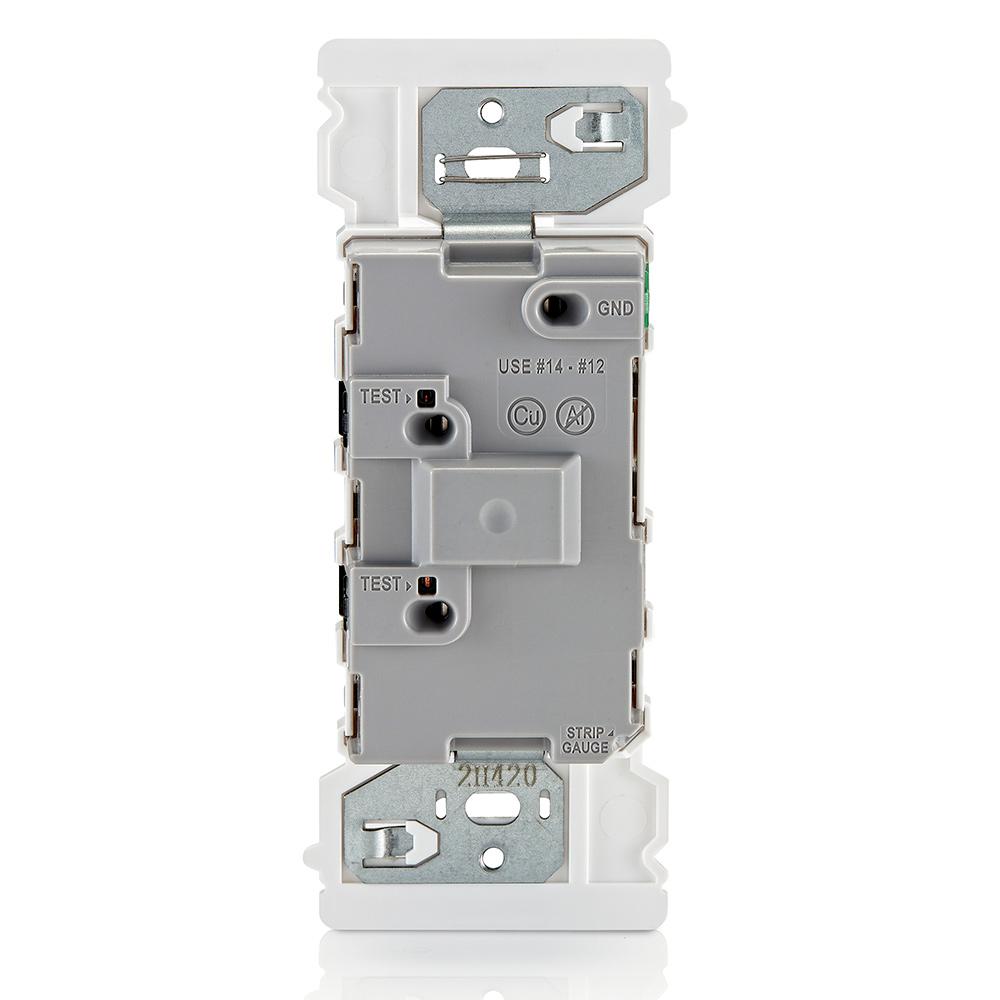

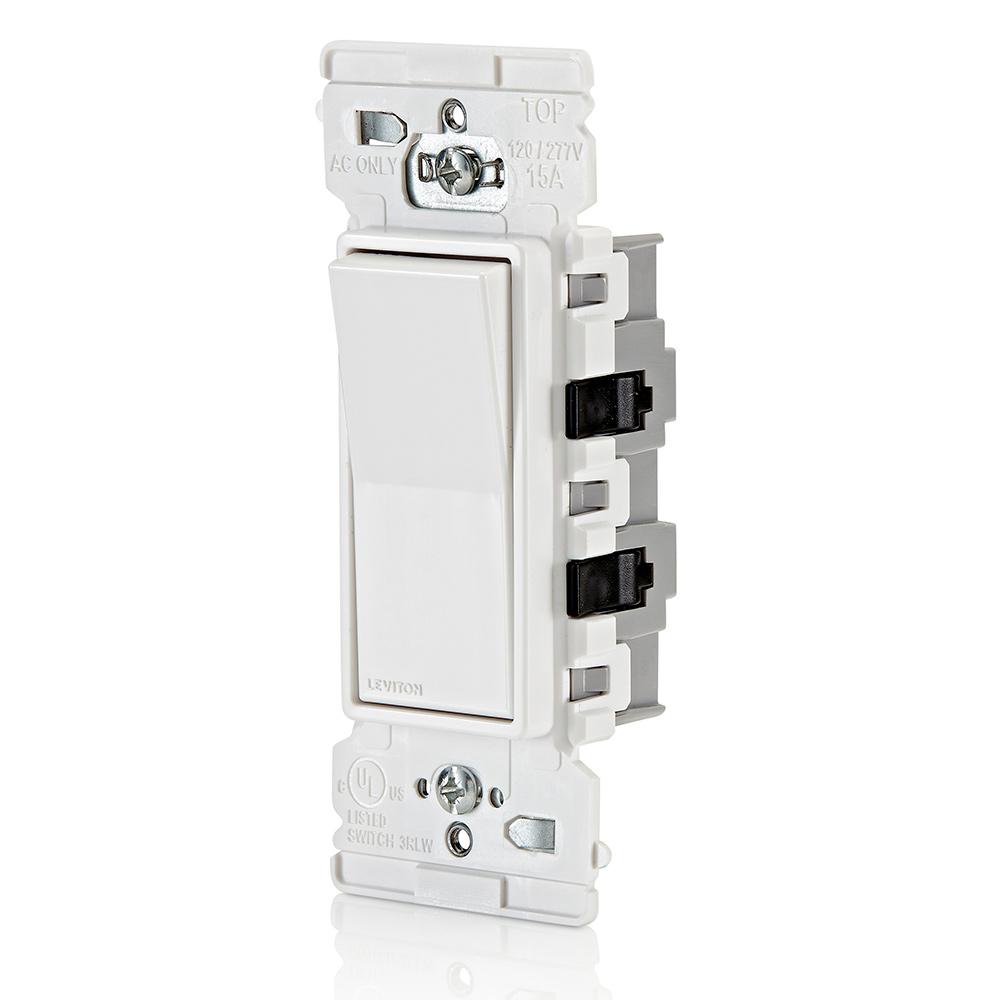

E5601-W LEVITON

Mouse over image to zoom, click to enlarge

  • E5601-W LEVITON
  • E5601-W LEVITON
  • E5601-W LEVITON
  • E5601-W LEVITON
  • E5601-W LEVITON

Description: Leviton®, E5601-W, Switch, Self-Grounded, 120/277 V AC, 15 A, 1/2, 2 hp Power, 12 A at 120/277 V AC Contact, 1 Pole, Rocker Actuator, Side Wired Connection, Thermoplastic, White

Manufacturer PN: E5601-W

UPC:  07847733249

Kendall Electric Inc PN: 4738595

Invoice Description:

E5601-W LEVITON


SPEC SHEET

▸ See All in AC Switches



Leviton® E5601-W Self-Grounded Switch, 120/277 V AC, 15 A, 1/2, 2 hp Power Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton®, E5601-W, Switch, Self-Grounded, 120/277 V AC, 15 A, 1/2, 2 hp Power, 12 A at 120/277 V AC Contact, 1 Pole, Rocker Actuator, Side Wired Connection, Thermoplastic, White

Specifications

 Actuator Rocker
 Amperage Rating 15 A
 Brand Name Leviton®
 Color White
 Connection Side Wired
 Contact Rating 12 A at 120/277 V AC
 Manufacturer Part Number E5601-W
 Material Thermoplastic
 Number of Poles 1
 Power Rating 1/2, 2 hp
 Standards/Approvals NOM|UL 20: File E7458|CSA 22.2 No 111
 Type Self-Grounded
 Video Links
 Voltage Rating 120/277 V AC

Features

▪ One standard strip gauge for all devices
▪ Devices coordinate seamlessly with other Decora devices
▪ Longer and wider strap is compatible with Midway wallplates, and with Standard sized wallplates when breakaway tab is removed
▪ Can be used with Decora wallplates and Decora Plus screwless wallplates
▪ Test openings for circuit testers
▪ Provides the traditional appearance and superior performance of Decora devices in a new, faster, easier-to-install, and safer design
▪ Patent pending lever terminals for fast, efficient wiring
▪ Color-coded lever terminals reduces risk of miswiring
▪ Lever doors have snap feature to assure connection has been made, audible click confirms lever door is closed
▪ Only Residential device on the market with a quick termination ground wire
▪ No exposed metal parts for enhanced safety, eliminates need for electrical tape
▪ Straps unique tongue and groove alignment offers quicker trim out on multi-gang installations
▪ Lever connectors work with 14 ga and 12 ga stranded and solid copper wire
▪ Wire openings prevent wire insulation from being inserted into the terminals
