Eaton

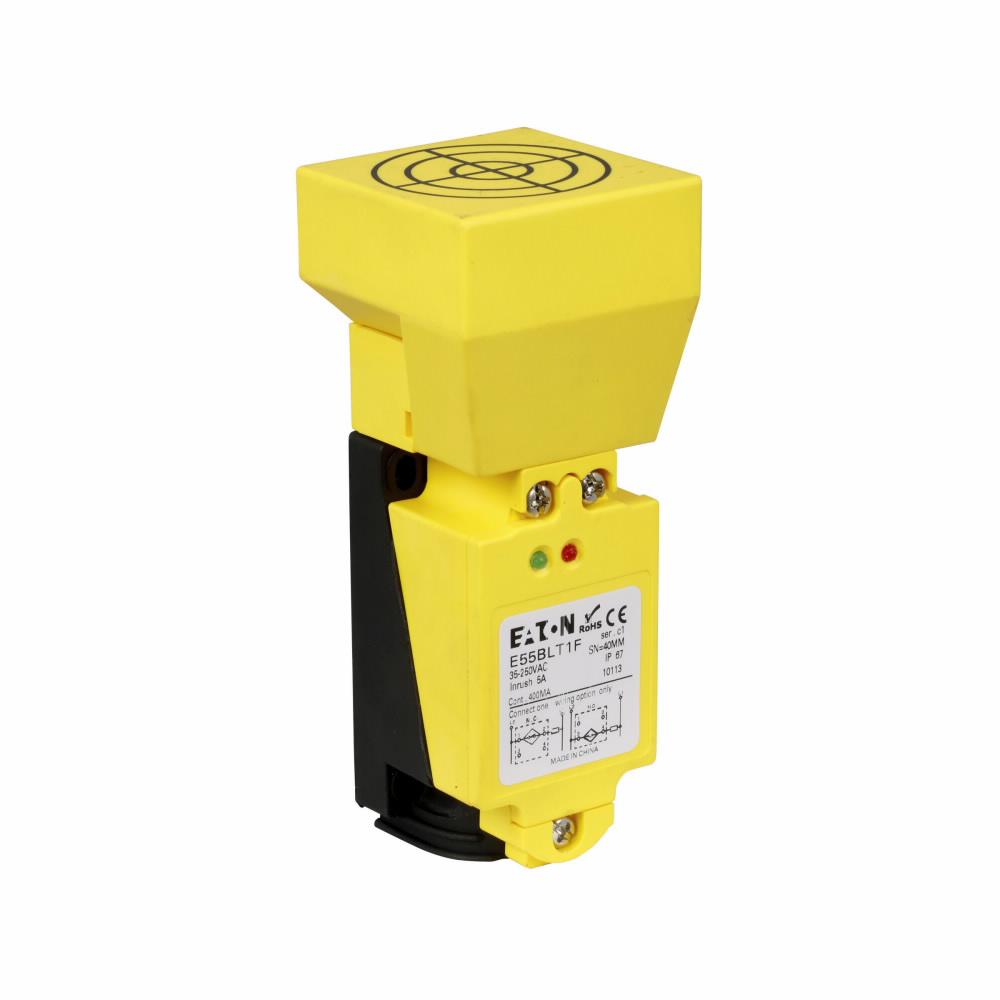

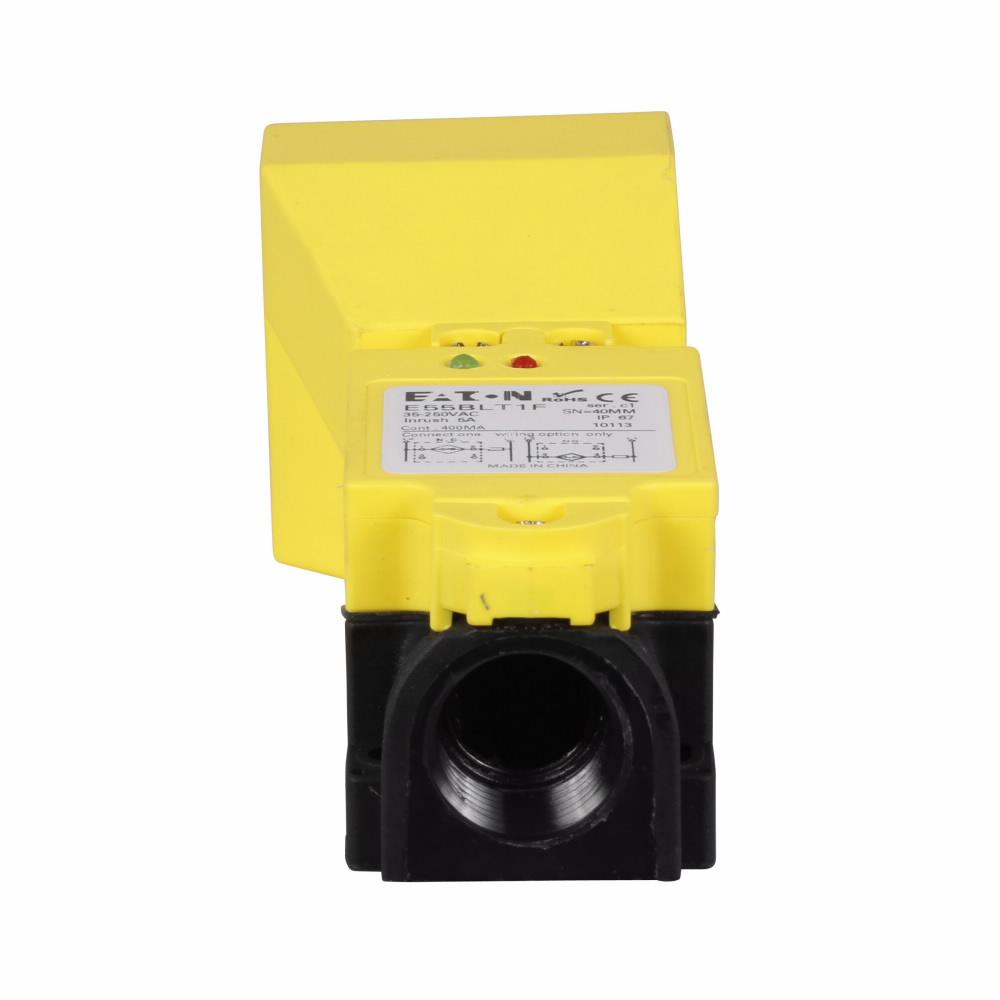

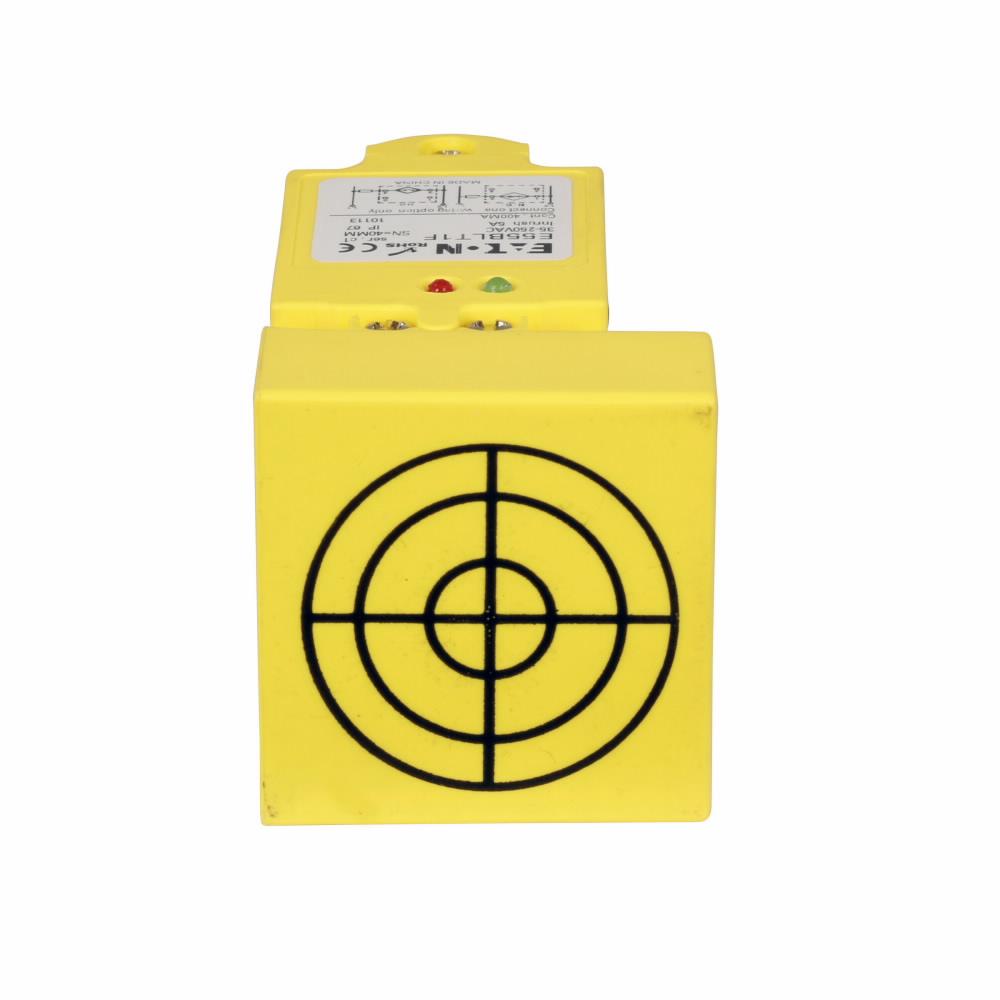

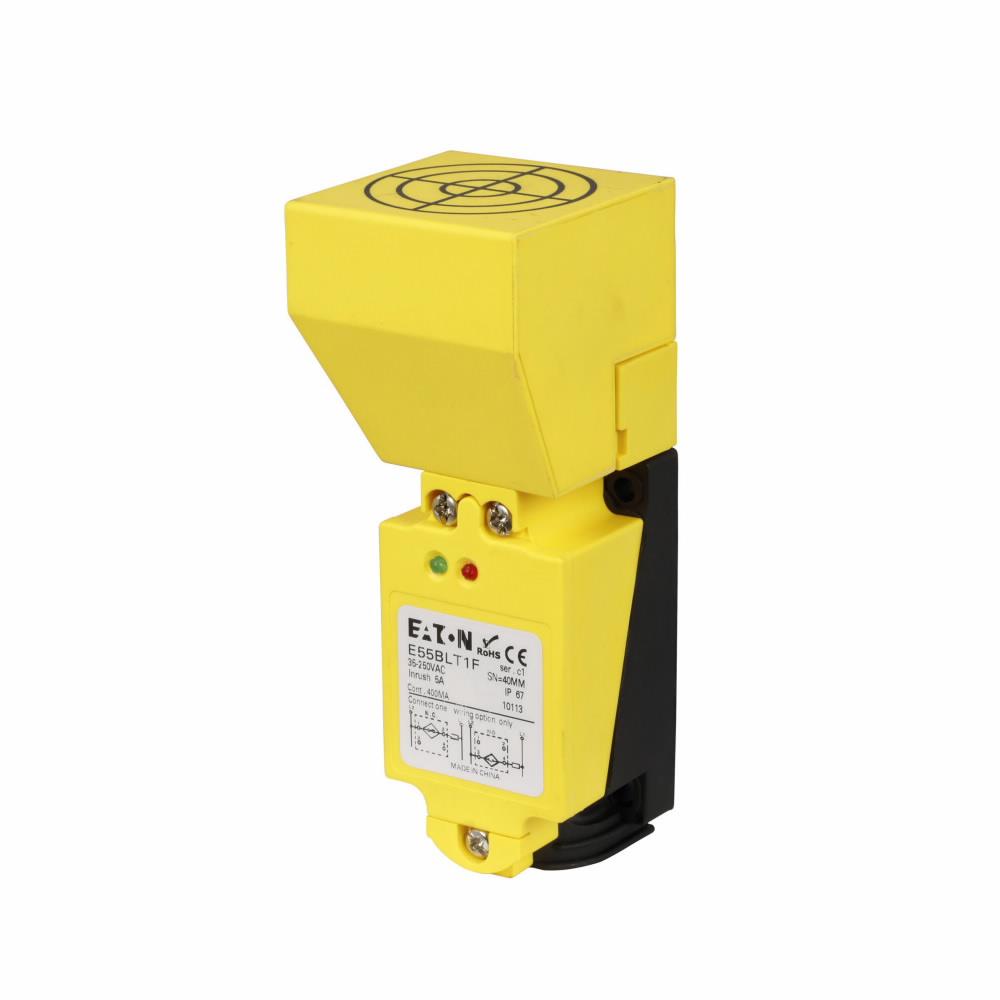

E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE

Mouse over image to zoom, click to enlarge

  • E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE
  • E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE
  • E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE
  • E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE
  • E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE

Description: EATON Proximity Sensor, 2-Wire Limit Switch Style Unshielded, Series: E55, Inductive Sensing Method, 41 mm Sensing Distance, 1NO-1NC Contact Configuration, 35 to 250 V AC, 400 mA, 25 Hz Frequency Response, Screw Connection, 4.64 in L x 1.97 in W x 1.97 in H Size, NEMA 4/4X/6/12/13/IP67 Enclosure, -13 to 158 deg F, Flush Mounting, PBT Resin

Manufacturer PN: E55BLT1F

UPC:  78211455859

Kendall Electric Inc PN: 4331971

Invoice Description:

E55BLT1F CH 5 WAY LS STYLE PROX 40MM SN 2WAC CABLE


SPEC SHEET

How Can We Make This Page Better?

EATON E55BLT1F 2-Wire Limit Switch Style Unshielded Proximity Sensor, Inductive, 1NO-1NC Contact, 35 to 250 V AC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

55 series photoelectric sensors are identical to the 50 series except without the interchangeable outputs or logic functions. They offer durability and high optical performance in a cost-effective, self-contained package. The 55 Series features sensors with AC and DC operation in a single unit. A relay option is available on these models that provides a 3 Amp SPDT relay output for high current switching.
EATON Proximity Sensor, 2-Wire Limit Switch Style Unshielded, Series: E55, Inductive Sensing Method, 41 mm Sensing Distance, 1NO-1NC Contact Configuration, 35 to 250 V AC, 400 mA, 25 Hz Frequency Response, Screw Connection, 4.64 in L x 1.97 in W x 1.97 in H Size, NEMA 4/4X/6/12/13/IP67 Enclosure, -13 to 158 deg F, Flush Mounting, PBT Resin

Specifications

 Amperage Rating 400 mA
 Application Automation and Logic Control Equipment, Stationary Machinery and Equipment Outside Factory and Car Wash Applications
 Brand Name EATON
 Connection Type Screw
 Contact Configuration 1NO-1NC
 Enclosure NEMA 4/4X/6/12/13/IP67
 Frequency Response 25 Hz
 Manufacturer Part Number E55BLT1F
 Material PBT Resin
 Mounting Type Flush
 PART NUMBER KEYWORDS E55BLT1F ; 7395487 ; 782114558591 ; 78211455859 ; 00782114558591
 Sensing Distance 41 mm
 Sensing Method Inductive
 Series E55
 Size 4.64 in L x 1.97 in W x 1.97 in H
 Standards/Approvals CE,RoHS Compliant,CE Marked
 Temperature Rating -13 to 158 deg F
 Type 2-Wire Limit Switch Style Unshielded
 Voltage Rating 35 to 250 V AC

Features

▪ Short circuit protection is provided by an adjustable instantaneous only
▪ Power On, output On LED indicators
