Eaton

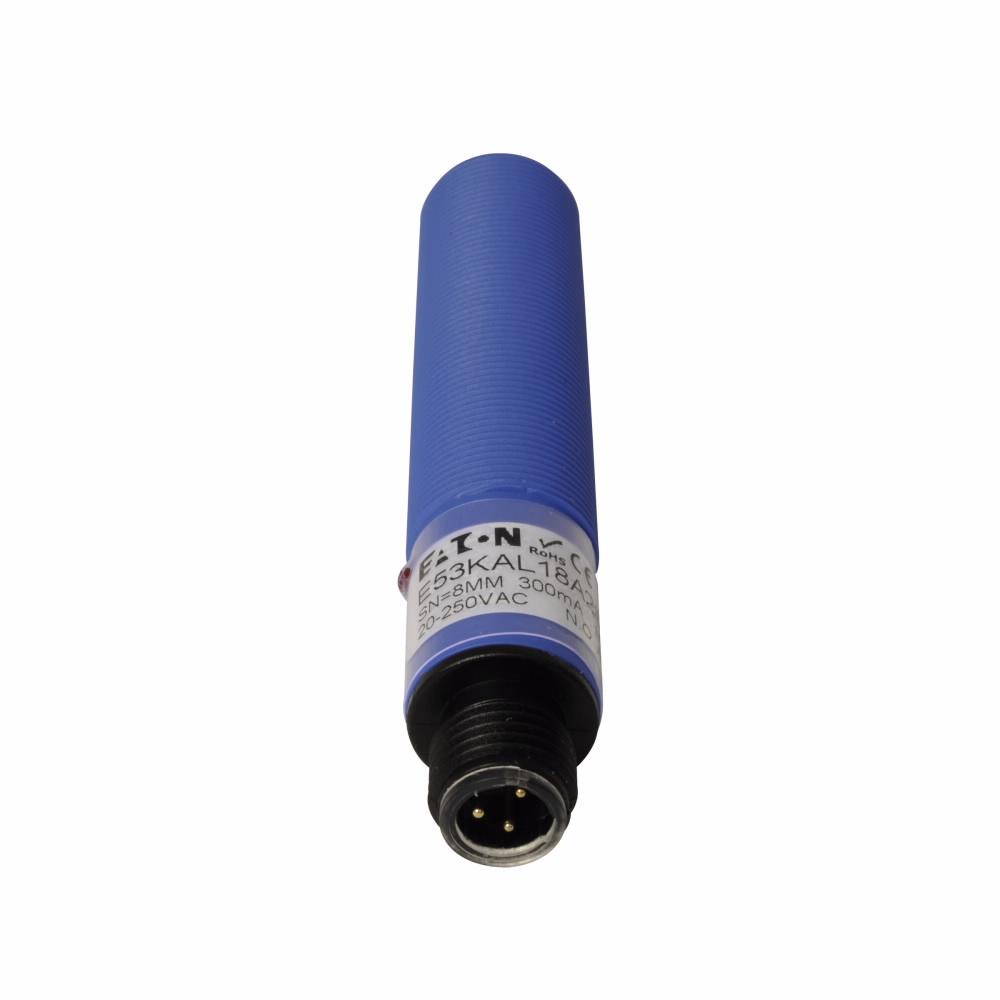

E53KAL18A2SA CH CAPACTIVE SENSORS WITH MICRO PIN CONN

Mouse over image to zoom, click to enlarge

  • E53KAL18A2SA CH CAPACTIVE SENSORS WITH MICRO PIN CONN
  • E53KAL18A2SA CH CAPACTIVE SENSORS WITH MICRO PIN CONN

Description: EATON Proximity Sensor, 2-Wire Threaded Straight Shielded, Series: E53, Capacitive Sensing Method, 18 mm Sensing Distance, End Sensing Position, 10 Output, 1NO, 20 to 250 V AC, 300 mA, 3-Pin Dual Key Micro, 15 Hz Switching Speed, 0.71 in Dia x 3.74 in H, NEMA 1/2/3/3S/4/12/13/IP65, -13 to 158 deg F, Polyoxymethylene

Manufacturer PN: E53KAL18A2SA

UPC:  78211401289

Kendall Electric Inc PN: 2182797

Invoice Description:

E53KAL18A2SA CH CAPACTIVE SENSORS WITH MICRO PIN CONN


SPEC SHEET

▸ See All in Capacitive, Tubular Style


How Can We Make This Page Better?

EATON E53KAL18A2SA 2-Wire Threaded Straight Shielded Proximity Sensor, Capacitive, NPN/PNP Output, 1NO Contact, 20 to 250 V AC, 15 Hz Switching Speed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E53tubular capacitive sensors are an ideal solution for liquid level control and sensing powdered or granulated materials. These self-contained devices detect both metallic and nonmetallic targets. Cable and body-mount micro-connector versions allow simple installation or retrofit.
EATON Proximity Sensor, 2-Wire Threaded Straight Shielded, Series: E53, Capacitive Sensing Method, 18 mm Sensing Distance, End Sensing Position, 10 Output, 1NO, 20 to 250 V AC, 300 mA, 3-Pin Dual Key Micro, 15 Hz Switching Speed, 0.71 in Dia x 3.74 in H, NEMA 1/2/3/3S/4/12/13/IP65, -13 to 158 deg F, Polyoxymethylene

Specifications

 Amperage Rating 300 mA
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type 3-Pin Dual Key Micro
 Contact Configuration 1NO
 Enclosure NEMA 1/2/3/3S/4/12/13/IP65
 Manufacturer Part Number E53KAL18A2SA
 Material Polyoxymethylene
 Output Type NPN/PNP
 PART NUMBER KEYWORDS E53KAL18A2SA ; 7382951 ; 782114012895 ; 78211401289 ; 00782114012895
 Sensing Distance 18 mm
 Sensing Method Capacitive
 Sensing Position End
 Series E53
 Size 0.71 in Dia x 3.74 in H
 Switching Speed 15 Hz
 Temperature Rating -13 to 158 deg F
 Type 2-Wire Threaded Straight Shielded
 Voltage Rating 20 to 250 V AC

Features

▪ Detect liquids, powders and other materials that are difficult or impossible to detect with other sensor types
▪ Plastic body is corrosion-resistant
▪ Sensitivity adjustment
▪ Output on LED indicators
