Eaton

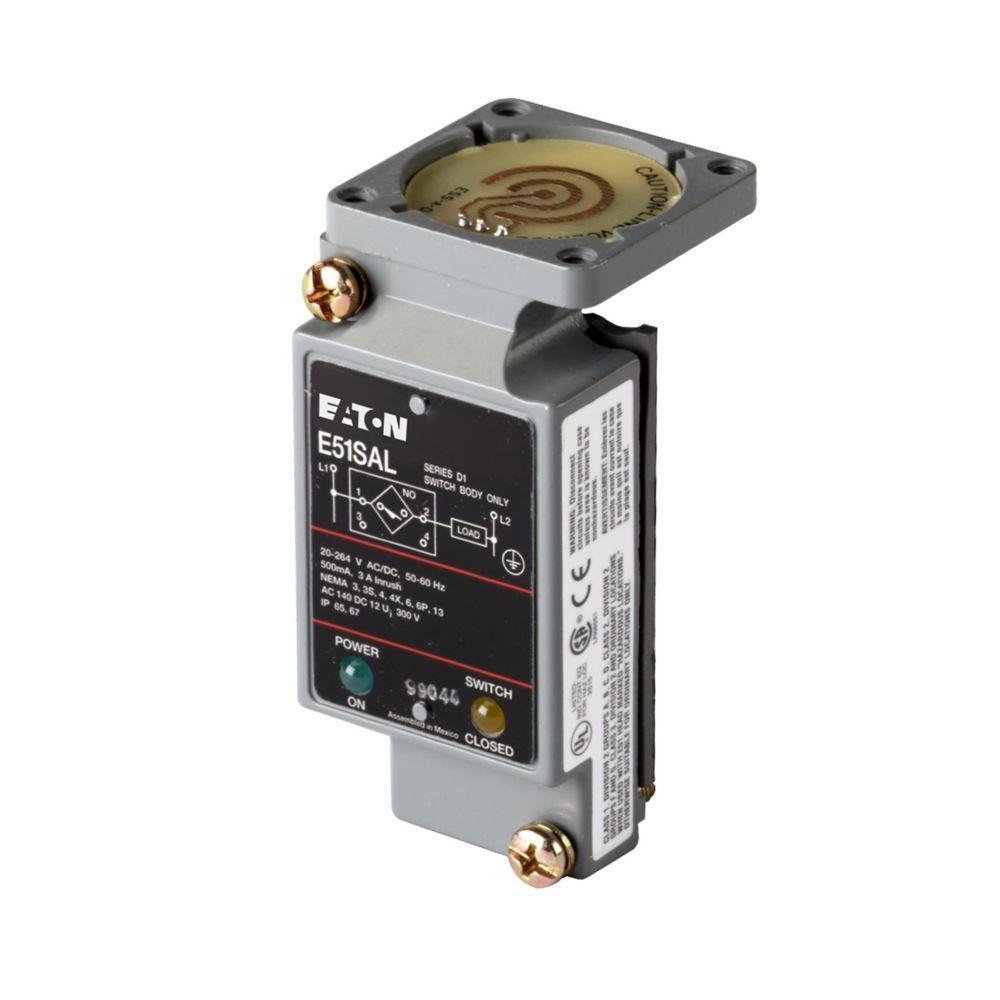

E51SAL CH IND PROX SWITCH BODY ONLY

Mouse over image to zoom, click to enlarge

  • E51SAL CH IND PROX SWITCH BODY ONLY
  • E51SAL CH IND PROX SWITCH BODY ONLY

Description: EATON Switch Body, Series: E51, Inductive Proximity Photoelectric Sensor, For Use With: E51 Modular Limit Switch Style Sensor, 20 to 264 VAC/VDC, 1NC-1NO Output, 500 mA Output, 2-Wire Wiring, Die-Cast Zinc, Environmental Conditions: -13 to 158 deg F Operating Temperature

Manufacturer PN: E51SAL

UPC:  78211334493

Kendall Electric Inc PN: 131502

Invoice Description:

E51SAL CH IND PROX SWITCH BODY ONLY


SPEC SHEET

▸ See All in Sensor Power Blocks, Bases & Receptacles


How Can We Make This Page Better?

EATON E51SAL Switch Body, Inductive Proximity Photoelectric Sensor, 20 to 264 VAC/VDC, 1NC-1NO Output, 500 mA Output, 2-Wire Wiring

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E51 limit switch style modular sensors are available in thru-beam, reflex, polarized reflex, diffuse reflective and fiber optic sensing modes to solve a wide variety of sensing applications. Modular, plug-in components are easy to maintain, meaning less downtime and reduced inventory. Choose between 2-wire sensors with AC/DC operation and 4-wire sensors in either AC or DC styles. Connection options include terminal, mini-connector and various lengths of cable. Sensors can be ordered in component form or as fully assembled units.
EATON Switch Body, Series: E51, Inductive Proximity Photoelectric Sensor, For Use With: E51 Modular Limit Switch Style Sensor, 20 to 264 VAC/VDC, 1NC-1NO Output, 500 mA Output, 2-Wire Wiring, Die-Cast Zinc, Environmental Conditions: -13 to 158 deg F Operating Temperature

Specifications

 Application Automation and Logic Control Equipment, Electrical Assemblies, Panels and EOEMs, Stationary Machinery, Equipment and In Factory Applications
 Brand Name EATON
 Environmental Conditions -13 to 158 deg F Operating Temperature
 Manufacturer Part Number E51SAL
 Material Die-Cast Zinc
 Output Capacity 500 mA
 Output Type 1NC-1NO
 Sensor Type Inductive Proximity Photoelectric
 Series E51
 Standards/Approvals CSA Certified|UL Listed
 Suitable For Use With E51 Modular Limit Switch Style Sensor
 Voltage Rating 20 to 264 VAC/VDC
 Wiring Type 2-Wire

Features

▪ One output, load powered, 1NO-1NC, programmable from head
▪ Latching short circuit protection
▪ NEMA 3/3S/4/4X/6/6P/12/13/IP67 enclosure

Resources

 Catalog Page
 Product Data Sheet
