Eaton

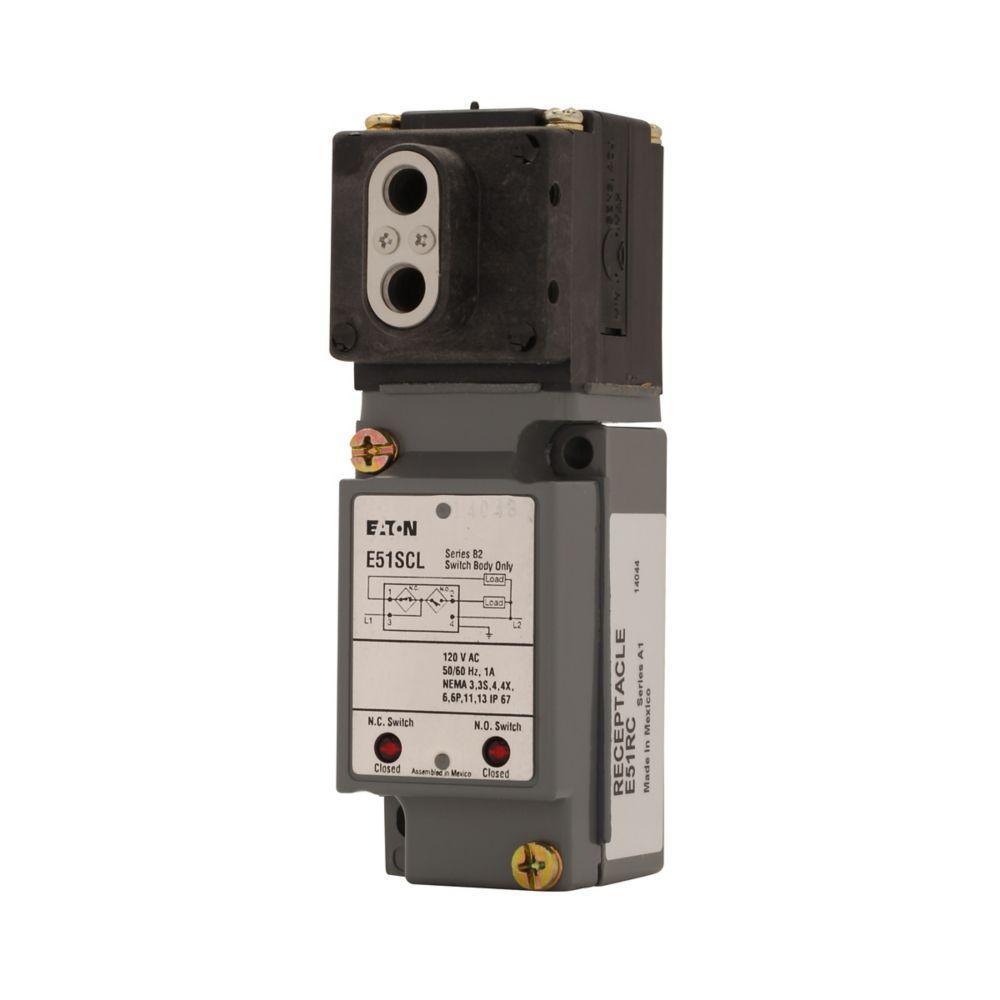

E51CLYED90 CH E51 PHOTOELECTRIC, COMPOSITE W/E51YED90, E51SCL, E51RC

Mouse over image to zoom, click to enlarge

  • E51CLYED90 CH E51 PHOTOELECTRIC, COMPOSITE W/E51YED90, E51SCL, E51RC
  • E51CLYED90 CH E51 PHOTOELECTRIC, COMPOSITE W/E51YED90, E51SCL, E51RC

Description: EATON Photoelectric Sensor, 4-Wire Inductive Limit Switch Style Modular Right Angle, Series: E51, Glass Fiber Optic Sensing Method, 1 to 30 ms Response, 10 Output, 120 V AC, 1 A, 50/60 Hz Frequency, Screw Connection, LED Light Source, 1 mm Amplitude, 10 to 55 Hz Frequency Vibration, 4.99 in L x 1.54 in W x 2.35 in H Size, NEMA 3/3S/4/4X/6/6P/12/13/IP67 Enclosure, -13 to 158 deg F Operating, DIN Rail Mounting, Environmental Conditions: 95% Non-Condensing Relative Humidity

Manufacturer PN: E51CLYED90

UPC:  78211309434

Kendall Electric Inc PN: 2714272

Invoice Description:

E51CLYED90 CH E51 PHOTOELECTRIC, COMPOSITE W/E51YED90, E51SCL, E51RC


SPEC SHEET

How Can We Make This Page Better?

EATON E51CLYED90 4-Wire Inductive Limit Switch Style Modular Right Angle Photoelectric Sensor, 1 to 30 ms Response, AC L1 Switch Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E51 limit switch style modular sensors are available in thru-beam, reflex, polarized reflex, diffuse reflective and fiber optic sensing modes to solve a wide variety of sensing applications. Modular, plug-in components are easy to maintain, meaning less downtime and reduced inventory. Choose between 2-wire sensors with AC/DC operation and 4-wire sensors in either AC or DC styles. Connection options include terminal, mini-connector and various lengths of cable. Sensors can be ordered in component form or as fully assembled units.
EATON Photoelectric Sensor, 4-Wire Inductive Limit Switch Style Modular Right Angle, Series: E51, Glass Fiber Optic Sensing Method, 1 to 30 ms Response, 10 Output, 120 V AC, 1 A, 50/60 Hz Frequency, Screw Connection, LED Light Source, 1 mm Amplitude, 10 to 55 Hz Frequency Vibration, 4.99 in L x 1.54 in W x 2.35 in H Size, NEMA 3/3S/4/4X/6/6P/12/13/IP67 Enclosure, -13 to 158 deg F Operating, DIN Rail Mounting, Environmental Conditions: 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 1 A
 Application Machine Tool, Punch Presses, Automotive, Conveyor Systems, Electrical Assemblies, Panels and EOEMs - Other Applications
 Brand Name EATON
 Connection Type Screw
 Enclosure NEMA 3/3S/4/4X/6/6P/12/13/IP67
 Environmental Conditions 95% Non-Condensing Relative Humidity
 Frequency Rating 50/60 Hz
 Manufacturer Part Number E51CLYED90
 Mounting Type DIN Rail
 Operating Temperature -13 to 158 deg F
 Output Type AC L1 Switch
 PART NUMBER KEYWORDS E51CLYED90 ; 12137356 ; 782113094342 ; 78211309434 ; 00782113094342
 Response Time 1 to 30 ms
 Sensing Method Glass Fiber Optic
 Series E51
 Size 4.99 in L x 1.54 in W x 2.35 in H
 Standards/Approvals CSA Certified,UL Listed,CE Marked
 Type 4-Wire Inductive Limit Switch Style Modular Right Angle
 Vibration 1 mm Amplitude, 10 to 55 Hz Frequency
 Voltage Rating 120 V AC

Features

▪ All heads feature a selector switch for light or dark operation
▪ Rugged construction is ideal for industrial environments
▪ FKM gaskets ensure a positive seal and high chemical resistance
▪ Sensor heads can be rotated to any of 4-positions
▪ Components are interchangeable with E51 proximity sensors
▪ Sensors accommodate both us and DIN mounting dimensions
▪ Sensor bodies feature bifurcated engagement prongs for a reliable electrical connection when plugging into receptacle stabs
