E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT

Mouse over image to zoom, click to enlarge

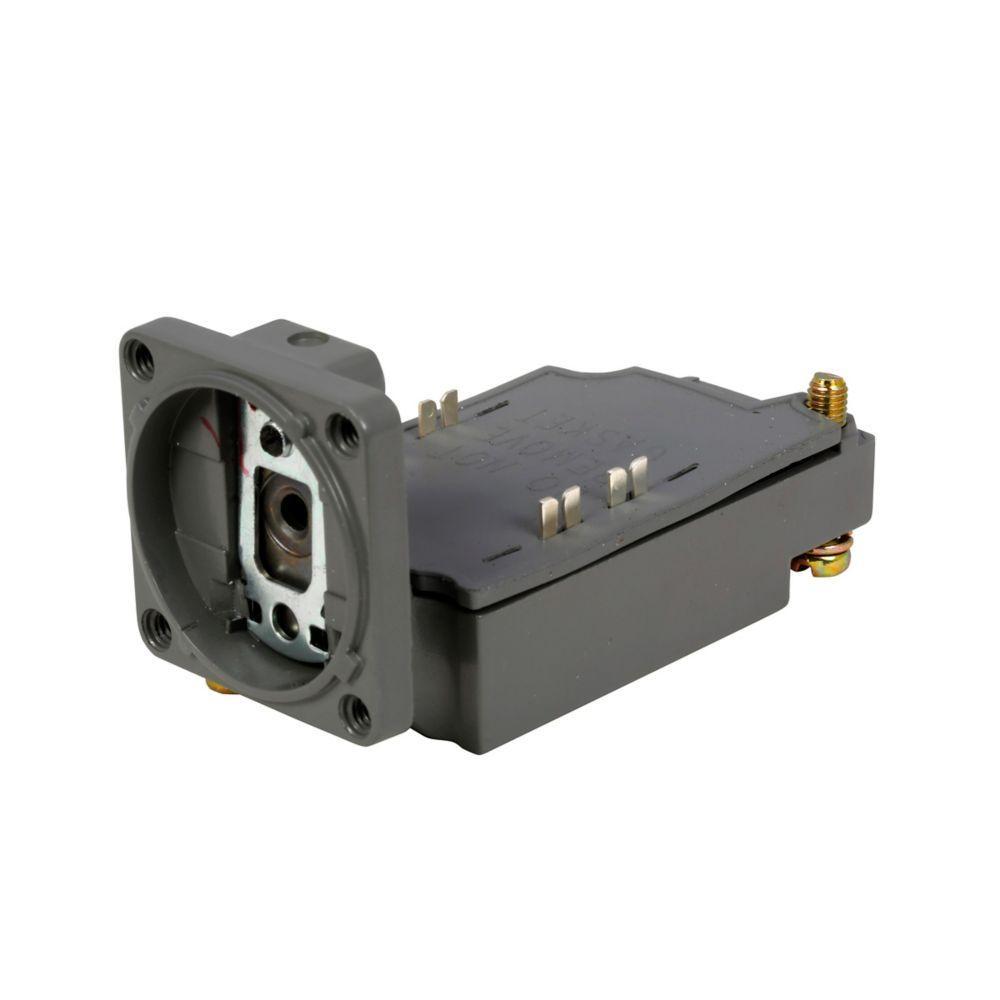

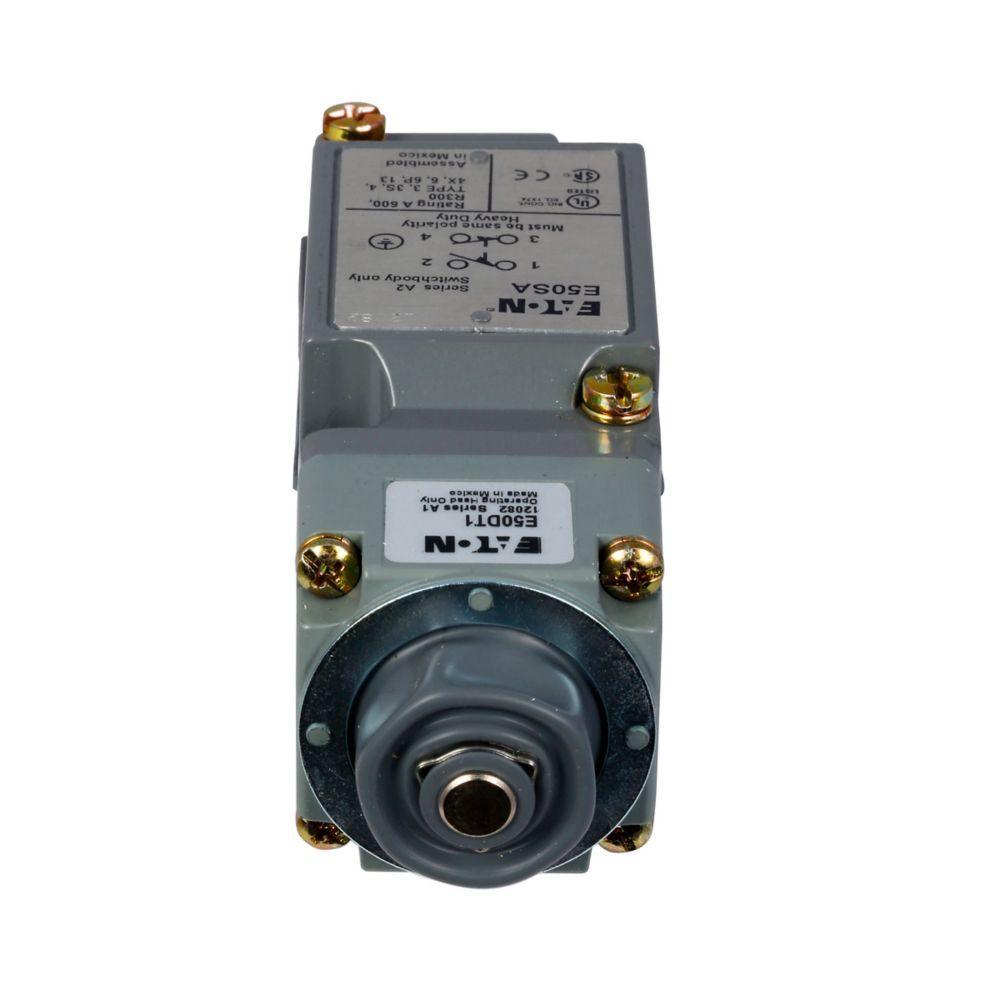

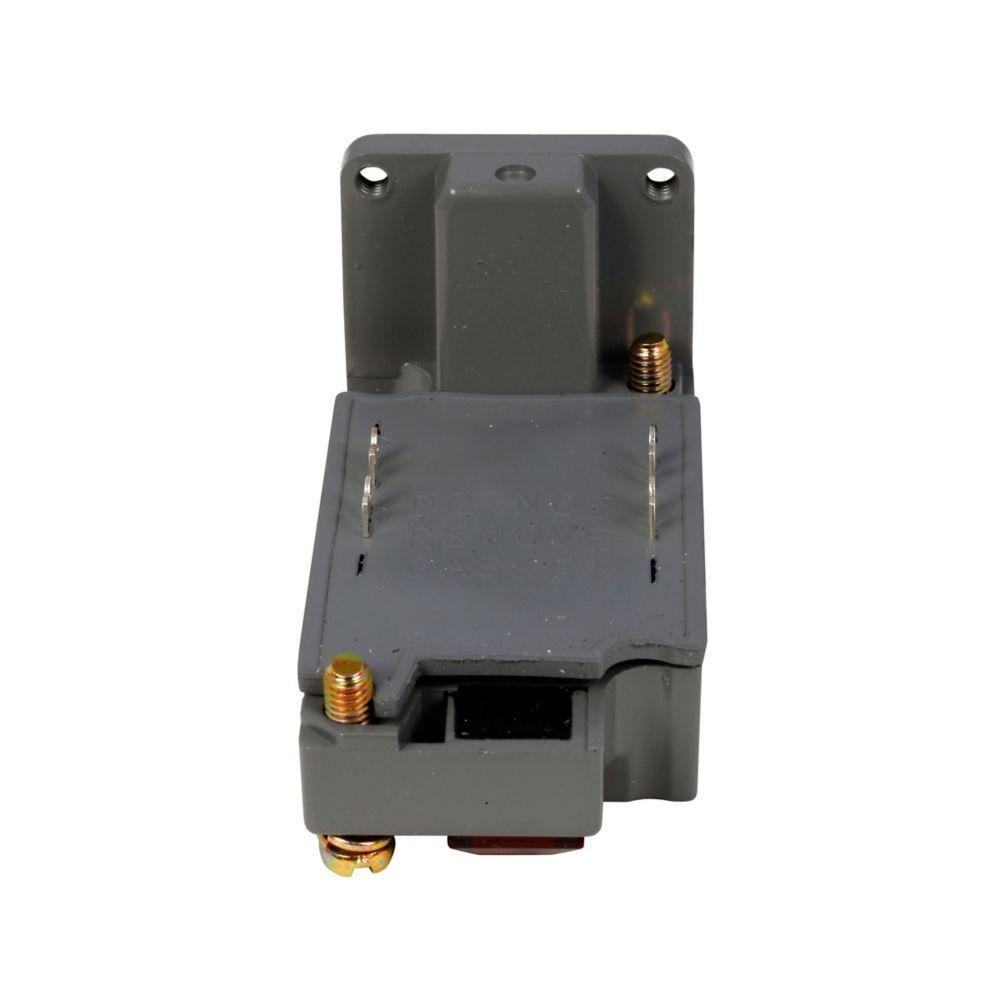

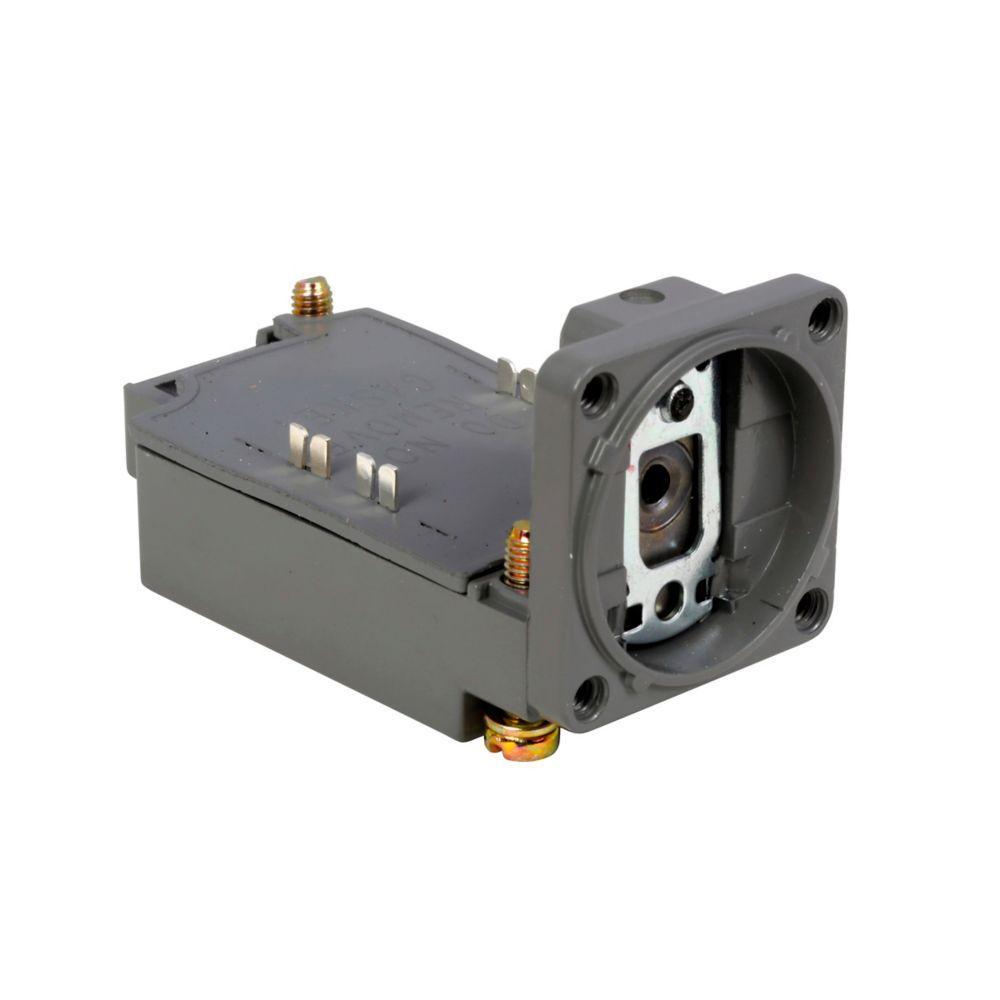

  • E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT
  • E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT
  • E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT
  • E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT
  • E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT

Description: EATON Limit Switch Body, 1-Pole Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 12 V AC, 1 A at 125 V DC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, -40 to 250 deg F, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, Die Cast Zinc, 4-1/2 in L x 3-1/4 in W x 1-3/4 in H Dimensions

Manufacturer PN: E50SA

UPC:  78211329067

Kendall Electric Inc PN: 66547

Invoice Description:

E50SA EATON CUTLER HAMMER HEAVY DUTY LIMIT SWITCH BODY SINGLE POLE 1NO-1NC WITHOUT INDICATING LIGHT


SPEC SHEET

▸ See All in Limit Switch Bodies


How Can We Make This Page Better?

EATON E50SA 1-Pole Heavy Duty Plug-In Limit Switch Body, 1NO-1NC Contact, For Use With E50 Series Heavy Duty Plug-In Limit Switch, 10 A at 12 V AC, 1 A at 125 V DC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Body, 1-Pole Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 12 V AC, 1 A at 125 V DC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, -40 to 250 deg F, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, Die Cast Zinc, 4-1/2 in L x 3-1/4 in W x 1-3/4 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and EOEM - Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Contact Configuration 1NO-1NC
 Contact Rating 10 A at 12 V AC, 1 A at 125 V DC
 Dimensions 4-1/2 in L x 3-1/4 in W x 1-3/4 in H
 Enclosure NEMA 1/3/3S/4/4X/6/6P/13/IP67
 Manufacturer Part Number E50SA
 Material Die Cast Zinc
 PART NUMBER KEYWORDS E50SA ; 7356016 ; 782113290676 ; 78211329067 ; 00782113290676
 Series E50
 Standards/Approvals CSA Certified,UL Recognized,UL Listed,RoHS Compliant,CE Marked
 Suitable For Use With E50 Series Heavy Duty Plug-In Limit Switch
 Temperature Rating -40 to 250 deg F
 Type 1-Pole Heavy Duty Plug-In

Features

▪ Without indicating light
