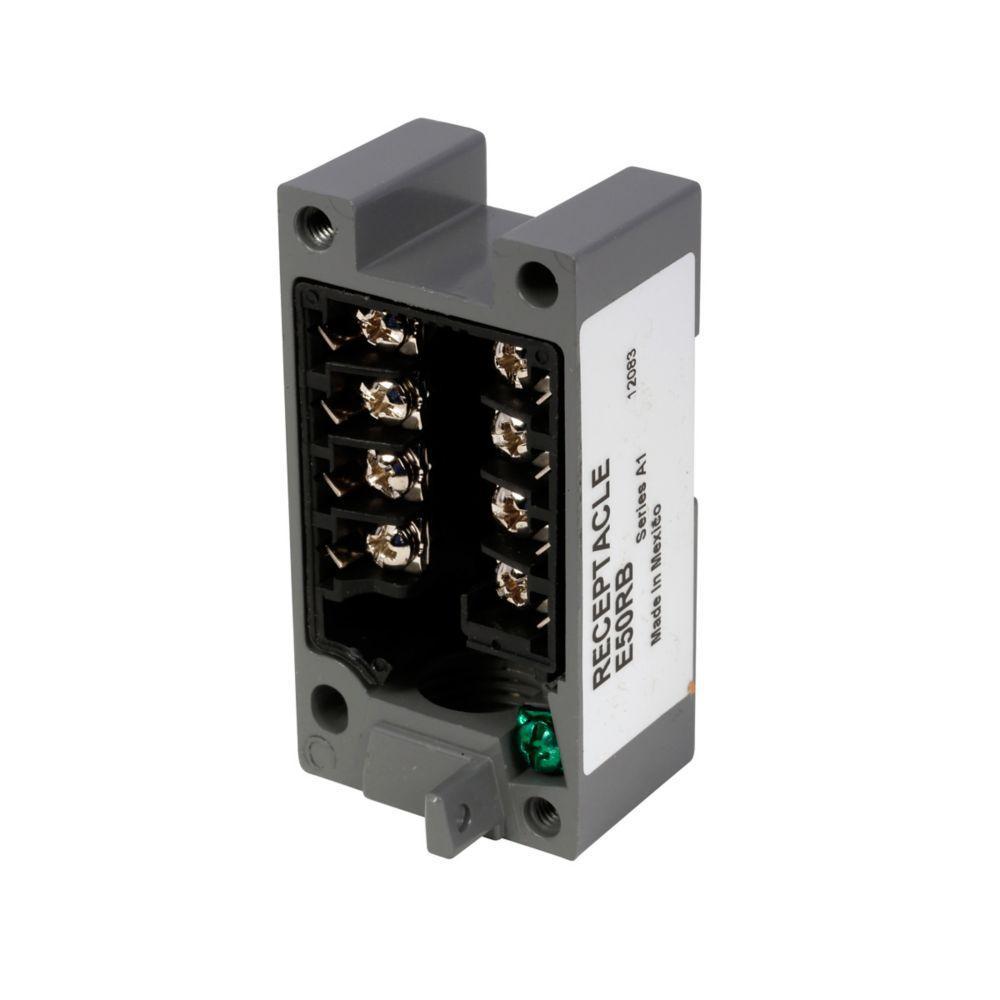

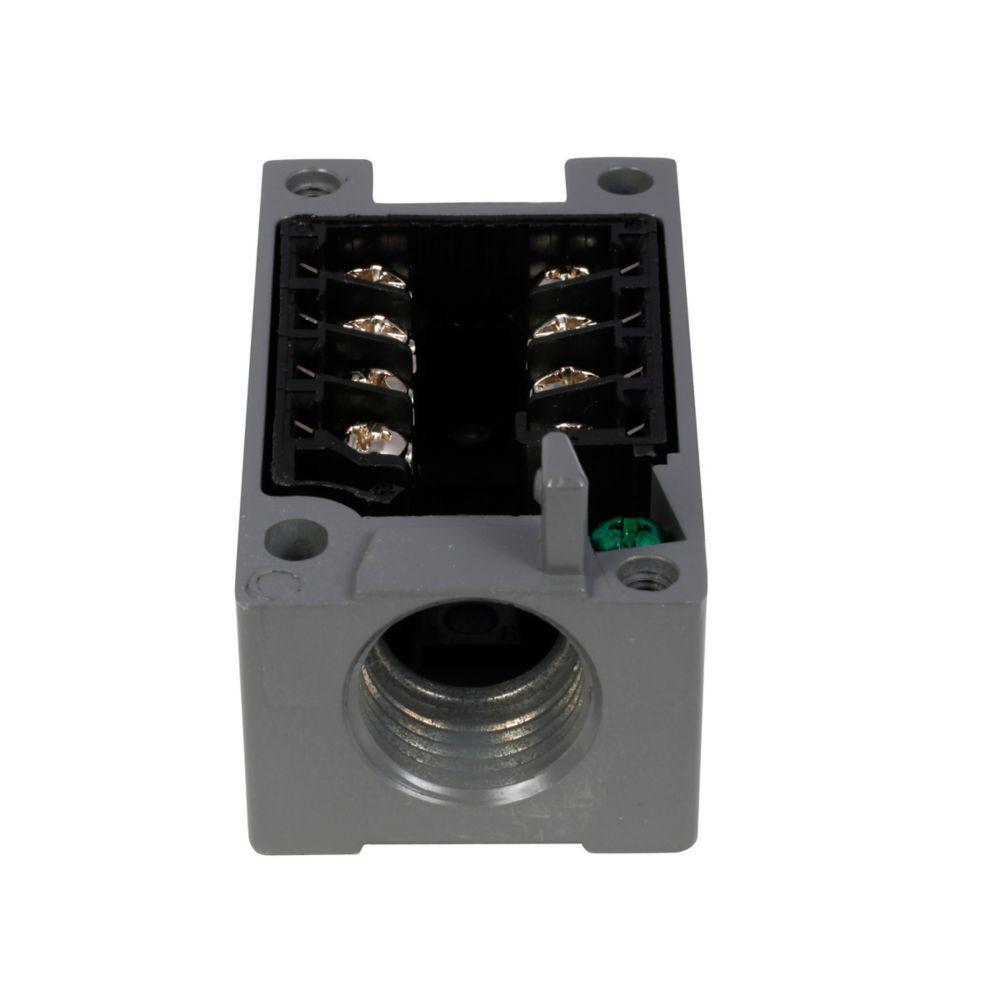

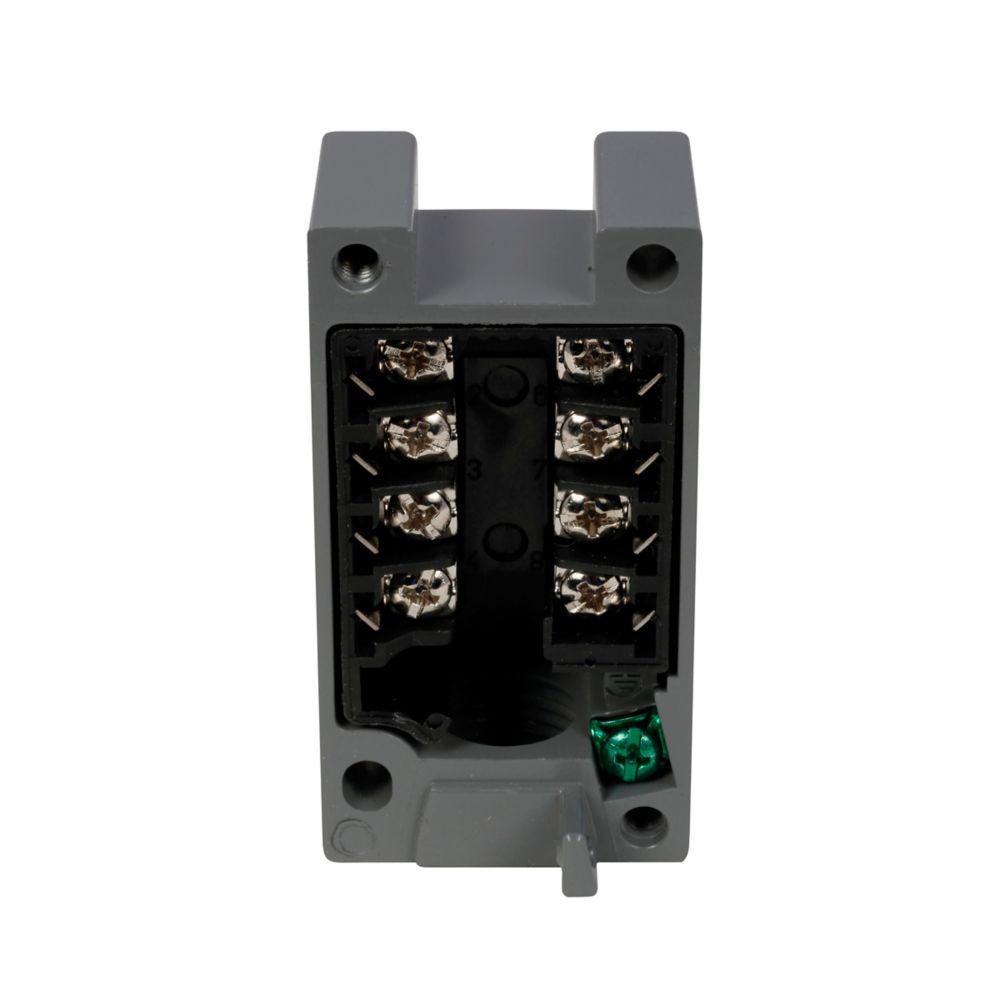

E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS

Mouse over image to zoom, click to enlarge

  • E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS
  • E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS
  • E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS
  • E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS
  • E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS

Description: EATON Limit Switch Receptacle, 9-Terminal, Series: E50, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 2 Pole, 8 ft Cable Terminal, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc, 1.54 in L x 1.06 in W x 2.92 in H Dimensions

Manufacturer PN: E50RBS

UPC:  78211332017

Kendall Electric Inc PN: 2877102

Invoice Description:

E50RBS CH E50 EPOXY FILLED RECEPTACLE WITH 8 FT CABLE AND 9 TERMINALS


SPEC SHEET

▸ See All in Limit Switch Receptacles


How Can We Make This Page Better?

EATON E50RBS 9-Terminal Limit Switch Receptacle, For Use With E50 Series Heavy Duty Plug-In Limit Switch, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Receptacle, 9-Terminal, Series: E50, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 2 Pole, 8 ft Cable Terminal, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc, 1.54 in L x 1.06 in W x 2.92 in H Dimensions

Specifications

 Application Water and Wastewater System Applications
 Brand Name EATON
 Dimensions 1.54 in L x 1.06 in W x 2.92 in H
 Enclosure NEMA 1/3/3S/4/4X/6/6P/13/IP67
 Manufacturer Part Number E50RBS
 Material Die Cast Zinc
 Number of Poles 2
 PART NUMBER KEYWORDS E50RBS ; 7360884 ; 782113320175 ; 78211332017 ; 00782113320175
 Series E50
 Standards/Approvals UL Recognized,CSA Certified,UL Listed,CE Marked
 Suitable For Use With E50 Series Heavy Duty Plug-In Limit Switch
 Terminal Type 8 ft Cable
 Type 9-Terminal

Features

▪ SOOW-A cable
▪ -40 to 221 deg F operating temperature
▪ 1/2 NPT conduit entrance
▪ Epoxy filled receptacle with pre-wired 16 ga, yellow jacketed, type SOOW-A cable
▪ Cable enters through hole threaded for conduit
▪ Pre-wired cable switch
▪ Nine-terminals
