Eaton

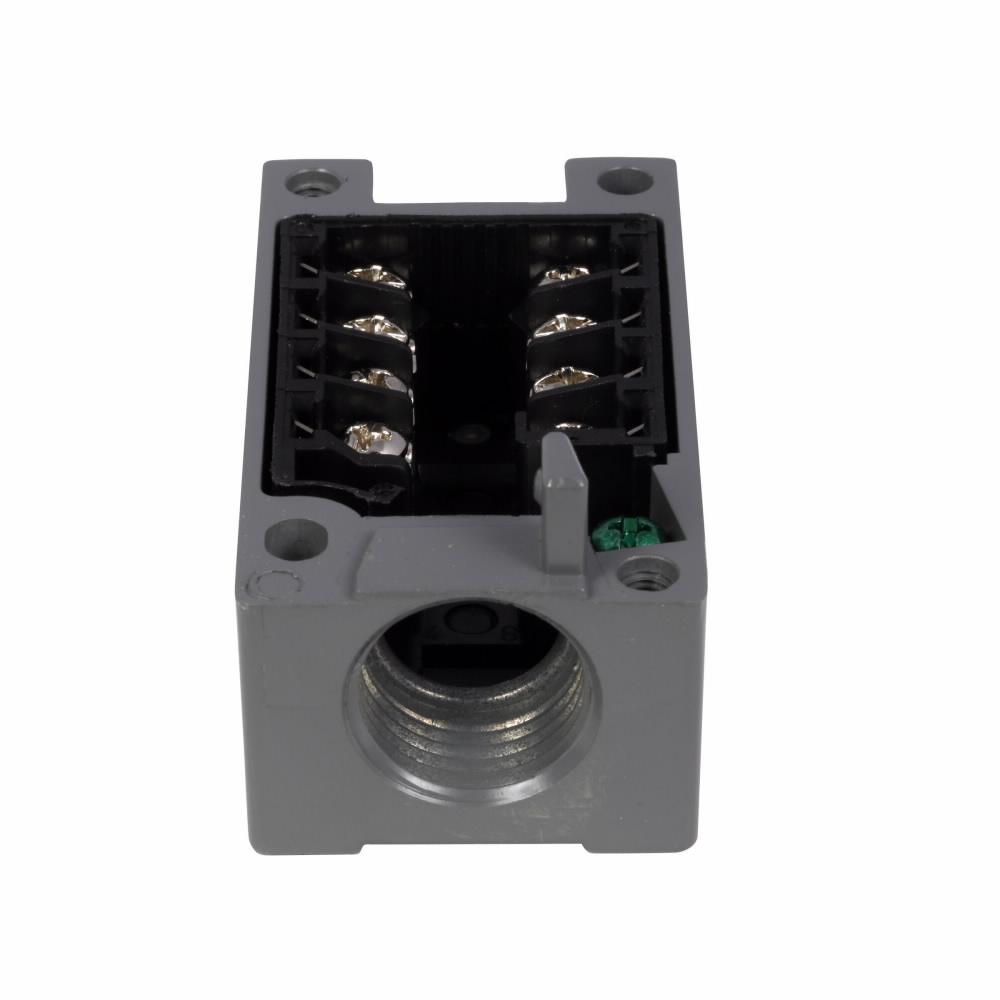

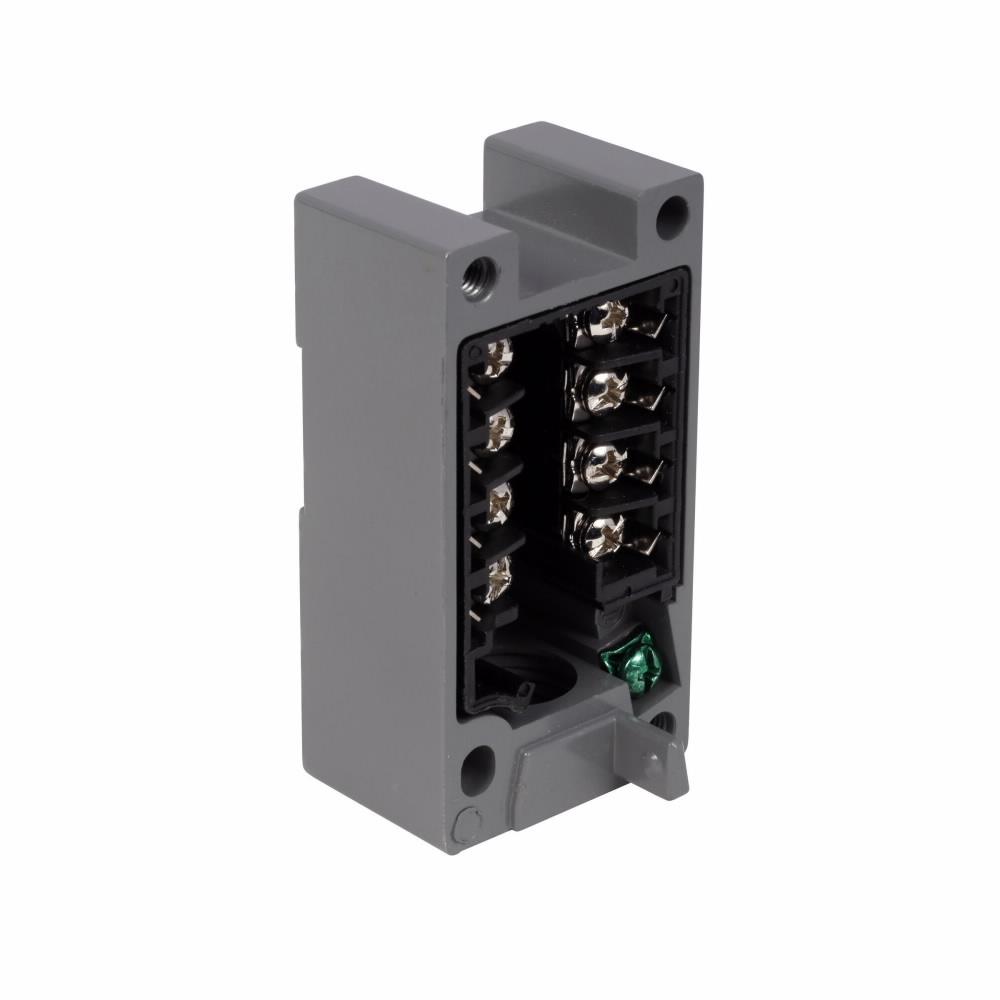

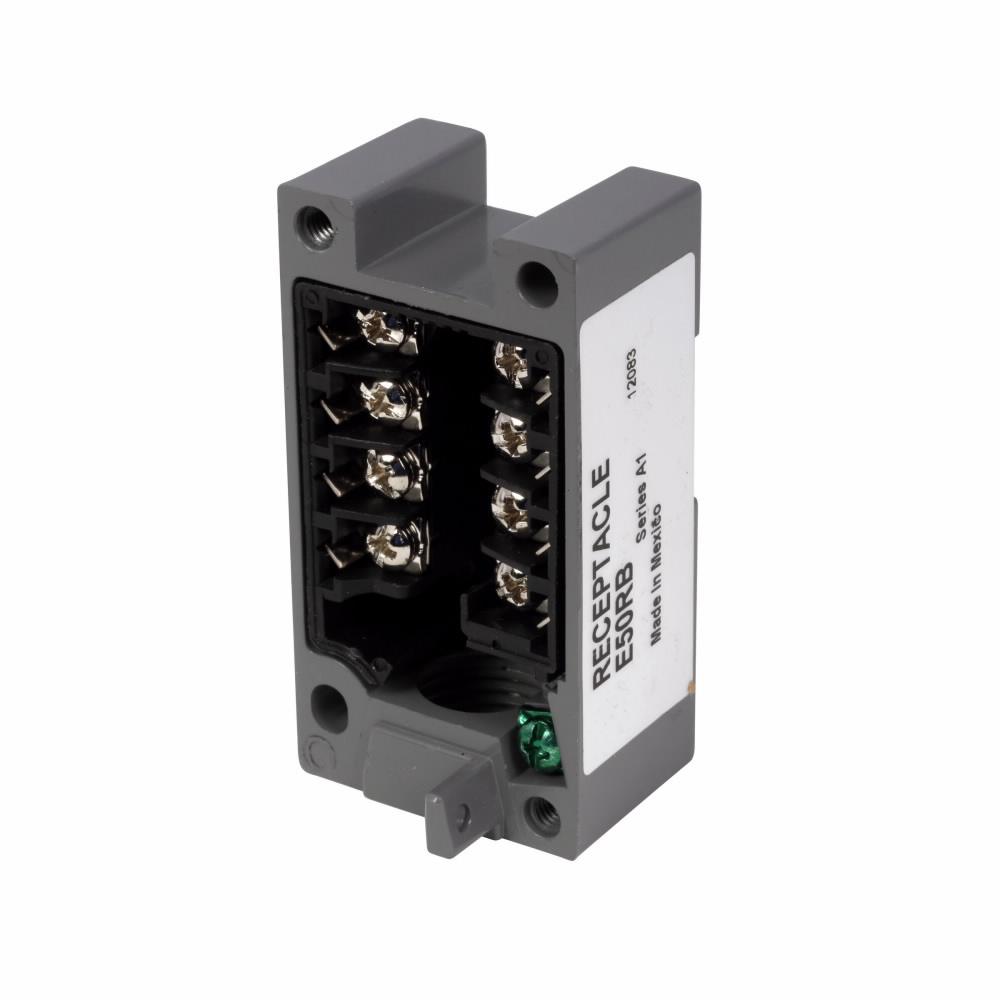

E50RB20 CH E50 20MM SURFACE MOUNT RECEPTACLE

Mouse over image to zoom, click to enlarge

  • E50RB20 CH E50 20MM SURFACE MOUNT RECEPTACLE
  • E50RB20 CH E50 20MM SURFACE MOUNT RECEPTACLE
  • E50RB20 CH E50 20MM SURFACE MOUNT RECEPTACLE
  • E50RB20 CH E50 20MM SURFACE MOUNT RECEPTACLE

Description: EATON Limit Switch Receptacle, 9-Terminal, Series: E50, 2NO-2NC 2 Form A/2 Form B Contact Form, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 2 Pole, Screw Terminal, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc, 2.92 in L x 1.54 in W x 1.06 in H Dimensions

Manufacturer PN: E50RB20

UPC:  78211310718

Kendall Electric Inc PN: 2512134

Invoice Description:

E50RB20 CH E50 20MM SURFACE MOUNT RECEPTACLE


SPEC SHEET

How Can We Make This Page Better?

EATON E50RB20 9-Terminal Limit Switch Receptacle, 2NO-2NC 2 Form A/2 Form B Contact, For Use With E50 Series Heavy Duty Plug-In Limit Switch, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Receptacle, 9-Terminal, Series: E50, 2NO-2NC 2 Form A/2 Form B Contact Form, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 2 Pole, Screw Terminal, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc, 2.92 in L x 1.54 in W x 1.06 in H Dimensions

Specifications

 Application Water and Wastewater Systems, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Contact Form 2NO-2NC 2 Form A/2 Form B
 Dimensions 2.92 in L x 1.54 in W x 1.06 in H
 Enclosure NEMA 1/3/3S/4/4X/6/6P/13/IP67
 Manufacturer Part Number E50RB20
 Material Die Cast Zinc
 Number of Poles 2
 PART NUMBER KEYWORDS E50RB20 ; 7336098 ; 782113107189 ; 78211310718 ; 00782113107189
 Series E50
 Standards/Approvals UL Recognized,CSA Certified,UL Listed,RoHS Compliant,CE Marked
 Suitable For Use With E50 Series Heavy Duty Plug-In Limit Switch
 Terminal Type Screw
 Type 9-Terminal

Features

▪ Surface mounting
▪ -40 to 250 deg F operating temperature
▪ 20 mm conduit entrance
▪ Nine-terminal screws

Resources

 Catalog Page
 Product Data Sheet
