Eaton

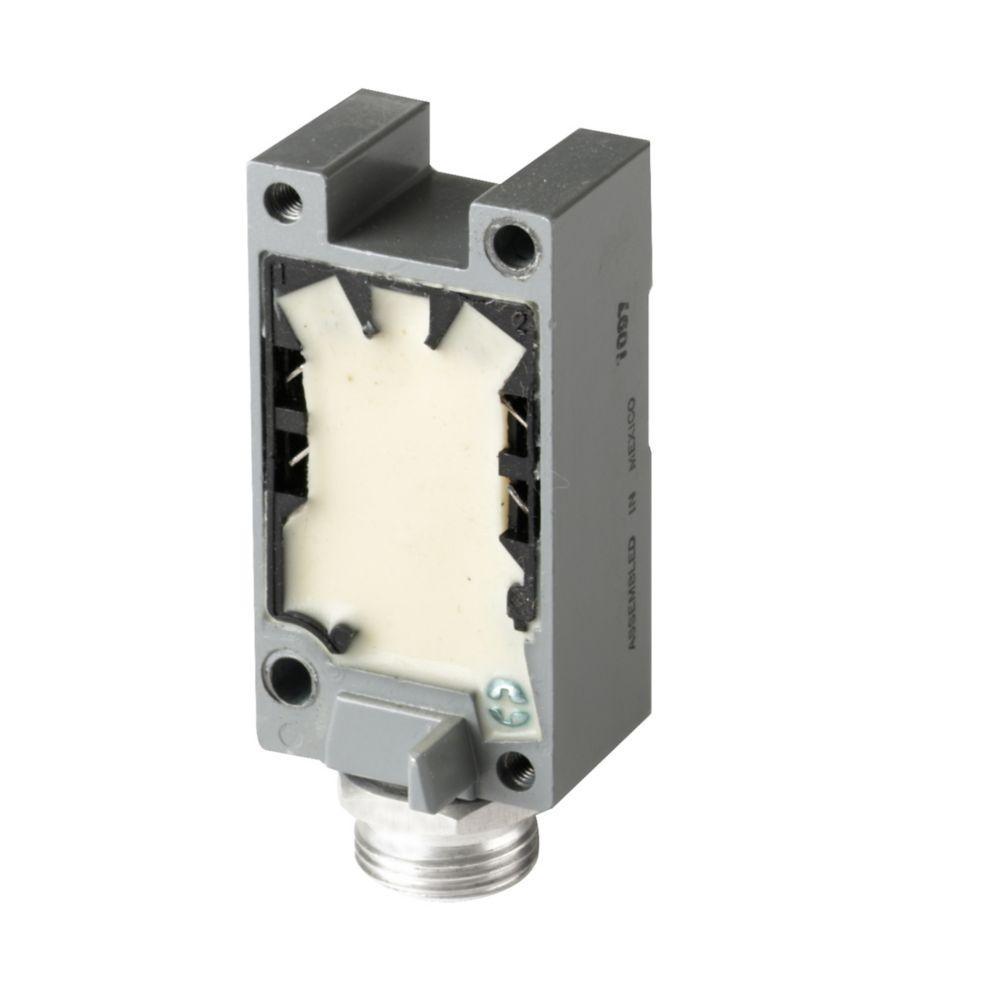

E50RAP5 CH E50 EPOXY FILLED RECEPTACLE--REPLACES E50RY2

Mouse over image to zoom, click to enlarge

  • E50RAP5 CH E50 EPOXY FILLED RECEPTACLE--REPLACES E50RY2
  • E50RAP5 CH E50 EPOXY FILLED RECEPTACLE--REPLACES E50RY2

Description: EATON Limit Switch Receptacle, Series: E50, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 1 Pole, 5-Pin Mini-Connector/Pre-Wire Terminal, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc, 3.53 in L x 1.54 in W x 1.06 in H Dimensions

Manufacturer PN: E50RAP5

UPC:  78211313825

Kendall Electric Inc PN: 2876348

Invoice Description:

E50RAP5 CH E50 EPOXY FILLED RECEPTACLE--REPLACES E50RY2


SPEC SHEET

▸ See All in Limit Switch Receptacles


How Can We Make This Page Better?

EATON E50RAP5 Limit Switch Receptacle, For Use With E50 Series Heavy Duty Plug-In Limit Switch, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Receptacle, Series: E50, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 1 Pole, 5-Pin Mini-Connector/Pre-Wire Terminal, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Die Cast Zinc, 3.53 in L x 1.54 in W x 1.06 in H Dimensions

Specifications

 Application Water and Wastewater Systems, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Dimensions 3.53 in L x 1.54 in W x 1.06 in H
 Enclosure NEMA 1/3/3S/4/4X/6/6P/13/IP67
 Manufacturer Part Number E50RAP5
 Material Die Cast Zinc
 Number of Poles 1
 PART NUMBER KEYWORDS E50RAP5 ; 7338553 ; 782113138251 ; 78211313825 ; 00782113138251
 Series E50
 Standards/Approvals CSA Certified,UL Recognized,UL Listed,RoHS Compliant,CE Marked
 Suitable For Use With E50 Series Heavy Duty Plug-In Limit Switch
 Terminal Type 5-Pin Mini-Connector/Pre-Wire

Features

▪ -40 to 250 deg F operating temperature

Resources

 Catalog Page
 Product Data Sheet
