Eaton

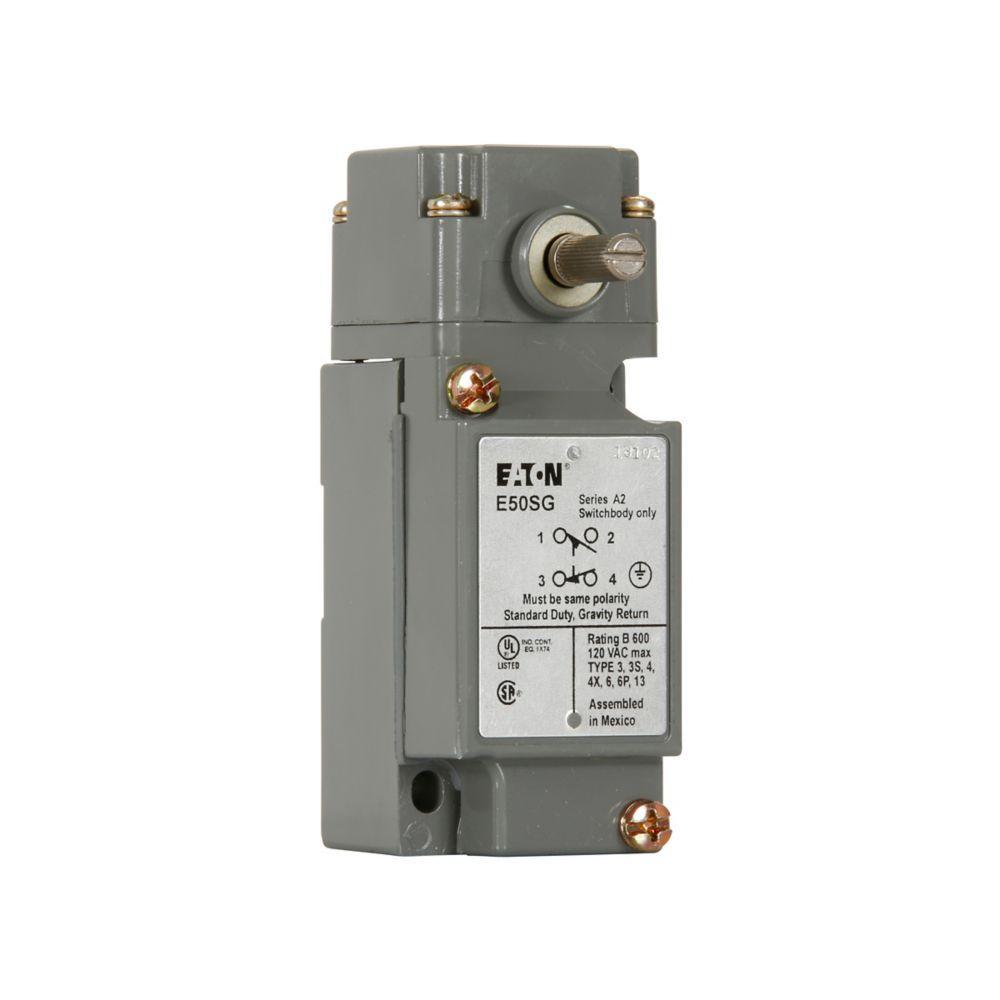

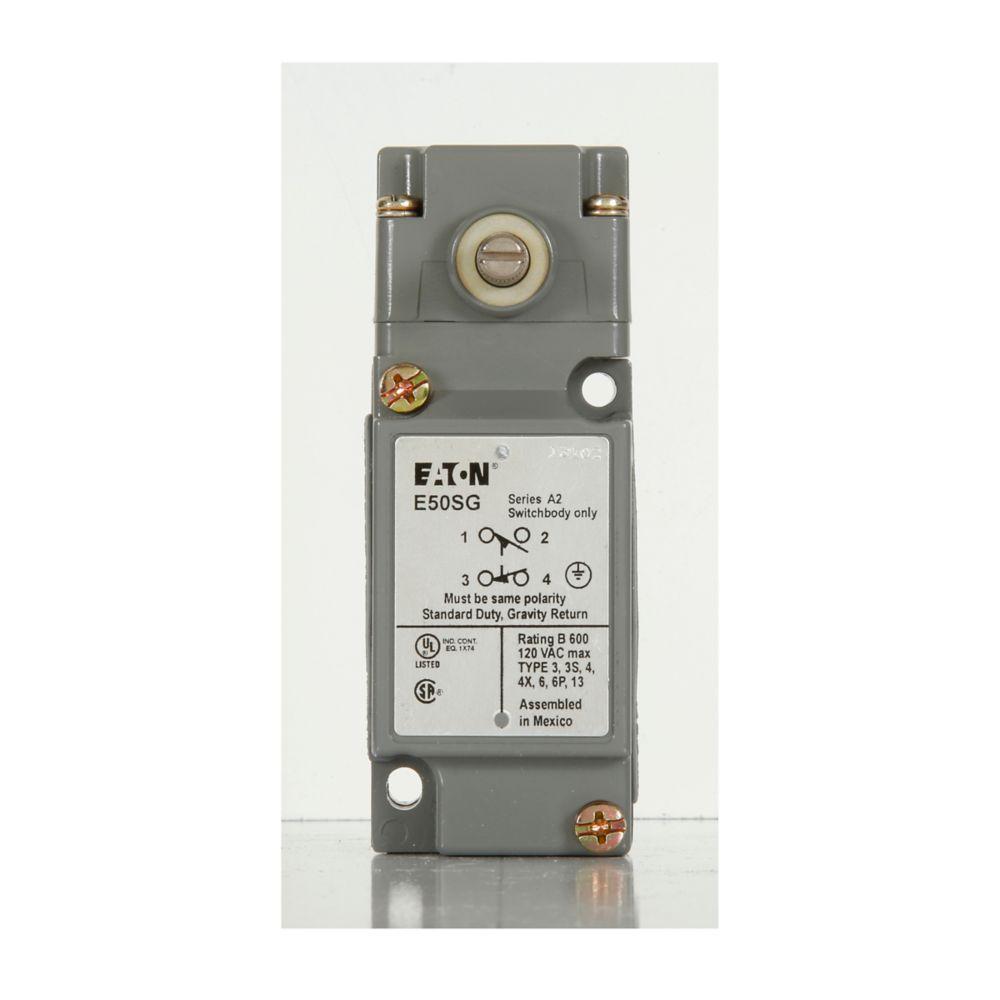

E50GG1 CH E50 HEAVY DUTY LIMIT SWITCH-SPECIAL PURPOSE

Mouse over image to zoom, click to enlarge

  • E50GG1 CH E50 HEAVY DUTY LIMIT SWITCH-SPECIAL PURPOSE
  • E50GG1 CH E50 HEAVY DUTY LIMIT SWITCH-SPECIAL PURPOSE
  • E50GG1 CH E50 HEAVY DUTY LIMIT SWITCH-SPECIAL PURPOSE
  • E50GG1 CH E50 HEAVY DUTY LIMIT SWITCH-SPECIAL PURPOSE

Description: EATON Limit Switch, Heavy Duty Gravity Return Plug-In, Series: E50, 1NO-1NC Contact Configuration, 5 A at 250 V AC Contact, Snap Action, Side Rotary Actuator, Screw Terminal Connection, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Threaded Mounting, 4.22 in L x 1.54 in W x 2.46 in H Size, 13000000 cycles Operating Cycles, 14 to 201 deg F Operating, Die Cast Zinc

Manufacturer PN: E50GG1

UPC:  78211330409

Kendall Electric Inc PN: 2049336

Invoice Description:

E50GG1 CH E50 HEAVY DUTY LIMIT SWITCH-SPECIAL PURPOSE


SPEC SHEET

How Can We Make This Page Better?

EATON E50GG1 Heavy Duty Gravity Return Plug-In Limit Switch, Side Rotary Actuator, 1NO-1NC Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch, Heavy Duty Gravity Return Plug-In, Series: E50, 1NO-1NC Contact Configuration, 5 A at 250 V AC Contact, Snap Action, Side Rotary Actuator, Screw Terminal Connection, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, Threaded Mounting, 4.22 in L x 1.54 in W x 2.46 in H Size, 13000000 cycles Operating Cycles, 14 to 201 deg F Operating, Die Cast Zinc

Specifications

 Actuator Side Rotary
 Application Cutting and Forming, Punch Presses, Waste Water Treatment, Machine Tool, Automotive, Retrieval Systems, Industrial Truck and Car Wash Lines Applications
 Brand Name EATON
 Connection Type Screw Terminal
 Contact Configuration 1NO-1NC
 Contact Rating 5 A at 250 V AC
 Enclosure NEMA 1/3/3S/4/4X/6/6P/13/IP67
 Manufacturer Part Number E50GG1
 Material Die Cast Zinc
 Mounting Type Threaded
 Operating Cycles 13000000 cycles
 Operating Temperature 14 to 201 deg F
 PART NUMBER KEYWORDS E50GG1 ; 7357633 ; 782113304090 ; 78211330409 ; 00782113304090
 Series E50
 Size 4.22 in L x 1.54 in W x 2.46 in H
 Standards/Approvals CSA Certified,UL Listed,RoHS Compliant,CE Marked
 Type Heavy Duty Gravity Return Plug-In

Features

▪ 5 A at 120/240/480/600 VAC
▪ Without indicating light
▪ Modular, plug-in components (head, body and receptacle) provide application flexibility, reduced inventory and less downtime
▪ Manufactured to take the physical and environmental abuse (including cutting fluids and chemicals) of harsh industrial environment
▪ Chemical-resistant FKM gaskets, seals and boots are standard and so are captive, posi-drive screws
▪ The switches have terminal identification on the nameplate for a visual wiring checkout without guesswork, heads and switch bodies can be replaced without rewiring
▪ E50 devices can be ordered in separate components or as complete assembled switches
▪ 600 V rating, ridge topped contact and wiping action assure continuity even to logic level circuits
▪ Keyed, four direction head positioning
▪ Standard 5 deg pre-travel and 90 deg total travel
▪ Rotary heads are field convertible CW, CCW or both, without special tool
