Eaton

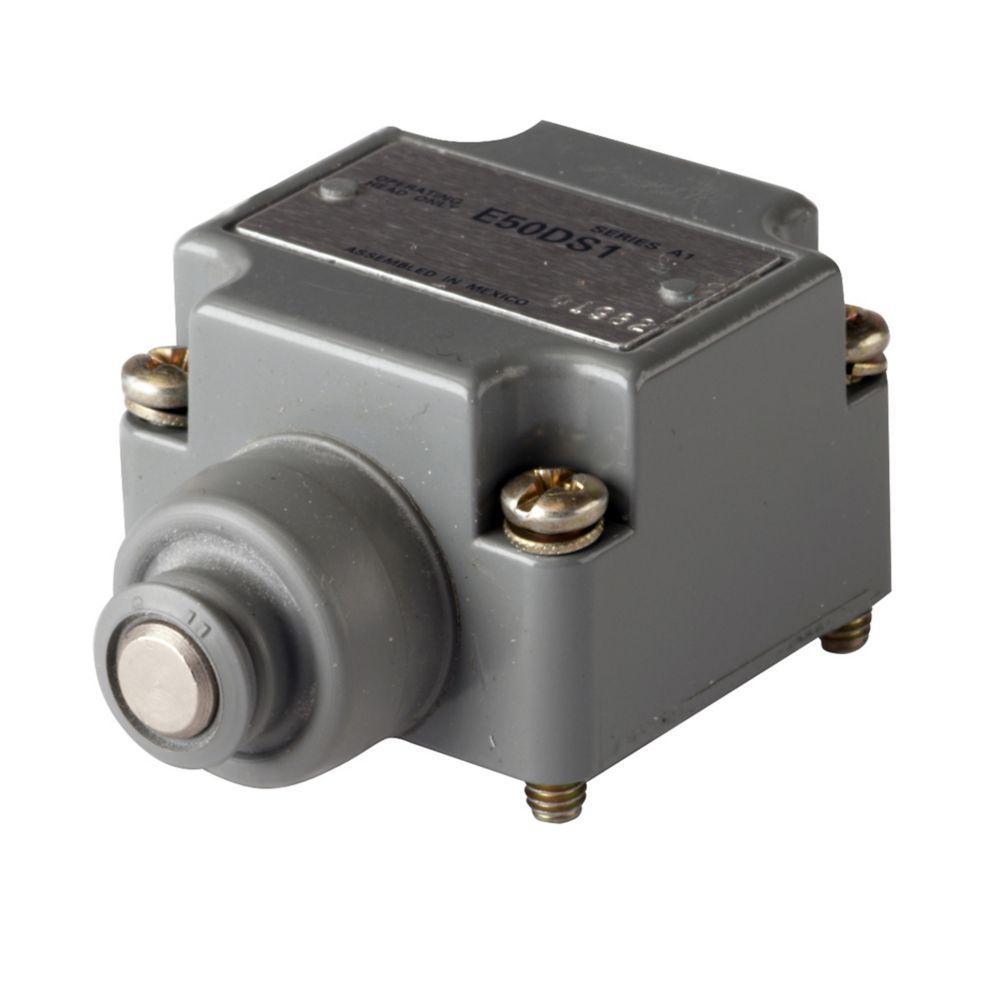

E50DS1 CH E50 LIMIT SWITCH HEAD, SIDE PUSH PLUNGER, SPRING RETURN

Mouse over image to zoom, click to enlarge

Description: EATON Limit Switch Body, Heavy Duty Factory Sealed 6P+ Plug-In Side Pushbutton Spring Return, Series: E50, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, 14 to 201 deg F, For Use With: E50 Series Heavy Duty Factory Sealed 6P+ Plug-In Limit Switch, Die Cast Zinc, 1.05 in L x 1.54 in W x 2.25 in H Dimensions

Manufacturer PN: E50DS1

UPC: 78211329062

Kendall Electric Inc PN: 131489

Invoice Description:

E50DS1 CH E50 LIMIT SWITCH HEAD, SIDE PUSH PLUNGER, SPRING RETURN

SPEC SHEET

▸ See All in Limit Switch Bodies

How Can We Make This Page Better?

EATON E50DS1 Heavy Duty Factory Sealed 6P+ Plug-In Side Pushbutton Spring Return Limit Switch Body, For Use With E50 Series Heavy Duty Factory Sealed 6P+ Plug-In Limit Switch, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.

EATON Limit Switch Body, Heavy Duty Factory Sealed 6P+ Plug-In Side Pushbutton Spring Return, Series: E50, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, 14 to 201 deg F, For Use With: E50 Series Heavy Duty Factory Sealed 6P+ Plug-In Limit Switch, Die Cast Zinc, 1.05 in L x 1.54 in W x 2.25 in H Dimensions

Specifications

Application	Water and Wastewater Systems, Automation and Logic Control Equipment Applications
Brand Name	EATON
Dimensions	1.05 in L x 1.54 in W x 2.25 in H
Enclosure	NEMA 1/3/3S/4/4X/6/6P/13/IP67
Manufacturer Part Number	E50DS1
Material	Die Cast Zinc
PART NUMBER KEYWORDS	E50DS1 ; 7355976 ; 782113290621 ; 78211329062 ; 00782113290621
Series	E50
Standards/Approvals	UL Recognized,CSA Certified,UL Listed,RoHS Compliant,CE Marked
Suitable For Use With	E50 Series Heavy Duty Factory Sealed 6P+ Plug-In Limit Switch
Temperature Rating	14 to 201 deg F
Type	Heavy Duty Factory Sealed 6P+ Plug-In Side Pushbutton Spring Return
