E50DR19 CH E50 HEAVY DUTY LIMIT SWITCH

Mouse over image to zoom, click to enlarge

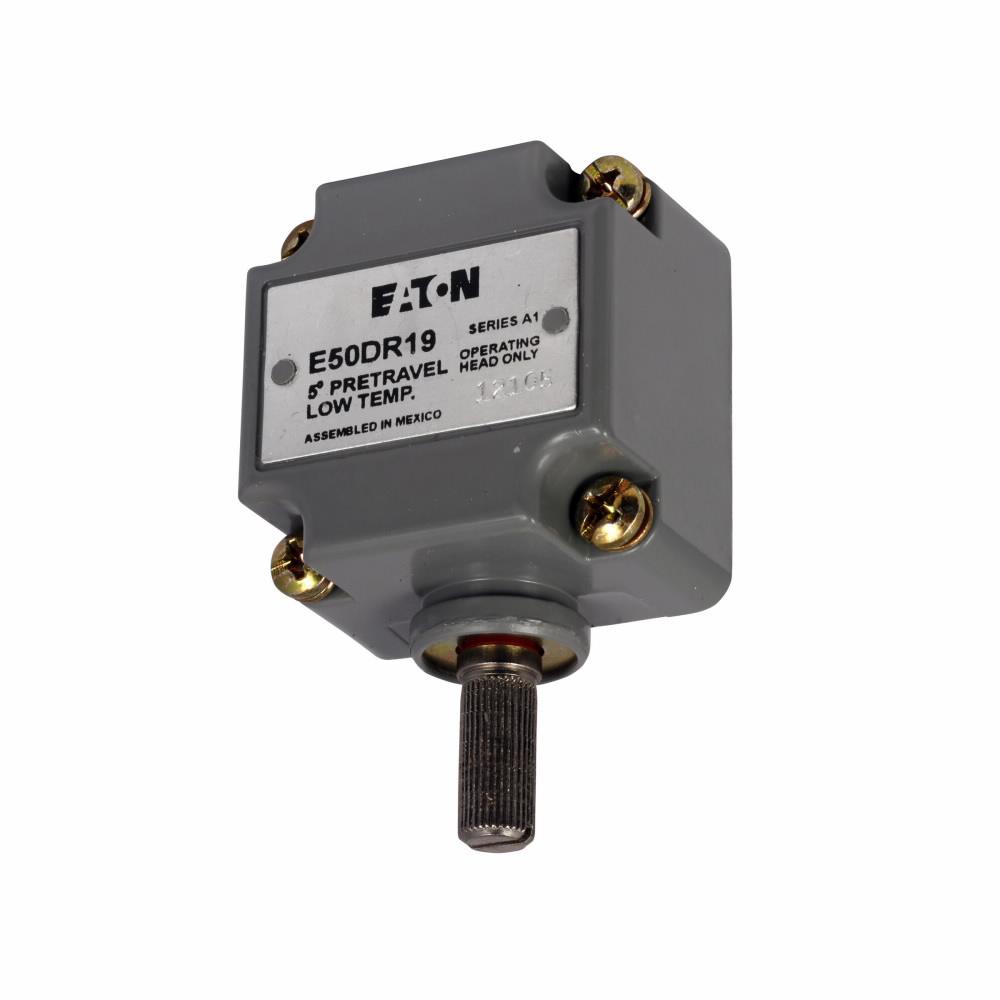

  • E50DR19 CH E50 HEAVY DUTY LIMIT SWITCH

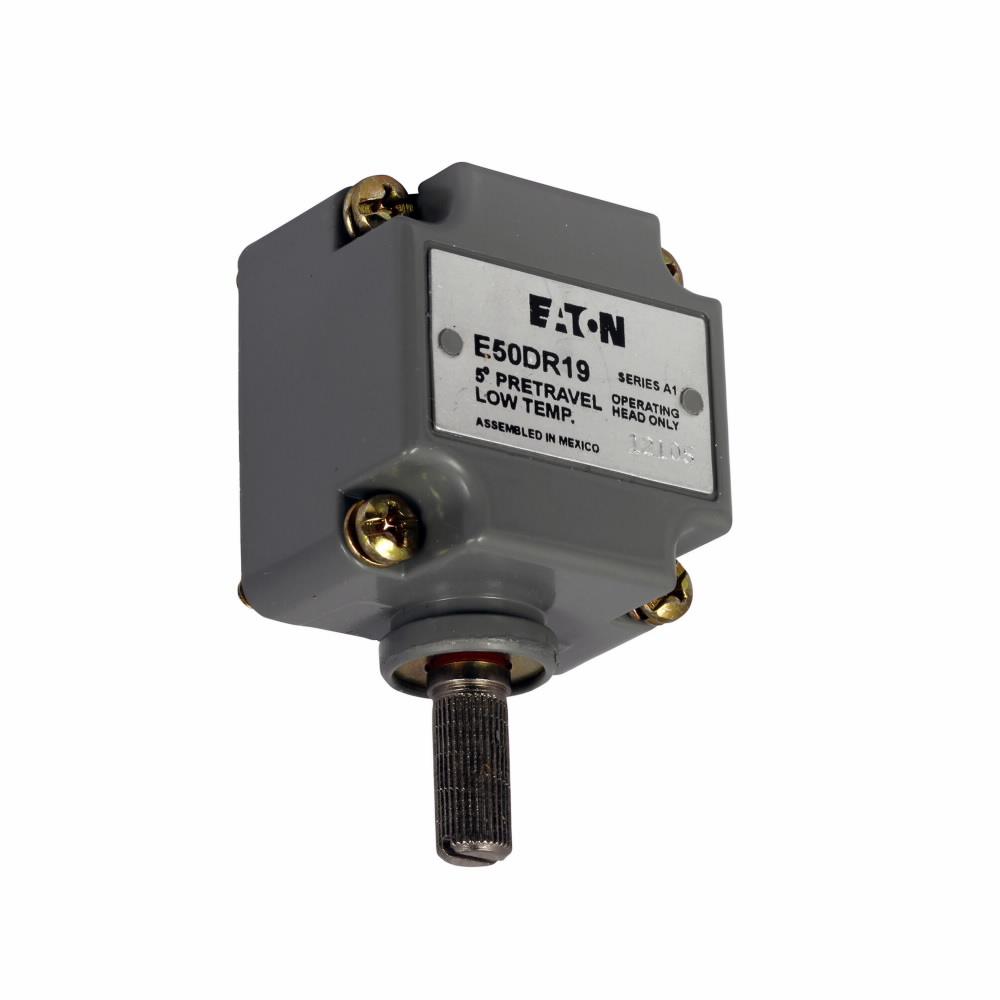

  • E50DR19 CH E50 HEAVY DUTY LIMIT SWITCH
  • E50DR19 CH E50 HEAVY DUTY LIMIT SWITCH

Description: EATON Limit Switch Head, Series: E50, Rotary Actuator, Side Actuator Location, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 3 in-lb Operating Force, 90 deg Travel, NEMA 1/3/3S/4/4X/6/6P/13 NEMA Rating, -40 to 175 deg F, Die Cast Zinc, 1.05 in L x 1.54 in W x 2.46 in H Dimensions

Manufacturer PN: E50DR19

UPC:  78211332850

Kendall Electric Inc PN: 2155803

Invoice Description:

E50DR19 CH E50 HEAVY DUTY LIMIT SWITCH


SPEC SHEET

How Can We Make This Page Better?

EATON E50DR19 Limit Switch Head, Side Rotary, For Use With E50 Series Heavy Duty Plug-In Limit Switch, NEMA 1/3/3S/4/4X/6/6P/13 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Head, Series: E50, Rotary Actuator, Side Actuator Location, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 3 in-lb Operating Force, 90 deg Travel, NEMA 1/3/3S/4/4X/6/6P/13 NEMA Rating, -40 to 175 deg F, Die Cast Zinc, 1.05 in L x 1.54 in W x 2.46 in H Dimensions

Specifications

 Actuator Location Side
 Actuator Type Rotary
 Application Water and Wastewater Systems, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Dimensions 1.05 in L x 1.54 in W x 2.46 in H
 Manufacturer Part Number E50DR19
 Material Die Cast Zinc
 NEMA Rating NEMA 1/3/3S/4/4X/6/6P/13
 Operating Force 3 in-lb
 PART NUMBER KEYWORDS E50DR19 ; 7361478 ; 782113328508 ; 78211332850 ; 00782113328508
 Series E50
 Standards/Approvals UL Recognized,CSA Certified,UL Listed,RoHS Compliant,CE Marked
 Suitable For Use With E50 Series Heavy Duty Plug-In Limit Switch
 Temperature Rating -40 to 175 deg F
 Travel 90 deg

Features

▪ 4-1/2 in-oz minimum return force
▪ Side rotary low temperature spring return actuator
