Eaton

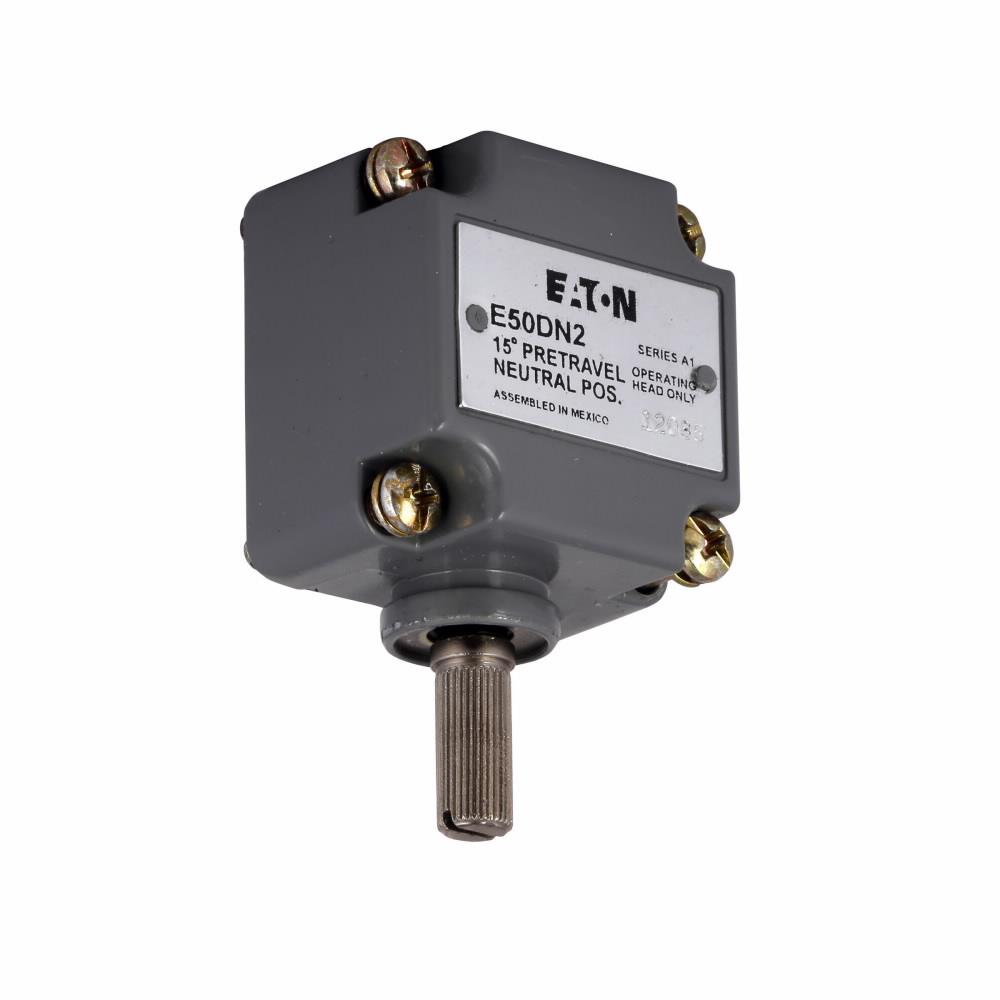

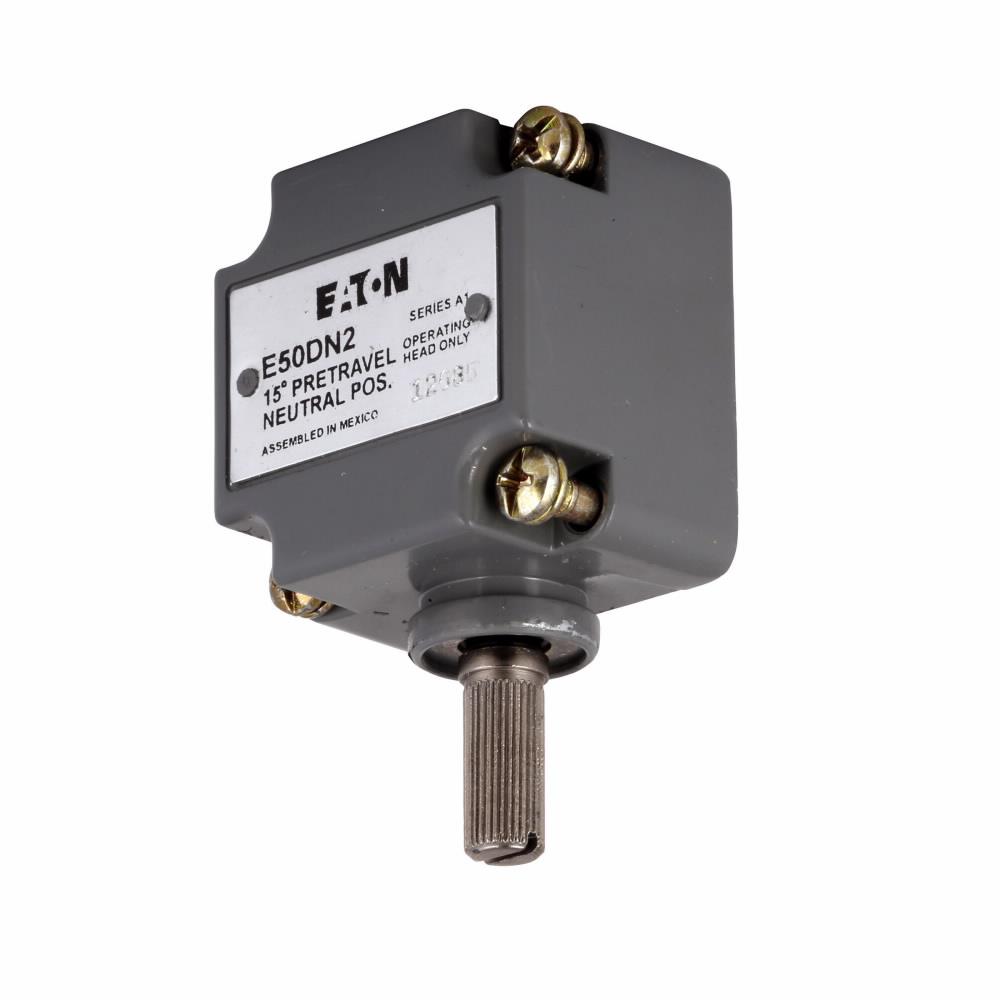

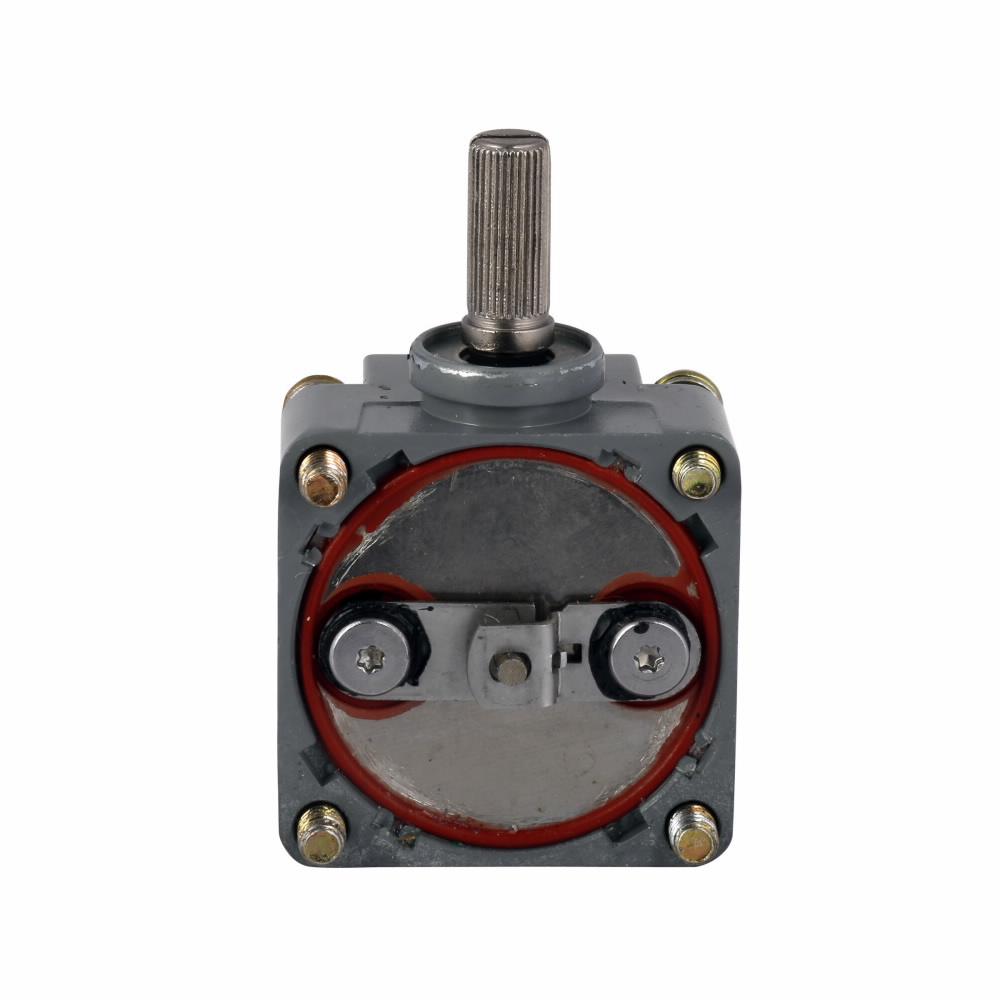

E50DN2 CH E50 HEAVY DUTY LIMIT SWITCH

Mouse over image to zoom, click to enlarge

  • E50DN2 CH E50 HEAVY DUTY LIMIT SWITCH
  • E50DN2 CH E50 HEAVY DUTY LIMIT SWITCH
  • E50DN2 CH E50 HEAVY DUTY LIMIT SWITCH
  • E50DN2 CH E50 HEAVY DUTY LIMIT SWITCH

Description: EATON Limit Switch Operating Head, Series: E50, Neutral Position Actuator Location, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 1.8 in-lb Operating Force, 15 deg Travel, 1/3/3S/4/4X/6/6P/13/IP67 NEMA Rating, 14 to 201 deg F, Die Cast Zinc, 1.05 in L x 1.54 in W x 2.46 in H Dimensions

Manufacturer PN: E50DN2

UPC:  78211345385

Kendall Electric Inc PN: 2024575

Invoice Description:

E50DN2 CH E50 HEAVY DUTY LIMIT SWITCH


SPEC SHEET

▸ See All in Limit Switch Heads


How Can We Make This Page Better?

EATON E50DN2 Limit Switch Operating Head, Neutral Position, For Use With E50 Series Heavy Duty Plug-In Limit Switch, 1/3/3S/4/4X/6/6P/13/IP67 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
EATON Limit Switch Operating Head, Series: E50, Neutral Position Actuator Location, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, 1.8 in-lb Operating Force, 15 deg Travel, 1/3/3S/4/4X/6/6P/13/IP67 NEMA Rating, 14 to 201 deg F, Die Cast Zinc, 1.05 in L x 1.54 in W x 2.46 in H Dimensions

Specifications

 Actuator Location Neutral Position
 Application Water and Wastewater System, Automation and Logic Control Equipment Application
 Brand Name EATON
 Dimensions 1.05 in L x 1.54 in W x 2.46 in H
 Manufacturer Part Number E50DN2
 Material Die Cast Zinc
 NEMA Rating 1/3/3S/4/4X/6/6P/13/IP67
 Operating Force 1.8 in-lb
 PART NUMBER KEYWORDS E50DN2 ; 7324061 ; 782113453859 ; 78211345385 ; 00782113453859
 Series E50
 Standards/Approvals CSA Certified,UL Listed,RoHS Compliant,CE Marked
 Suitable For Use With E50 Series Heavy Duty Plug-In Limit Switch
 Temperature Rating 14 to 201 deg F
 Travel 15 deg

Features

▪ 2-1/2 in-oz minimum return torque rating

Resources

 Catalog
 Catalog Page
 Product Data Sheet
