Cooper Lighting Solutions

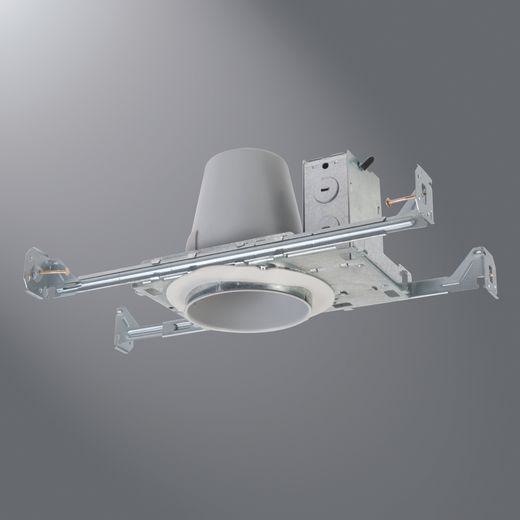

E4TATSB HALO 4" NON-IC,A-T 120V LN VLTG,ADJ SCKT BRKT ZZZZ

Mouse over image to zoom, click to enlarge

  • E4TATSB HALO 4" NON-IC,A-T 120V LN VLTG,ADJ SCKT BRKT ZZZZ
  • E4TATSB HALO 4" NON-IC,A-T 120V LN VLTG,ADJ SCKT BRKT ZZZZ

Description: Halo, E4TATSB, Recessed Housing, New Construction, Series: E4 Series, 120 V AC, 4-1/2 in Ceiling Opening, Incandescent Lamp, 60 W Lamp, Non-IC Insulation, Ceiling Mounting, For Use With: Halo Recessed Downlight Fixture, 4 in Diameter, 5-1/2 in Height, 10 in Width, 5-1/4 in Depth, Steel Housing Material

Manufacturer PN: E4TATSB

UPC:  08008375148

Kendall Electric Inc PN: 3649343

Invoice Description:

E4TATSB HALO 4" NON-IC,A-T 120V LN VLTG,ADJ SCKT BRKT ZZZZ


SPEC SHEET

How Can We Make This Page Better?

Halo E4TATSB E4 Series New Construction Recessed Housing, Incandescent Lamp, Non-IC Insulation, 120 V AC, 4-1/2 in Ceiling Opening, Steel Housing

Log In for Pricing and Availability




Description

The E4TATSB is a non-IC Air-Tite™ housing optimized and listed for EISA compliant tungsten-Halogen lamps, CFL and LED lamps, as well as incandescent. Housing features an adjustable socket bracket and is suitable for residential or commercial applications. Installation in non-insulated ceilings with Air-Tite™ code compliant construction. If insulation is present it must be kept 3 in from all sides of the housing. May be retrofit with compatible Halo LED lighting systems.
Halo, E4TATSB, Recessed Housing, New Construction, Series: E4 Series, 120 V AC, 4-1/2 in Ceiling Opening, Incandescent Lamp, 60 W Lamp, Non-IC Insulation, Ceiling Mounting, For Use With: Halo Recessed Downlight Fixture, 4 in Diameter, 5-1/2 in Height, 10 in Width, 5-1/4 in Depth, Steel Housing Material

Specifications

 Application For lighting applications
 Brand Name Halo
 Ceiling Opening 4-1/2 in
 Depth 5-1/4 in
 Height 5-1/2 in
 Housing Material Steel
 Includes All Nail!™ Bar Hanger, Junction Box, (7) 1/2 in Conduit Knock-Outs, (7) 1/2 in Conduit Pry-Outs, (3) Slide-N-Side™ Non-Metallic (NM) Wire Traps, (3) 4-Port Push Wire Nuts, (3) Quick Connect™ Push Wire Nut and Cap
 Lamp Type Incandescent
 Lamp Wattage 60 W
 Manufacturer Part Number E4TATSB
 Mounting Type Ceiling
 PART NUMBER KEYWORDS E4TATSB ; 13834045 ; 14066637 ; 080083751488 ; 80083751488 ; 08008375148 ; 00080083751488
 Series E4 Series
 Standards/Approvals Damp/Wet Locations Listed|AIR-TITE™ Certified|cULus Listed for Damp/Wet Location|ECCN: EAR99NLR
 Suitable For Use With Halo Recessed Downlight Fixture
 Type New Construction
 Voltage Rating 120 V AC
 Width 10 in

Features

▪ Halo fit-all concept offers multiple trim options in a variety of design styles and functional beam distributions to control beam angle and lumen delivery in accommodating various lamp types
▪ Double wall aluminum construction helps dissipate heat
▪ The inner housing can be removed from the plaster frame to provide access to the junction box
▪ For insulated ceilings indirect contact with insulation (may also be installed in non-insulated ceilings)
▪ All-Nail™ bar hangers with preinstalled nail and integral T-grid clip
▪ Q-channel interlocking hanger bars
▪ Hanger bars feature Pass-N-Thru™ tool-less shortening
▪ 0.5 A amperage rating
▪ Quick Connect™ push-in wire nuts included
▪ Hinged junction box with Slide-N-Side
▪ Socket bracket adjusts lamp to various trim styles and designs
▪ Plaster frame includes locking screw for hanger bars and cutouts for crimping hanger bars in position
▪ Air-Tite™ gasket is pre-installed
▪ Positioned to accommodate straight conduit runs
▪ Adjustable position bracket with porcelain socket and nickel plated brass screw shell provides flexibility in lamp positioning
▪ Thermal protector - self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation
