Eaton

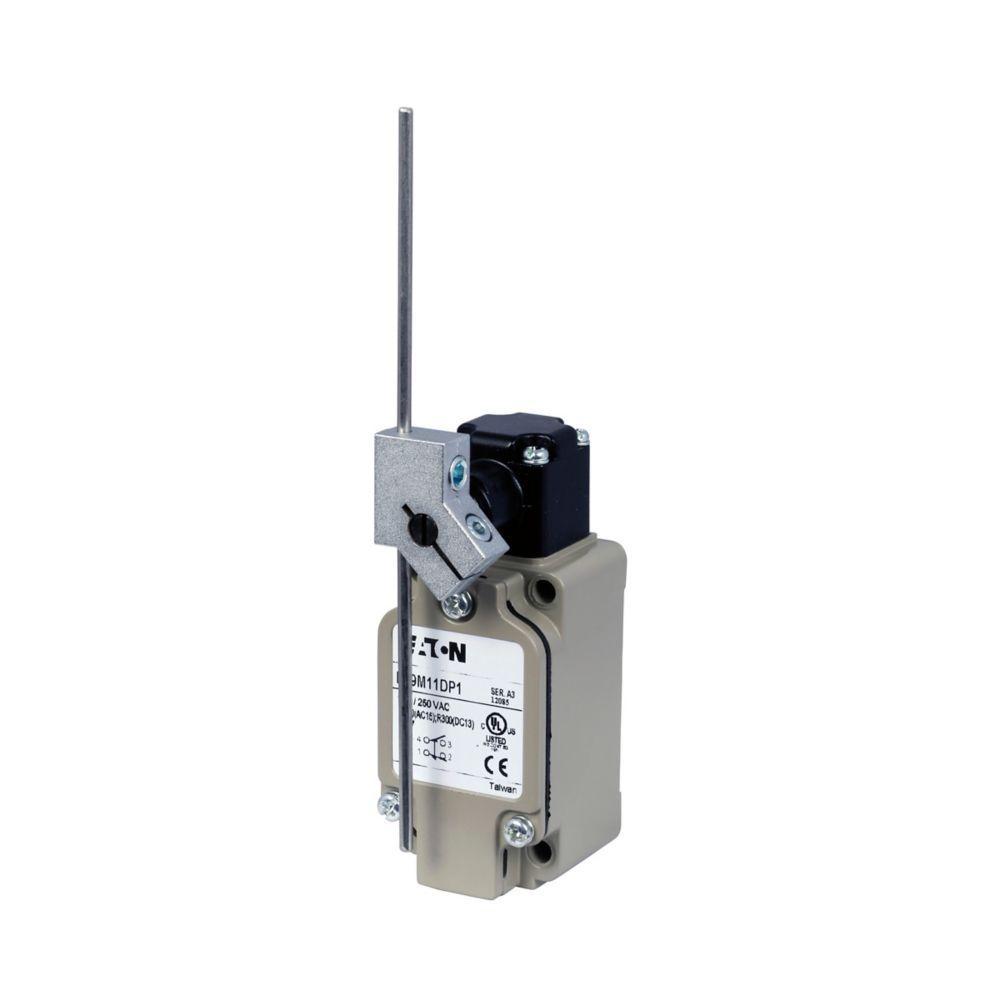

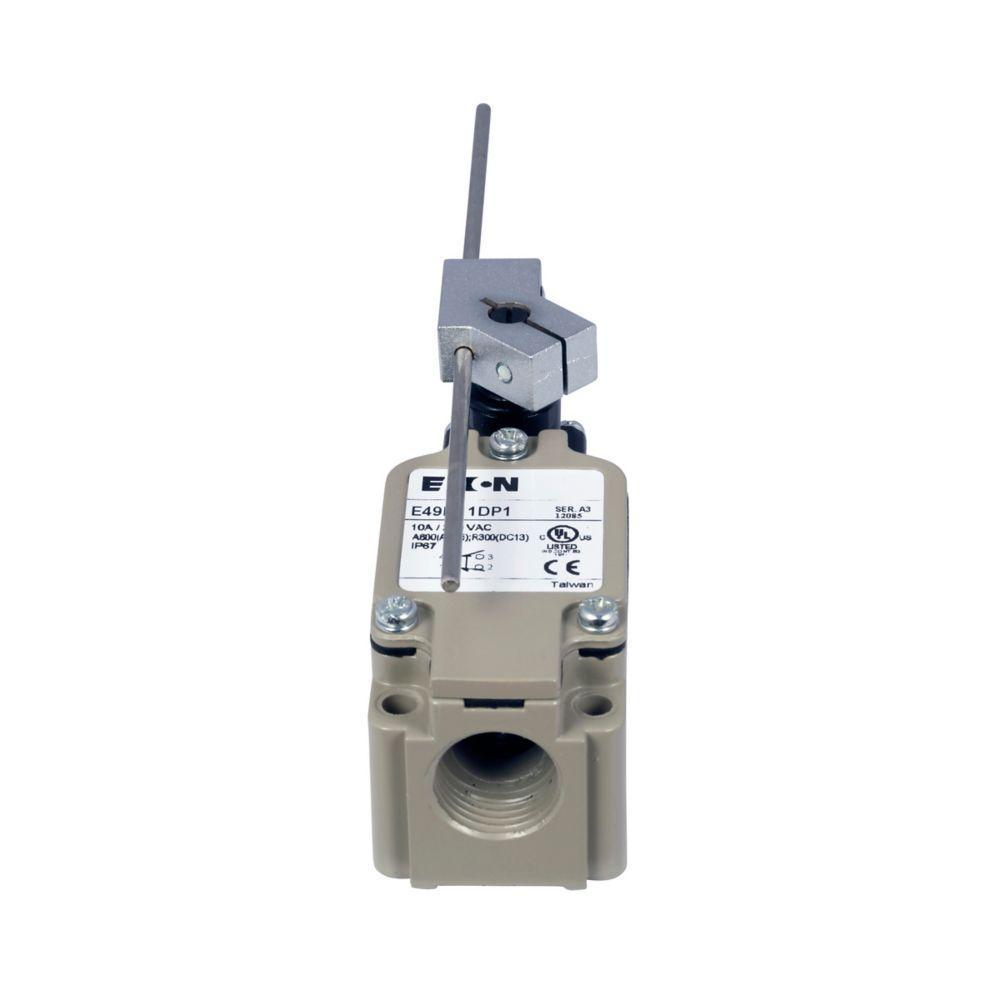

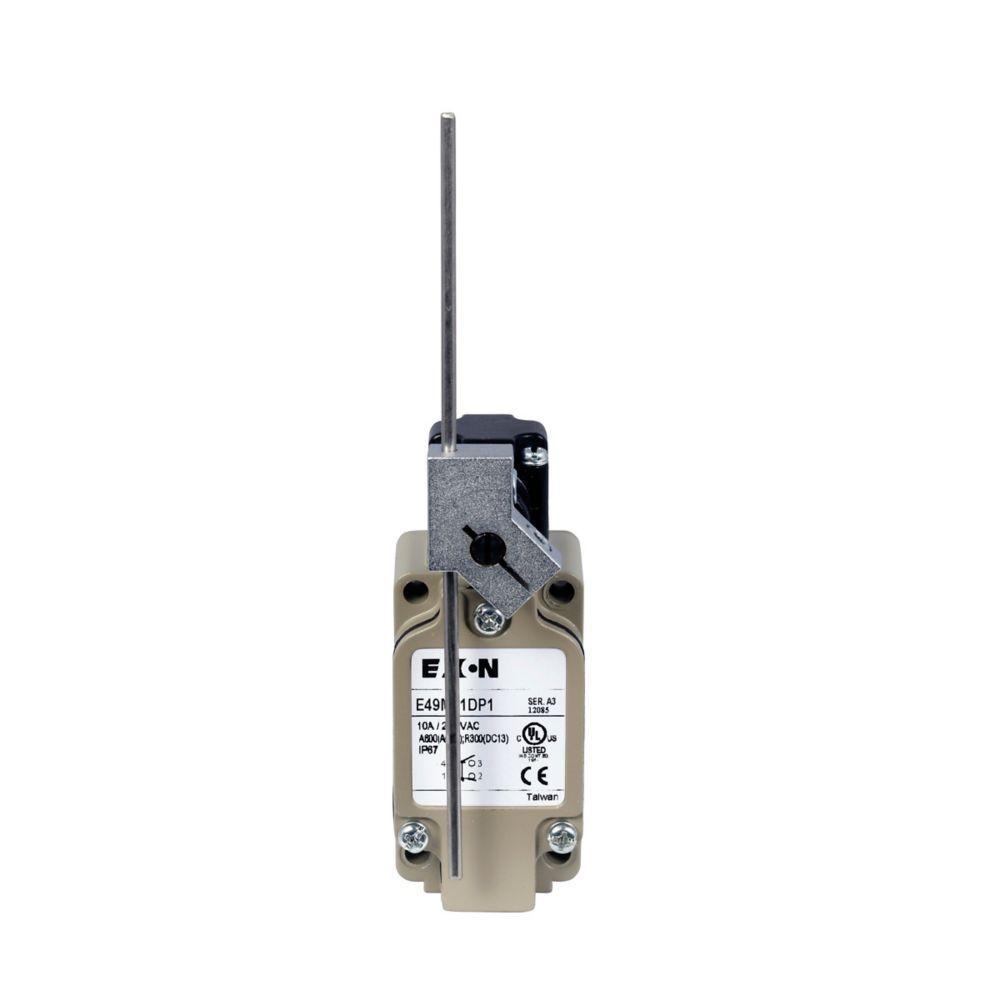

E49M11DP1 CH FULL SIZE METAL DIN ROD LEVER LIMIT SWITCH, 1 N.O. & 1 N.C.

Mouse over image to zoom, click to enlarge

  • E49M11DP1 CH FULL SIZE METAL DIN ROD LEVER LIMIT SWITCH, 1 N.O. & 1 N.C.
  • E49M11DP1 CH FULL SIZE METAL DIN ROD LEVER LIMIT SWITCH, 1 N.O. & 1 N.C.
  • E49M11DP1 CH FULL SIZE METAL DIN ROD LEVER LIMIT SWITCH, 1 N.O. & 1 N.C.
  • E49M11DP1 CH FULL SIZE METAL DIN ROD LEVER LIMIT SWITCH, 1 N.O. & 1 N.C.

Description: EATON Limit Switch, Compact, Series: E49, 50/60 Hz Frequency, 1NO-1NC Contact Configuration, 10 A at 250 V AC/1.5 A at 24 V DC Contact, 15 MOhm Closed Contact Resistance, Rod Lever Actuator, Screw Connection, NEMA IP67 Enclosure, DIN Rail Mounting, 4.27 in L x 2.17 in W x 1.58 in H Size, 15000000 Cycles Mechanical/500000 Cycles Electrical Operating Cycles, 14 to 176 deg F Operating, Die-cast Aluminum, Environmental Conditions: 95% Relative Humidity

Manufacturer PN: E49M11DP1

UPC:  78211368094

Kendall Electric Inc PN: 2202856

Invoice Description:

E49M11DP1 CH FULL SIZE METAL DIN ROD LEVER LIMIT SWITCH, 1 N.O. & 1 N.C.


SPEC SHEET

▸ See All in Plunger Actuated Limit Switches


How Can We Make This Page Better?

EATON E49M11DP1 Compact Limit Switch, Rod Lever Actuator, 1NO-1NC Contact

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

E49 compact metal limit switches – The E49 compact metal switches are designed with high mechanical strength for robust environments. The rugged aluminum die-cast construction provides reliable, oil-tight, waterproof and dustproof sealing for a variety of applications. Snap action 1NO/1NC contacts provide flexibility in design.
EATON Limit Switch, Compact, Series: E49, 50/60 Hz Frequency, 1NO-1NC Contact Configuration, 10 A at 250 V AC/1.5 A at 24 V DC Contact, 15 MOhm Closed Contact Resistance, Rod Lever Actuator, Screw Connection, NEMA IP67 Enclosure, DIN Rail Mounting, 4.27 in L x 2.17 in W x 1.58 in H Size, 15000000 Cycles Mechanical/500000 Cycles Electrical Operating Cycles, 14 to 176 deg F Operating, Die-cast Aluminum, Environmental Conditions: 95% Relative Humidity

Specifications

 Actuator Rod Lever
 Application Packaging, Material Handling Conveyors, Baler/Compactor, Industrial Door Lifts, End-of-Travel and Guarding Operations, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Closed Contact Resistance 15 MOhm
 Connection Type Screw
 Contact Configuration 1NO-1NC
 Contact Rating 10 A at 250 V AC/1.5 A at 24 V DC
 Enclosure NEMA IP67
 Environmental Conditions 95% Relative Humidity
 Frequency Rating 50/60 Hz
 Manufacturer Part Number E49M11DP1
 Material Die-cast Aluminum
 Mounting Type DIN Rail
 Operating Cycles 15000000 Cycles Mechanical/500000 Cycles Electrical
 Operating Temperature 14 to 176 deg F
 PART NUMBER KEYWORDS E49M11DP1 ; 7377492 ; 782113680941 ; 78211368094 ; 00782113680941
 Series E49
 Size 4.27 in L x 2.17 in W x 1.58 in H
 Standards/Approvals UL Listed,CSA Certified,RoHS Compliant
 Type Compact

Features

▪ Rigid die-cast switch housing
▪ High mechanical strength
▪ Oil-tight waterproof and dustproof construction
▪ 10 A at 24/120/250/480/600 VAC, 1.5 A at 24 VDC, 0.22 A at 120 VDC, 0.11 A at 250 VDC contact rating
