Eaton

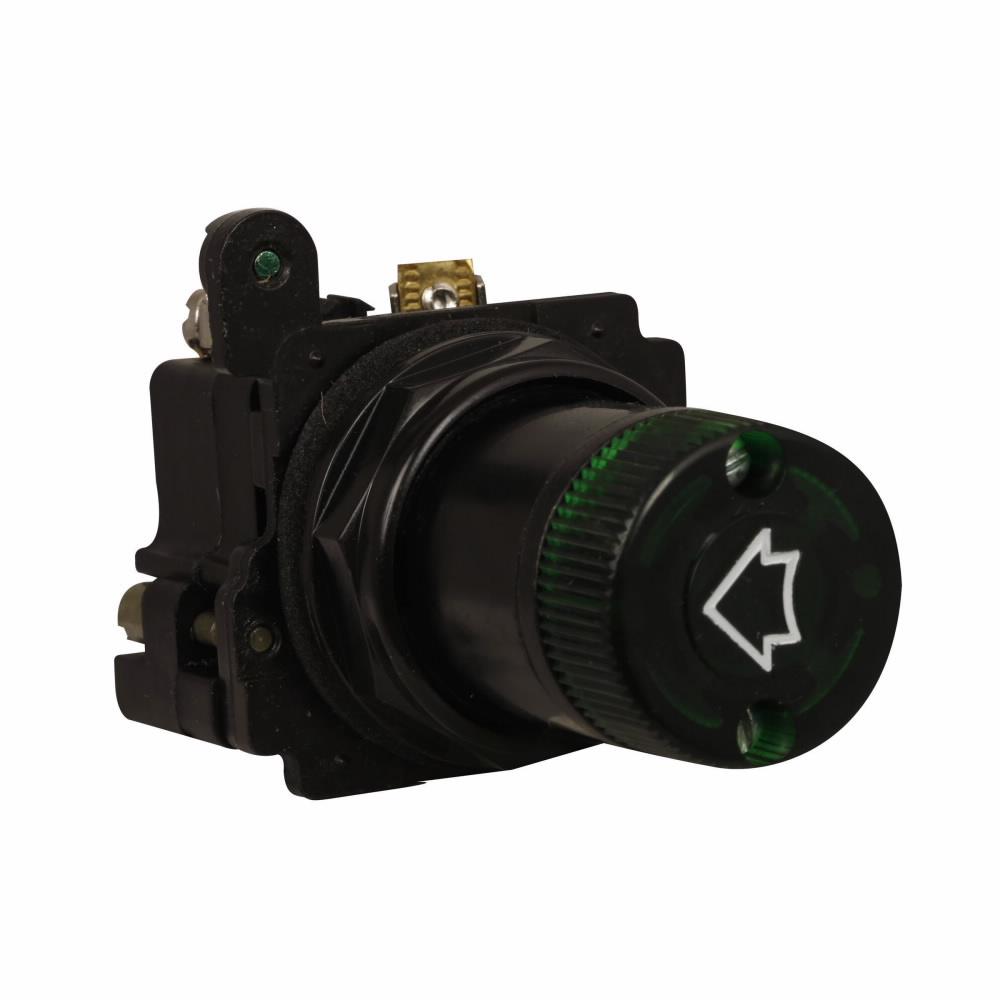

E34VHB120TEG CH SELECTOR SWITCH

Mouse over image to zoom, click to enlarge

  • E34VHB120TEG CH SELECTOR SWITCH
  • E34VHB120TEG CH SELECTOR SWITCH

Description: EATON Selector Switch Operator, Corrosion-Resistant Oil/Watertight Transformer Pushbutton Illuminated, Series: E34, 30.5 mm Size, Maintained Contact Mode, Knob Operator, 3 Positions, 60 deg Left Center/Right Throw, Cam Code: 3, Incandescent Lamp, 120 V AC, NEMA 1/2/3/3R/4/4X/12/13/IP65 Enclosure, Bezel/Housing: Epoxy Coated, 1 to 150 deg F, Green

Manufacturer PN: E34VHB120TEG

UPC:  78211396380

Kendall Electric Inc PN: 2577387

Invoice Description:

E34VHB120TEG CH SELECTOR SWITCH


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON E34VHB120TEG Corrosion-Resistant Oil/Watertight Transformer Pushbutton Illuminated Selector Switch Operator, 30.5 mm, Knob Operator, 3 Positions, Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON E34 series 30.5 mm pushbutton line features the same rugged die cast construction of our 10250T line with an additional 2-layer 100% solid thermosetting cathodic epoxy coating. This coating provides a flat black smooth, consistent, corrosion-resistant surface that has passed a demanding 600 hr salt spray test. (The industry standard for this 4X test requires only 200 hr).
EATON Selector Switch Operator, Corrosion-Resistant Oil/Watertight Transformer Pushbutton Illuminated, Series: E34, 30.5 mm Size, Maintained Contact Mode, Knob Operator, 3 Positions, 60 deg Left Center/Right Throw, Cam Code: 3, Incandescent Lamp, 120 V AC, NEMA 1/2/3/3R/4/4X/12/13/IP65 Enclosure, Bezel/Housing: Epoxy Coated, 1 to 150 deg F, Green

Specifications

 Bezel Housing Epoxy Coated
 Brand Name EATON
 Cam Code 3
 Color Green
 Enclosure NEMA 1/2/3/3R/4/4X/12/13/IP65
 Lamp Type Incandescent
 Manufacturer Part Number E34VHB120TEG
 Number of Positions 3
 PART NUMBER KEYWORDS E34VHB120TEG ; 7371091 ; 782113963808 ; 78211396380 ; 00782113963808
 Series E34
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified,CE Marked,FDA 3-A
 Temperature Rating 1 to 150 deg F
 Throw 60 deg Left Center/Right
 Type Corrosion-Resistant Oil/Watertight Transformer Pushbutton Illuminated
 Video Links
 Voltage Rating 120 V AC

Features

▪ Epoxy coated metal operators
▪ Integral ground screw terminal on operators
▪ FDA approved for sanitary chemical resistance requirements
▪ Use NEMA 4X 10250T operators where exposed to ultraviolet light
