Eaton

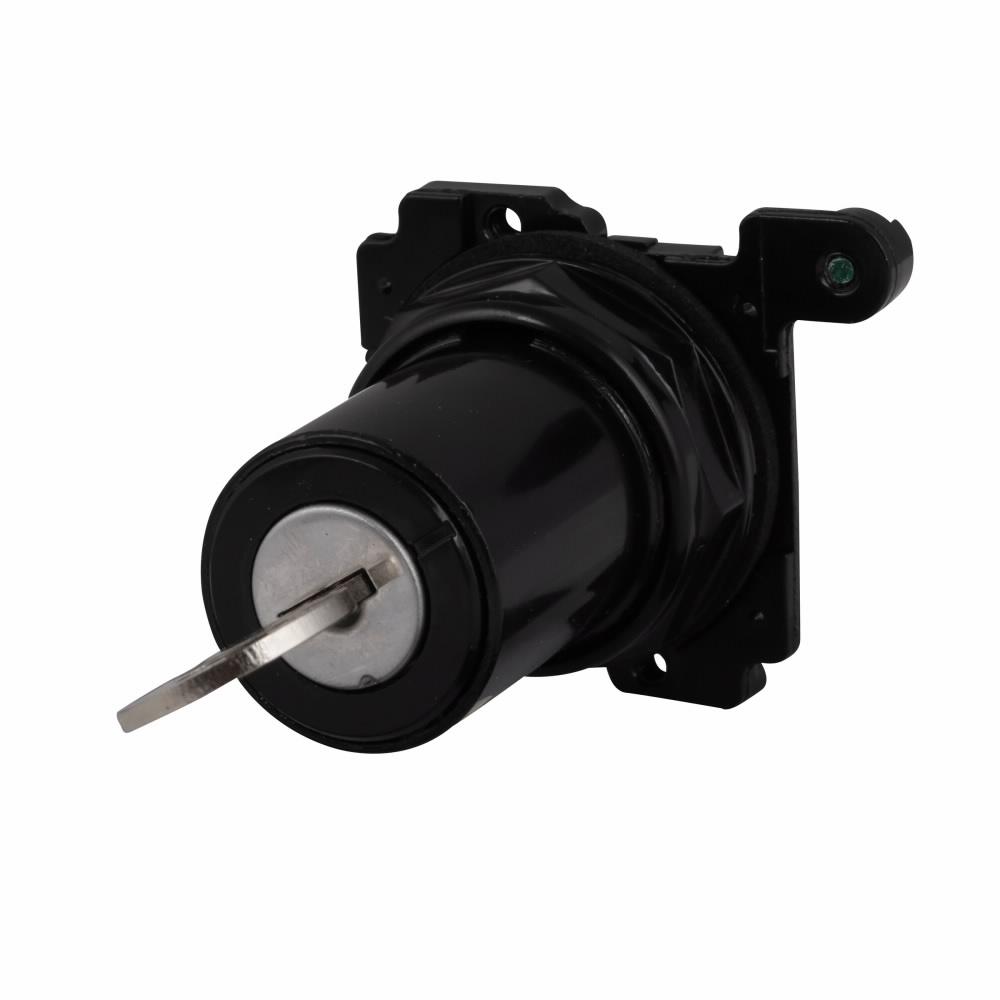

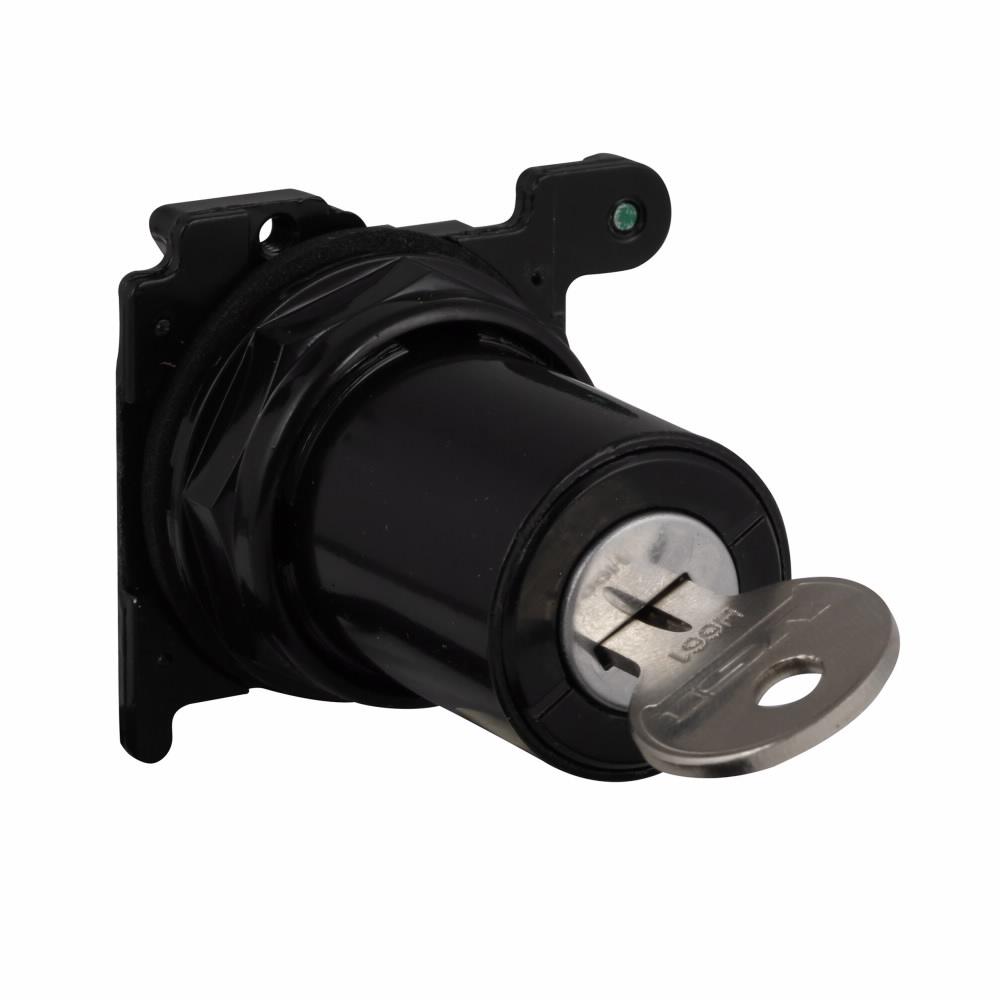

E34KFHB2H620 CH KEY OPR SELECTOR SWITCH

Mouse over image to zoom, click to enlarge

  • E34KFHB2H620 CH KEY OPR SELECTOR SWITCH
  • E34KFHB2H620 CH KEY OPR SELECTOR SWITCH
  • E34KFHB2H620 CH KEY OPR SELECTOR SWITCH

Description: EATON Non-Illuminated Selector Switch, Corrosion-Resistant Watertight/Oiltight, Series: E34, 30.5 mm, Maintained Contact Mode, Keyed Operator, 3 Positions, 60 deg Throw, Cam Code: 3, Key, NEMA 3/3R/4/4X/12/13, Surface Mount

Manufacturer PN: E34KFHB2H620

UPC:  78211489405

Kendall Electric Inc PN: 2887145

Invoice Description:

E34KFHB2H620 CH KEY OPR SELECTOR SWITCH


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON E34KFHB2H620 E34 Corrosion-Resistant Watertight/Oiltight Non-Illuminated Selector Switch, 30.5 mm, Keyed Operator

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The two-layer, 100 percent solid thermosetting cathodic epoxy coating applied to these rugged, die cast pushbuttons provides a flat black, smooth, consistent and corrosion-resistant surface that has passed a demanding 600-hour salt spray test-four times longer than the industry-standard test.
EATON Non-Illuminated Selector Switch, Corrosion-Resistant Watertight/Oiltight, Series: E34, 30.5 mm, Maintained Contact Mode, Keyed Operator, 3 Positions, 60 deg Throw, Cam Code: 3, Key, NEMA 3/3R/4/4X/12/13, Surface Mount

Specifications

 Actuator Key
 Brand Name EATON
 Cam Code 3
 Enclosure NEMA 3/3R/4/4X/12/13
 Manufacturer Part Number E34KFHB2H620
 Mounting Type Surface
 Number of Positions 3
 PART NUMBER KEYWORDS E34KFHB2H620 ; 7406652 ; 782114894057 ; 78211489405 ; 00782114894057
 Series E34
 Size 30.5 mm
 Standards/Approvals CSA Certified,UL Listed,FDA 3-A,CE Marked
 Throw 60 deg
 Type Corrosion-Resistant Watertight/Oiltight
 Video Links

Features

▪ H620 "H" series locks without master key - with key slot cover
