Eaton
E30AM CH 2C BTN MA 2RBAR MECH INTLK

Mouse over image to zoom, click to enlarge

  • E30AM CH 2C BTN MA 2RBAR MECH INTLK
  • E30AM CH 2C BTN MA 2RBAR MECH INTLK
  • E30AM CH 2C BTN MA 2RBAR MECH INTLK

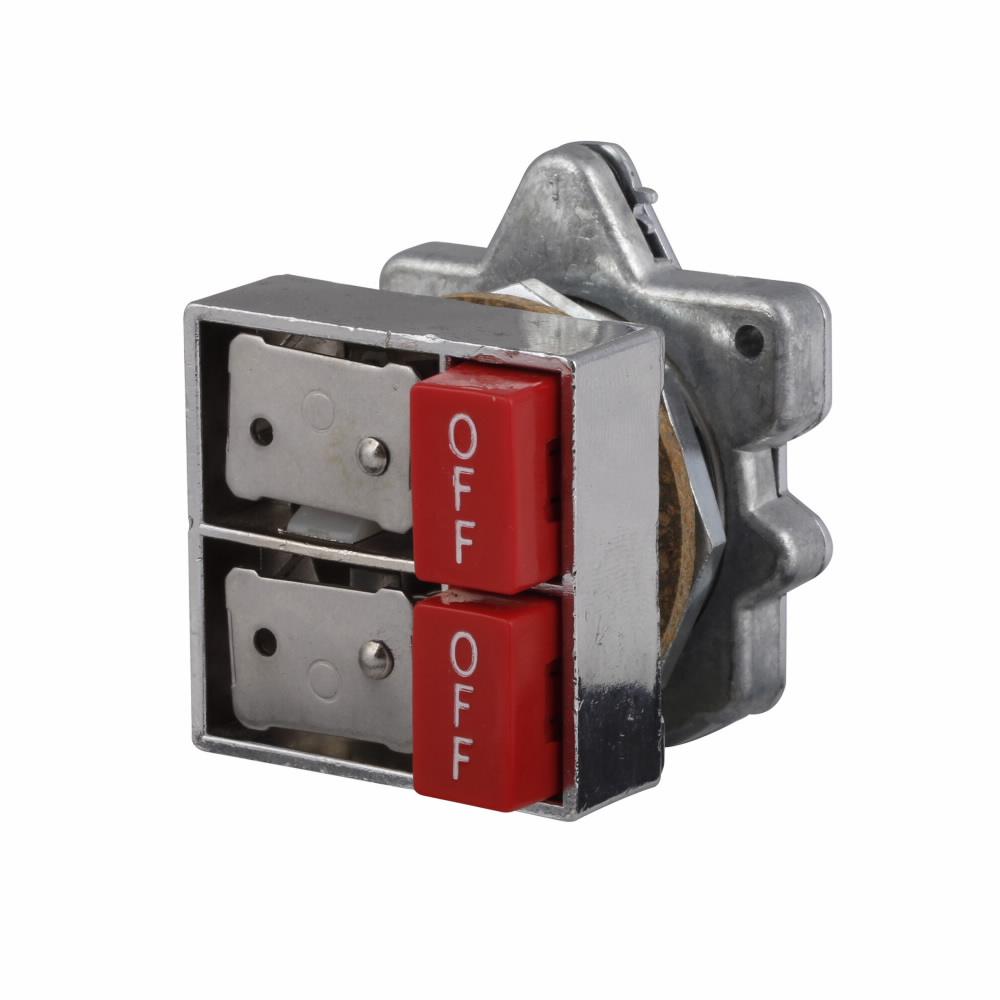

Description: EATON Non-Illuminated Pushbutton Operator, Square Multi-Function, Series: E30, 30.5 mm Size, Maintained/Momentary/Interlock Contact Mode, (2) Button Operator, NEMA 3/3R/4/12/13 Enclosure

Manufacturer PN: E30AM

UPC:  78211321413

Kendall Electric Inc PN: 4667926

Invoice Description:

E30AM CH 2C BTN MA 2RBAR MECH INTLK


SPEC SHEET

▸ See All in Mechanical Interlocks


How Can We Make This Page Better?

EATON E30AM Square Multi-Function Non-Illuminated Pushbutton Operator, 30.5 mm

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

These square, multifunctional operators feature die cast construction to prevent the passing of oil and other contaminants through the operator into the contact structure or panel interior. The attractive square operator styling, coupled with custom legending of colored button and lenses and many special function accessories, makes E30 30.5 mm components ideal for a variety of industrial and OEM applications.
EATON Non-Illuminated Pushbutton Operator, Square Multi-Function, Series: E30, 30.5 mm Size, Maintained/Momentary/Interlock Contact Mode, (2) Button Operator, NEMA 3/3R/4/12/13 Enclosure

Specifications

 Application Electrical Assemblies, Panels, OEMs, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Enclosure NEMA 3/3R/4/12/13
 Manufacturer Part Number E30AM
 Series E30
 Size 30.5 mm
 Standards/Approvals CSA Certified,UL Listed
 Type Square Multi-Function

Features

▪ Operator is supplied as standard with red extended bar marked (off)
▪ Maintained with top interlock and momentary with bottom interlock operating mode
▪ 2-button, (off) release bars for each button

Resources

 Catalog Page
 Product Data Sheet
