Eaton

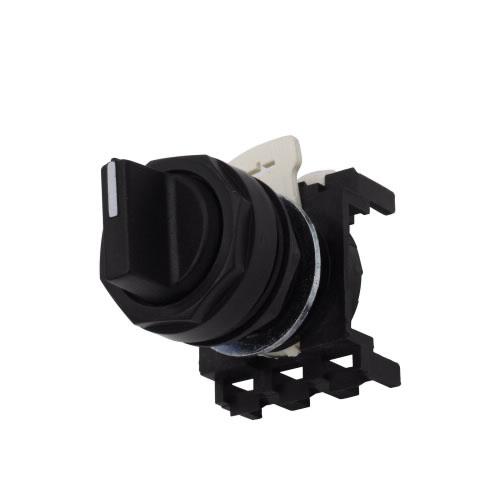

E22XB51C CH SEL SW KNB 2P 45 BKBZ C2 BK 1NO1NC

Mouse over image to zoom, click to enlarge

Description: EATON Non-Illuminated Selector Switch, Assembled Heavy Duty, Series: E22, 22.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 2 Positions, 45 deg Throw, Cam Code: 2, Knob Actuator, NEMA 3/3R/4/4X/12/13 Enclosure, Plastic, Black

Manufacturer PN: E22XB51C

UPC: 78211374510

Kendall Electric Inc PN: 2222372

Invoice Description:

E22XB51C CH SEL SW KNB 2P 45 BKBZ C2 BK 1NO1NC

SPEC SHEET

▸ See All in Non-Illuminated Selector Switches

How Can We Make This Page Better?

EATON E22XB51C Assembled Heavy Duty Non-Illuminated Selector Switch, 22.5 mm, 1NO-1NC Contact, Black

Note: Lead times are estimates only

Description Specifications Resources

Description

Eaton’s 22.5 mm industrial heavy-duty pushbutton line offers a wide array of functional, smartly styled illuminated and non-illuminated pushbuttons, selector switches, push-pulls, action and twist-to- release operators. The complete line also includes transformer, full voltage, resistor, LED or neon light units.

EATON Non-Illuminated Selector Switch, Assembled Heavy Duty, Series: E22, 22.5 mm Size, 1NO-1NC Contact Configuration, Maintained Contact Mode, 2 Positions, 45 deg Throw, Cam Code: 2, Knob Actuator, NEMA 3/3R/4/4X/12/13 Enclosure, Plastic, Black

Specifications

Actuator	Knob
Application	Automation and Logic Control Equipment Applications
Brand Name	EATON
Cam Code	2
Color	Black
Contact Configuration	1NO-1NC
Enclosure	NEMA 3/3R/4/4X/12/13
Manufacturer Part Number	E22XB51C
Material	Plastic
Number of Positions	2
Series	E22
Size	22.5 mm
Standards/Approvals	IEC 947-5-1 MTTA,UL 508,CSA Certified,Lloyd's Register Certified,CE Marked
Throw	45 deg
Type	Assembled Heavy Duty
