3M

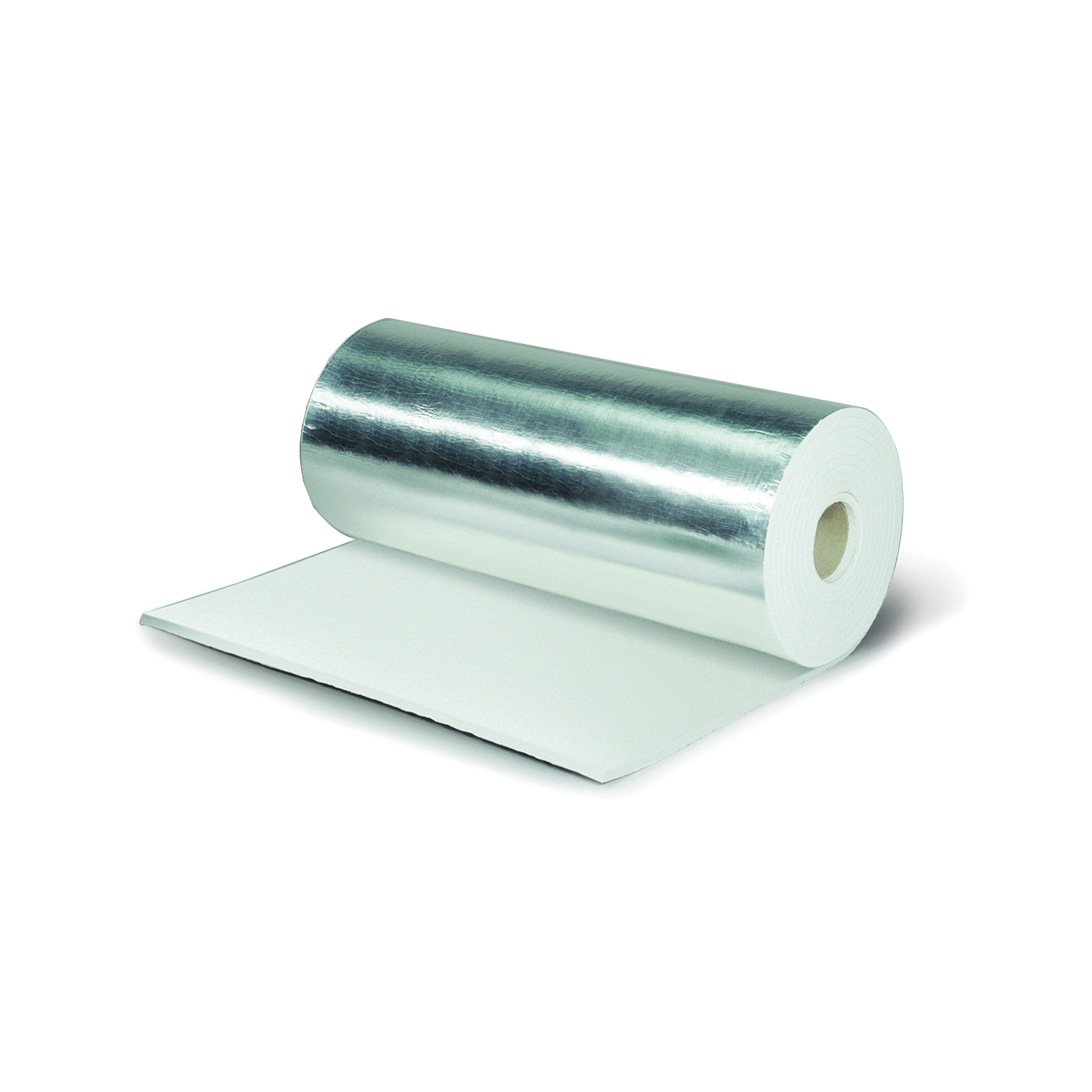

E-5A-4 3M ENDOTHERMIC MAT 24.5 IN X 20 FT X 0.4 IN 05111511623

Mouse over image to zoom, click to enlarge

  • E-5A-4 3M ENDOTHERMIC MAT 24.5 IN X 20 FT X 0.4 IN 05111511623
  • E-5A-4 3M ENDOTHERMIC MAT 24.5 IN X 20 FT X 0.4 IN 05111511623
  • E-5A-4 3M ENDOTHERMIC MAT 24.5 IN X 20 FT X 0.4 IN 05111511623

Description: Interam™, 7000031969, Endothermic Mat, 20 ft Length, 24-1/2 in Width, Fire Rating: 4 hr, Specifications Met: ASTM E 84, ASTM E 119, ASTM E 1529, ASTM E 1725, Silver Exterior/White Interior, Endothermic

Manufacturer PN: E-5A-4

UPC:  05111554913

Kendall Electric Inc PN: 2266213

Invoice Description:

E-5A-4 3M ENDOTHERMIC MAT 24.5 IN X 20 FT X 0.4 IN 05111511623


SPEC SHEET

▸ See All in Firestop Pillows, Sheets & Wraps


How Can We Make This Page Better?

Interam™ 7000031969 Endothermic Mat, 20 ft L x 24-1/2 in W, 4 hr Fire Rating, Endothermic, ASTM E 84, ASTM E 119, ASTM E 1529, ASTM E 1725

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

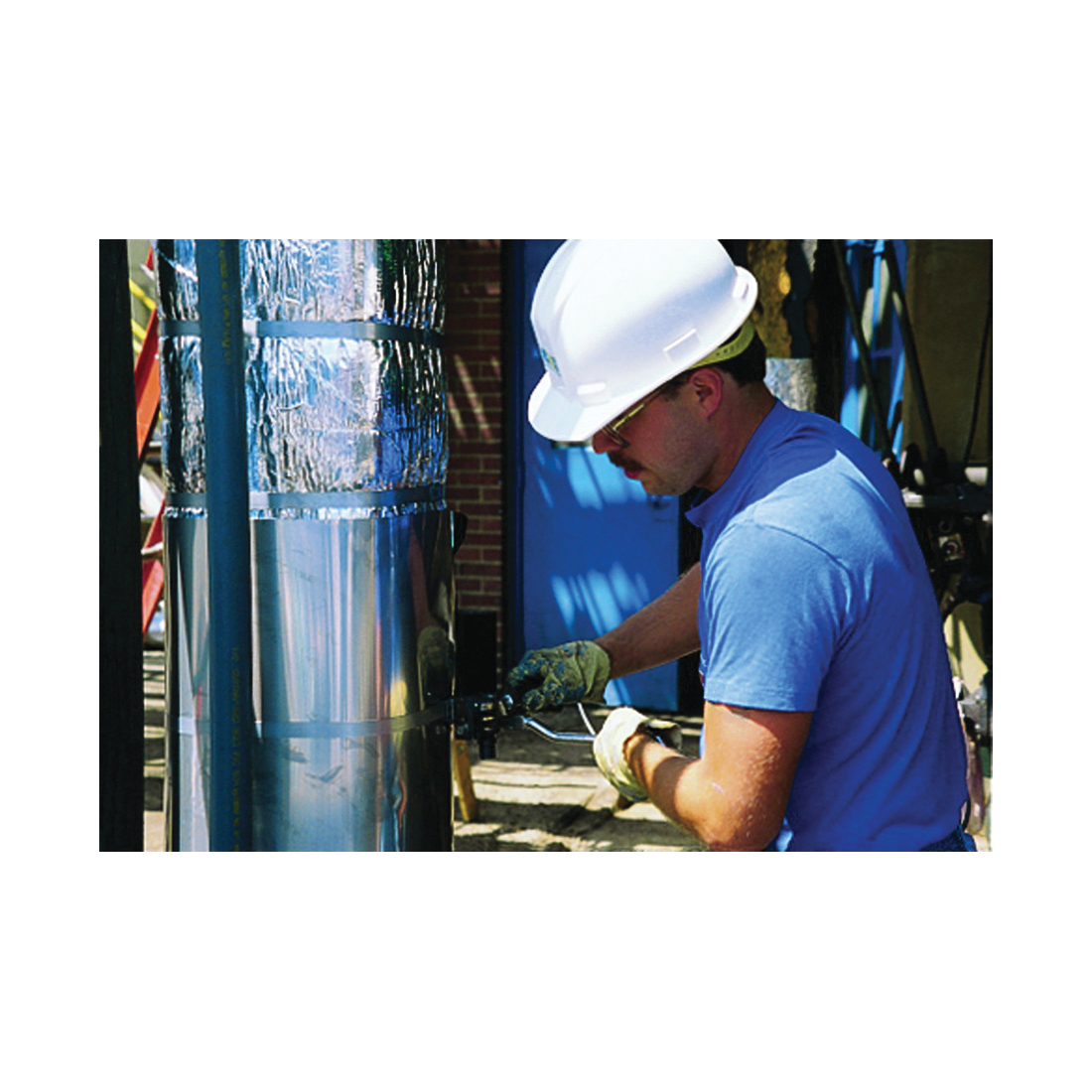

3M™ Interam™ Endothermic Mat E-5A-4 is an easy-to-install heat-absorbing wrap system that provides excellent fire resistance for structural steel components, critical electrical components and wall opening membranes. When exposed to intense heat, the mat releases chemically-bound water to cool its outer surfaces. Installers can easily cut the material to fit even complex installations.
Interam™, 7000031969, Endothermic Mat, 20 ft Length, 24-1/2 in Width, Fire Rating: 4 hr, Specifications Met: ASTM E 84, ASTM E 119, ASTM E 1529, ASTM E 1725, Silver Exterior/White Interior, Endothermic

Specifications

 Application Structural Steel, Electrical Circuity/Raceways, Cables, Cable Trays and Conduits, Equipment Shrouds, Membrane Penetrations and New or Retrofit Construction Applications
 Brand Name 3M
 Color Silver Exterior/White Interior
 Fire Rating 4 hr
 Length 20 ft
 Manufacturer Part Number 7000031969
 Material Endothermic
 Specifications Met ASTM E 84, ASTM E 119, ASTM E 1529, ASTM E 1725
 Standards/Approvals NBN 713-20
 Width 24-1/2 in

Features

▪ Provides protection against intense fires including hydrocarbon pool fires
▪ Endothermic design releases cooling chemical-bound water when exposed to extreme heat
▪ Versatile - rated for structural steel, electrical circuits, wall opening membranes
▪ Flexible - easy to cut and configure for installation on complex shapes and around corners
▪ Non-corrosive and requires no maintenance when properly installed
