Lutron Electronics

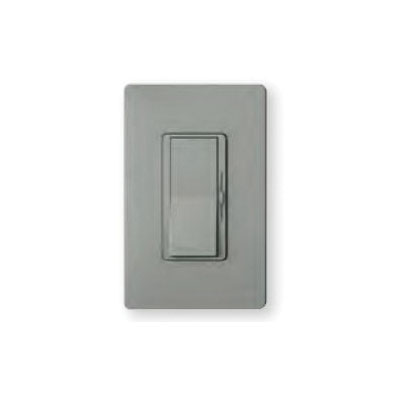

  • DVSTV-GR LUTRON DIVA 0-10 W/SWITCHING BOX 78427609959
  • DVSTV-GR LUTRON DIVA 0-10 W/SWITCHING BOX 78427609959
  • DVSTV-GR LUTRON DIVA 0-10 W/SWITCHING BOX 78427609959

Description: Lutron®, DVSTV-GR, Dimmer Switch, 3-Way, Series: Diva®, 120 to 277 V AC, 8 A/50 mA, 50/60 Hz Frequency, 1 Pole, Fluorescent/LED Lamp, Preset Start, Operation Mode: On/Off, Current Sink/Linear Slide/Paddle Control, Class 1 Insulation, NEMA 4/10 Enclosure, Wall Mounting, Screw Terminal, 0 to 40 deg C, Plastic, Gray, 4.69 in H x 2.94 in W x 1.31 in D Dimensions

Manufacturer PN: DVSTV-GR

UPC:  78427609959

Kendall Electric Inc PN: 3454127

Invoice Description:

DVSTV-GR LUTRON DIVA 0-10 W/SWITCHING BOX 78427609959


SPEC SHEET

▸ See All in Dimmer Switches


How Can We Make This Page Better?

Lutron® DVSTV-GR Diva® 3-Way Dimmer Switch, 120 to 277 V AC, 8 A/50 mA, 1 Poles, On/Off Operation, Gray

Log In for Pricing and Availability




Description

A simple and elegant solution designed to match your existing designer style switches and accessories. Easily turn the lights on and off with the paddle switch. While the lights are on, use the sleek slide control to adjust lights to your perfect level. T
Lutron®, DVSTV-GR, Dimmer Switch, 3-Way, Series: Diva®, 120 to 277 V AC, 8 A/50 mA, 50/60 Hz Frequency, 1 Pole, Fluorescent/LED Lamp, Preset Start, Operation Mode: On/Off, Current Sink/Linear Slide/Paddle Control, Class 1 Insulation, NEMA 4/10 Enclosure, Wall Mounting, Screw Terminal, 0 to 40 deg C, Plastic, Gray, 4.69 in H x 2.94 in W x 1.31 in D Dimensions

Specifications

 Amperage Rating 8 A/50 mA
 Application Indoor, Commercial and Residential Applications
 Brand Name Lutron®
 Color Gray
 Control Current Sink/Linear Slide/Paddle
 Dimensions 4.69 in H x 2.94 in W x 1.31 in D
 Enclosure NEMA 4/10
 Frequency Rating 50/60 Hz
 Insulation Class 1
 Lamp Type Fluorescent/LED
 Manufacturer Part Number DVSTV-GR
 Material Plastic
 Mounting Type Wall
 Number of Poles 1
 Operation Mode On/Off
 Series Diva®
 Standards/Approvals UL, CSA
 Start Type Preset
 Temperature Rating 0 to 40 deg C
 Terminal Type Screw
 Type 3-Way
 Voltage Rating 120 to 277 V AC

Features

▪ Control provides dimming signal only
▪ For indoor use only
▪ Dimmers feature built-in soft glow nightlight
▪ Adjustable high-end and low end trim for optimal dimming performance
▪ Power failure memory should power be interrupted, the control will return to its previously set level prior to the interruption when power is restored
▪ Easily replaces existing switch and installs in as little as 15 min (no neutral wire required)
▪ Patented switching technology extends product lifetime
▪ 0-10 V control link controls third party fixtures
▪ Precise color matching
▪ Works with all ballasts and drivers that provide a current source compliant to IEC 60629 Annex E.2, and whose inrush current does not exceed NEMA410 standards for electronic ballast/driver loads of 8 A steady state current
▪ Full family of products for most lighting sources
▪ Gloss finish
▪ Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
