Description: Lutron®, DVCL-153PH-WH, Dimmer Switch, 3-Way Designer Style, Series: Diva C.L®, 120 V AC, 600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Paddle On/Off Control, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 1.31 in D Dimensions

Manufacturer PN: DVCL-153PH-WH

UPC:  02755700332

Kendall Electric Inc PN: 2816196

Invoice Description:

DVCL-153PH-WH LUTRON DIVA CFL/LED 150WATT & INCANDESCENT 600WATT 1P/3W DIMMER


SPEC SHEET

▸ See All in Dimmer Switches


How Can We Make This Page Better?

Lutron® DVCL-153PH-WH Diva C.L® 3-Way Designer Style Dimmer Switch, 120 V AC, 1 Poles, Slide-to-Bright/Dim Operation, White

Log In for Pricing and Availability




Description

The Diva LED+ dimmer switch provides optimal dimming performance of LED bulbs. This dimmer switch works with up to 150-Watt of dimmable LED/CFL or 600-Watt of incandescent/halogen, allowing you to control multiple bulb types on the same circuit. It is designed to control a broad range of dimmable LED and CFL bulbs from a variety of brands including Philips, Cree, GE, EcoSmart and Lighting Science. The Diva dimmer switch features a paddle switch to turn your lights off or on returning the lights to your favorite level. This dimmer switch also features a discreet slide control next to the switch, allowing you to adjust the lights for any activity. Coordinating Claro wall plate sold separately.
Lutron®, DVCL-153PH-WH, Dimmer Switch, 3-Way Designer Style, Series: Diva C.L®, 120 V AC, 600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: Slide-to-Bright/Dim, Paddle On/Off Control, Wall Mounting, Push-In/Screw Terminal, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 1.31 in D Dimensions

Specifications

 Application Indoor, Commercial and Residential Applications
 Brand Name Lutron®
 Color White
 Control Paddle On/Off

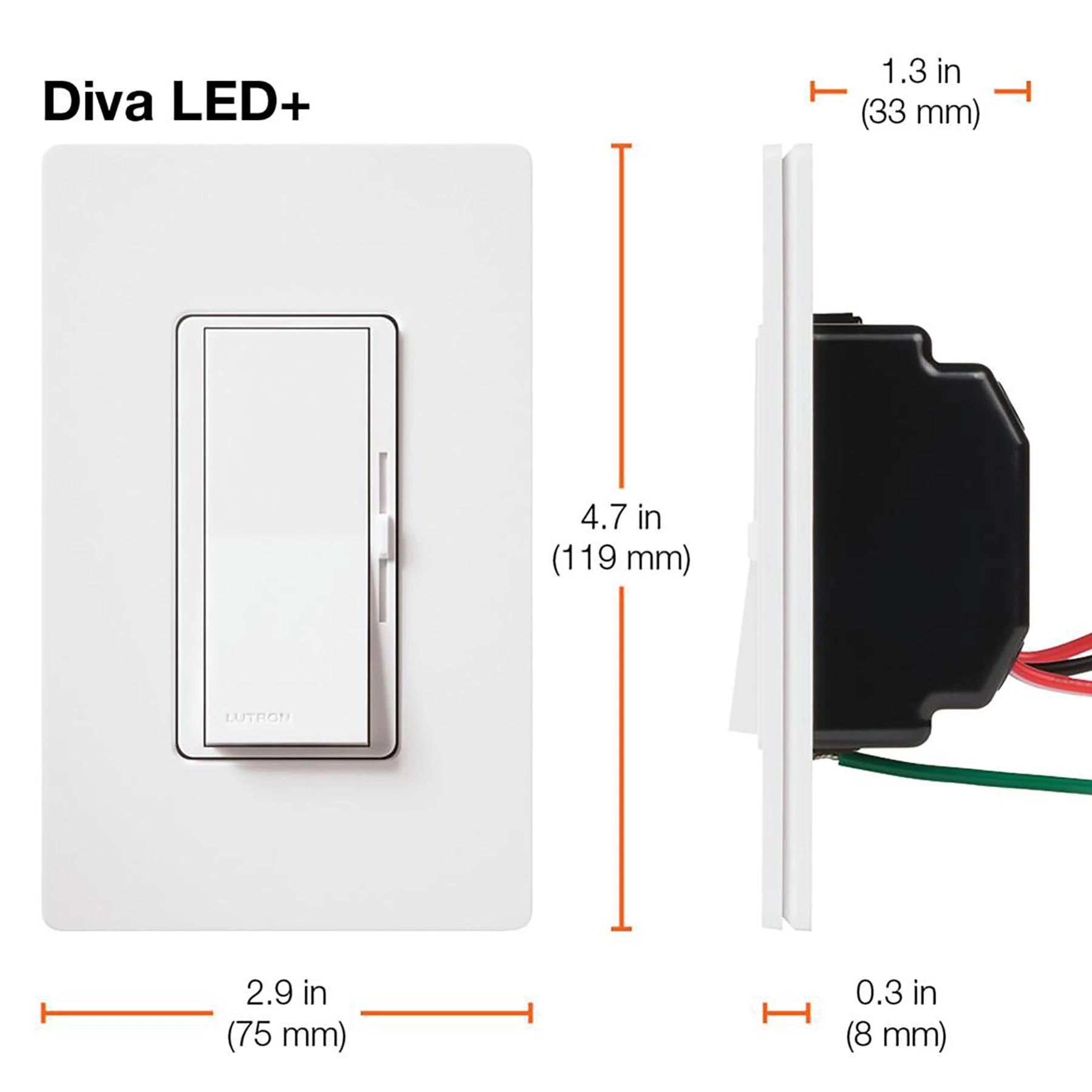

 Dimensions 4.69 in H x 2.94 in W x 1.31 in D
 Frequency Rating 60 Hz
 Lamp Type CFL/Halogen/Incandescent/LED
 Manufacturer Part Number DVCL-153PH-WH
 Material Plastic
 Mounting Type Wall
 Number of Poles 1
 Operation Mode Slide-to-Bright/Dim
 Power Rating 600 W
 Series Diva C.L®
 Standards/Approvals UL, CSA, NOM
 Start Type Preset
 Temperature Rating 0 to 40 deg C
 Terminal Type Push-In/Screw
 Type 3-Way Designer Style
 Video Links
 Voltage Rating 120 V AC

Features

▪ Tested on 1,000s of bulbs and dozens of brands for flicker-free dimming
▪ Provides over 250 lighting levels so you can create the perfect light for any activity
▪ Lutron patented technology to optimize the dim range of your bulb and prevent interference with other dimmers in the home

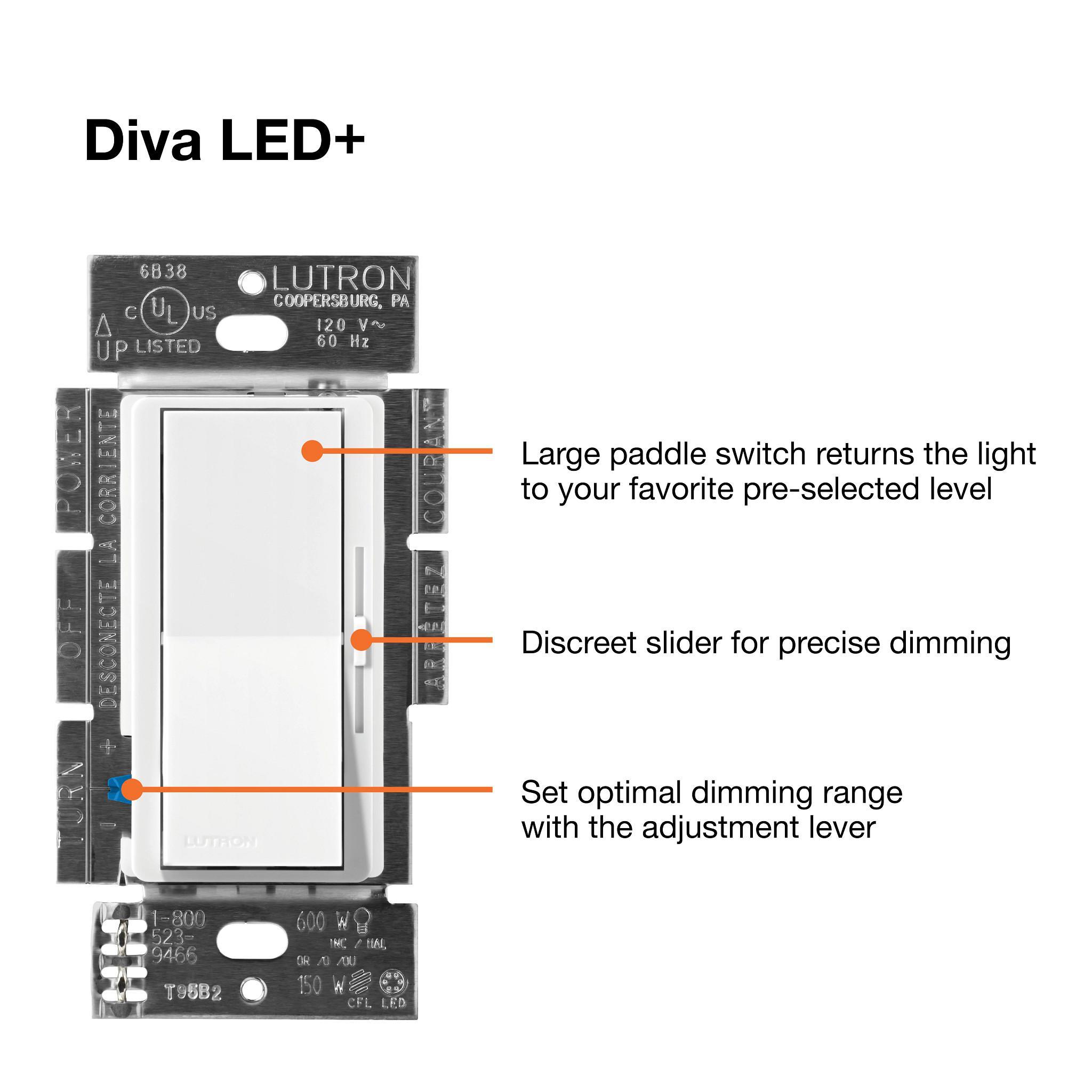

▪ Rocker switch turns lights on/off to favorite light level
▪ Discreet slider dims and brightens the lights
