Hubbell

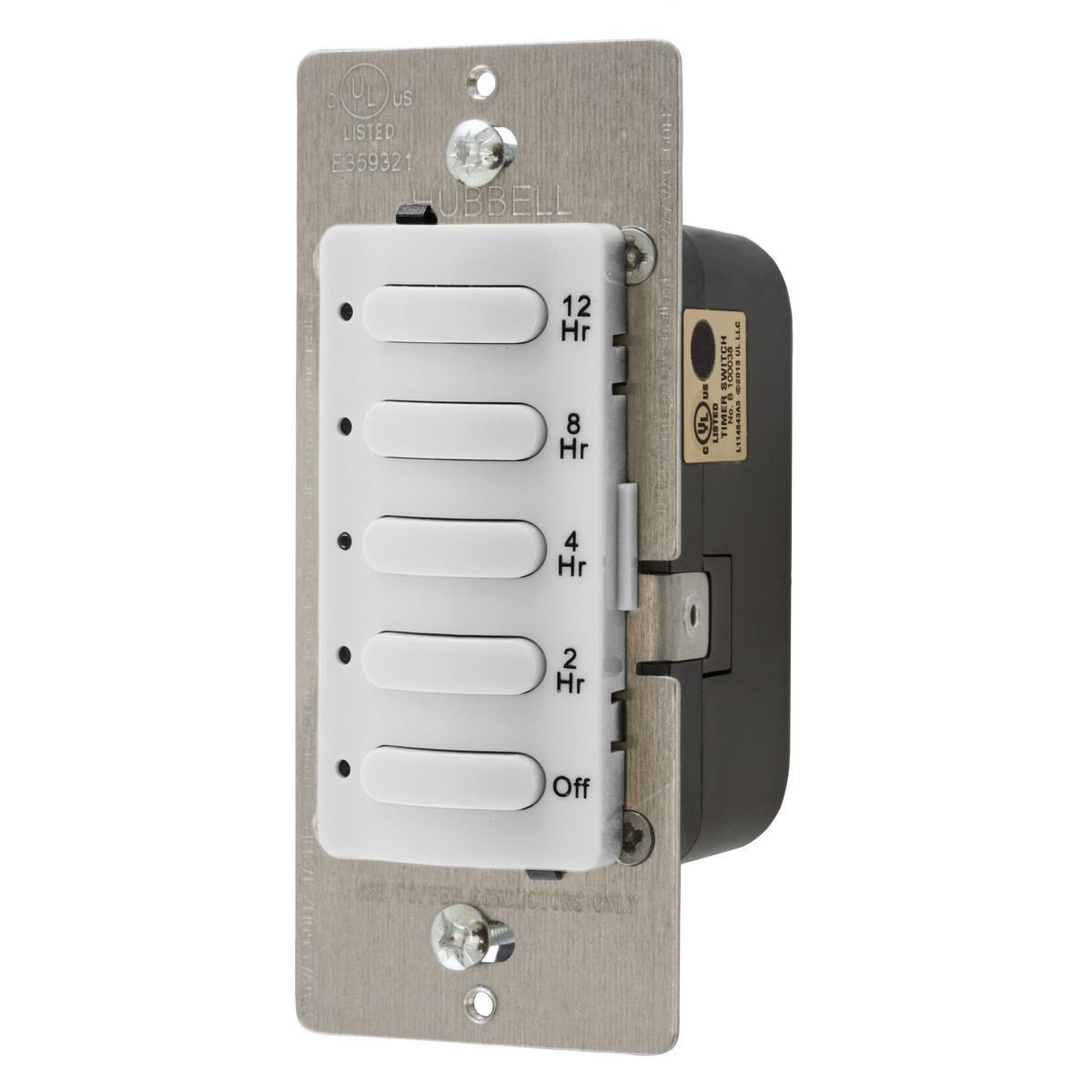

DT5012W HUBBELL TIMER 12 HR, 8.3A 120/277V , WHITE 78358525647

Mouse over image to zoom, click to enlarge

  • DT5012W HUBBELL TIMER 12 HR, 8.3A 120/277V , WHITE 78358525647
  • DT5012W HUBBELL TIMER 12 HR, 8.3A 120/277V , WHITE 78358525647

Description: Hubbell Wiring Device-Kellems, DT5012W, Timer Wall Switch, Countdown Fixed Standard, Operation Mode: Off/2 hr/4 hr/8 hr/12 hr, 120/277 V AC, 8.3 A, 1/6 hp, 1 Pole, OFF, 2, 4,8, 12 hr Time Setting, Digital Display, Screw Terminal Electrical Connections, 32 to 104 deg F, Threaded Mounting, 1.75 in W x 2.27 in H x 3.81 in L Dimensions

Manufacturer PN: DT5012W

UPC:  78358525647

Kendall Electric Inc PN: 3649161

Invoice Description:

DT5012W HUBBELL TIMER 12 HR, 8.3A 120/277V , WHITE 78358525647


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems DT5012W Countdown Fixed Standard Timer Wall Switch, OFF, 2, 4,8, 12 hr Setting, 120/277 V AC, 1/6 hp, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Hubbell Wiring Device-Kellems, DT5012W, Timer Wall Switch, Countdown Fixed Standard, Operation Mode: Off/2 hr/4 hr/8 hr/12 hr, 120/277 V AC, 8.3 A, 1/6 hp, 1 Pole, OFF, 2, 4,8, 12 hr Time Setting, Digital Display, Screw Terminal Electrical Connections, 32 to 104 deg F, Threaded Mounting, 1.75 in W x 2.27 in H x 3.81 in L Dimensions

Specifications

 Amperage Rating 8.3 A
 Application Indoor Environment and Switches and Lighting Control Applications
 Brand Name Hubbell Premise Wiring
 Dimensions 1.75 in W x 2.27 in H x 3.81 in L
 Electrical Connections Screw Terminal
 Horsepower 1/6 hp
 Manufacturer Part Number DT5012W
 Mounting Type Threaded
 Number of Poles 1
 Operation Mode Off/2 hr/4 hr/8 hr/12 hr
 PART NUMBER KEYWORDS DT5012W ; 12073576 ; 13625234 ; 783585256474 ; 78358525647 ; 00783585256474 ; 0783585256474
 Standards/Approvals CEC Title 24 Compliant|cULus Listed|ASHRAE 90.1|UL 60730-1/UL60730-2
 Temperature Rating 32 to 104 deg F
 Time Setting OFF, 2, 4,8, 12 hr
 Type Countdown Fixed Standard
 Voltage Rating 120/277 V AC

Features

▪ Pre-set 5 button selection with permanent time markings
▪ Manual override to OFF
▪ Alert to OFF function - red LED will flash during the final 30 seconds
