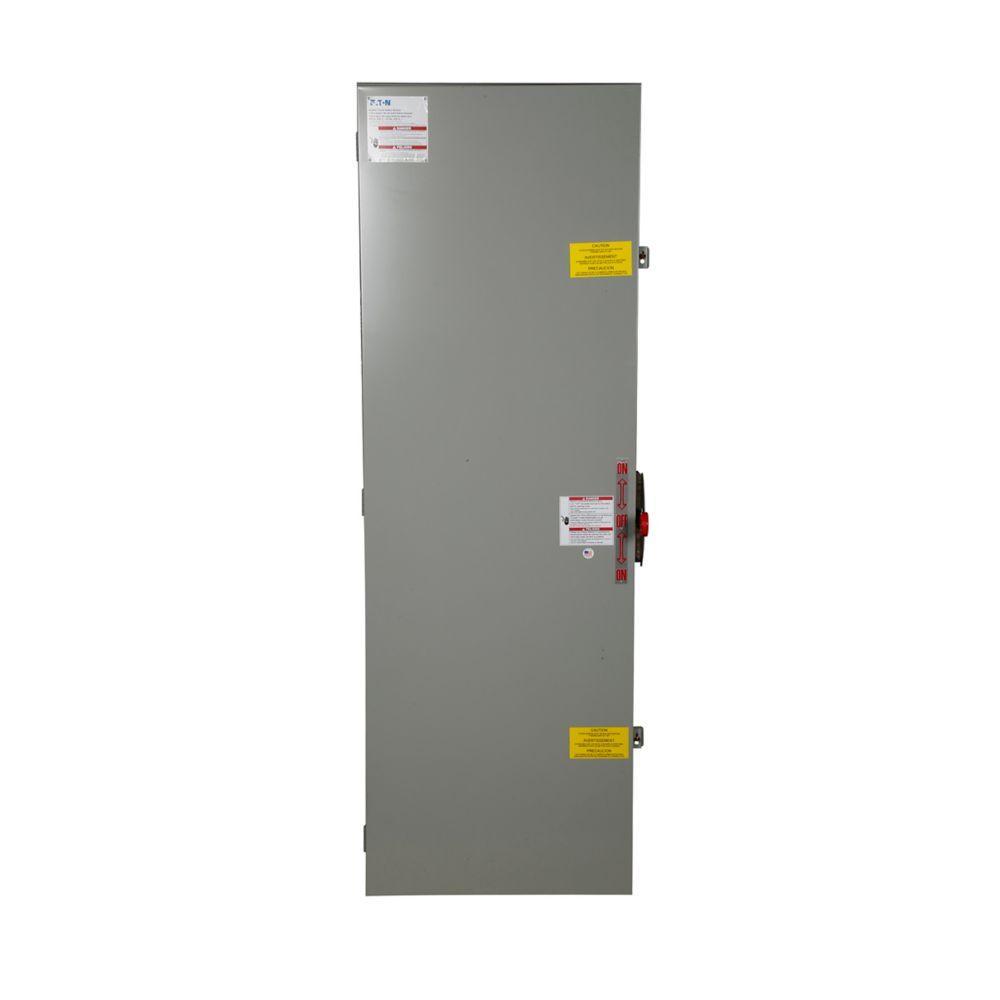

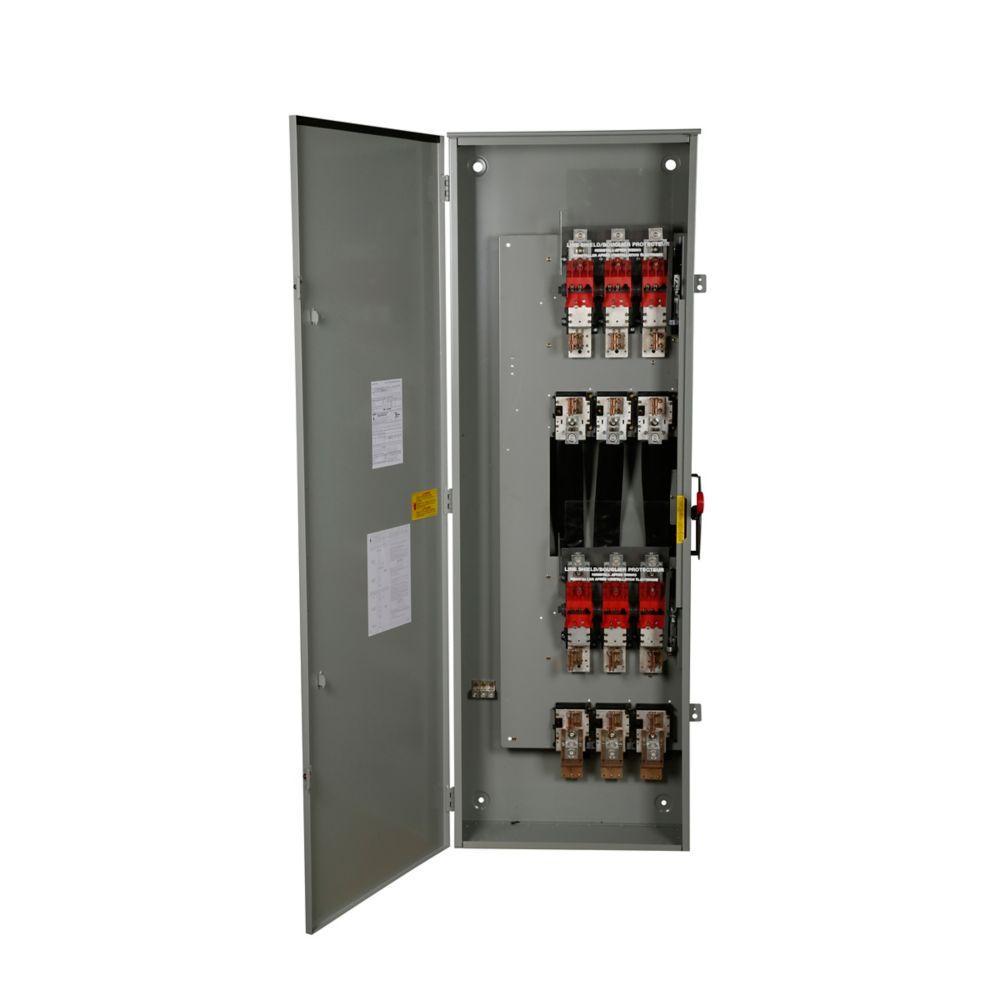

DT365NRK C-H HEAVY DUTY DOUBLE-THROW SAFETY SWITCH

Mouse over image to zoom, click to enlarge

  • DT365NRK C-H HEAVY DUTY DOUBLE-THROW SAFETY SWITCH
  • DT365NRK C-H HEAVY DUTY DOUBLE-THROW SAFETY SWITCH
  • DT365NRK C-H HEAVY DUTY DOUBLE-THROW SAFETY SWITCH

Description: EATON Safety Switch, Heavy Duty, Series: K Series, 600 VAC, 250 VDC, 400 A, 3 Pole, 4 Wires, 3 Form C 3PDT Contact Form, Class T Insulation, NEMA 3R Enclosure, Quick-Connect Terminal, 14.12 in L x 24.9 in W x 74.31 in H Dimensions, Steel, Galvanized/Painted

Manufacturer PN: DT365NRK

UPC:  78668554013

Kendall Electric Inc PN: 3629909

Invoice Description:

DT365NRK C-H HEAVY DUTY DOUBLE-THROW SAFETY SWITCH


SPEC SHEET

▸ See All in Double Throw Safety Switches


How Can We Make This Page Better?

EATON DT365NRK K Series Heavy Duty Safety Switch, 600 VAC, 250 VDC, 400 A, 3 Form C 3PDT Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s double-throw safety switches include two interlocked switches with a common connection used to transfer service from a normal power source to an alternate source, or to switch from one load circuit to another. The interlock ensures both switches cannot be closed at the same time, preventing them from being operated in parallel. Additionally, double-throw safety switches are available in general duty and heavy duty as well as quick-connect options.
EATON Safety Switch, Heavy Duty, Series: K Series, 600 VAC, 250 VDC, 400 A, 3 Pole, 4 Wires, 3 Form C 3PDT Contact Form, Class T Insulation, NEMA 3R Enclosure, Quick-Connect Terminal, 14.12 in L x 24.9 in W x 74.31 in H Dimensions, Steel, Galvanized/Painted

Specifications

 Amperage Rating 400 A
 Application Commercial, Institutional Buildings, Structures, Power Distribution and Control Applications
 Brand Name EATON
 Contact Form 3 Form C 3PDT
 Dimensions 14.12 in L x 24.9 in W x 74.31 in H
 Enclosure NEMA 3R
 Finish Galvanized/Painted
 Manufacturer Part Number DT365NRK
 Material Steel
 Number of Poles 3
 Number of Wires 4
 Series K Series
 Standards/Approvals UL Listed
 Terminal Type Quick-Connect
 Type Heavy Duty
 Video Links
 Voltage Rating 600 V AC/250 V DC

Features

▪ Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
▪ Probe holes enable the user to test if the line side is energized without removing the shield
▪ Tangential knockouts on sides, top and bottom
▪ Enables any size of conduit to be mounted close to the wall, providing for cable installation closer to the wall and a neat appearance
▪ Used to open or close a circuit
▪ Provide a means to manually open and close a circuit and overcurrent protection by means of installed fuses
▪ Ample wire bending space provides for easier installation
▪ Visible double break quick-make, quick-break rotary blade mechanism
▪ 2-point of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
▪ Triple padlocking capability
▪ Personnel safety feature since the large hasp can accommodate up to three 3/8 in shank locks
▪ Clearly visible handle
▪ The position (On/Off) can be clearly seen from a distance
▪ Deionizing arc chutes, arc chutes confine and suppress the arcs produced by opening contacts under load
▪ Additional locking capability, cabinet door can be further padlocked at the top and bottom
