Schneider Electric

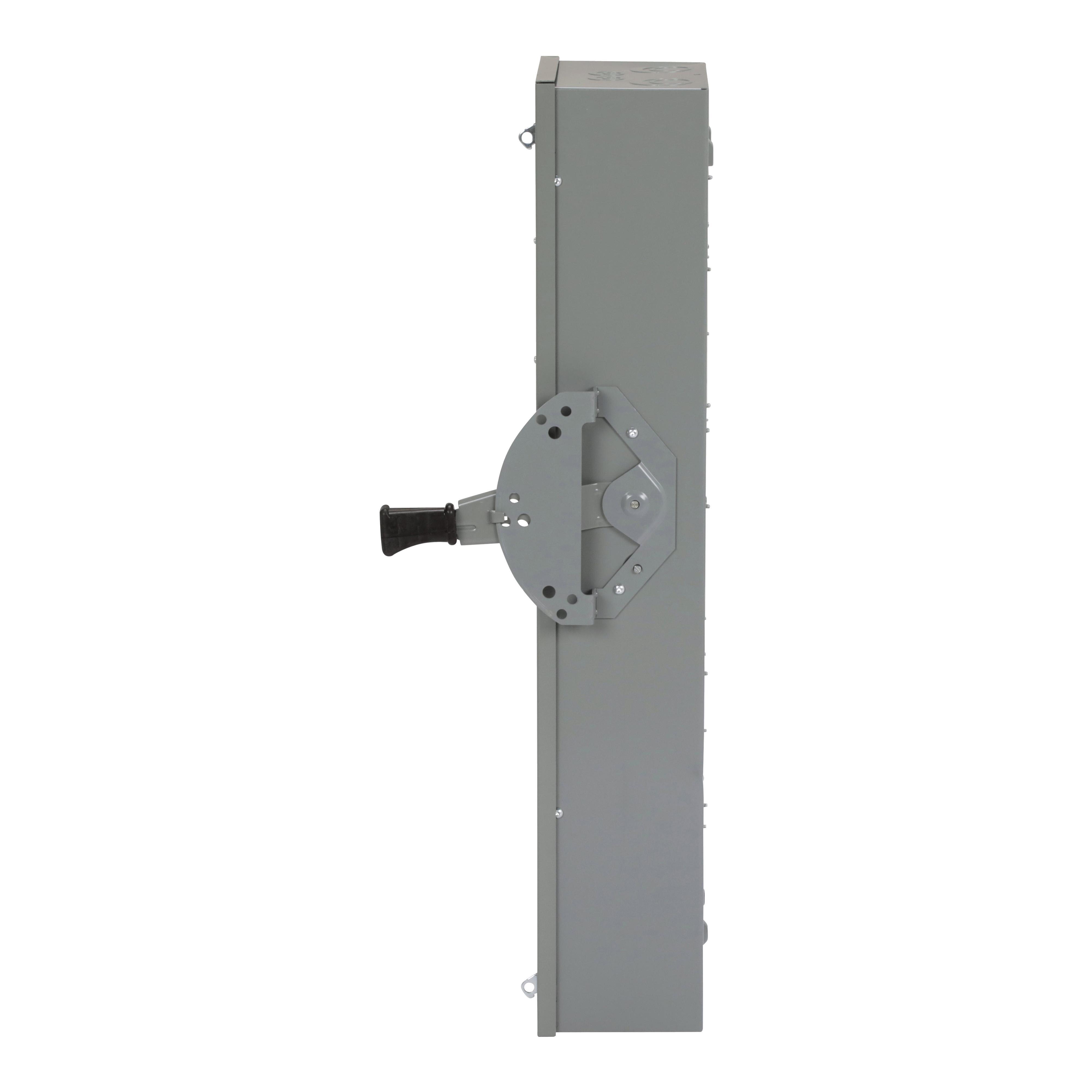

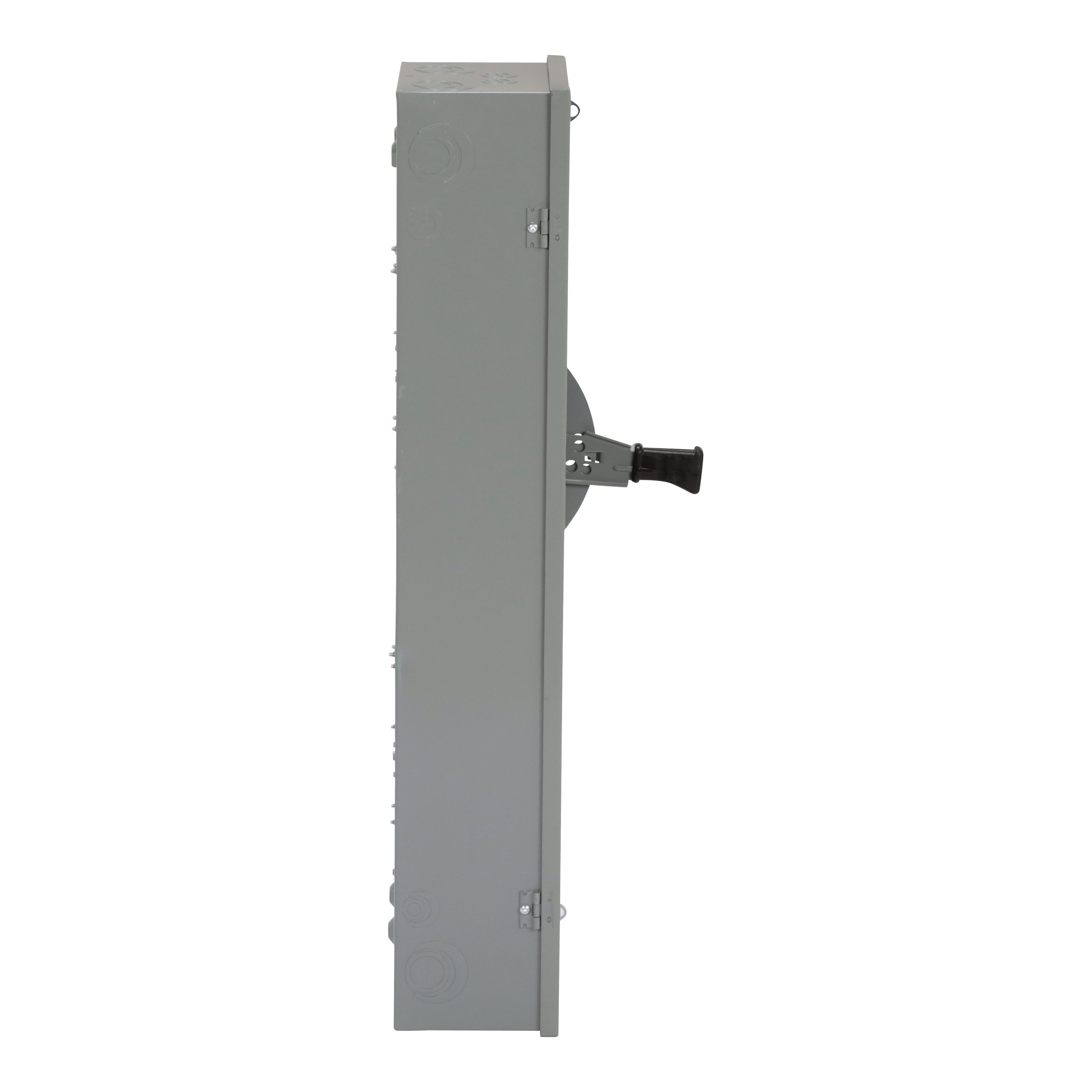

  • DT323 SQD SWITCH FUSIBLE DT 240VAC
  • DT323 SQD SWITCH FUSIBLE DT 240VAC
  • DT323 SQD SWITCH FUSIBLE DT 240VAC
  • DT323 SQD SWITCH FUSIBLE DT 240VAC

Description: Square D™ Safety Switch, Fusible General Purpose, Series: F5, 240 V AC/250 V DC, 100 A, 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, 3 Form C 3PDT Contact Form, Double Throw Actuator, NEMA 1 Enclosure, Surface Mounting, 11.13 in W x 6.75 in D x 38 in H Dimensions, Steel

Manufacturer PN: DT323

UPC:  78590130842

Kendall Electric Inc PN: 3999366

Invoice Description:

DT323 SQD SWITCH FUSIBLE DT 240VAC


SPEC SHEET

▸ See All in Double Throw Safety Switches


How Can We Make This Page Better?

Square D™ DT323 F5 Fusible General Purpose Safety Switch, 240 V AC/250 V DC, 100 A, 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC, 3 Form C 3PDT Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Schneider Electric and Square D products are only sold to customers in our authorized sales territory. Please log into your account to see locally available product.

Description

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The device accepts H or K R or J fuse types. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.
Square D™ Safety Switch, Fusible General Purpose, Series: F5, 240 V AC/250 V DC, 100 A, 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, 3 Form C 3PDT Contact Form, Double Throw Actuator, NEMA 1 Enclosure, Surface Mounting, 11.13 in W x 6.75 in D x 38 in H Dimensions, Steel

Specifications

 Actuator Type Double Throw
 Amperage Rating 100 A
 Application Educational, Healthcare, Wastewater, Manufacturing, Mining and Mineral, Residential, Light Commercial, Industrial and Indoor Applications
 Brand Name Square D
 Contact Form 3 Form C 3PDT
 Dimensions 11.13 in W x 6.75 in D x 38 in H
 Enclosure NEMA 1
 Horsepower 15 hp at 240 VAC 1-Phase, 30 hp at 240 VAC 3-Phase, 20 hp at 250 VDC
 Manufacturer Part Number DT323
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 3
 Phase 1/3
 Series F5
 Short Circuit Current Rating 200 kA
 Standards/Approvals RoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Fusible General Purpose
 Voltage Rating 240 V AC/250 V DC

Features

▪ Reliable performance
▪ Long term durability
▪ Enclosed operating mechanism
▪ Red and black handle indicates the ON (red) or OFF (black) condition of the switch
