Eaton

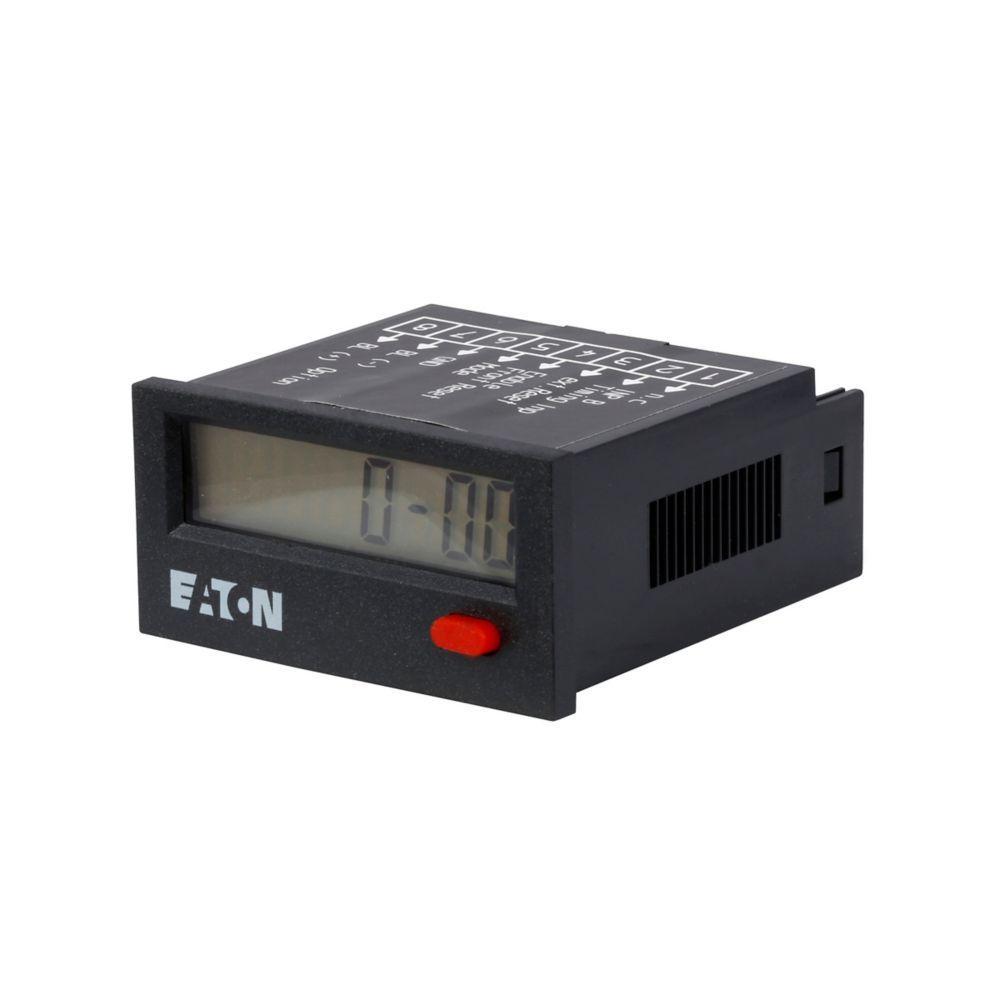

E5-224-C0448 DUR 8-Digit LCD Timer, Battery Power, Hours/Minutes High Voltage

Mouse over image to zoom, click to enlarge

  • E5-224-C0448 DUR 8-Digit LCD Timer, Battery Power, Hours/Minutes High Voltage
  • E5-224-C0448 DUR 8-Digit LCD Timer, Battery Power, Hours/Minutes High Voltage
  • E5-224-C0448 DUR 8-Digit LCD Timer, Battery Power, Hours/Minutes High Voltage

Description: EATON Electronic Timer, High Voltage Hour/Minute Model, Series: E5, 10 to 260 V AC/DC, 0 to 99999.9 hr Time Setting, 10 to 50 ms Pulse, 24 mm x 48 mm 8-Digit LCD Display, Lithium-Ion Battery, IP65 Enclosure, 14 to 140 deg F, DIN Rail Mounting, 2.11 in L x 2.2 in W x 1.57 in H Dimensions

Manufacturer PN: E5-224-C0448

UPC:  78668511449

Kendall Electric Inc PN: 2447579

Invoice Description:

E5-224-C0448 DUR 8-Digit LCD Timer, Battery Power, Hours/Minutes High Voltage


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

EATON E5-224-C0448 High Voltage Hour/Minute Model Electronic Timer, 0 to 99999.9 hr Setting, 10 to 260 V AC/DC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON Electronic Timer, High Voltage Hour/Minute Model, Series: E5, 10 to 260 V AC/DC, 0 to 99999.9 hr Time Setting, 10 to 50 ms Pulse, 24 mm x 48 mm 8-Digit LCD Display, Lithium-Ion Battery, IP65 Enclosure, 14 to 140 deg F, DIN Rail Mounting, 2.11 in L x 2.2 in W x 1.57 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and EOEM, Control Panels For Machines Applications
 Battery Type Lithium-Ion
 Brand Name EATON
 Dimensions 2.11 in L x 2.2 in W x 1.57 in H
 Enclosure IP65
 Includes Set Screw and Locknut
 Manufacturer Part Number E5-224-C0448
 Mounting Type DIN Rail
 PART NUMBER KEYWORDS E5-224-C0448 ; E5224C0448 ; 9568050 ; 786685114491 ; 78668511449 ; 00786685114491
 Pulse Duration 10 to 50 ms
 Series E5
 Standards/Approvals UL Recognized,CE Marked
 Temperature Rating 14 to 140 deg F
 Time Setting 0 to 99999.9 hr
 Type High Voltage Hour/Minute Model
 Voltage Rating 10 to 260 V AC/DC

Features

▪ Dark gray RAL 7021 housing
▪ 1/32 in DIN size
▪ Battery powered
▪ Simple battery powered timers provide an easy to read LCD and a variety of timing display options
▪ Low price and high efficiency
▪ Large eight-digit LCD display, height of the figures 0.31 in
▪ Different time ranges from 0.1 s to 100000 hr
▪ 0.1 s synchronization makes it suitable for very short activation times
▪ High voltage input for 10 to 260 VAC/VDC voltage pulses

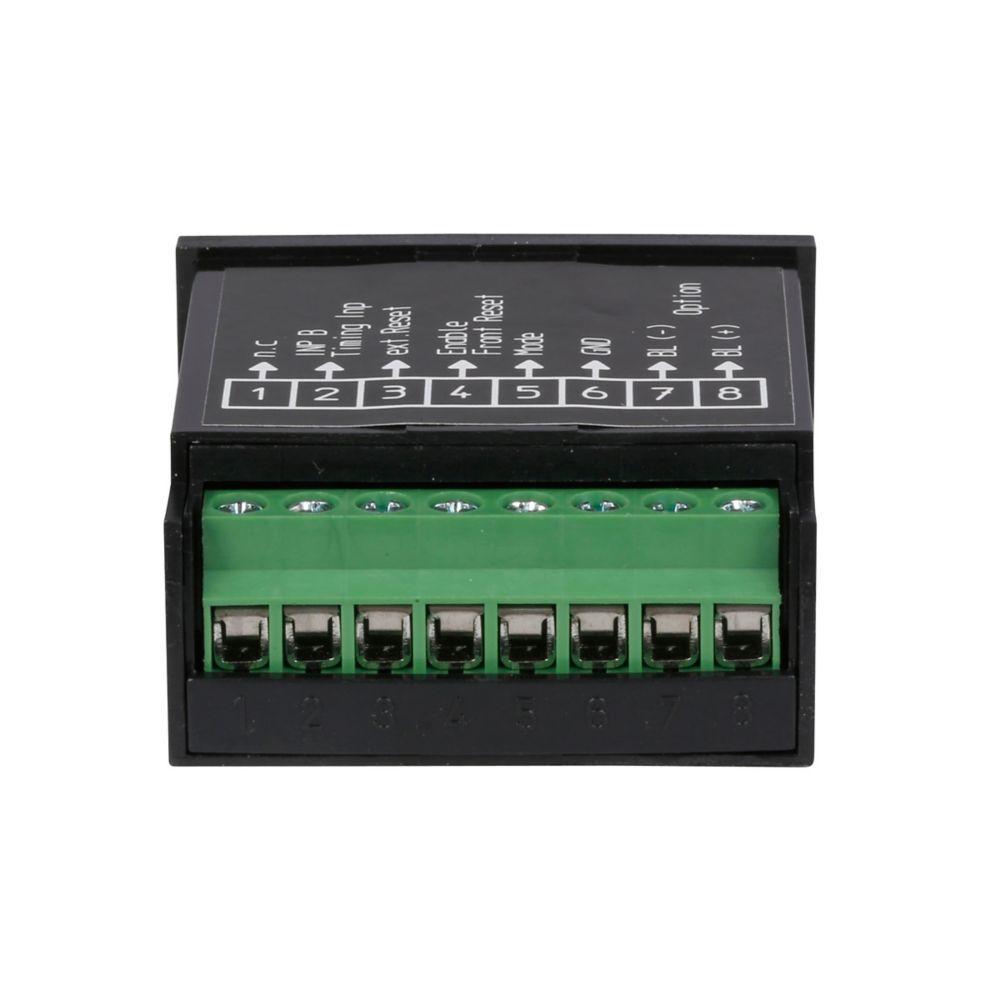

▪ RM 5 mm screw terminal connection
▪ Lifetime of the battery approximately eight years
▪ Locking of the reset key

Resources

 Catalog Page
 Product Data Sheet
