3M
  • DT200 3M 7000145571 2" FIRE BARRIER PUTTY SLEEVE KIT
  • DT200 3M 7000145571 2" FIRE BARRIER PUTTY SLEEVE KIT
  • DT200 3M 7000145571 2" FIRE BARRIER PUTTY SLEEVE KIT
  • DT200 3M 7000145571 2" FIRE BARRIER PUTTY SLEEVE KIT
  • DT200 3M 7000145571 2" FIRE BARRIER PUTTY SLEEVE KIT

Description: 3M™, 7000145571, Fire Barrier Sleeve Kit, Series: DT 200, Specifications: 5-1/4 x 5-1/4 in Flange, 2 in Dia x 12 in L Sleeve, 4 hr Fire Rating, Specifications Met: ASTM E814, UL 1479, Red Putty

Manufacturer PN: DT200

UPC:  05111518808

Kendall Electric Inc PN: 2866283

Invoice Description:

DT200 3M 7000145571 2" FIRE BARRIER PUTTY SLEEVE KIT


SPEC SHEET

▸ See All in Firestop Pillows, Sheets & Wraps


How Can We Make This Page Better?

3M™ 7000145571 DT 200 Fire Barrier Sleeve Kit, ASTM E814, UL 1479

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

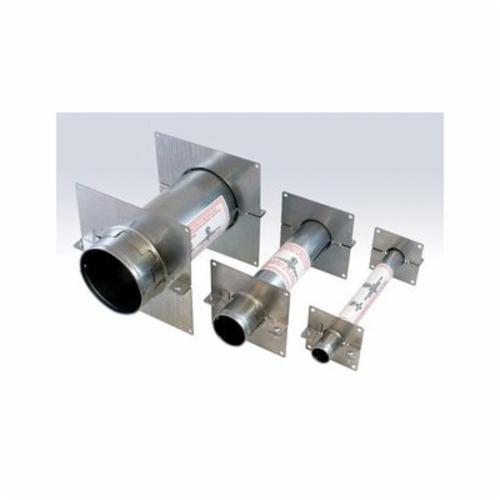

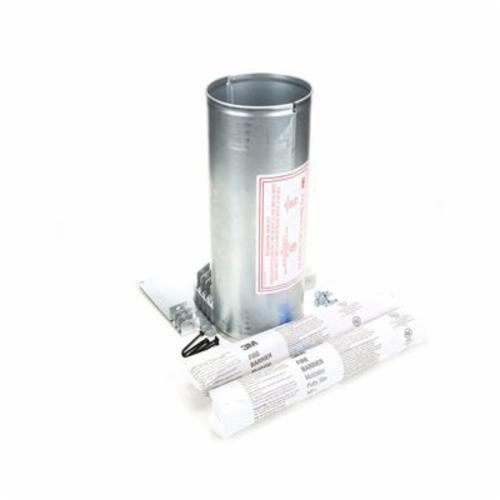

3M™ Fire Barrier Putty Sleeve Kits are designed to help prevent the passage of fire and smoke in new or existing cable penetrations through walls or floors. These kits are tested up to 4 hours for fire-rated through penetration systems (in accordance with ASTM E814). No gasket is required with this product and it allows for both new and retrofit data and telecom cable firestop installations.
3M™, 7000145571, Fire Barrier Sleeve Kit, Series: DT 200, Specifications: 5-1/4 x 5-1/4 in Flange, 2 in Dia x 12 in L Sleeve, 4 hr Fire Rating, Specifications Met: ASTM E814, UL 1479, Red Putty

Specifications

 Application For existing through penetration openings with cables, future cable installations or new construction through penetration openings for power and communication cables applications
 Brand Name 3M
 Color Red Putty
 Manufacturer Part Number 7000145571
 Series DT 200
 Specifications 5-1/4 x 5-1/4 in Flange, 2 in Dia x 12 in L Sleeve, 4 hr Fire Rating
 Specifications Met ASTM E814, UL 1479
 Standards/Approvals ASTM E814|UL 1479
 Type Round

Features

▪ Ready-to-install kit for complete cable or blank firestop installation
▪ No gasket required to ease installation process
▪ Rolled-out lip on sleeve allows for smooth cable entry
▪ Brackets and sleeve work in tandem to help prevent slipping during installation
▪ Allows for both new and retrofit data and telecom cable firestop installations
