Leviton
DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H

Mouse over image to zoom, click to enlarge

  • DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H
  • DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H
  • DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H
  • DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H
  • DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H

Description: Leviton®, DT112-1LW, Timer Switches, Residential, Operation Mode: Count Down, 120 V AC, 15 A, 1/2 hp, 1 Pole, NO Contact Form, 12 hr Time Setting, Wall Mounting, 4.13 in H x 1.75 in W x 1.40 in D Dimensions

Manufacturer PN: DT112-1LW

UPC:  07847726431

Kendall Electric Inc PN: 4776193

Invoice Description:

DT112-1LW LEVITON WH 15A SP DEC TIMER 5KEY 2H/4H/8H/12H


SPEC SHEET

▸ See All in Electronic Timers


How Can We Make This Page Better?

Leviton® DT112-1LW Residential Timer Switches, 12 hr Setting, 120 V AC, 1/2 hp, NO Contact, 1 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton®, DT112-1LW, Timer Switches, Residential, Operation Mode: Count Down, 120 V AC, 15 A, 1/2 hp, 1 Pole, NO Contact Form, 12 hr Time Setting, Wall Mounting, 4.13 in H x 1.75 in W x 1.40 in D Dimensions

Specifications

 Amperage Rating 15 A
 Brand Name Leviton®
 Contact Form NO
 Dimensions 4.13 in H x 1.75 in W x 1.40 in D
 Horsepower 1/2 hp
 Manufacturer Part Number DT112-1LW
 Mounting Type Wall
 Number of Poles 1
 Operation Mode Count Down
 PART NUMBER KEYWORDS DT112-1LW ; DT1121LW
 Standards/Approvals CSA Certified|FCC|IC
 Time Setting 12 hr
 Type Residential
 Video Links
 Voltage Rating 120 V AC

Features

▪ Change color with DTKIT faceplates available in white, ivory, light almond, gray, black and brown
▪ Do not use to control lights if there is no other light source in the space

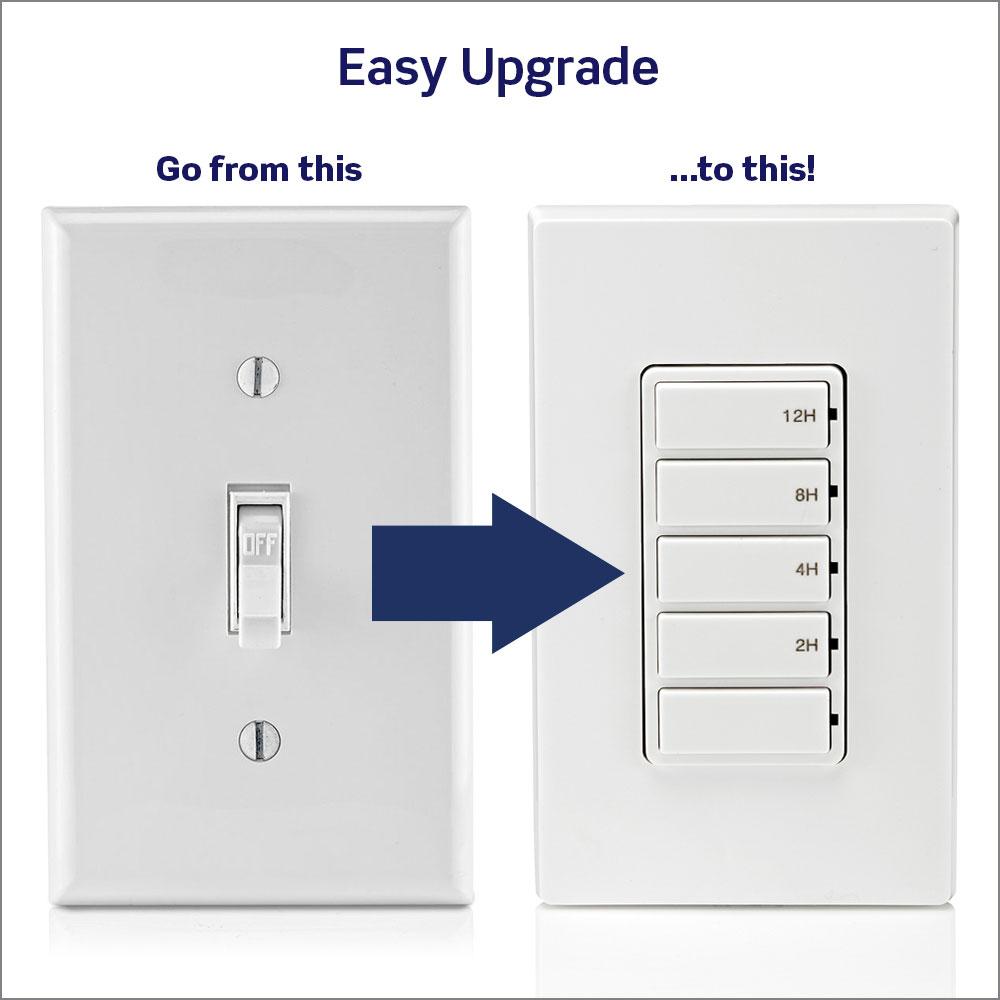

▪ Replace a standard wall switch with a countdown timer to ensure exhaust fans or lights are not left on unintentionally

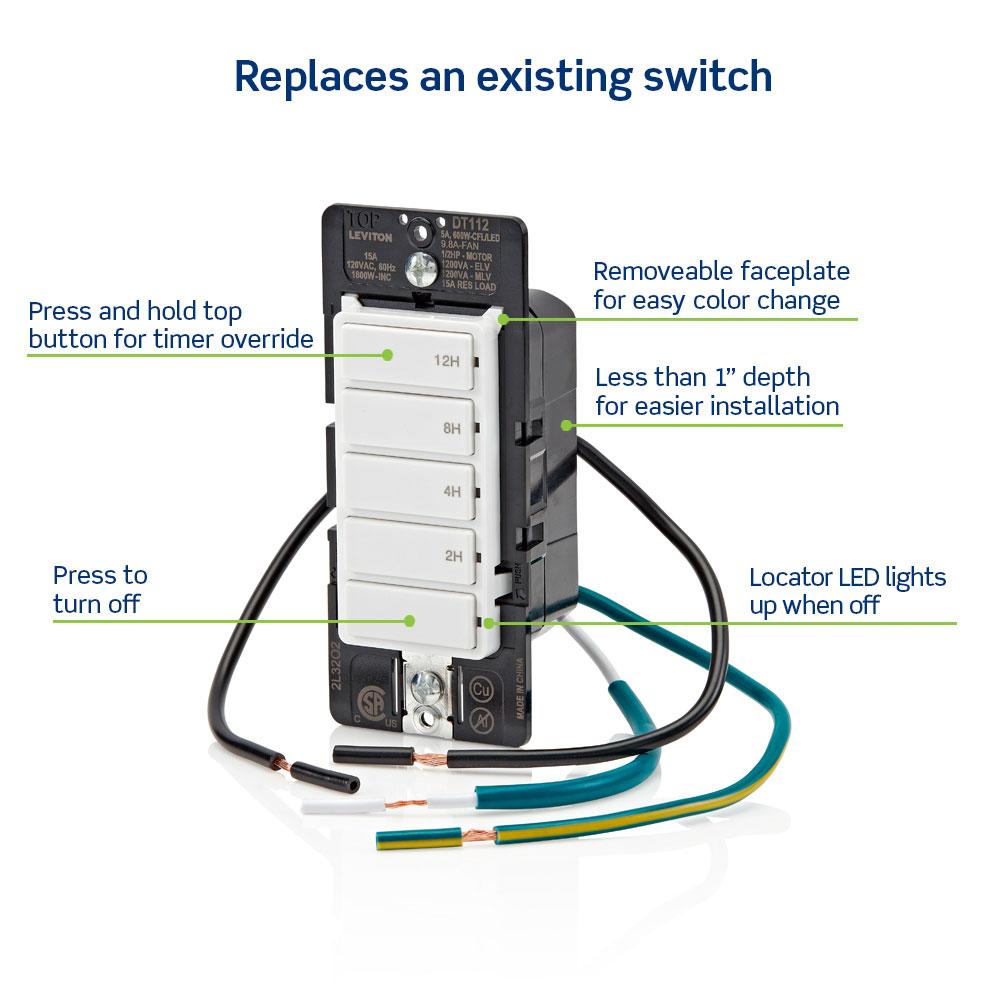

▪ Four preset time option buttons 2-4-8-12 hr with separate off button
▪ Press time option to turn on and will automatically turn off when time expires
▪ Shallow design easily fits in the wallbox and lead terminal wires for easier installation without having to bend wires around terminal screws

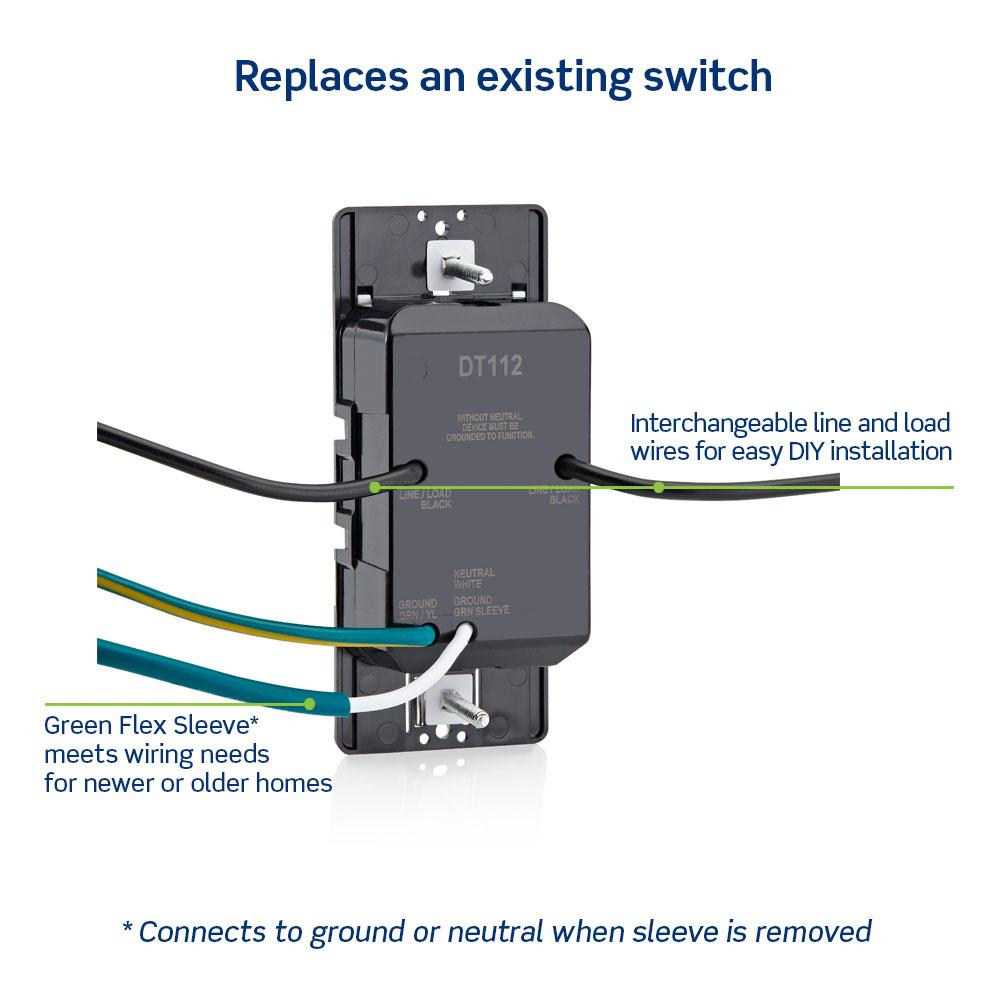

▪ Innovative Green Flex Sleeve wires to ground in homes with no neutral wiring or remove the sleeve and connect to a neutral wire if present in the wallbox, a ground wire is required for installation
▪ DIY friendly with two black wires that can be interchanged between line and load to help prevent miswiring
▪ Zero Cross turn-on technology to extend the life of the switch
▪ Manual override keeps load on for 24 hr
▪ Override can be disabled by pressing one of the timer option buttons or off button
