Eaton

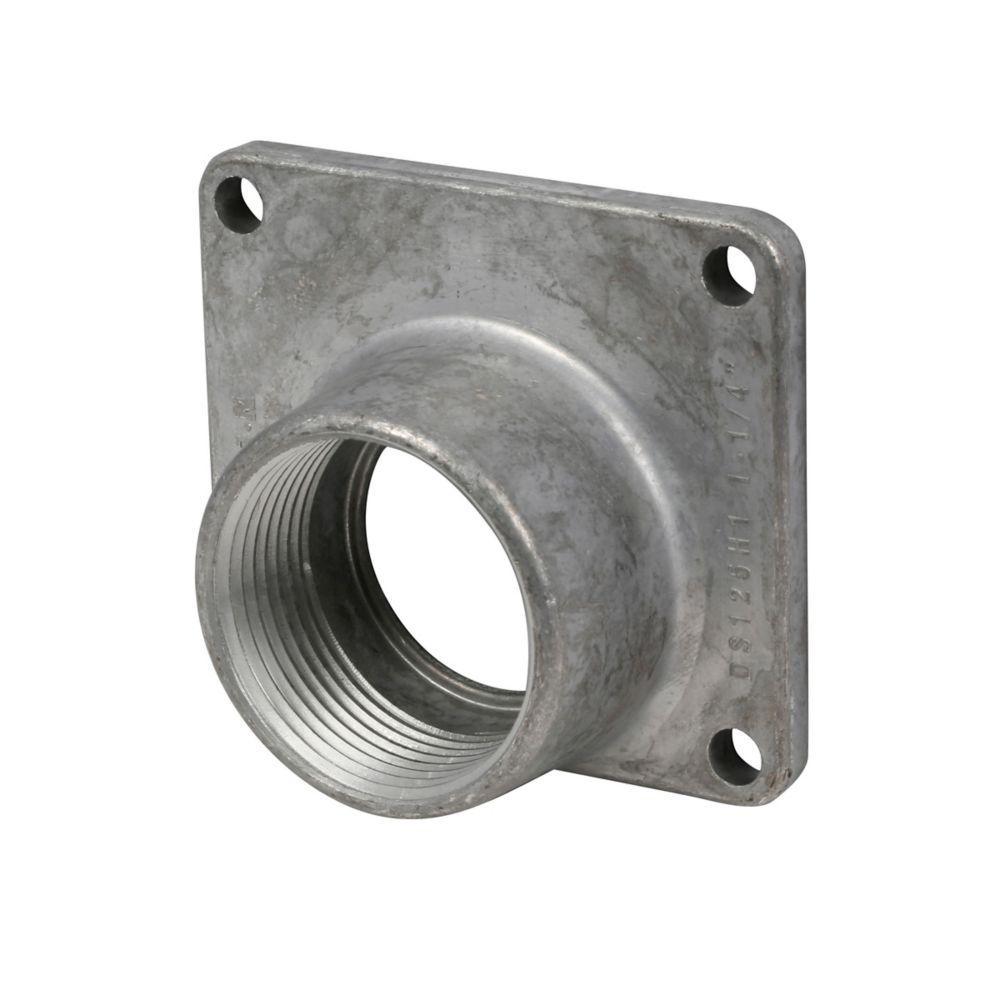

DS125H1CS C-H CLAMSHELL - 1.25" TYPE 3R PLATE TYPE HUB FOR DG, DH, DT THR 78211479329

Mouse over image to zoom, click to enlarge

  • DS125H1CS C-H CLAMSHELL - 1.25" TYPE 3R PLATE TYPE HUB FOR DG, DH, DT THR 78211479329
  • DS125H1CS C-H CLAMSHELL - 1.25" TYPE 3R PLATE TYPE HUB FOR DG, DH, DT THR 78211479329
  • DS125H1CS C-H CLAMSHELL - 1.25" TYPE 3R PLATE TYPE HUB FOR DG, DH, DT THR 78211479329

Description: EATON Conduit Hub, H1 Style NEMA 3R Rainproof, 1-1/4 in Size, For Use With: Type CH Style 3/4 in 70, 100 and 125 A MLO, MCB Loadcenter and Circuit Breaker, 1-1/2 in H x 3-3/4 in W x 6-3/4 in D Dimensions

Manufacturer PN: DS125H1CS

UPC:  78211479329

Kendall Electric Inc PN: 2748722

Invoice Description:

DS125H1CS C-H CLAMSHELL - 1.25" TYPE 3R PLATE TYPE HUB FOR DG, DH, DT THR 78211479329


SPEC SHEET

▸ See All in Load Center Hubs & Covers


How Can We Make This Page Better?

EATON DS125H1CS H1 Style NEMA 3R Rainproof Conduit Hub, 1-1/4 in, For Use With Type CH Style 3/4 in 70, 100 and 125 A MLO, MCB Loadcenter and Circuit Breaker

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.
EATON Conduit Hub, H1 Style NEMA 3R Rainproof, 1-1/4 in Size, For Use With: Type CH Style 3/4 in 70, 100 and 125 A MLO, MCB Loadcenter and Circuit Breaker, 1-1/2 in H x 3-3/4 in W x 6-3/4 in D Dimensions

Specifications

 Brand Name EATON
 Dimensions 1-1/2 in H x 3-3/4 in W x 6-3/4 in D
 Manufacturer Part Number DS125H1CS
 Size 1/1/2004 in
 Standards/Approvals UL Listed
 Suitable For Use With Type CH Style 3/4 in 70, 100 and 125 A MLO, MCB Loadcenter and Circuit Breaker
 Type H1 Style NEMA 3R Rainproof
 Video Links

Features

▪ Clamshell pack

Resources

 Catalog Page
 Product Data Sheet
