Hubbell

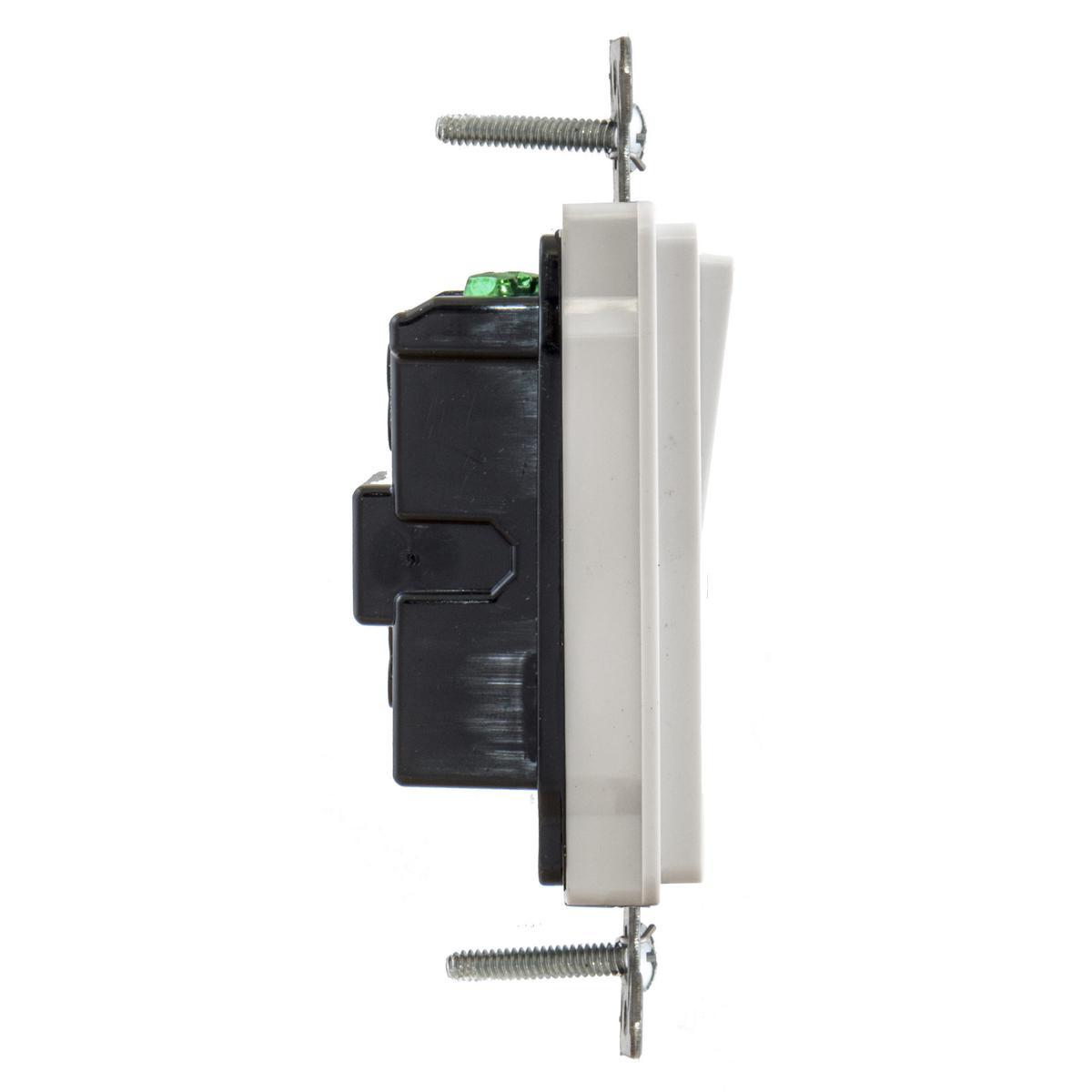

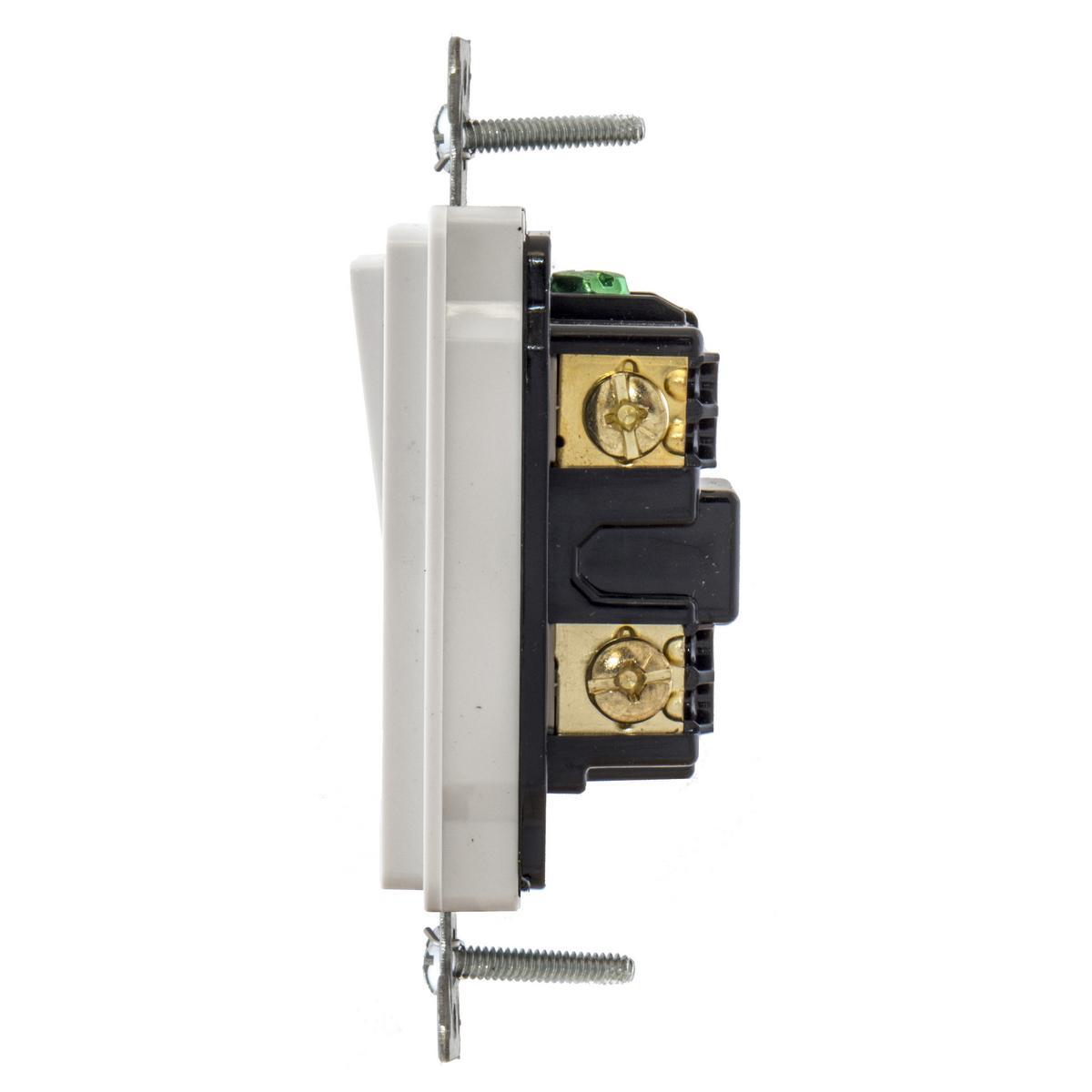

DS120W HUBBELL SWITCH, DECO SER, SP, 20A 120/277V, WH..

Mouse over image to zoom, click to enlarge

  • DS120W HUBBELL SWITCH, DECO SER, SP, 20A 120/277V, WH..
  • DS120W HUBBELL SWITCH, DECO SER, SP, 20A 120/277V, WH..
  • DS120W HUBBELL SWITCH, DECO SER, SP, 20A 120/277V, WH..

Description: Hubbell Wiring Device-Kellems Style Line®, DS120W, AC Switch, Standard Self-Grounding, Series: Decorator, 120 to 277 V AC, 20 A, 5540 W Power, 2 Position Contact Configuration, 20 A at 120/277 V AC Contact, 1 Pole, Positive Snap Action, Rocker Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 75 deg C, 4.28 x 1.43 x 1.54 in Dimensions

Manufacturer PN: DS120W

UPC:  78358510837

Kendall Electric Inc PN: 2720022

Invoice Description:

DS120W HUBBELL SWITCH, DECO SER, SP, 20A 120/277V, WH..


SPEC SHEET

▸ See All in Decorative Switches


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Style Line® DS120W Decorator Standard Self-Grounding AC Switch, 120 to 277 V AC, 20 A, 5540 W Power Rating, 2 Position Contact

Log In for Pricing and Availability




Description

From a toggle switch to an AC rocker style switch, Select Spec™ switches are ideal for any commercial to light industrial construction project where ease of wiring, durability and reliability are required. The nylon toggle is exceptionally rugged and chemically resistant. Select Spec™ switches are available in a variety of colors to blend into the decor of office buildings, administrative areas, schools, government projects, retail spaces and any place a light industrial/commercial switch is needed.
Hubbell Wiring Device-Kellems Style Line®, DS120W, AC Switch, Standard Self-Grounding, Series: Decorator, 120 to 277 V AC, 20 A, 5540 W Power, 2 Position Contact Configuration, 20 A at 120/277 V AC Contact, 1 Pole, Positive Snap Action, Rocker Actuator, Threaded Mounting, Back/Side Wire Terminal, 50000 cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 75 deg C, 4.28 x 1.43 x 1.54 in Dimensions

Specifications

 Actuator Rocker
 Amperage Rating 20 A
 Application Commercial Heavy Duty Applications
 Brand Name Hubbell Premise Wiring
 Color White
 Contact Configuration 2 Position
 Contact Rating 20 A at 120/277 V AC
 Dimensions 4.28 x 1.43 x 1.54 in
 Environmental Conditions -40 to 75 deg C
 Manufacturer Part Number DS120W
 Material Thermoplastic
 Mounting Threaded
 Number of Poles 1
 Operating Cycles 50000 Cycles
 PART NUMBER KEYWORDS DS120W ; 11814155 ; 8905203 ; 783585108377 ; 78358510837 ; 00783585108377 ; 0783585108377
 Power Rating 5540 W
 Series Decorator
 Standards/Approvals UL 20|UL94 V-2 Flammability Rating|CSA Certified|NEMA WD1|RoHS Compliant
 Terminal Type Back/Side Wire
 Type Standard Self-Grounding
 Voltage Rating 120 to 277 V AC

Features

▪ Thread cleaning captive mounting screw
▪ Steel, zinc plated bridge is corrosion resistant
