Hubbell

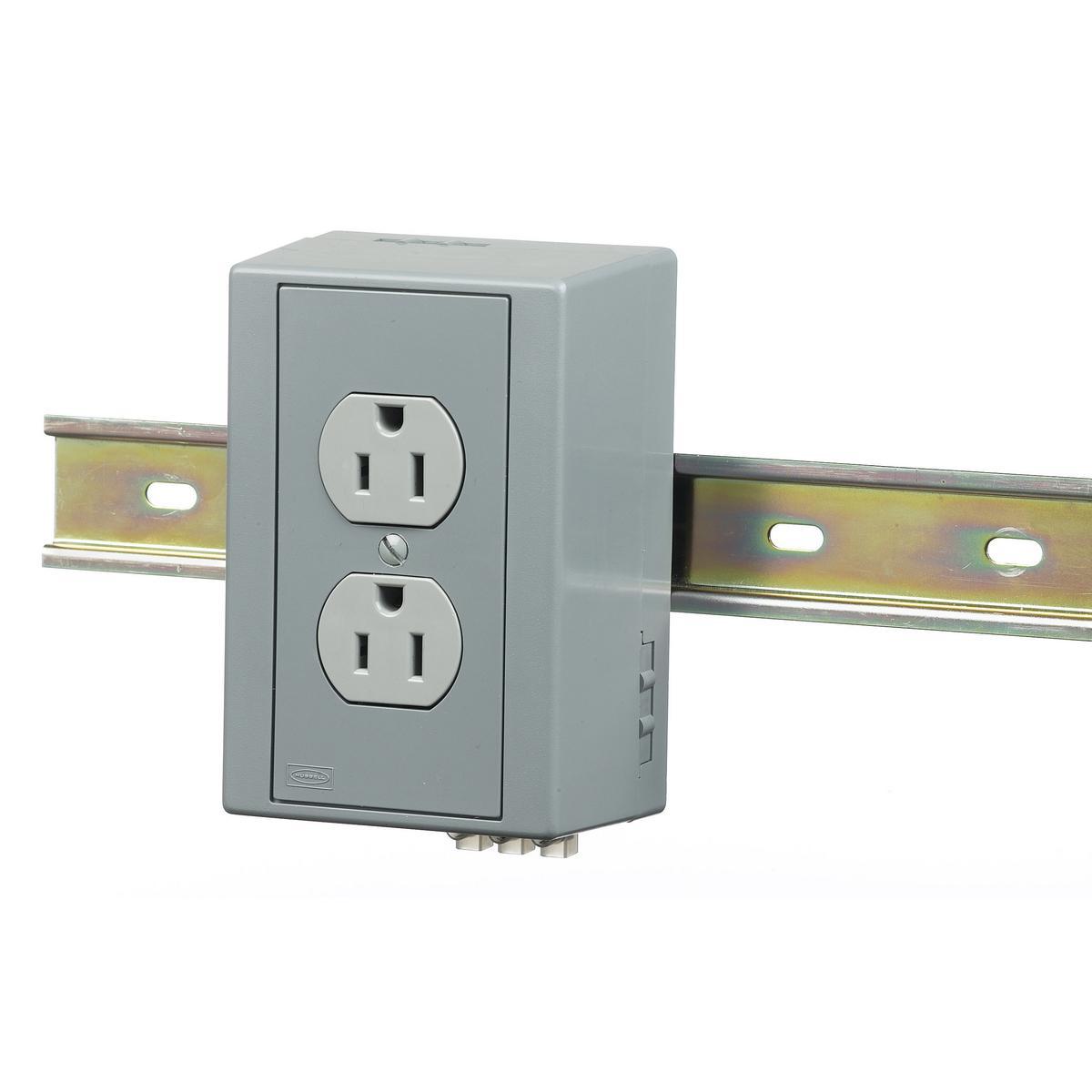

DRUB15 HUB DIN RAIL UTILITY BOX

Mouse over image to zoom, click to enlarge

  • DRUB15 HUB DIN RAIL UTILITY BOX
  • DRUB15 HUB DIN RAIL UTILITY BOX

Description: Hubbell Wiring Device-Kellems, DRUB15, Utility Box, 1-Outlet 2-3-Wire Pre-Wired Standard Molded and Fabricated DIN Rail Mount, 125 V AC, 15 A, 0.5 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Composite, Gray, 5.62 in L x 3.31 in W x 2.54 in H Dimensions

Manufacturer PN: DRUB15

UPC:  78358510800

Kendall Electric Inc PN: 32205

Invoice Description:

DRUB15 HUB DIN RAIL UTILITY BOX


SPEC SHEET

▸ See All in Utility - Handy Box


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems DRUB15 1-Outlet 2-3-Wire Pre-Wired Standard Molded and Fabricated DIN Rail Mount Utility Box, 125 V AC, 15 A, 2 Poles, 3 Wires, Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

DIN Rail Utility Box, Complete Unit- Duplex Receptacle, 1) 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Gray.
Hubbell Wiring Device-Kellems, DRUB15, Utility Box, 1-Outlet 2-3-Wire Pre-Wired Standard Molded and Fabricated DIN Rail Mount, 125 V AC, 15 A, 0.5 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Composite, Gray, 5.62 in L x 3.31 in W x 2.54 in H Dimensions

Specifications

 Amperage Rating 15 A
 Application Industrial Applications
 Brand Name Hubbell Premise Wiring
 Color Gray
 Dimensions 5.62 in L x 3.31 in W x 2.54 in H
 Horsepower 0.5 hp
 Manufacturer Part Number DRUB15
 Material Composite
 NEMA Rating 5-15R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS DRUB15 ; 11816651 ; 8904941 ; 783585108001 ; 78358510800 ; 00783585108001 ; 0783585108001
 Standards/Approvals RoHS Compliant|cULus Listed|UL 498/514|CSA Certified
 Type 1-Outlet 2-3-Wire Pre-Wired Standard Molded and Fabricated DIN Rail Mount
 Voltage Rating 125 V AC

Features

▪ It provide utility power to any control cabinet
▪ Optional auxiliary contacts for feed through capability
▪ Pre-wired kits are available for end-user customization
