Hubbell

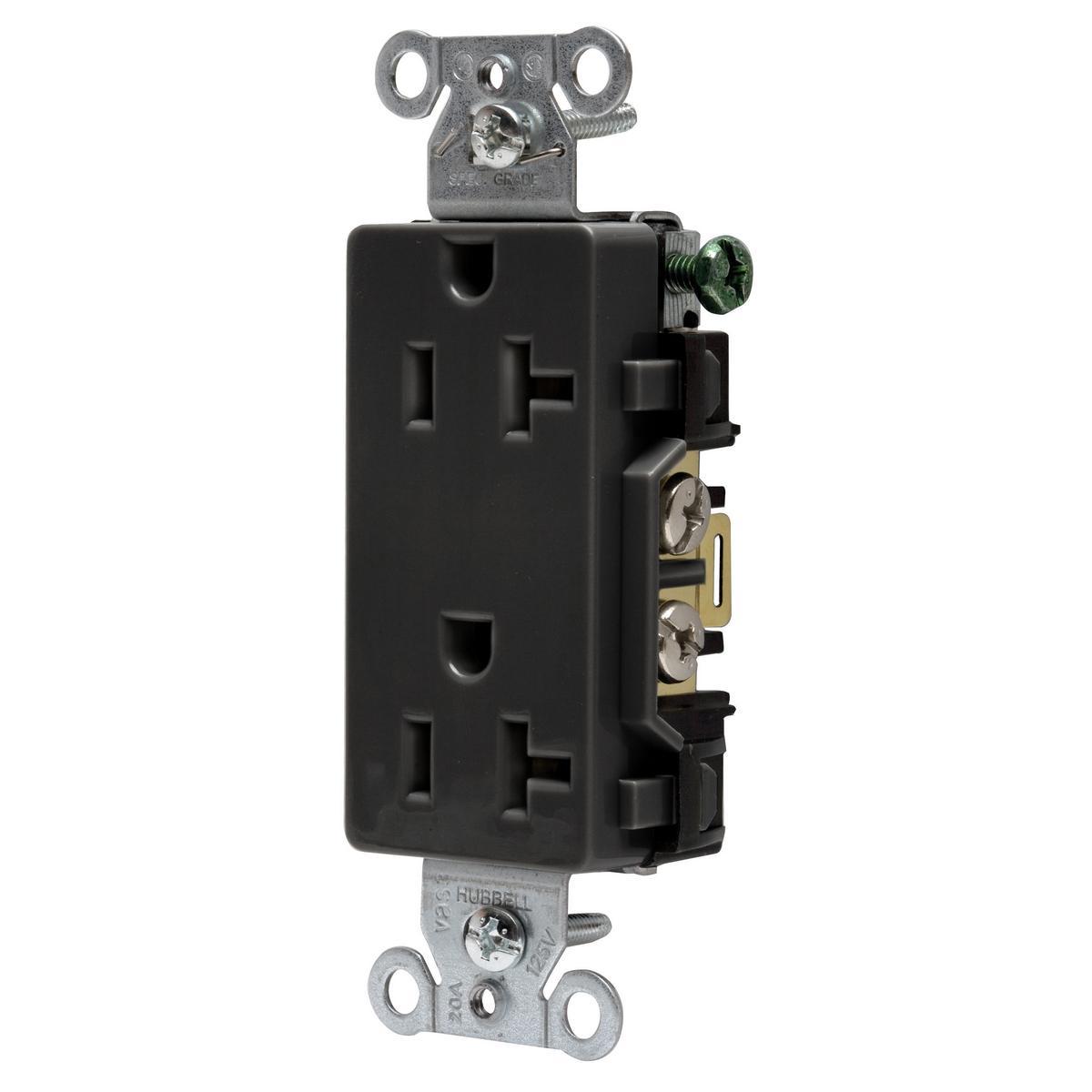

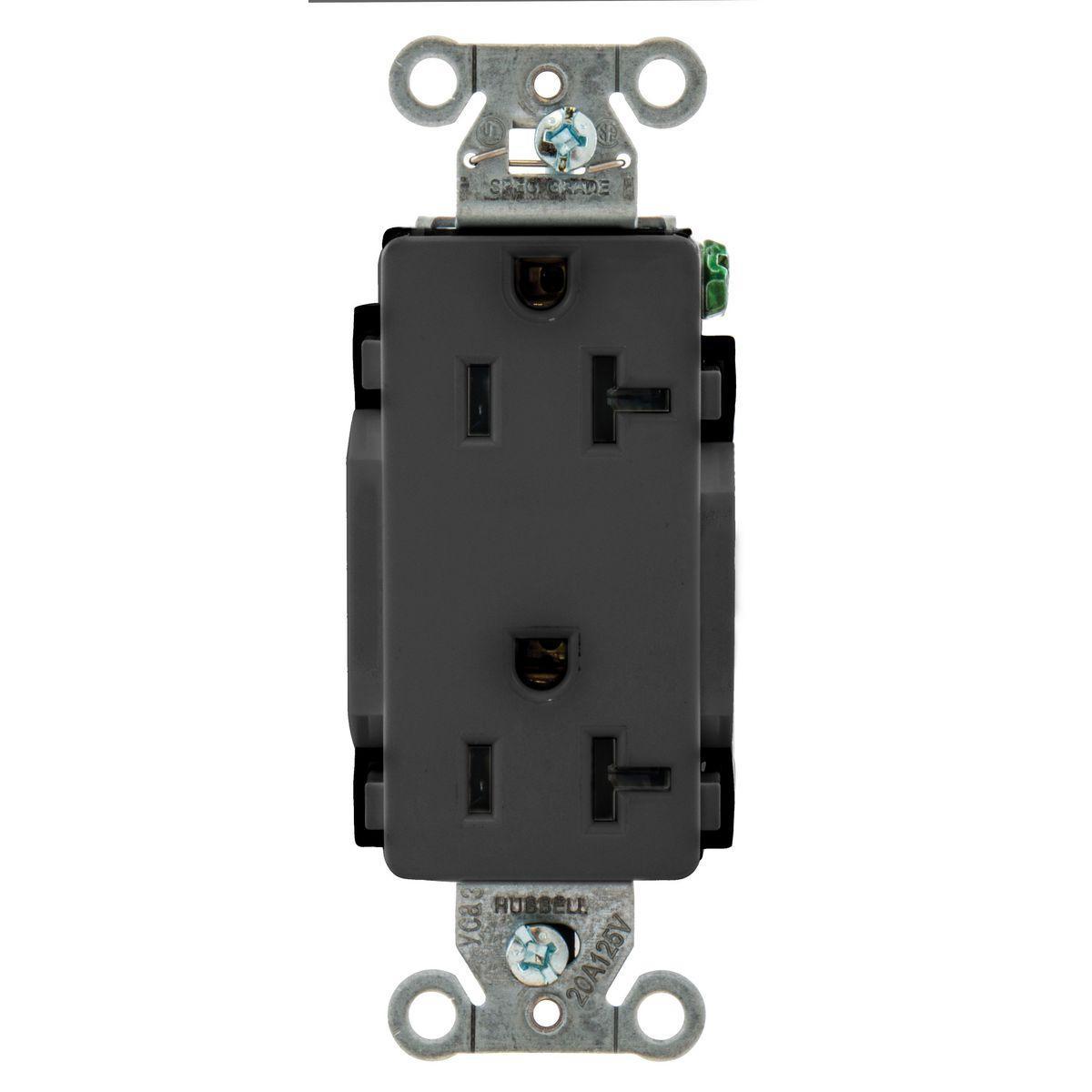

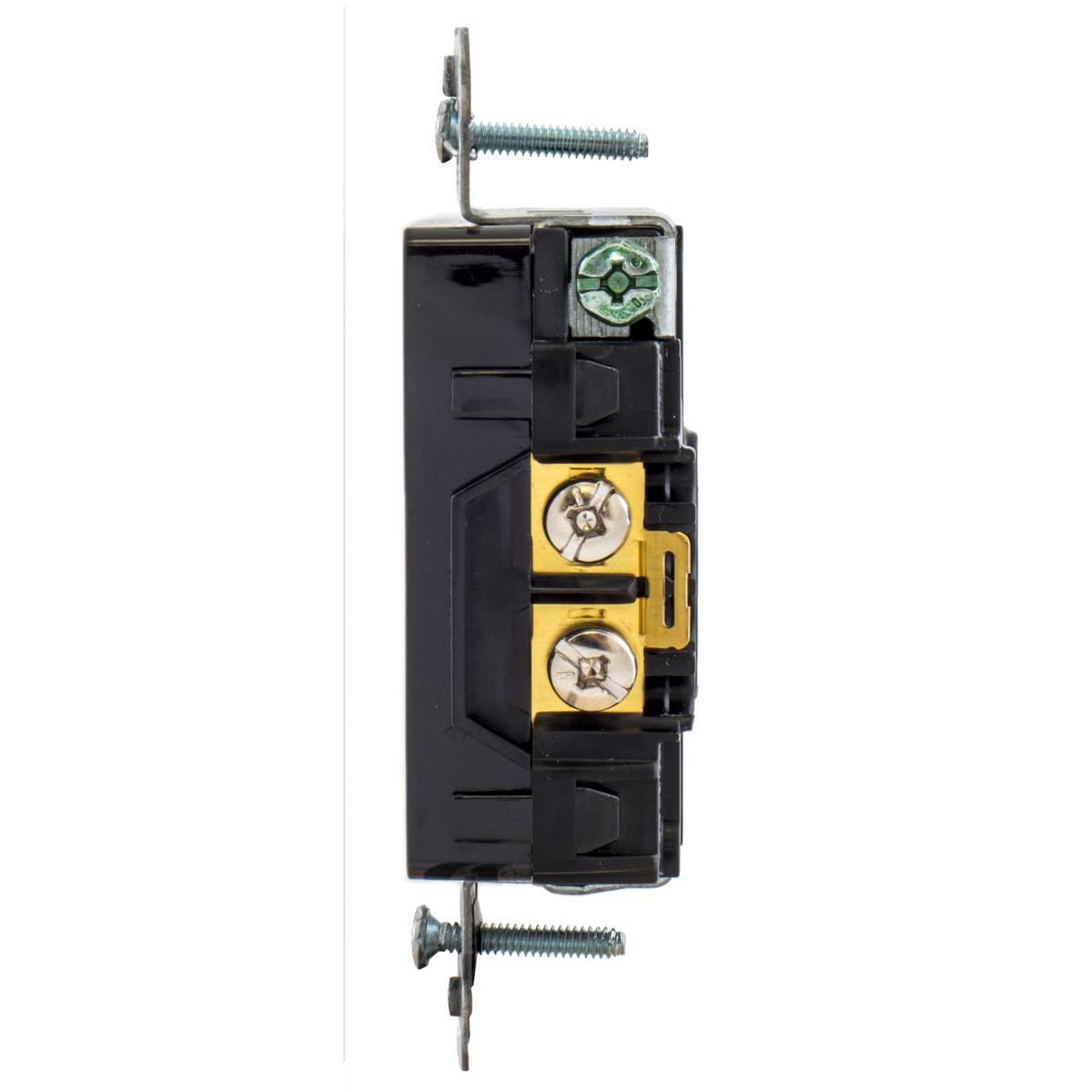

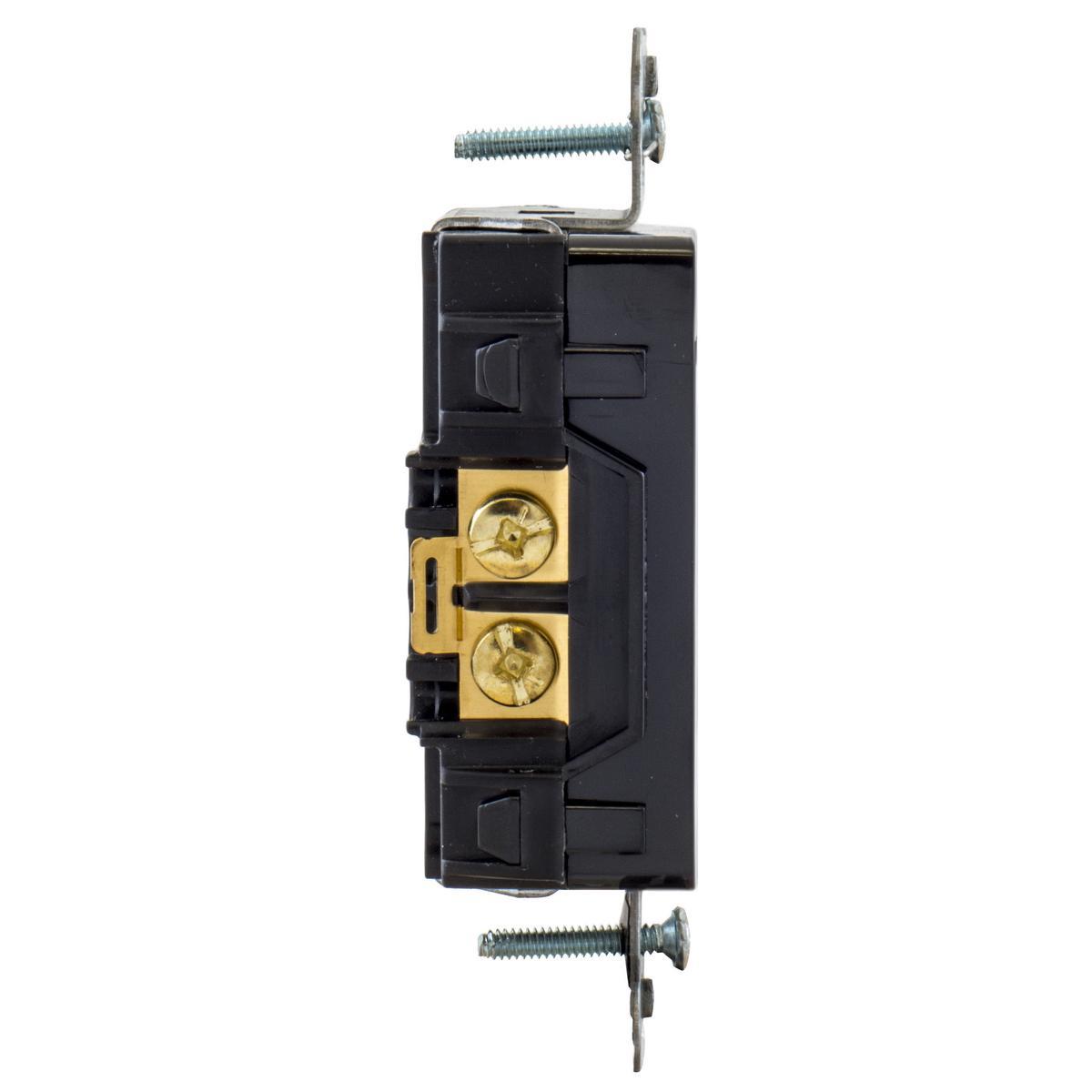

DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..

Mouse over image to zoom, click to enlarge

  • DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..
  • DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..
  • DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..
  • DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..
  • DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..

Description: Hubbell Wiring Device-Kellems Style Line®, DR20BLK, Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, Series: Decorator, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Black, 3.28 x 1.06 x 1.29 in Dimensions

Manufacturer PN: DR20BLK

UPC:  78358512791

Kendall Electric Inc PN: 2665742

Invoice Description:

DR20BLK HUBBELL DECO RCPT, COMM GRD, 20A 125V, 5-20R, BK 78358512791..


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Style Line® DR20BLK Decorator 1-Phase Duplex Self-Grounding Screw Mount Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Black

Log In for Pricing and Availability




Description

Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Black, Single Pack.
Hubbell Wiring Device-Kellems Style Line®, DR20BLK, Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, Series: Decorator, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Black, 3.28 x 1.06 x 1.29 in Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Hubbell Premise Wiring
 Color Black
 Dimensions 3.28 x 1.06 x 1.29 in
 Grade Commercial/Specification
 Horsepower 1 hp
 Manufacturer Part Number DR20BLK
 Material Nylon
 NEMA Rating 5-20R
 Number of Poles 2
 Number of Wires 3
 Series Decorator
 Standards/Approvals UL 498, File No. E2186 Listed|UL 94-V-2 Flammability Rating|CSA C22.2, No. 42|Federal Specification W-C-596|NEMA WD1/WD5/WD6 Compliant|RoHS Compliant
 Temperature Rating -40 to 75 deg C
 Terminal Type Side Wired
 Type 1-Phase Duplex Self-Grounding Screw Mount
 Voltage Rating 125 V AC

Features

▪ Smooth face
▪ Triple wipe contacts
▪ Aesthetic Style Line decorator design
