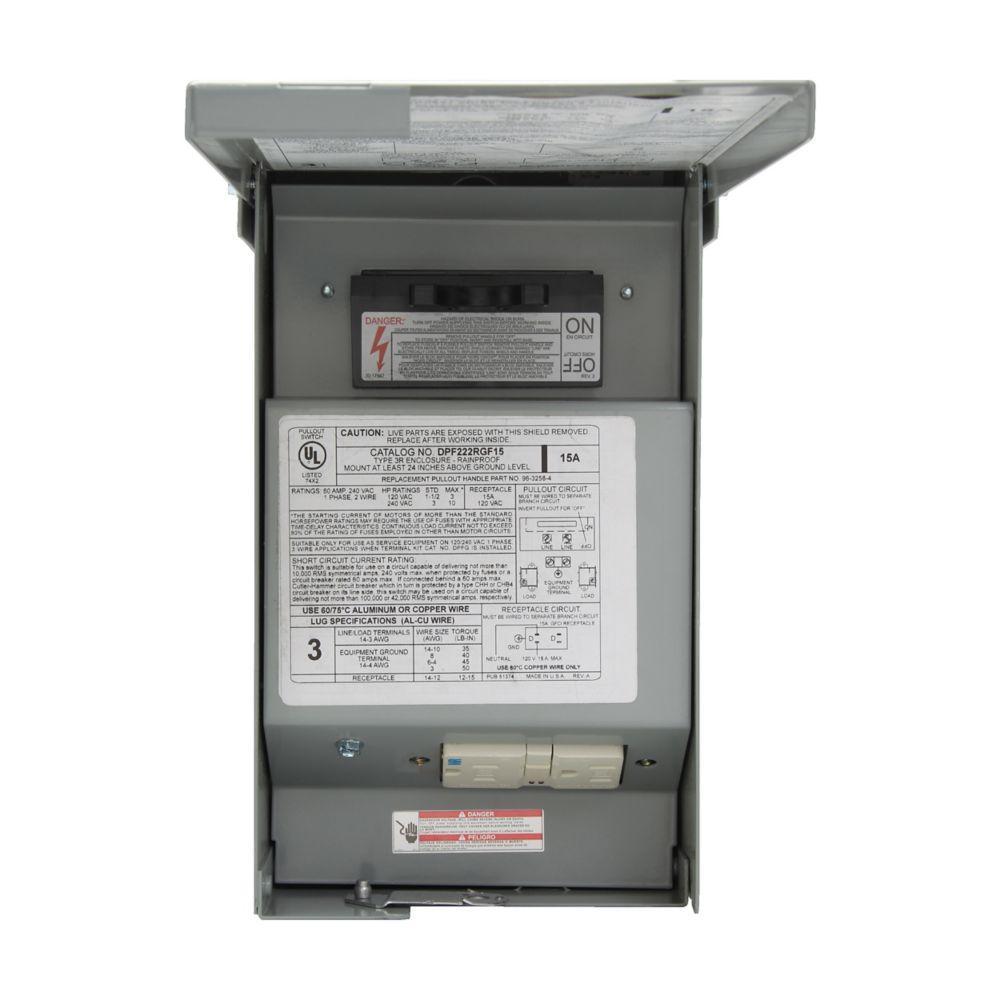

DPF222RGF15WTST CH A/C DISCONNECT SWITCH FUSIBLE 2P 60 AMP 120/240V NEMA 3R WITH 15 GFCI RECEPTACLE

Mouse over image to zoom, click to enlarge

  • DPF222RGF15WTST CH A/C DISCONNECT SWITCH FUSIBLE 2P 60 AMP 120/240V NEMA 3R WITH 15 GFCI RECEPTACLE
  • DPF222RGF15WTST CH A/C DISCONNECT SWITCH FUSIBLE 2P 60 AMP 120/240V NEMA 3R WITH 15 GFCI RECEPTACLE

Description: EATON Air Conditioning Disconnect, Fusible Pullout, 120/240 V AC, 60 A, 3 hp, 10 hp, Padlock Actuator, Class H Insulation, NEMA 3R Enclosure, Line/Load Lug Terminal, 60 to 75 deg C, 7-1/2 in L x 4-3/4 in W x 13 in H Dimensions, Steel, Gray, Galvanized

Manufacturer PN: DPF222RGF15WTST

UPC:  78668901473

Kendall Electric Inc PN: 3636657

Invoice Description:

DPF222RGF15WTST CH A/C DISCONNECT SWITCH FUSIBLE 2P 60 AMP 120/240V NEMA 3R WITH 15 GFCI RECEPTACLE


SPEC SHEET

▸ See All in Air-Conditioner Disconnects


How Can We Make This Page Better?

EATON DPF222RGF15WTST Fusible Pullout Air Conditioning Disconnect With 15 A Weather/Tamper Resistant Ground Fault Self-Test Receptacle, 120/240 V AC, 60 A, 3 hp, 10 hp

Log In for Pricing and Availability




Description

Eaton offers the industry’s most complete line of ACDs. Devices are available in fused, non-fused, molded case switch or three phase designs, and in metal or plastic enclosures for all application. An Air Conditioning Disconnect (ACD) provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit.
EATON Air Conditioning Disconnect, Fusible Pullout, 120/240 V AC, 60 A, 3 hp, 10 hp, Padlock Actuator, Class H Insulation, NEMA 3R Enclosure, Line/Load Lug Terminal, 60 to 75 deg C, 7-1/2 in L x 4-3/4 in W x 13 in H Dimensions, Steel, Gray, Galvanized

Specifications

 Actuator Type Padlock
 Amperage Rating 60 A
 Application Power Distribution, Heat Pumps, Swimming Pools, Spas, Whirlpools, Pump Houses, Residential, Light Commercial Air Conditioning Units and Servicing Electric Water Heaters
 Brand Name EATON
 Color Gray
 Dimensions 7-1/2 in L x 4-3/4 in W x 13 in H
 Enclosure NEMA 3R
 Finish Galvanized
 Horsepower 3 hp, 10 hp
 Manufacturer Part Number DPF222RGF15WTST
 Material Steel
 Standards/Approvals UL Listed,CSA Certified
 Temperature Rating 60 to 75 deg C
 Terminal Type Line/Load Lug
 Type Fusible Pullout
 Voltage Rating 120/240 V AC

Features

▪ Fused devices are service entrance rated
▪ Horsepower rated (10 hp maximum at 240 VAC)
▪ Padlockable door provision for safety and reduction of tampering
▪ Metallic enclosures are bottom entry and exit only
▪ Non-metallic enclosures have knockouts and a hub provision for top access
▪ Non-metallic enclosures have a single unit door and protective shield for installer convenience
▪ Non-metallic enclosures are durable and provide excellent resistance to climate changes
▪ 3 hp at 120 VAC, 10 hp at 240 VAC
▪ 14 to 3 AWG Al/Cu wire
▪ ON/OFF control provided by a pull out handle
▪ Pull out handle can be conveniently stored in the compartment in the OFF position, helping to prevent the handle from being misplaced
▪ Protective shield cannot be removed until the pull out handle is removed, disconnecting the power
▪ NEMA 3R outdoor enclosures offered in metallic and non-metallic versions
▪ Easy to remove high strength protective shield for easier wiring and mounting
▪ Easy to remove front cover (no screws or fasteners to remove)
▪ 1 in knockouts on the bottom, back and side of unit
▪ Copper rated line and load lugs that are easily accessible
▪ Ample wiring space for mounting with a stud gun (1-keyhole, 2/3-point mounting)
