ABB

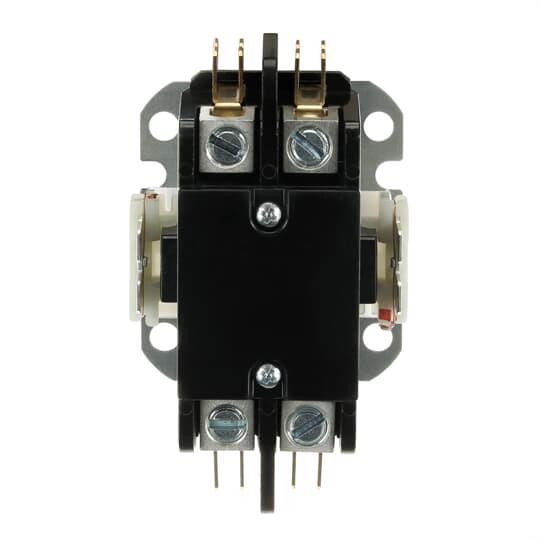

  • DP40C2P-F ABB DP CONTR 40A 2P 24/60
  • DP40C2P-F ABB DP CONTR 40A 2P 24/60
  • DP40C2P-F ABB DP CONTR 40A 2P 24/60

Description: ABB Definite Purpose Contactor, 24 V AC Coil, 40 A Maximum Load Current, 6.5/8/30/33 VA Coil Power Rating, 2 Poles, 50/60 Hz, Non-Reversing Contact, 2NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 40, Box Lug Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.3 in H x 2 in W x 2.61 in D

Manufacturer PN: DP40C2P-F

UPC:  66201975420

Kendall Electric Inc PN: 3356597

Invoice Description:

DP40C2P-F ABB DP CONTR 40A 2P 24/60


SPEC SHEET

▸ See All in Definite Purpose Contactors AC


How Can We Make This Page Better?

ABB DP40C2P-F Definite Purpose Contactor, 24 V AC V Coil, 40 A, 2NO Contact, 2 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

ABB Definite Purpose Contactor, 24 V AC Coil, 40 A Maximum Load Current, 6.5/8/30/33 VA Coil Power Rating, 2 Poles, 50/60 Hz, Non-Reversing Contact, 2NO, 1NO-1NC Auxiliary Contacts, 600 VAC Contact, SZ 40, Box Lug Terminal, NEMA 5/Open, 130 deg C Operating, DIN Rail Mount, 3.3 in H x 2 in W x 2.61 in D

Specifications

 Application Motors, Power Supplies, Food Service Equipment, Compressors, Business Machines, Resistive Heating, Air Conditioning, Refrigeration Equipment and Welding
 Brand Name ABB
 Coil Power Rating 6.5/8/30/33 VA
 Coil Voltage 24 V AC
 Contact Configuration 2NO
 Contact Rating 600 V AC
 Contact Type Non-Reversing
 Dimensions 3.3 in H x 2 in W x 2.61 in D
 Enclosure NEMA 5/Open
 Frequency Rating 50/60 Hz
 Manufacturer Part Number DP40C2P-F
 Maximum Load Current 40 A
 Mounting Type DIN Rail
 Number of Auxiliary Contacts 1NO-1NC
 Number of Poles 2
 Operating Temperature 130 deg C
 PART NUMBER KEYWORDS DP40C2P-F ; DP40C2PF ; 662019754208 ; 66201975420 ; 00662019754208
 Size SZ 40
 Standards/Approvals UL 508|UL Guide No. NLDX2|NLDX8|UL File No. E224401|C22.2 No. 221260|Class 3211 04/3211 84|CE|Semko Certified|EN60947-4-1:2001
 Terminal Type Box Lug

Features

▪ Industry standard mounting plate with easy access mounting holes
▪ Coil terminals are provided with #6-32 screws and (1) 0.25 quick connect or dual 0.25 quick connect terminals
▪ Exclusive hex, slotted, Phillips 10 to 32 AWG terminal screws for main terminals
▪ Coil is class B insulation system with a wide range of voltages and 50/60 Hz ratings
▪ Double E-magnet assembly provides optimal performance with reduced power consumption
▪ Base assembly is made from high arc-resistant polyester
▪ Designed for HVAC and refrigeration equipment operation and control
▪ 33/30 VA inrush, 8/6.5 VA closed coil power rating
