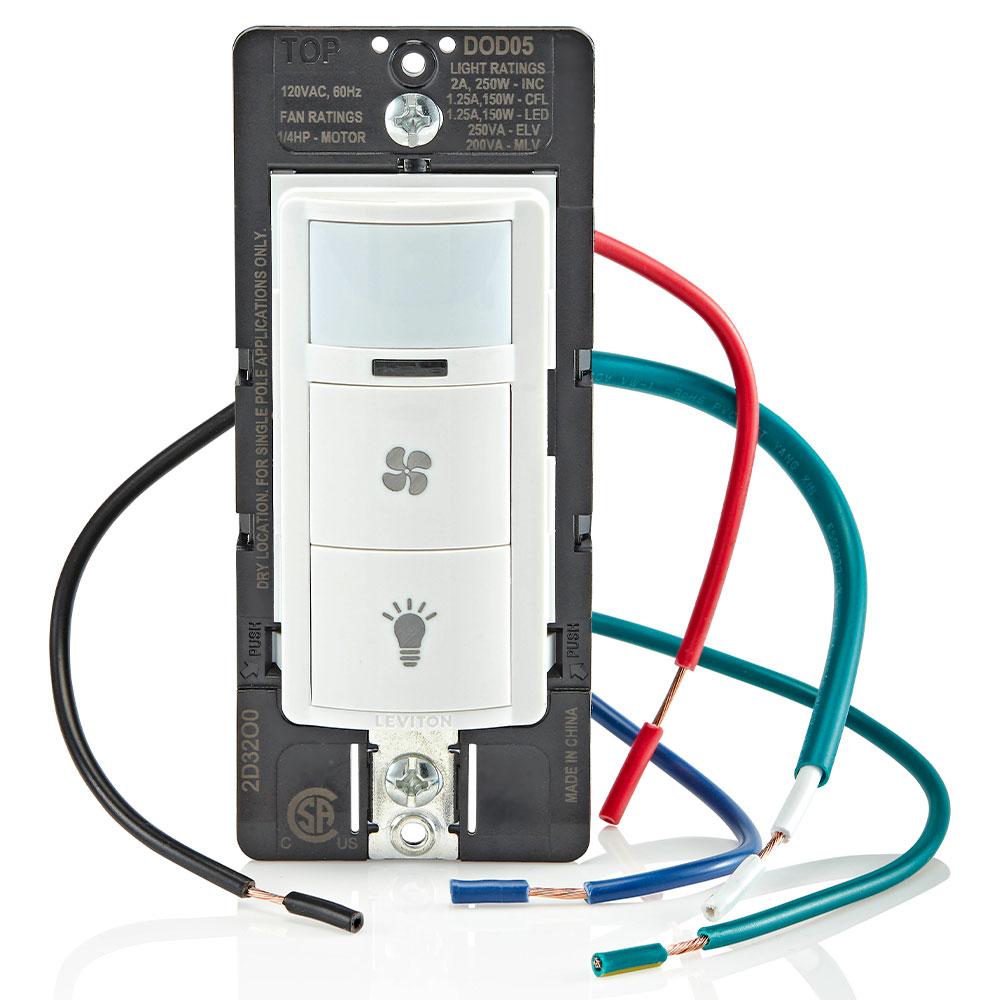

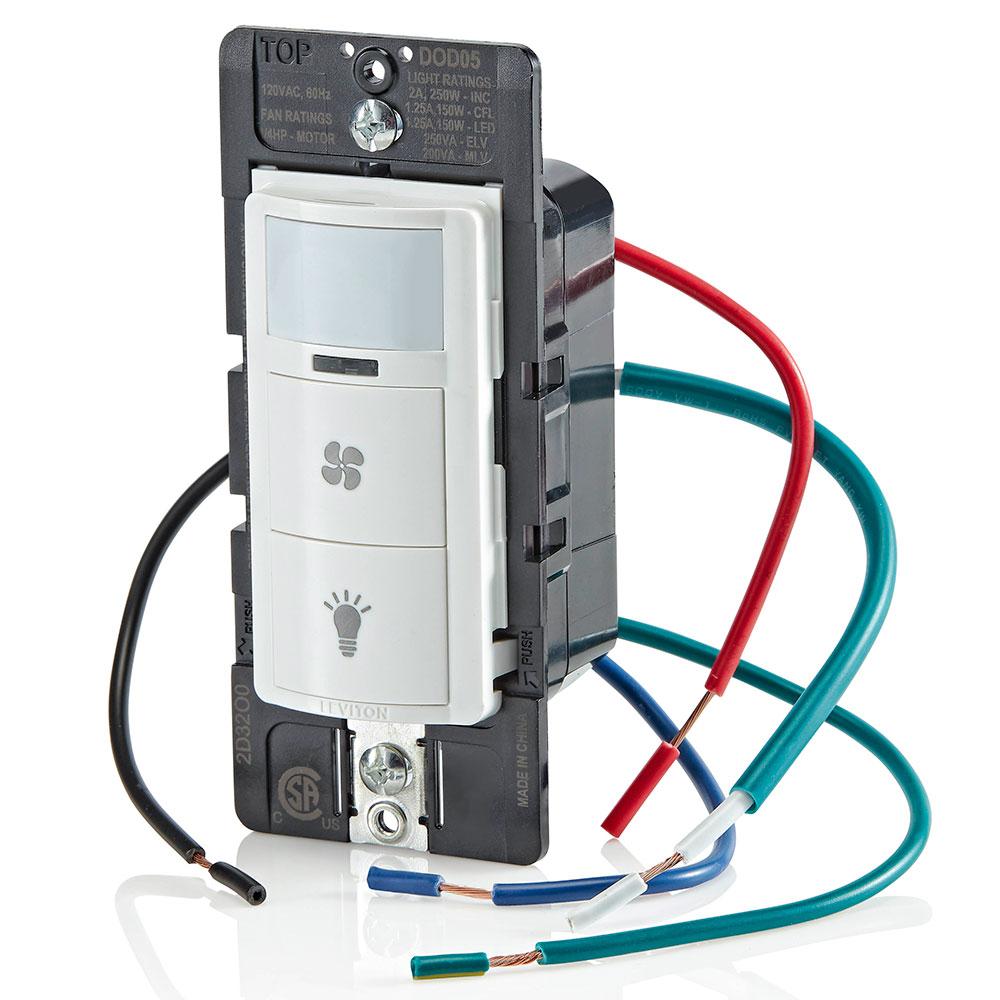

DOD05-1LW LEVITON WH OCC FAN/LIGHT 5A120V 1/4HP

Mouse over image to zoom, click to enlarge

  • DOD05-1LW LEVITON WH OCC FAN/LIGHT 5A120V 1/4HP
  • DOD05-1LW LEVITON WH OCC FAN/LIGHT 5A120V 1/4HP
  • DOD05-1LW LEVITON WH OCC FAN/LIGHT 5A120V 1/4HP

Description: Leviton®, DOD05-1LW, Occupancy Sensor, Combination, Series: DOD05, 120 VAC, 300, 600, 250, 150 W Power, Occupancy Sensor, 900 sq-ft Coverage, 180 deg Viewing, 1, 5, 10, 20 min Time Delay, Incandescent/Halogen Lamp, Automatic On/Off Control Output, Wall Mounting, White, 4.13 in H x 1.73 in W x 0.95 in D Dimensions

Manufacturer PN: DOD05-1LW

UPC:  07847798550

Kendall Electric Inc PN: 4783584

Invoice Description:

DOD05-1LW LEVITON WH OCC FAN/LIGHT 5A120V 1/4HP


SPEC SHEET

▸ See All in Occupancy & Vacancy Sensor Modules


How Can We Make This Page Better?

Leviton® DOD05-1LW DOD05 Combination Occupancy Sensor, 120 VAC, Occupancy Sensor, 900 sq-ft Coverage, 180 deg Viewing, Wall Mounting

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Leviton®, DOD05-1LW, Occupancy Sensor, Combination, Series: DOD05, 120 VAC, 300, 600, 250, 150 W Power, Occupancy Sensor, 900 sq-ft Coverage, 180 deg Viewing, 1, 5, 10, 20 min Time Delay, Incandescent/Halogen Lamp, Automatic On/Off Control Output, Wall Mounting, White, 4.13 in H x 1.73 in W x 0.95 in D Dimensions

Specifications

 Application Ideal for Bathroom, basement, laundry room and home spa
 Brand Name Leviton®
 Color White
 Control Output Automatic On/Off
 Coverage 900 sq-ft
 Dimensions 4.13 in H x 1.73 in W x 0.95 in D
 Lamp Type Incandescent/Halogen
 Manufacturer Part Number DOD05-1LW
 Mounting Type Wall
 Power Rating 300, 600, 250, 150 W
 Sensor Type Occupancy
 Series DOD05
 Standards/Approvals California Title 24, Part 6
 Time Delay 1, 5, 10, 20 min
 Type Combination
 Viewing Angle 180 deg
 Voltage Rating 120 VAC

Features

▪ Low profile design blends in with walls for a discreet appearance
▪ Zero Cross turn-on technology extends the life of switching relays
▪ Leaded terminals for easier installation
▪ Program settings without removing the wallplate or faceplate
