Eaton

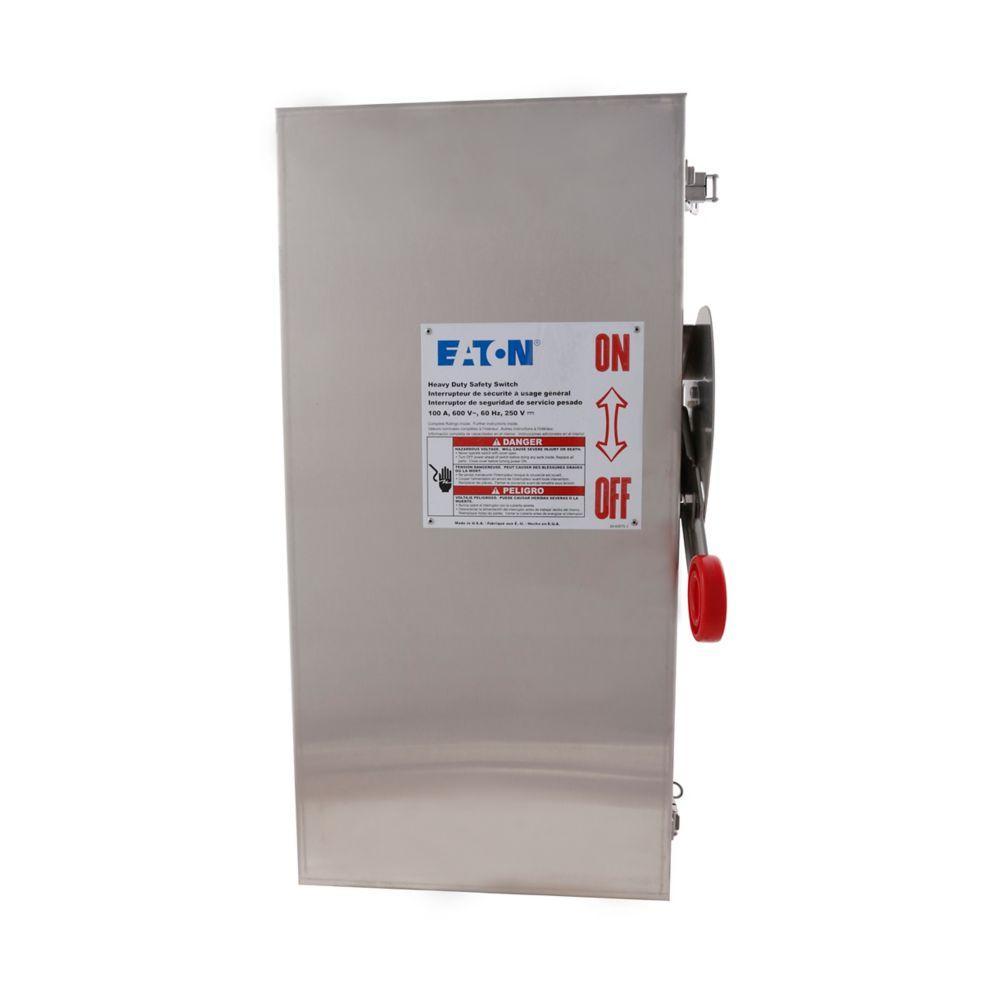

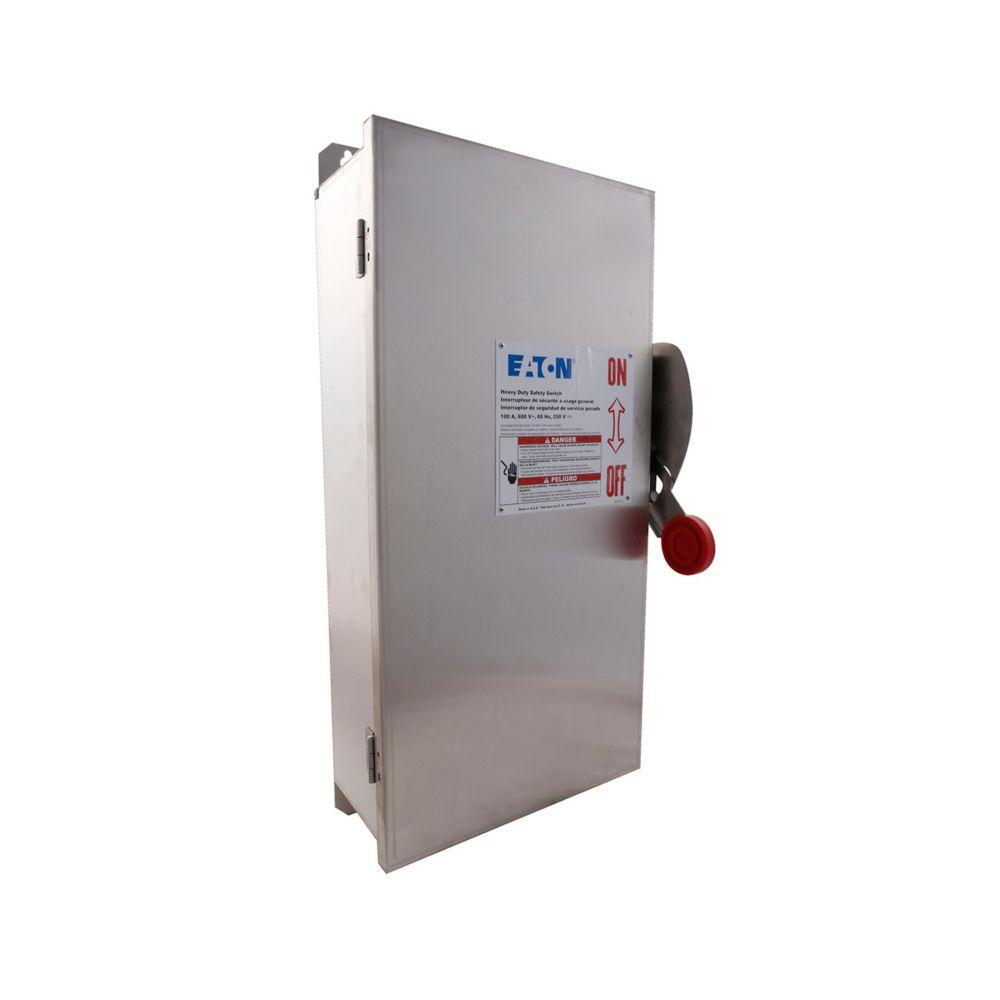

DH363UWKX C-H HARSH ENVIRONMENT STAINLESS STEEL SAFETY SWITCH 78211422429

Mouse over image to zoom, click to enlarge

  • DH363UWKX C-H HARSH ENVIRONMENT STAINLESS STEEL SAFETY SWITCH 78211422429
  • DH363UWKX C-H HARSH ENVIRONMENT STAINLESS STEEL SAFETY SWITCH 78211422429
  • DH363UWKX C-H HARSH ENVIRONMENT STAINLESS STEEL SAFETY SWITCH 78211422429
  • DH363UWKX C-H HARSH ENVIRONMENT STAINLESS STEEL SAFETY SWITCH 78211422429

Description: EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 V AC, 100 A, 20 hp, 40 hp, 50 hp, 75 hp, 100 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST, NEMA 4X, 16.46 in L x 24.25 in W x 27.25 in H, 304 Stainless Steel

Manufacturer PN: DH363UWKX

UPC:  78211422429

Kendall Electric Inc PN: 2941667

Invoice Description:

DH363UWKX C-H HARSH ENVIRONMENT STAINLESS STEEL SAFETY SWITCH 78211422429


SPEC SHEET

▸ See All in Hazardous Location Safety Switches


How Can We Make This Page Better?

EATON DH363UWKX Heavy Duty Non-Fusible Single Throw Safety Switch, 600 V AC, 100 A, 20 hp, 40 hp, 50 hp, 75 hp, 100 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.
EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 V AC, 100 A, 20 hp, 40 hp, 50 hp, 75 hp, 100 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST, NEMA 4X, 16.46 in L x 24.25 in W x 27.25 in H, 304 Stainless Steel

Specifications

 Amperage Rating 100 A
 Application Commercial, Institutional Buildings, Structures and Harsh Environment Applications
 Brand Name EATON
 Contact Form 3PST
 Dimensions 16.46 in L x 24.25 in W x 27.25 in H
 Enclosure NEMA 4X
 Horsepower 20 hp, 40 hp, 50 hp, 75 hp, 100 hp
 Manufacturer Part Number DH363UWKX
 Material 304 Stainless Steel
 Number of Poles 3
 Number of Wires 3
 Phase 3-Jan
 Series K Series
 Standards/Approvals UL Listed,NEC 230.62 (C) Compliant Barrier
 Type Heavy Duty Non-Fusible Single Throw
 Video Links
 Voltage Rating 600 V AC

Features

▪ 20 hp at 240 VAC/40 hp at 480 VAC/50 hp at 600 VAC TD 1-phase, 40 hp at 240 VAC/75 hp at 480 VAC/100 hp at 600 VAC TD 3-phase, 20 hp at 250 VDC maximum hp rating
▪ Used to open or close a circuit
▪ Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
▪ Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
▪ Also commonly referred to as a disconnect switch or disconnect
▪ Easy to install
▪ Ample wiring space
▪ Non-fusible configuration
▪ Suitable for service entrance use with a neutral or ground lug kit installed
▪ EnviroLine® stainless steel enclosure and mechanism

Resources

 Catalog Page
 Product Data Sheet
