Eaton

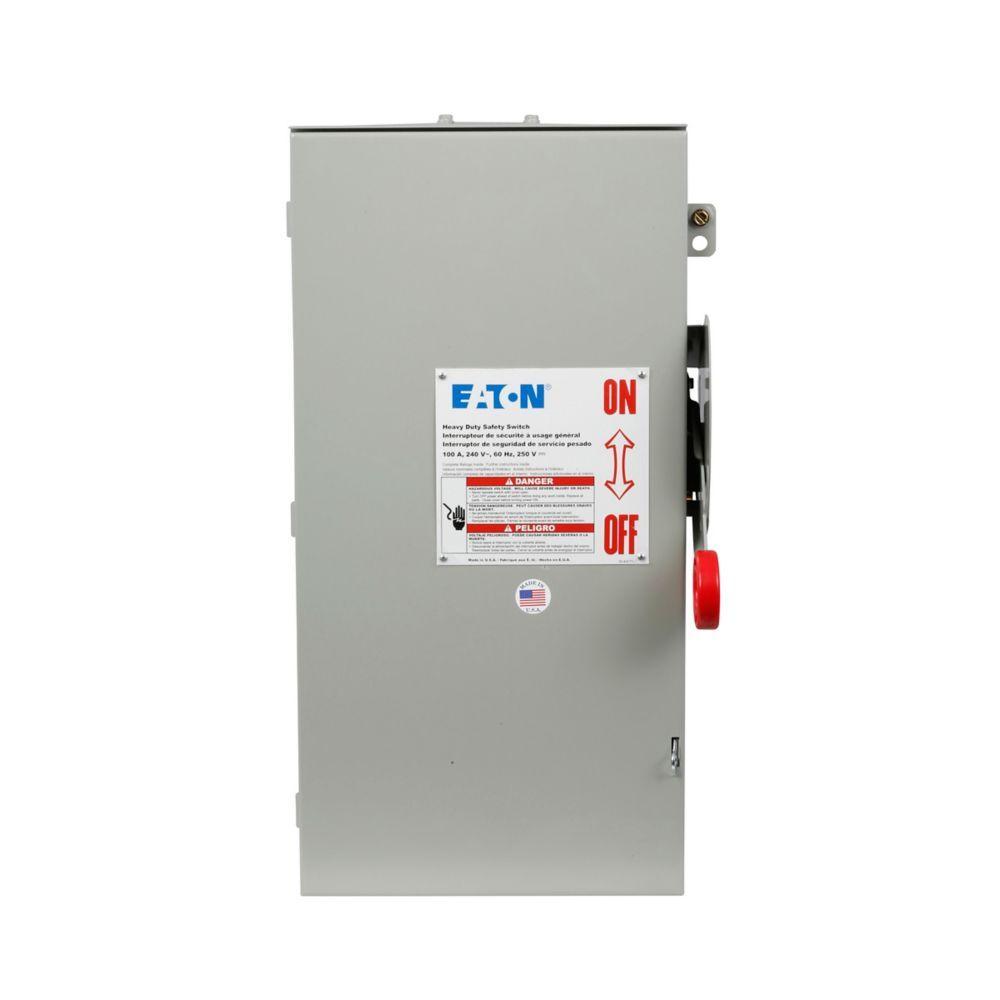

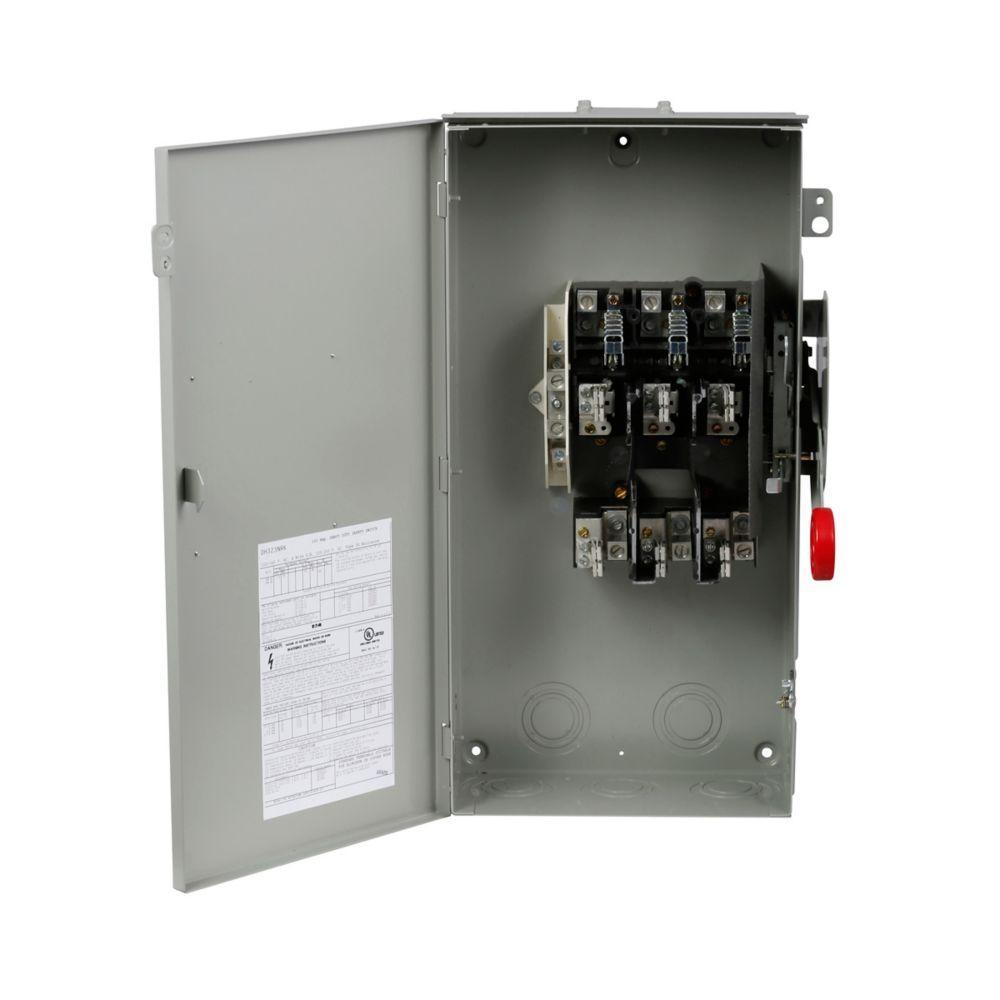

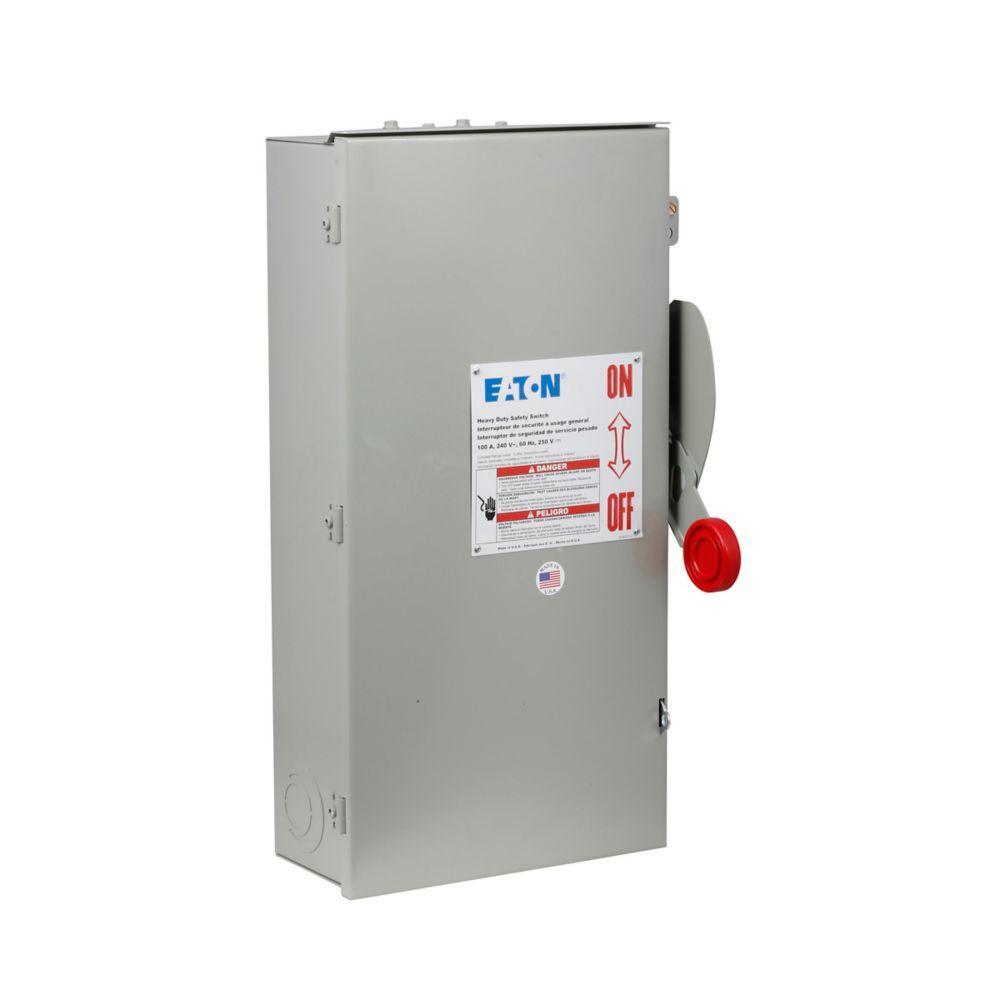

DH363NRK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 3R

Mouse over image to zoom, click to enlarge

  • DH363NRK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 3R
  • DH363NRK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 3R
  • DH363NRK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 3R
  • DH363NRK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 3R

Description: EATON Safety Switch, Heavy Duty Fusible Rainproof, Series: K Series, 600 V AC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 1/3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit, 3PST, Class H Insulation, NEMA 3R, 22-1/2 in L x 12-3/4 in W x 8-1/2 in H, Steel, Galvanized/Painted

Manufacturer PN: DH363NRK

UPC:  78211320649

Kendall Electric Inc PN: 2024853

Invoice Description:

DH363NRK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 3R


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

EATON DH363NRK K Series Heavy Duty Fusible Rainproof Safety Switch With Neutral, 600 V AC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability




Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.
EATON Safety Switch, Heavy Duty Fusible Rainproof, Series: K Series, 600 V AC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 1/3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit, 3PST, Class H Insulation, NEMA 3R, 22-1/2 in L x 12-3/4 in W x 8-1/2 in H, Steel, Galvanized/Painted

Specifications

 Amperage Rating 100 A
 Application Commercial, Institutional Buildings, Structures, Power Distribution, Industrial and Residential Applications
 Brand Name EATON
 Contact Form 3PST
 Dimensions 22-1/2 in L x 12-3/4 in W x 8-1/2 in H
 Enclosure NEMA 3R
 Finish Galvanized/Painted
 Horsepower 30 hp, 40 hp, 60 hp, 75 hp
 Manufacturer Part Number DH363NRK
 Material Steel
 Number of Poles 3
 Number of Wires 4
 Phase 1/3
 Series K Series
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL Listed
 Type Heavy Duty Fusible Rainproof
 Video Links
 Voltage Rating 600 V AC

Features

▪ 100 hp at 240 VAC standard 3 ph, 250 hp at 240 VAC TD 3 ph maximum horsepower rating
▪ Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
▪ Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
▪ Triple padlocking capability increases personnel safety
▪ Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
▪ Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
▪ Complete accessory and renewal parts data shown on inner door label
▪ Meets stringent UL 98 standards for safety, durability and reliability
▪ Accepts class I fuses
▪ Without neutral fuse configuration
