Eaton

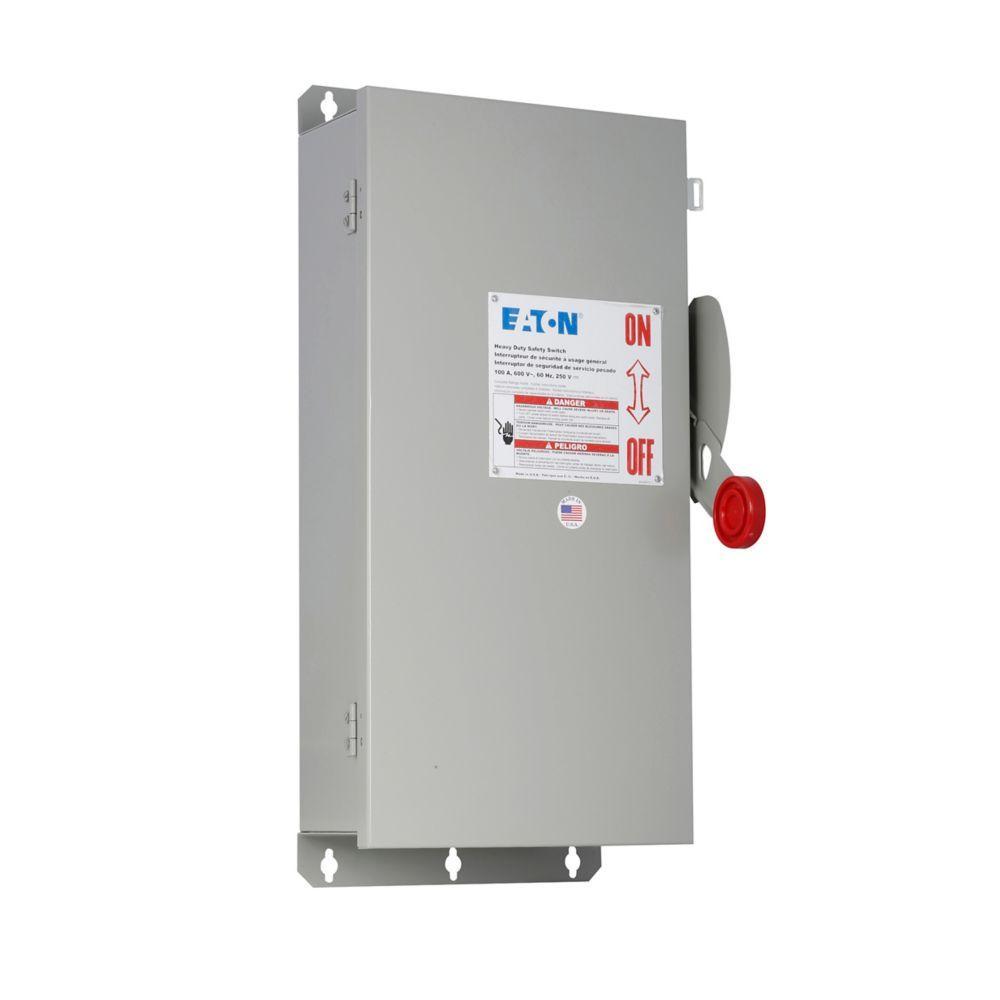

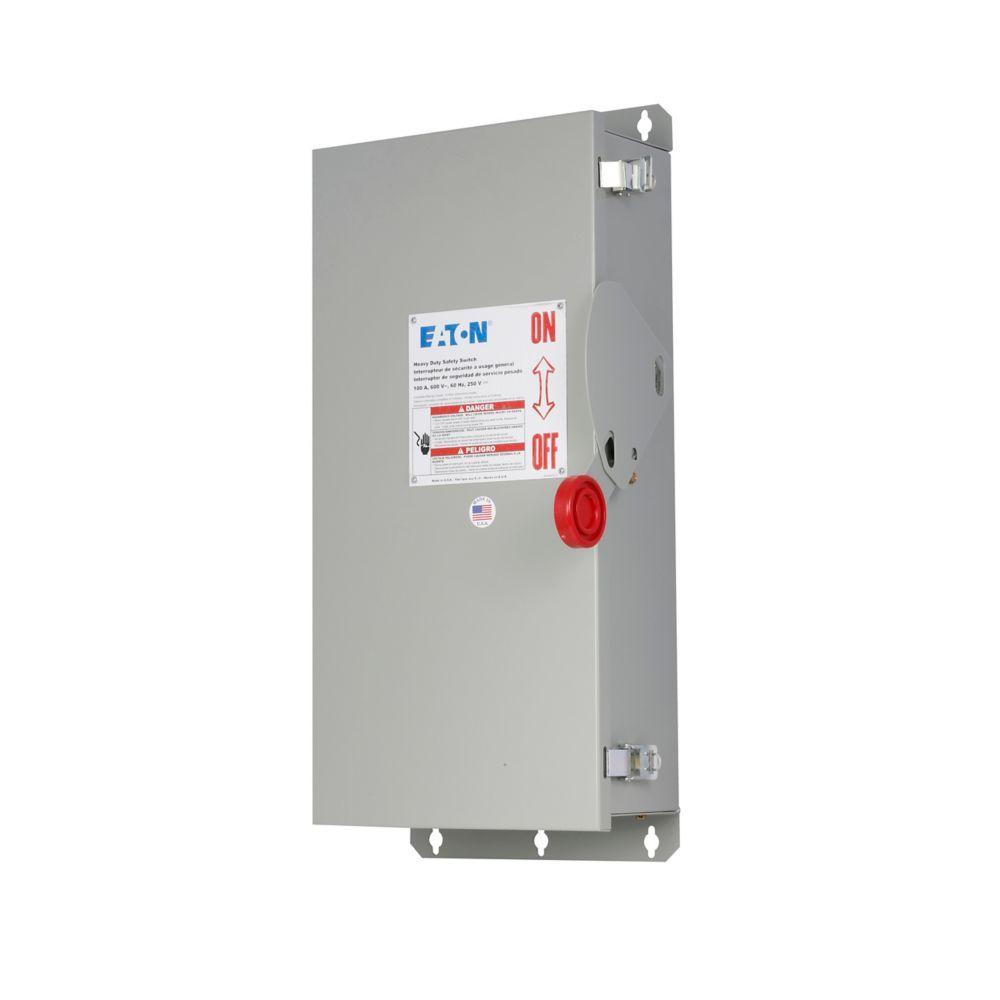

DH363FDK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 12

Mouse over image to zoom, click to enlarge

  • DH363FDK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 12
  • DH363FDK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 12
  • DH363FDK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 12

Description: EATON Receptacle Safety Switch, Heavy Duty Fusible Dusttight, Series: K Series, 600 V AC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, 3PST, Class H Insulation, NEMA 12, 25-1/2 in L x 13-1/4 in W x 9 in H, Steel, Galvanized/Painted

Manufacturer PN: DH363FDK

UPC:  78211320655

Kendall Electric Inc PN: 2022479

Invoice Description:

DH363FDK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 600V NEMA 12


SPEC SHEET

How Can We Make This Page Better?

EATON DH363FDK K Series Heavy Duty Fusible Dusttight Receptacle Safety Switch, 600 V AC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability




Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.
EATON Receptacle Safety Switch, Heavy Duty Fusible Dusttight, Series: K Series, 600 V AC, 100 A, 30 hp, 40 hp, 60 hp, 75 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit, 3PST, Class H Insulation, NEMA 12, 25-1/2 in L x 13-1/4 in W x 9 in H, Steel, Galvanized/Painted

Specifications

 Amperage Rating 100 A
 Application Commercial, Institutional Buildings, Structures, Power Distribution, Control, Industrial and Residential Applications
 Brand Name EATON
 Contact Form 3PST
 Dimensions 25-1/2 in L x 13-1/4 in W x 9 in H
 Enclosure NEMA 12
 Finish Galvanized/Painted
 Horsepower 30 hp, 40 hp, 60 hp, 75 hp
 Manufacturer Part Number DH363FDK
 Material Steel
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS DH363FDK ; 7343754 ; 782113206554 ; 78211320655 ; 00782113206554
 Phase 1/3
 Series K Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals UL Listed
 Type Heavy Duty Fusible Dusttight
 Video Links
 Voltage Rating 600 V AC

Features

▪ 30 hp at 480 VAC TD 1 ph, 40 hp at 600 VAC TD 1 ph, 60 hp at 480 VAC TD 3 ph, 75 hp at 600 VAC TD 3 ph maximum horsepower rating
▪ Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation
▪ Visible double break rotary blade mechanism offers two points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life
▪ Triple padlocking capability increases personnel safety
▪ Interlocking mechanism keeps the door closed when the handle is in the on position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
▪ Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
▪ Complete accessory and renewal parts data shown on inner door label
▪ Meets stringent UL 98 standards for safety, durability and reliability
▪ Accepts class H fuses
▪ Without neutral fuse configuration
