Eaton

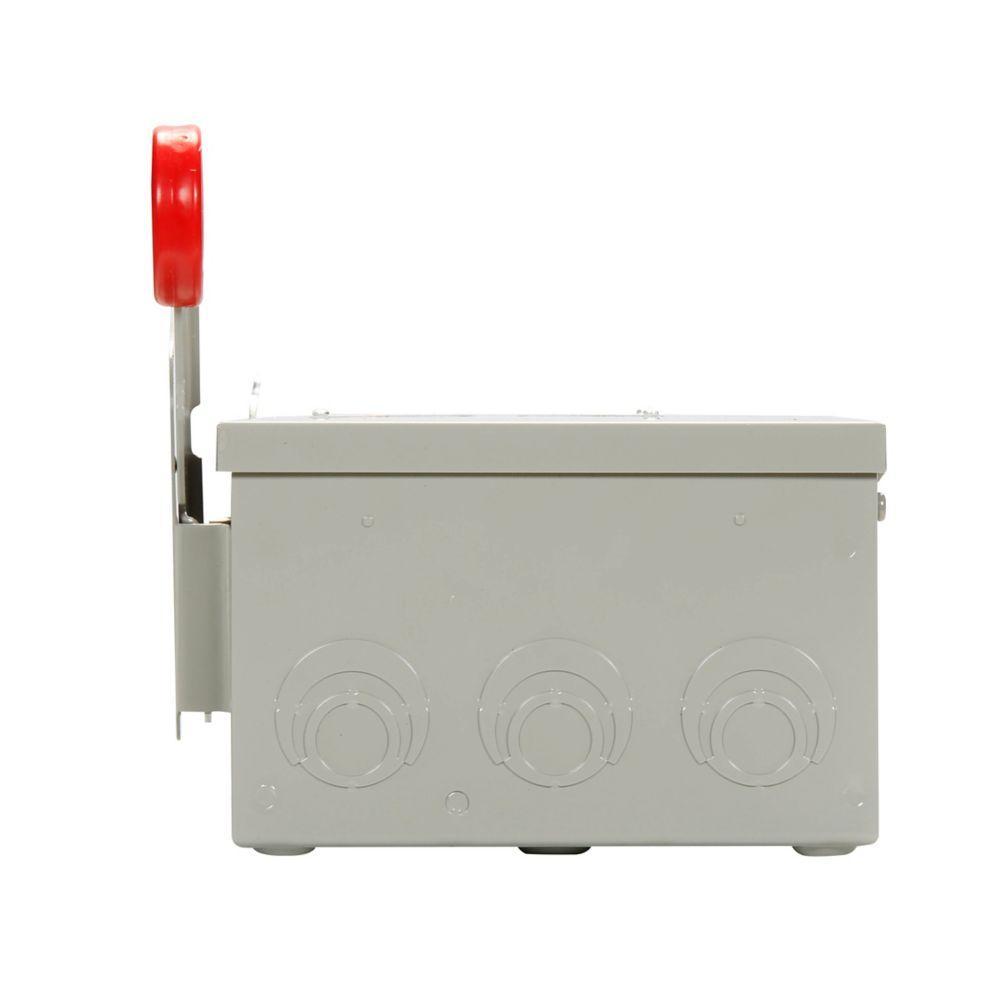

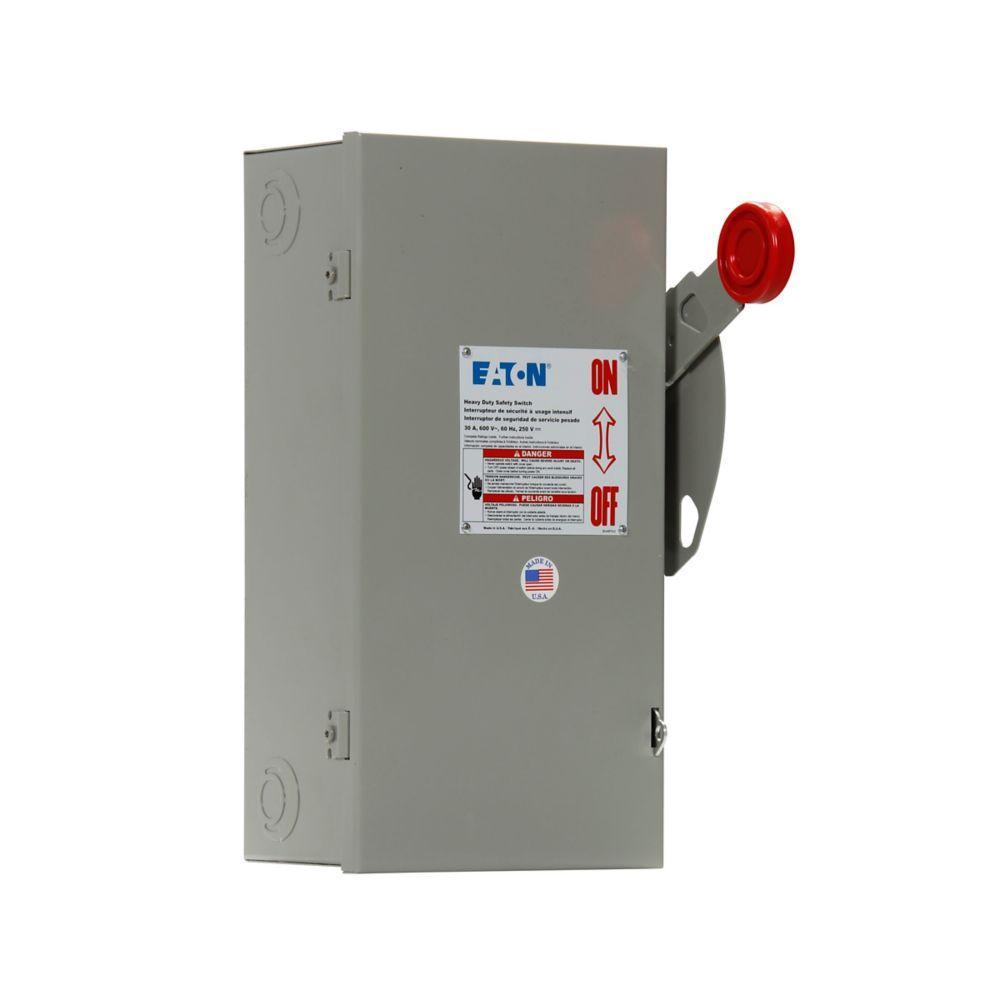

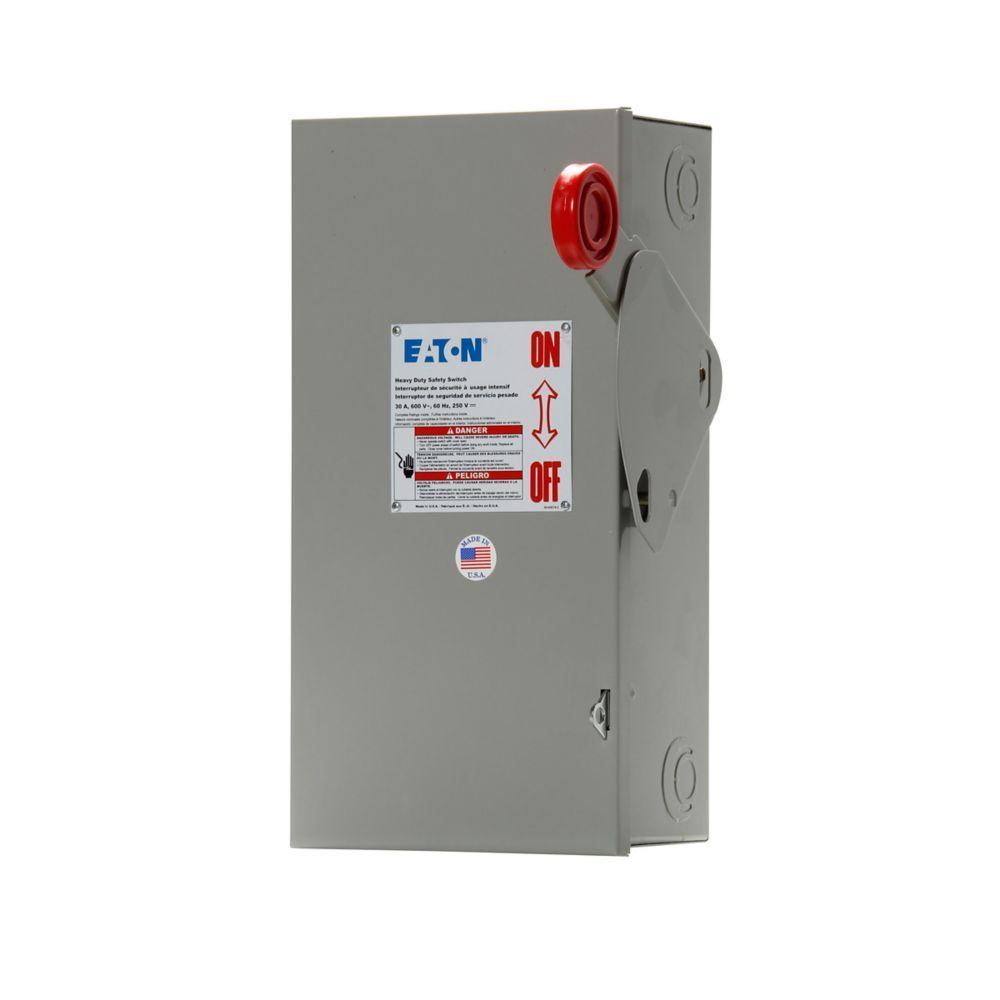

DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1

Mouse over image to zoom, click to enlarge

  • DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1
  • DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1
  • DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1
  • DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1
  • DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1

Description: EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 VAC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, TPST, Handle Actuator, NEMA 1, Panel Mount, 16.5 in L x 9.12 in W x 8.31 in H, Steel, Painted

Manufacturer PN: DH361UGK

UPC:  78211320550

Kendall Electric Inc PN: 2016167

Invoice Description:

DH361UGK CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 600V NEMA 1


SPEC SHEET

▸ See All in Heavy Duty Safety Switches


How Can We Make This Page Better?

EATON DH361UGK Heavy Duty Non-Fusible Single Throw Safety Switch, 600 VAC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, TPST Contact, 3 Poles

Log In for Pricing and Availability




Description

The safety switch flex center is a special facility at the site of our Cleveland, Tennessee, plant that is dedicated to providing customized safety switches that meet customer challenging applications.
EATON Safety Switch, Heavy Duty Non-Fusible Single Throw, Series: K Series, 600 VAC, 30 A, 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 3 Wires, 200 kA Short Circuit Current Rating, TPST, Handle Actuator, NEMA 1, Panel Mount, 16.5 in L x 9.12 in W x 8.31 in H, Steel, Painted

Specifications

 Actuator Type Handle
 Amperage Rating 30 A
 Application Power Distribution, Commercial, Industrial and Indoor Applications
 Brand Name EATON
 Contact Form TPST
 Dimensions 16.5 in L x 9.12 in W x 8.31 in H
 Enclosure NEMA 1
 Finish Painted
 Horsepower 5 hp, 7.5 hp, 10 hp, 20 hp, 30 hp
 Manufacturer Part Number DH361UGK
 Material Steel
 Mounting Type Panel
 Number of Poles 3
 Number of Wires 3
 Phase 3-Jan
 Series K Series
 Short Circuit Current Rating 200 kA
 Standards/Approvals NEMA KS-1|UL 98|UL File No. E5239
 Type Heavy Duty Non-Fusible Single Throw
 Video Links
 Voltage Rating 600 VAC

Features

▪ Clearly visible, palm fitting red handle allows users to easily see the handle position (ON-OFF) from a distance and provides for easy operation
▪ Two points of contact provide a positive open and close, easier operation and also help prevent contact burning for longer contact life
▪ Triple padlocking capability increases personnel safety
▪ Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary
▪ Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield
▪ 100% rated device means the switch may be used continuously up to its rated current
▪ Meets stringent UL 98 standards for safety, durability and reliability
▪ 7-1/2 hp at 480 VAC/10 hp at 600 VAC TD 1-phase, 10 hp at 240 VAC/20 hp at 480 VAC/30 hp at 600 VAC TD 3-phase, 5 hp at 250 VDC maximum hp rating
