Eaton

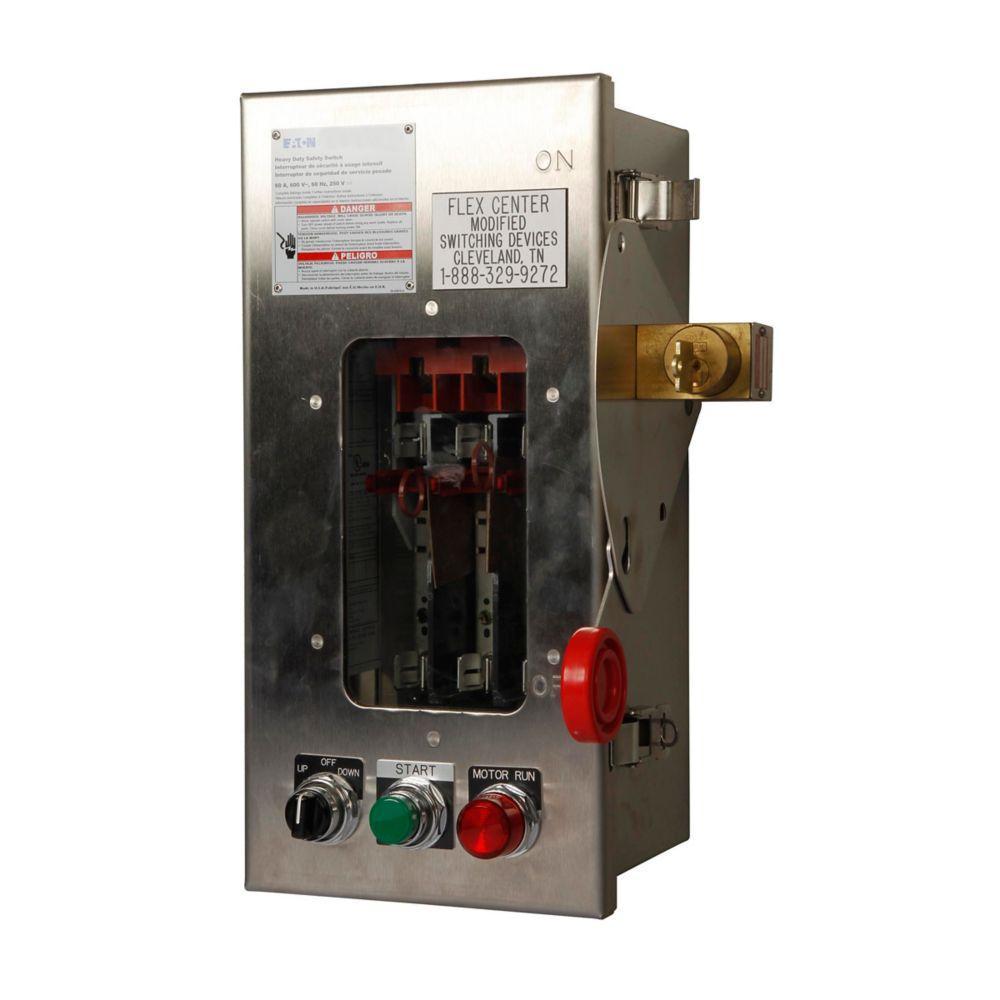

DH361NWKW CH 30A,600V,N-4X SS W/WINDOW FUSABLE

Mouse over image to zoom, click to enlarge

  • DH361NWKW CH 30A,600V,N-4X SS W/WINDOW FUSABLE
  • DH361NWKW CH 30A,600V,N-4X SS W/WINDOW FUSABLE
  • DH361NWKW CH 30A,600V,N-4X SS W/WINDOW FUSABLE

Description: EATON Safety Switch, Corrosion-Resistant Fusible Heavy Duty Single Throw, Series: K Series, 600 V, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, 3 Pole, 4 Wires, 3PST, Class H Insulation, NEMA 4X, 23 in L x 12-1/2 in W x 10-1/2 in H, 304 Stainless Steel

Manufacturer PN: DH361NWKW

UPC:  78211402258

Kendall Electric Inc PN: 2552329

Invoice Description:

DH361NWKW CH 30A,600V,N-4X SS W/WINDOW FUSABLE


SPEC SHEET

▸ See All in Hazardous Location Safety Switches


How Can We Make This Page Better?

EATON DH361NWKW K Series Corrosion-Resistant Fusible Heavy Duty Single Throw Safety Switch, 600 V, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.
EATON Safety Switch, Corrosion-Resistant Fusible Heavy Duty Single Throw, Series: K Series, 600 V, 30 A, 7-1/2 hp, 10 hp, 15 hp, 20 hp, 3 Pole, 4 Wires, 3PST, Class H Insulation, NEMA 4X, 23 in L x 12-1/2 in W x 10-1/2 in H, 304 Stainless Steel

Specifications

 Amperage Rating 30 A
 Application Commercial/Institutional Buildings/Structures - Power Distribution and Controls
 Brand Name EATON
 Contact Form 3PST
 Dimensions 23 in L x 12-1/2 in W x 10-1/2 in H
 Enclosure NEMA 4X
 Horsepower 7-1/2 hp, 10 hp, 15 hp, 20 hp
 Manufacturer Part Number DH361NWKW
 Material 304 Stainless Steel
 Number of Poles 3
 Number of Wires 4
 Series K Series
 Standards/Approvals UL Listed
 Type Corrosion-Resistant Fusible Heavy Duty Single Throw
 Video Links
 Voltage Rating 600 V

Features

▪ Upper viewing window
▪ 7-1/2 hp at 480 VAC TD 1 ph, 10 hp at 600 VAC TD 1 ph, 15 hp at 480 VAC TD 3 ph, 20 hp at 600 VAC TD 3 ph maximum horsepower rating
▪ Enhanced visible blades
▪ Used to open or close a circuit
▪ Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
▪ Fusible safety switches provide a means to manually open and close a circuit and overcurrent protection by means of installed fuses
▪ Also commonly referred to as a disconnect switch or disconnect
▪ Easy to install
▪ Ample wiring space for easy connection
▪ Pad lockable
▪ Fusible with neutral fuse configuration
▪ For 2-pole applications, use outside pole of 3-poles switch
