Eaton

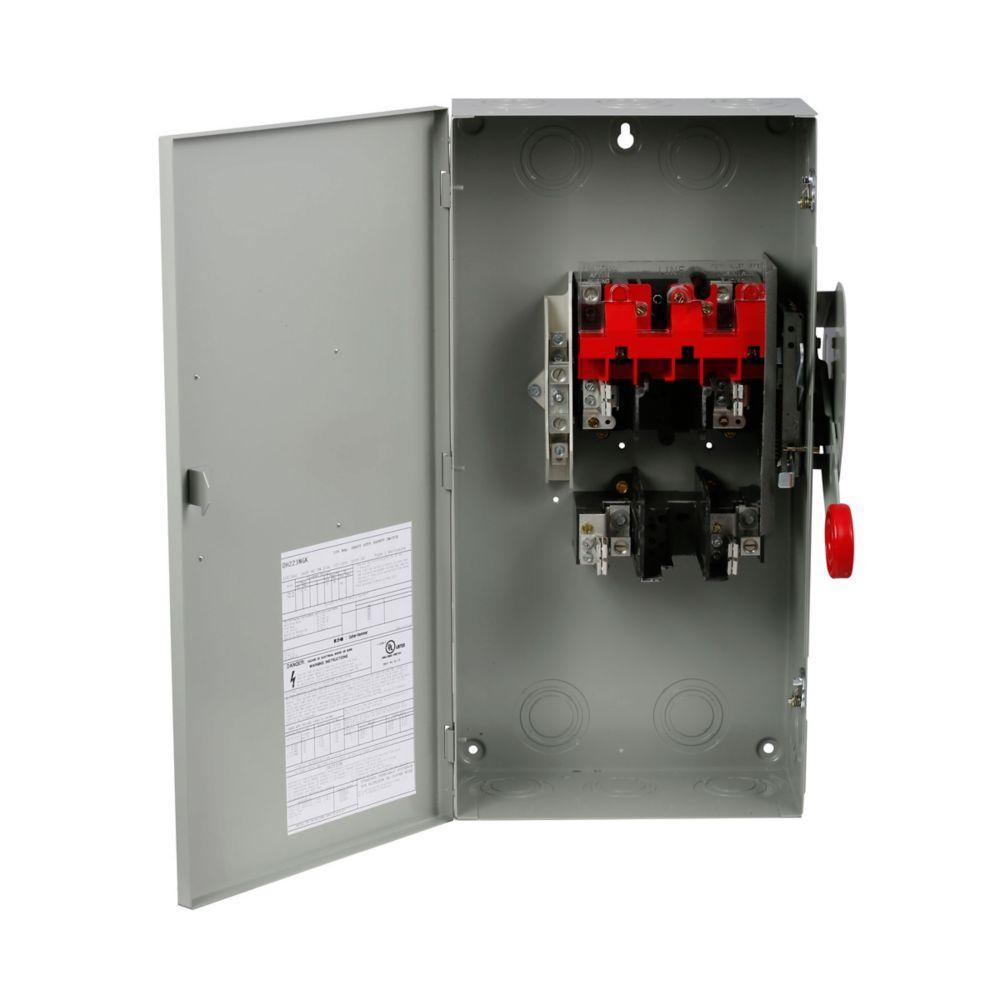

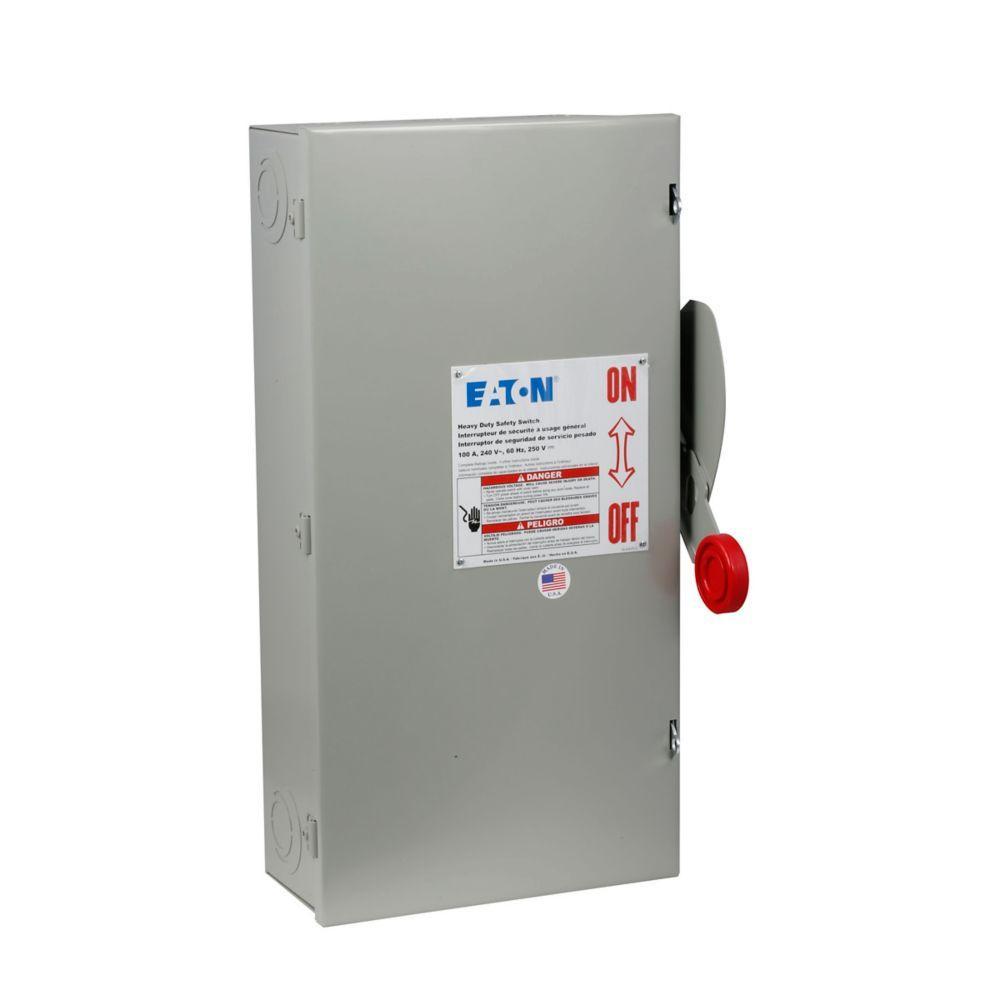

DH323NGK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 240V NEMA 1

Mouse over image to zoom, click to enlarge

Description: EATON Safety Switch, Fusible Heavy Duty Single Throw, Series: K Series, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit, 3PST Contact Form, Class H Insulation, NEMA 1 Enclosure, 22-1/2 in L x 12-3/4 in W x 9 in H Dimensions, Steel, Painted

Manufacturer PN: DH323NGK

UPC: 78211320626

Kendall Electric Inc PN: 2016197

Invoice Description:

DH323NGK CH SAFETY SWITCH FUSIBLE 3P 100 AMP 240V NEMA 1

SPEC SHEET

▸ See All in Heavy Duty Safety Switches

How Can We Make This Page Better?

EATON DH323NGK K Series Fusible Heavy Duty Single Throw Safety Switch With Neutral, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 20 hp, 30 hp, 3PST Contact, 3 Poles

Description Specifications Features Resources

Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.

EATON Safety Switch, Fusible Heavy Duty Single Throw, Series: K Series, 240 V AC, 100 A, 7-1/2 hp, 15 hp, 20 hp, 30 hp, 1/3 ph, 3 Pole, 4 Wires, 100 kA Short Circuit, 3PST Contact Form, Class H Insulation, NEMA 1 Enclosure, 22-1/2 in L x 12-3/4 in W x 9 in H Dimensions, Steel, Painted

Specifications

Amperage Rating	100 A
Application	Commercial, Institutional Buildings, Control, Power Distribution, Residential and Indoor Applications
Brand Name	EATON
Contact Form	3PST
Dimensions	22-1/2 in L x 12-3/4 in W x 9 in H
Enclosure	NEMA 1
Finish	Painted
Horsepower	7-1/2 hp, 15 hp, 20 hp, 30 hp
Manufacturer Part Number	DH323NGK
Material	Steel
Number of Poles	3
Number of Wires	4
Phase	1/3
Series	K Series
Short Circuit Current Rating	100 kA
Standards/Approvals	UL Listed,NEC 230.62 (C) Compliant Barrier
Type	Fusible Heavy Duty Single Throw
Video Links
Voltage Rating	240 V AC

Features

▪ Clearly visible palm fitting red handle allows users to easily see the handle position (On/Off) from a distance and provides for easy operation

▪ Visible double break rotary blade mechanism offers 2-points of contact for a positive open and close, easier operation and to help prevent contact burning for longer contact life

▪ Triple padlocking capability increases personnel safety

▪ Interlocking mechanism keeps the door closed when the handle is in the ON position to maximize safety, although there is a built-in defeater mechanism for user access when necessary

▪ Clear line shield protects against accidental contact with energized parts and the probe holes enable the user to test if the line side is energized without removing the shield

▪ Complete accessory and renewal parts data shown on inner door label

▪ Meets stringent UL 98 standards for safety, durability and reliability

▪ Accepts class h fuses

▪ 7-1/2 hp at 240 VAC standard 1-phase, 15 hp at 240 VAC standard 3-phase, 15 hp at 240 VAC TD 1-phase, 30 hp at 240 VAC TD 3-phase, 20 hp at 250 VDC maximum hp rating
