Eaton

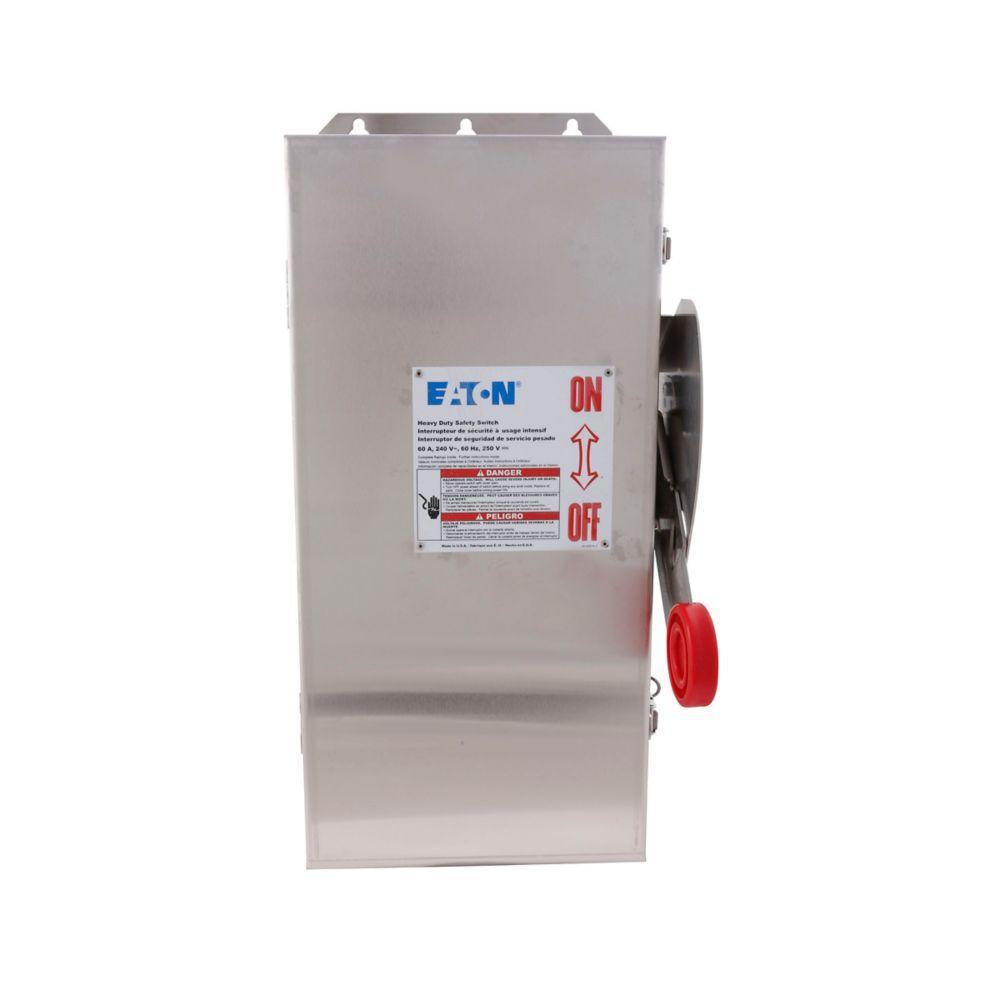

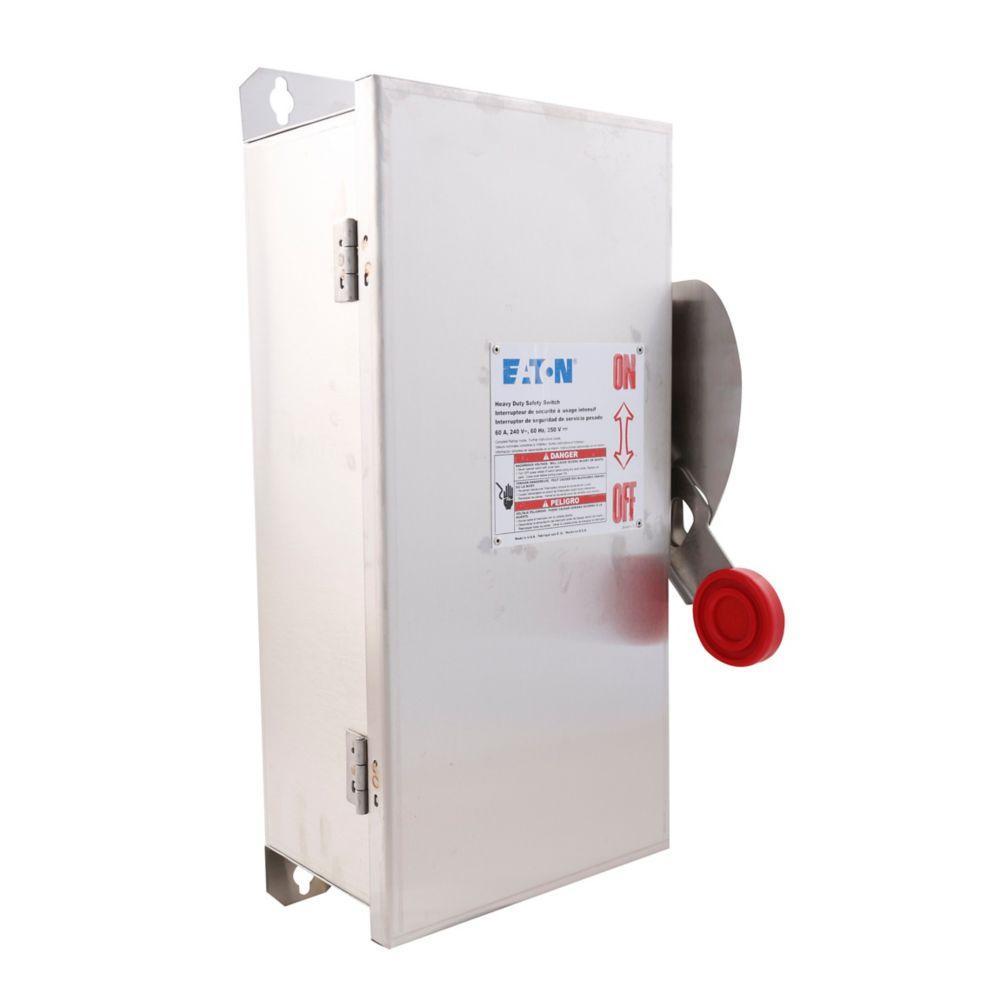

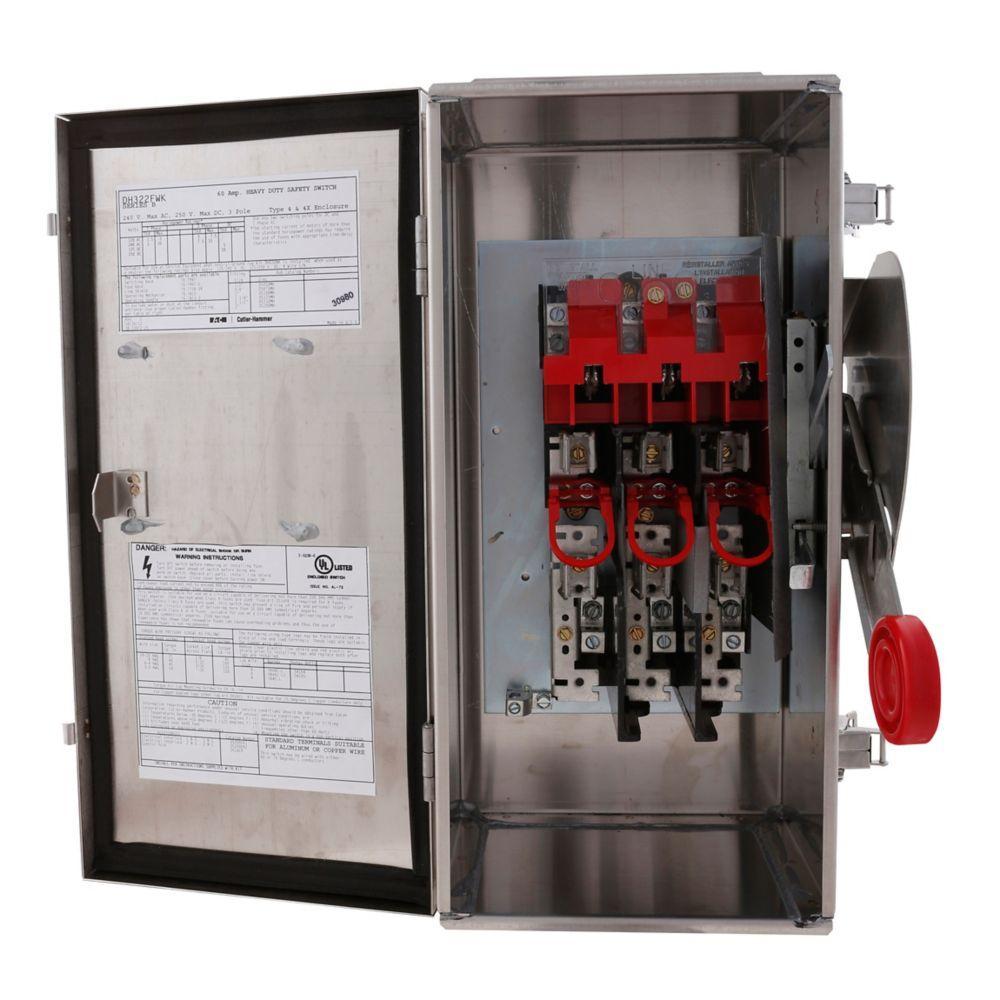

DH322FWKX C-H Harsh Environment Stainless Steel Safety Switch 78211422404

Mouse over image to zoom, click to enlarge

  • DH322FWKX C-H Harsh Environment Stainless Steel Safety Switch 78211422404
  • DH322FWKX C-H Harsh Environment Stainless Steel Safety Switch 78211422404
  • DH322FWKX C-H Harsh Environment Stainless Steel Safety Switch 78211422404
  • DH322FWKX C-H Harsh Environment Stainless Steel Safety Switch 78211422404

Description: EATON Safety Switch, Corrosion-Resistant Fusible Heavy Duty Single Throw, Series: K Series, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 3 Pole, 3 Wires, 3PST Contact Form, Class H Insulation, NEMA 4X Enclosure, 10.22 in L x 7.73 in W x 19.08 in H Dimensions, Enviroline® Stainless Steel

Manufacturer PN: DH322FWKX

UPC:  78211422404

Kendall Electric Inc PN: 2588489

Invoice Description:

DH322FWKX C-H Harsh Environment Stainless Steel Safety Switch 78211422404


SPEC SHEET

▸ See All in Hazardous Location Safety Switches


How Can We Make This Page Better?

EATON DH322FWKX K Series Corrosion-Resistant Fusible Heavy Duty Single Throw Safety Switch, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton’s heavy-duty safety switches provide a highly visible means of disconnect to help improve personnel safety and equipment protection. Additionally, they’re Ideal for applications where reliable performance, safety, and service continuity are critical.
EATON Safety Switch, Corrosion-Resistant Fusible Heavy Duty Single Throw, Series: K Series, 240 V AC, 60 A, 3 hp, 7-1/2 hp, 10 hp, 15 hp, 3 Pole, 3 Wires, 3PST Contact Form, Class H Insulation, NEMA 4X Enclosure, 10.22 in L x 7.73 in W x 19.08 in H Dimensions, Enviroline® Stainless Steel

Specifications

 Amperage Rating 60 A
 Application Commercial, Institutional Buildings, Structures, Power Distribution, Control and Harsh Environment Applications
 Brand Name EATON
 Contact Form 3PST
 Dimensions 10.22 in L x 7.73 in W x 19.08 in H
 Enclosure NEMA 4X
 Horsepower 3 hp, 7-1/2 hp, 10 hp, 15 hp
 Manufacturer Part Number DH322FWKX
 Material Enviroline® Stainless Steel
 Number of Poles 3
 Number of Wires 3
 Series K Series
 Standards/Approvals UL Listed
 Type Corrosion-Resistant Fusible Heavy Duty Single Throw
 Video Links
 Voltage Rating 240 V AC

Features

▪ 3 hp at 240 VAC standard 1-phase, 7-1/2 hp at 240 VAC standard 3-phase, 10 hp at 240 VAC TD 1-phase, 15 hp at 240 VAC TD 3-phases and 10 hp at 250 VDC maximum horsepower rating
▪ Used to open or close a circuit
▪ Non-fusible safety switches provide a means to manually connect or disconnect the load from the source
▪ Fusible safety switches provide a means to manually open and close a circuit and over current protection by means of installed fuses
▪ Also commonly referred to as a disconnect switch or disconnect
▪ Easy to install
▪ Ample wiring space
▪ Pad lockable
▪ EnviroLine® stainless steel enclosure and mechanism
▪ Without neutral fuse configuration
