Eaton

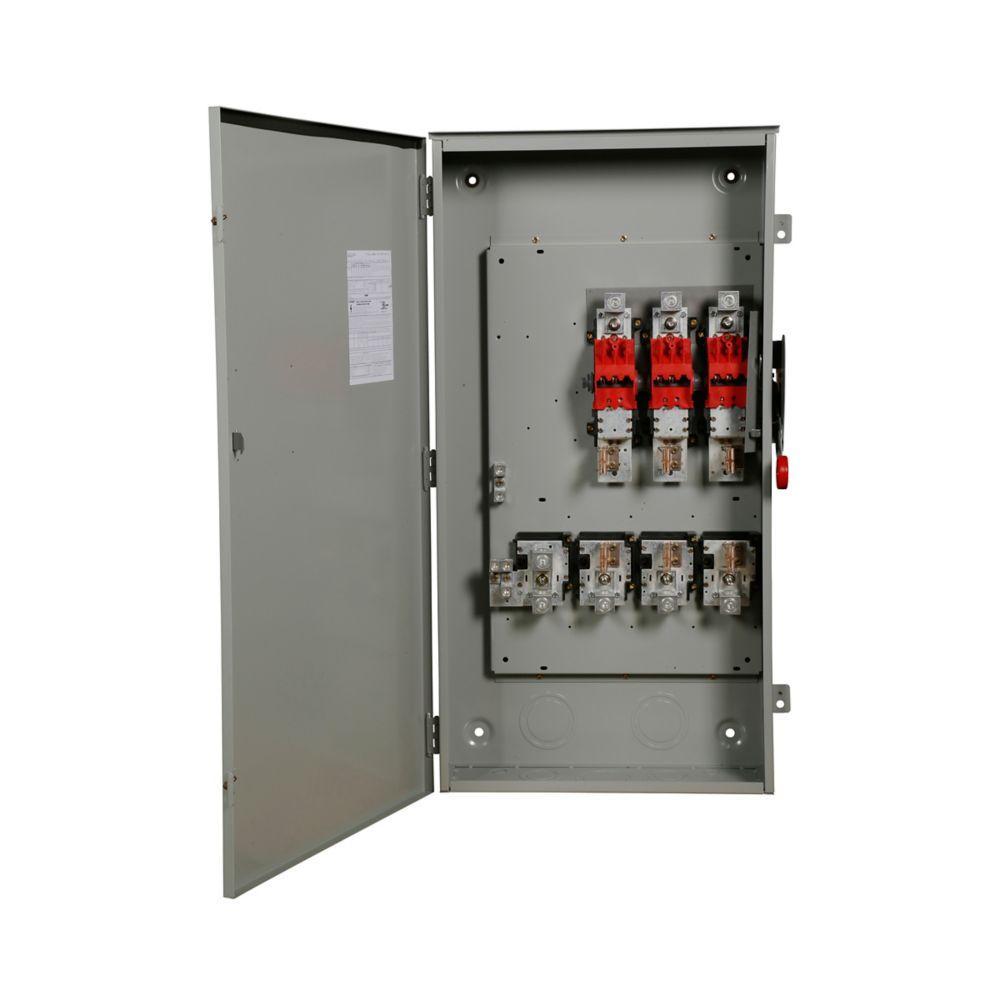

DG325NRK CH General Duty Cartridge Fuse Safety Switch

Mouse over image to zoom, click to enlarge

  • DG325NRK CH General Duty Cartridge Fuse Safety Switch
  • DG325NRK CH General Duty Cartridge Fuse Safety Switch

Description: EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 VAC, 400 A, 50 to 125 hp, 3 ph, 3 Pole, 4 Wires, TPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 11.16 in L x 22.66 in W x 44.31 in H Dimensions, Steel, Galvanized/Painted

Manufacturer PN: DG325NRK

UPC:  78211363921

Kendall Electric Inc PN: 2095144

Invoice Description:

DG325NRK CH General Duty Cartridge Fuse Safety Switch


SPEC SHEET

▸ See All in Single-Throw Disconnects


How Can We Make This Page Better?

EATON DG325NRK DG Series Cartridge Fusible General Duty Safety Switch, 240 VAC, 400 A, 50 to 125 hp, TPST Contact, 3 Poles

Log In for Pricing and Availability




Description

General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.
EATON Safety Switch, Cartridge Fusible General Duty, Series: DG Series, 240 VAC, 400 A, 50 to 125 hp, 3 ph, 3 Pole, 4 Wires, TPST Contact Form, NEMA 3R Enclosure, Surface Mounting, 11.16 in L x 22.66 in W x 44.31 in H Dimensions, Steel, Galvanized/Painted

Specifications

 Amperage Rating 400 A
 Application Power Distribution Applications
 Brand Name EATON
 Contact Form TPST
 Dimensions 11.16 in L x 22.66 in W x 44.31 in H
 Enclosure NEMA 3R
 Finish Galvanized/Painted
 Horsepower 50 to 125 hp
 Manufacturer Part Number DG325NRK
 Material Steel
 Mounting Type Surface
 Number of Poles 3
 Number of Wires 4
 Phase 3
 Series DG Series
 Standards/Approvals UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Cartridge Fusible General Duty
 Video Links
 Voltage Rating 240 VAC

Features

▪ Double padlocking capability on 30 to 100 A
▪ Triple padlocking capability on 200 to 600 A
▪ Additional door locking capability
▪ Tri-lingual nameplates
▪ Design for series K general duty 200 A and higher
▪ Ample wire bending space provides for easier installation
▪ Visible double-break quick make, Quick-break rotary blade mechanism
▪ Side opening door on all enclosures
▪ Mechanically interlocked cover to prevent easy access when the switch is in the ON position
▪ With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
▪ Clearly visible and accessible neutral where applicable
▪ Visible ON/OFF indications
▪ Tangential knockouts on 30 to 60 A designs
▪ Ample wiring space
