Eaton

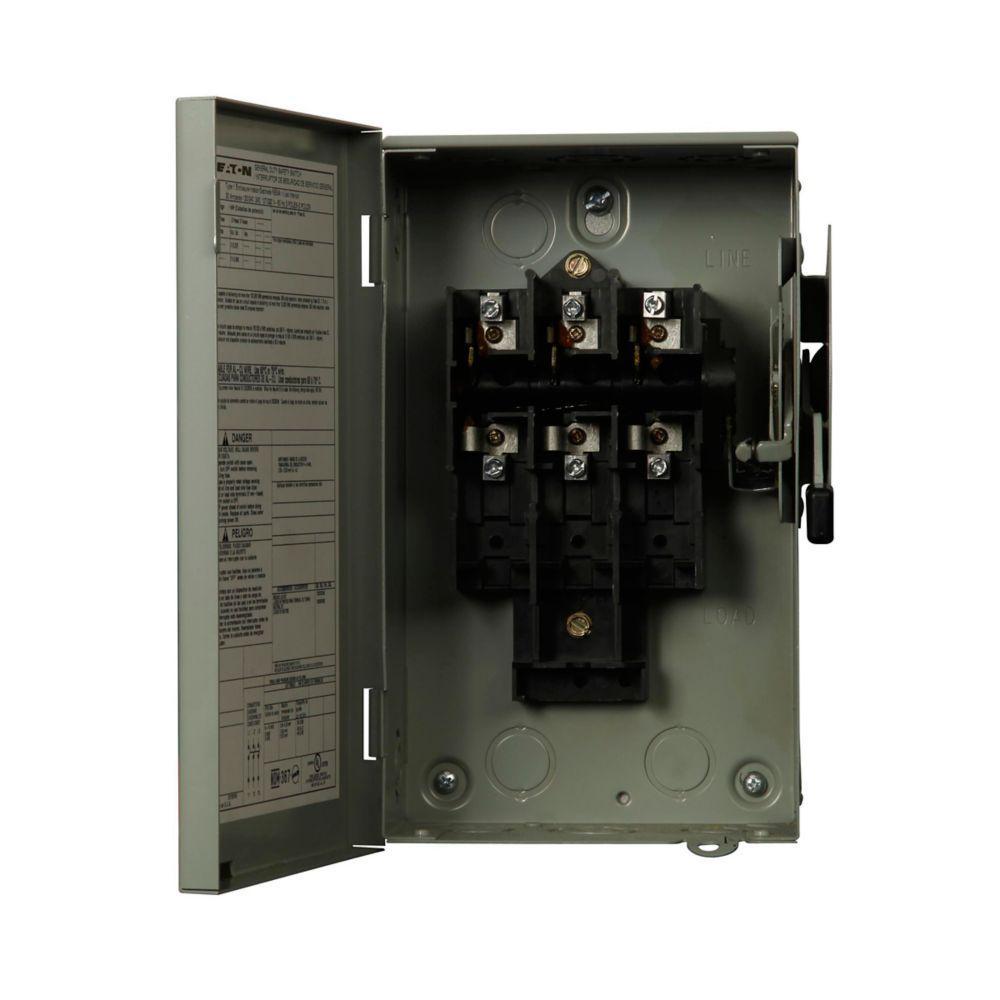

DG321UGB CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 240V NEMA 1

Mouse over image to zoom, click to enlarge

  • DG321UGB CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 240V NEMA 1
  • DG321UGB CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 240V NEMA 1

Description: EATON General Duty Safety Switch, Non-Fusible, Series: DG Series, 240 V AC, 30 A, 3 hp, 7-1/2 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST Contact Form, NEMA 1 Enclosure, Panel Mounting, 5.73 in L x 6.1 in W x 6.25 in H Dimensions, Steel, Painted

Manufacturer PN: DG321UGB

UPC:  78211312014

Kendall Electric Inc PN: 2016336

Invoice Description:

DG321UGB CH SAFETY SWITCH NON-FUSIBLE 3P 30 AMP 240V NEMA 1


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

EATON DG321UGB DG Series Non-Fusible General Duty Safety Switch, 240 V AC, 30 A, 3 hp, 7-1/2 hp, 3PST Contact, 3 Poles

Log In for Pricing and Availability




Description

General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartidge) and non-fusible switches are available.
EATON General Duty Safety Switch, Non-Fusible, Series: DG Series, 240 V AC, 30 A, 3 hp, 7-1/2 hp, 1/3 ph, 3 Pole, 3 Wires, 3PST Contact Form, NEMA 1 Enclosure, Panel Mounting, 5.73 in L x 6.1 in W x 6.25 in H Dimensions, Steel, Painted

Specifications

 Amperage Rating 30 A
 Application Indoor and Power Distribution Applications
 Brand Name EATON
 Contact Form 3PST
 Dimensions 5.73 in L x 6.1 in W x 6.25 in H
 Enclosure NEMA 1
 Finish Painted
 Horsepower 3 hp, 7-1/2 hp
 Manufacturer Part Number DG321UGB
 Material Steel
 Mounting Type Panel
 Number of Poles 3
 Number of Wires 3
 PART NUMBER KEYWORDS DG321UGB ; 7337069 ; 782113120140 ; 78211312014 ; 00782113120140
 Phase 1/3
 Series DG Series
 Standards/Approvals UL Listed,NEC 230.62 (C) Compliant Barrier
 Type Non-Fusible
 Video Links
 Voltage Rating 240 V AC

Features

▪ Fusible and non-fusible switches are 100% load break and 100% load make rated
▪ The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
▪ Non-fusible switches are 100% fully rated
▪ 200 to 600A features K-series design
▪ With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
▪ Design for series B general duty 30 to 100 A
