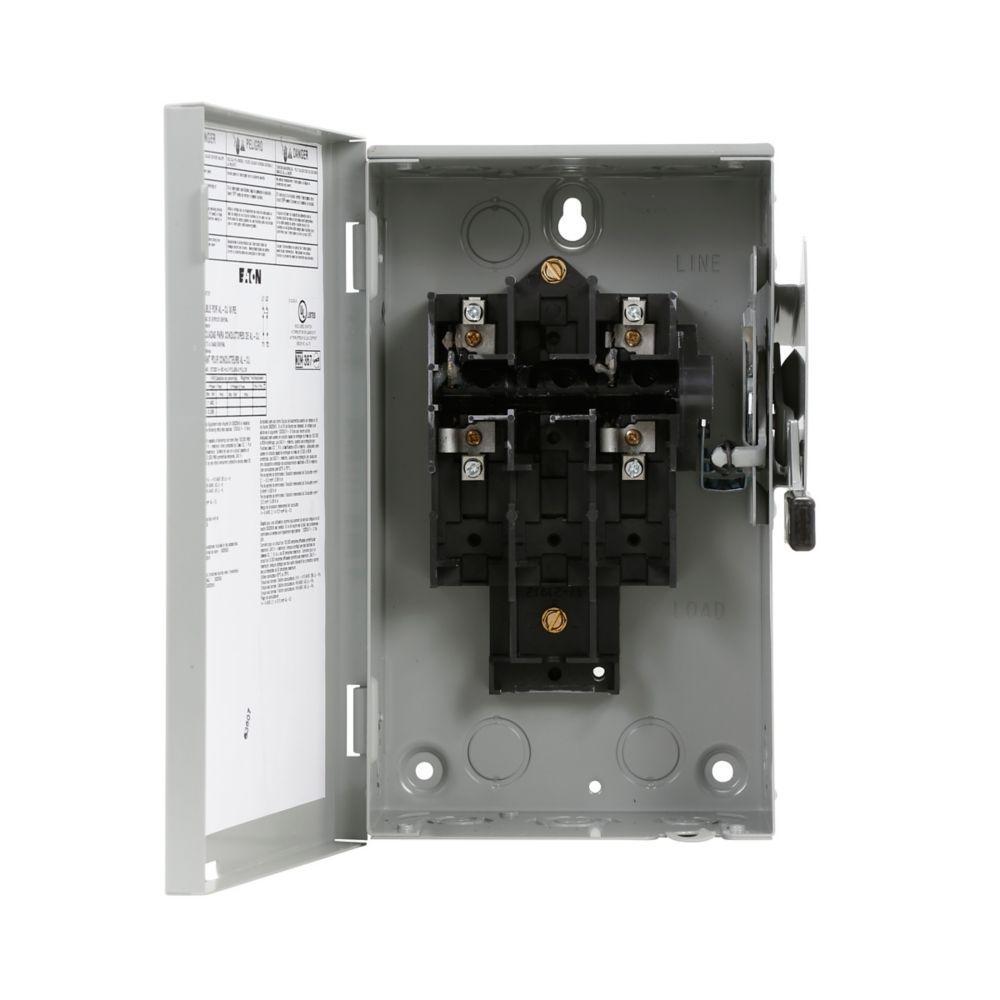

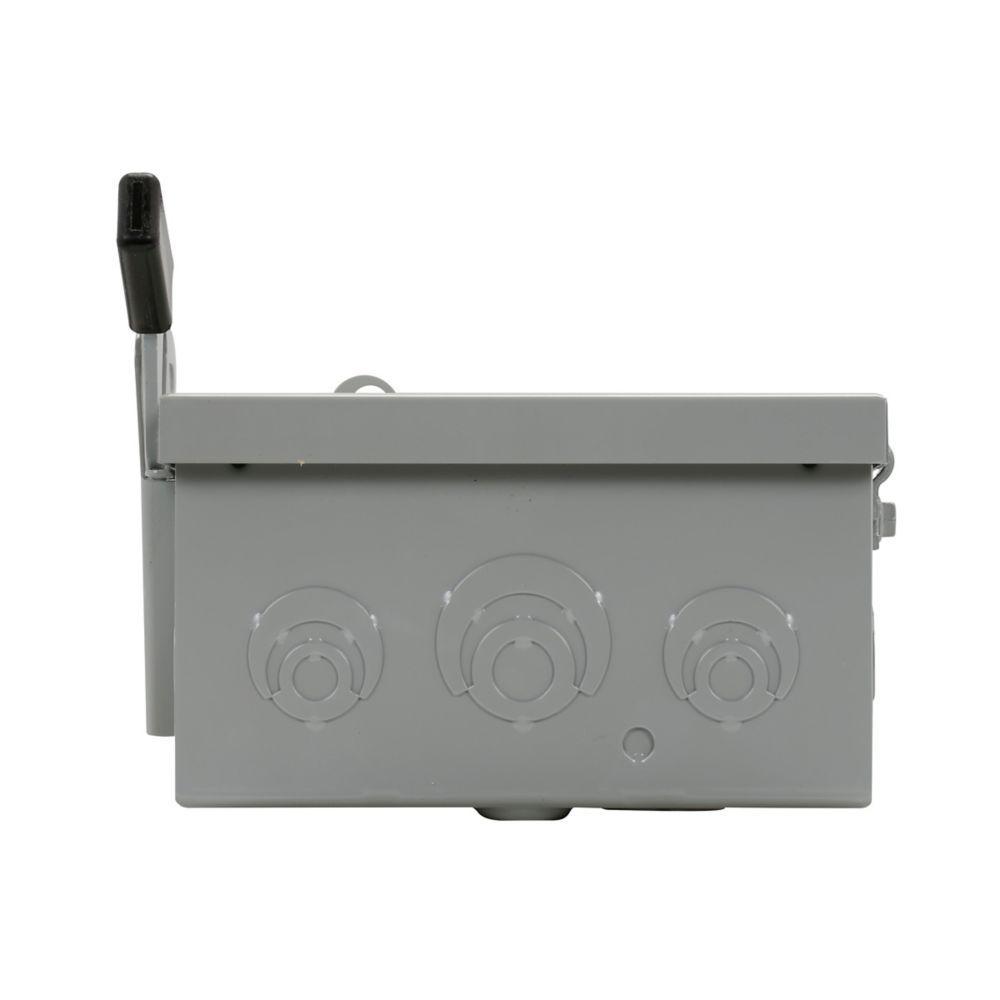

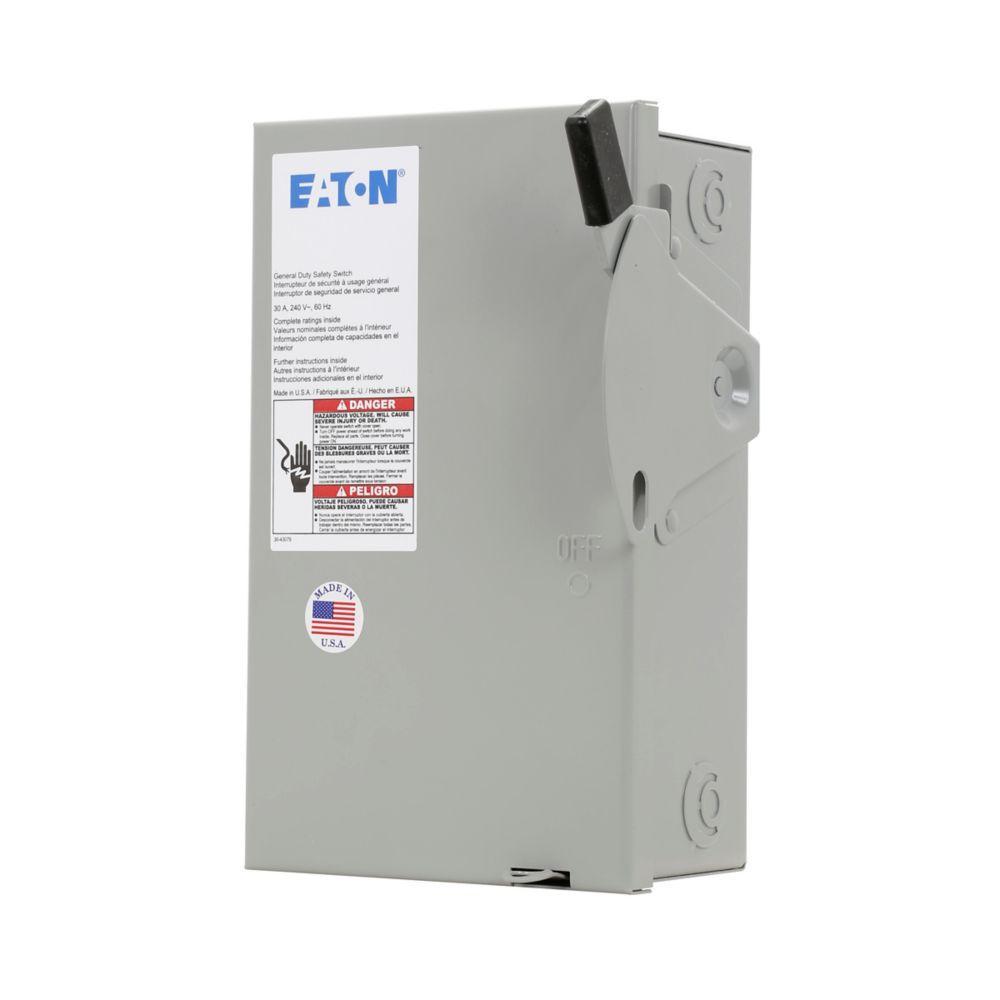

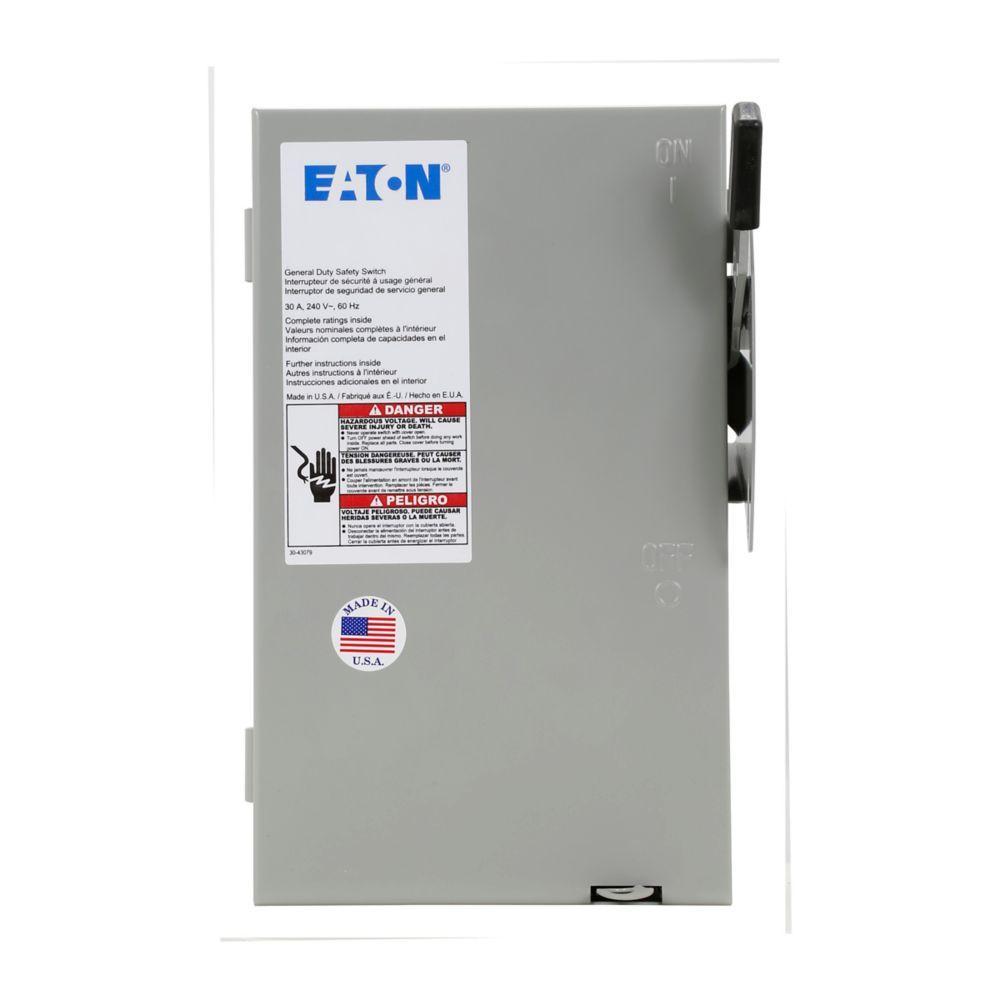

DG221UGB C-H General Duty Safety Switch

Mouse over image to zoom, click to enlarge

  • DG221UGB C-H General Duty Safety Switch
  • DG221UGB C-H General Duty Safety Switch
  • DG221UGB C-H General Duty Safety Switch
  • DG221UGB C-H General Duty Safety Switch
  • DG221UGB C-H General Duty Safety Switch

Description: EATON General Duty Safety Switch, Non-Fusible, Series: DG Series, 240 VAC, 30 A, 3 hp, 1 ph, 2 Pole, 2 Wires, DPST Contact Form, NEMA 1 Enclosure, Surface Mounting, 5.73 in L x 6.1 in W x 6.25 in H Dimensions, Steel, Painted

Manufacturer PN: DG221UGB

UPC:  78211312010

Kendall Electric Inc PN: 2183381

Invoice Description:

DG221UGB C-H General Duty Safety Switch


SPEC SHEET

▸ See All in General Duty Safety Switches


How Can We Make This Page Better?

EATON DG221UGB DG Series Non-Fusible General Duty Safety Switch, 240 VAC, 30 A, 3 hp, DPST Contact, 2 Poles

Log In for Pricing and Availability




Description

General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.
EATON General Duty Safety Switch, Non-Fusible, Series: DG Series, 240 VAC, 30 A, 3 hp, 1 ph, 2 Pole, 2 Wires, DPST Contact Form, NEMA 1 Enclosure, Surface Mounting, 5.73 in L x 6.1 in W x 6.25 in H Dimensions, Steel, Painted

Specifications

 Amperage Rating 30 A
 Application Indoor and Power Distribution Applications
 Brand Name EATON
 Contact Form DPST
 Dimensions 5.73 in L x 6.1 in W x 6.25 in H
 Enclosure NEMA 1
 Finish Painted
 Horsepower 3 hp
 Manufacturer Part Number DG221UGB
 Material Steel
 Mounting Type Surface
 Number of Poles 2
 Number of Wires 2
 Phase 1
 Series DG Series
 Standards/Approvals UL Listed|PROP65: This product can expose you to chemicals including: Nickel compounds which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Type Non-Fusible
 Video Links
 Voltage Rating 240 VAC

Features

▪ Fusible and non-fusible switches are 100% load break and 100% load make rated
▪ The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits
▪ Non-fusible switches are 100% fully rated
▪ 200 to 600A features K-series design
▪ With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
▪ Design for series B general duty 30 to 100 A
