Hubbell

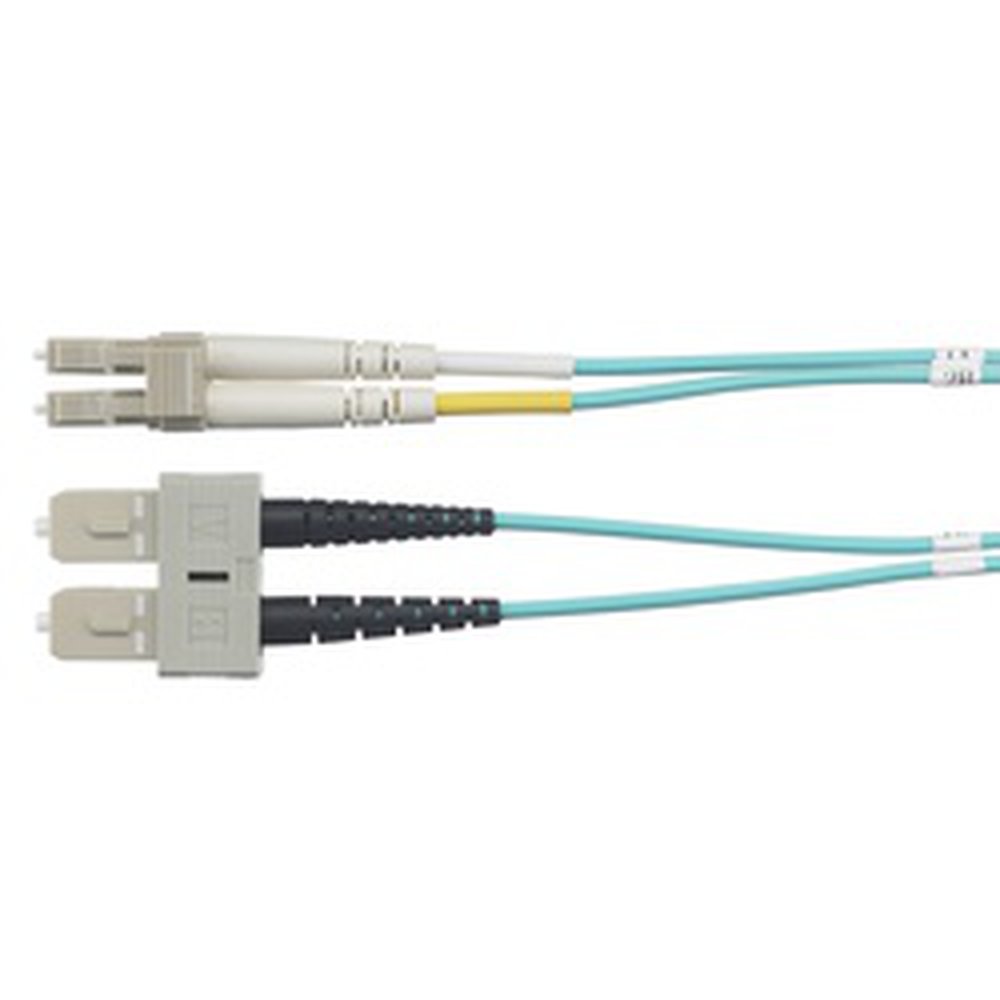

DFRCLCSCE8MM HUBBELL FIBER, P-CORD,R,OM3,DUP,LC-SC,8M

Mouse over image to zoom, click to enlarge

Description: PREMISE WIRING, DFRCLCSCE8MM, Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Riser, 8 m Length, Copper Conductor, LC to SC Connector, 50 um Core, 0.75 dB Attenuation, Polyolefin Insulation, Thermoplastic Jacket, Gray Jacket, 32 to 158 deg F

Manufacturer PN: DFRCLCSCE8MM

UPC:  66262032861

Kendall Electric Inc PN: 4705164

Invoice Description:

DFRCLCSCE8MM HUBBELL FIBER, P-CORD,R,OM3,DUP,LC-SC,8M


SPEC SHEET

▸ See All in Fiber Optic Patch Cords


How Can We Make This Page Better?

PREMISE WIRING DFRCLCSCE8MM Duplex OM3 Multi-Mode Riser Fiber Optic Patch Cord, 50 um Core, 8 m L, Copper Conductor

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Fiber patch cords provide connections from the work area to the wall outlet, or from active equipment to the patch panel. These applications include connecting to network interface cards (NIC), or to a fiber hub, router or switch. Cords are available as duplex or simplex 62.5/125, 50/125 MM, 50/125 laser optimized or SM fibers. We offer ST-style, SC, MT-RJ or LC connectors. All patch cords are factory polished and 100% optically tested for superior performance.
PREMISE WIRING, DFRCLCSCE8MM, Fiber Optic Patch Cord, Duplex OM3 Multi-Mode Riser, 8 m Length, Copper Conductor, LC to SC Connector, 50 um Core, 0.75 dB Attenuation, Polyolefin Insulation, Thermoplastic Jacket, Gray Jacket, 32 to 158 deg F

Specifications

 Application Data Exchange, 10 Gbps/25 Gbps Fiber Channel, Backbone, Horizontal Distribution Interconnect, Data Center Equipment Interconnect Applications
 Attenuation Rating 0.75 dB
 Brand Name Hubbell Premise Wiring
 Conductor Type Copper
 Connector Type LC to SC
 Core Dimension 50 um
 Fitting Type LC to SC
 Insulation Material Polyolefin
 Jacket Color Gray
 Jacket Material Thermoplastic
 Length 8 m
 Manufacturer Part Number DFRCLCSCE8MM
 PART NUMBER KEYWORDS DFRCLCSCE8MM ; 12259928 ; 12265144 ; 662620328614 ; 66262032861 ; 00662620328614 ; 0662620328614
 Standards/Approvals RoHS Compliant|TIA-568.C-2|TIA Approved|EIA-568-B.3
 Temperature Rating 32 to 158 deg F
 Type Duplex OM3 Multi-Mode Riser

Features

▪ Precision zirconia ferrule, PC polish
▪ 100% tested, heat cured epoxy termination
▪ High quality zirconia ferrules for high performance and superior durability
▪ Low mated pair insertion loss minimum impact on signal budget
▪ Wide temperature operating range for environmental stability
▪ Precision engineered plastic SC housings for consistent repeatable mating
