Hubbell

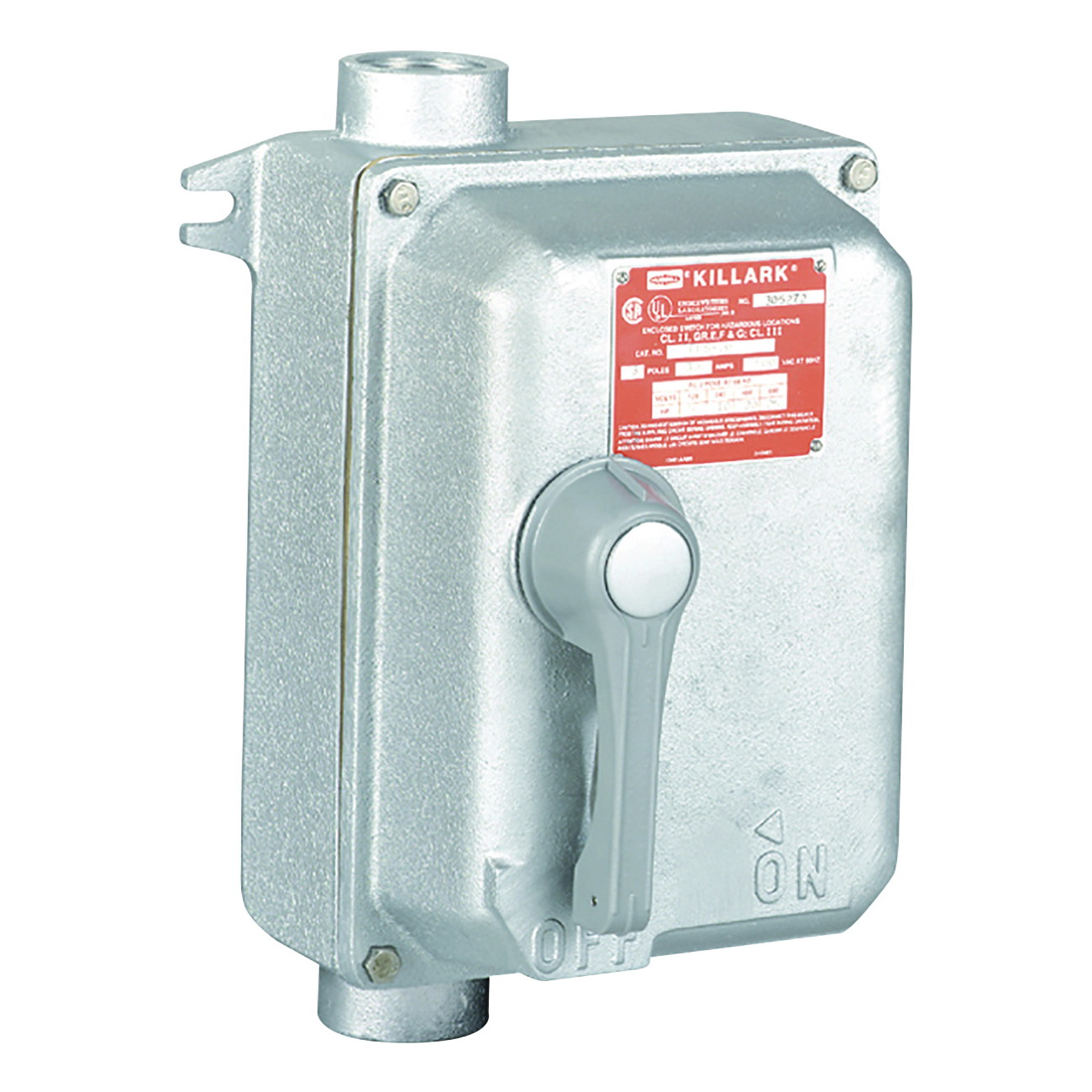

DEDS-60 KIL CL II 60A NON-FUSIBLE DISC(DE) 78393611644

Mouse over image to zoom, click to enlarge

  • DEDS-60 KIL CL II 60A NON-FUSIBLE DISC(DE) 78393611644
  • DEDS-60 KIL CL II 60A NON-FUSIBLE DISC(DE) 78393611644

Description: Killark® Disconnect Switch, Non-Fused, Series: DEDS Series, 600 VAC, 250 VDC, 60 A, 20 hp, 40 hp, 60 hp, 3 ph, 60 Hz Frequency, 3 Pole, External Handle Actuator, NEMA 3R/4/9EFG Enclosure, Wall Mounting, 40 deg C, 15-3/8 in H x 7-3/4 in W x 7 in D Dimensions, Copper-Free Aluminum

Manufacturer PN: DEDS-60

UPC:  78393611644

Kendall Electric Inc PN: 2116815

Invoice Description:

DEDS-60 KIL CL II 60A NON-FUSIBLE DISC(DE) 78393611644


SPEC SHEET

How Can We Make This Page Better?

Killark® DEDS-60 Non-Fused Disconnect Switch, 600 VAC, 250 VDC, 60 A, 20 hp, 40 hp, 60 hp, 3 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Killark® Disconnect Switch, Non-Fused, Series: DEDS Series, 600 VAC, 250 VDC, 60 A, 20 hp, 40 hp, 60 hp, 3 ph, 60 Hz Frequency, 3 Pole, External Handle Actuator, NEMA 3R/4/9EFG Enclosure, Wall Mounting, 40 deg C, 15-3/8 in H x 7-3/4 in W x 7 in D Dimensions, Copper-Free Aluminum

Specifications

 Actuator Type External Handle
 Amperage Rating 60 A
 Application Indoor/Outdoor Windblown Dust, Rain, Splashing Water, Hose Directed Water and Damage From External Ice Formation, Harsh and Hazardous Environments Applications
 Brand Name Killark
 Dimensions 15-3/8 in H x 7-3/4 in W x 7 in D
 Enclosure NEMA 3R/4/9EFG
 Frequency Rating 60 Hz
 Horsepower 20 hp, 40 hp, 60 hp
 Manufacturer Part Number DEDS-60
 Material Copper-Free Aluminum
 Mounting Type Wall
 Number of Poles 3
 PART NUMBER KEYWORDS DEDS-60 ; DEDS60 ; 11816173 ; 783936116440 ; 78393611644 ; 00783936116440 ; 0783936116440
 Phase 3
 Series DEDS Series
 Standards/Approvals UL File No. E53290|CSA File No. LR11714|Class II Divisions 1 and 2 Groups E, F, G|Class III Divisions 1 and 2|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
 Temperature Rating 40 deg C
 Type Non-Fused
 Voltage Rating 600 V AC/250 V DC

Features

▪ Bolted and gasketed cabinet type construction insures the exclusion of conductive or combustible dusts from entering the assembly
▪ Cover bolts are stainless steel
▪ External handle is vault type with standard provisions for locking in the OFF position with up to three padlocks
▪ Provisions for locking in ON position available as factory modification (Add suffix SU40 to catalog number)
▪ Eaton (Cutler-Hammer) Type DS Switches
▪ Two cast conduit hubs, one top and one bottom
▪ Internal disconnect handle mechanism is a sliding plate mounted to the cover

Resources

 Catalog
 Catalog Page
 Product Data Sheet
